Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#114699) — 368 parça

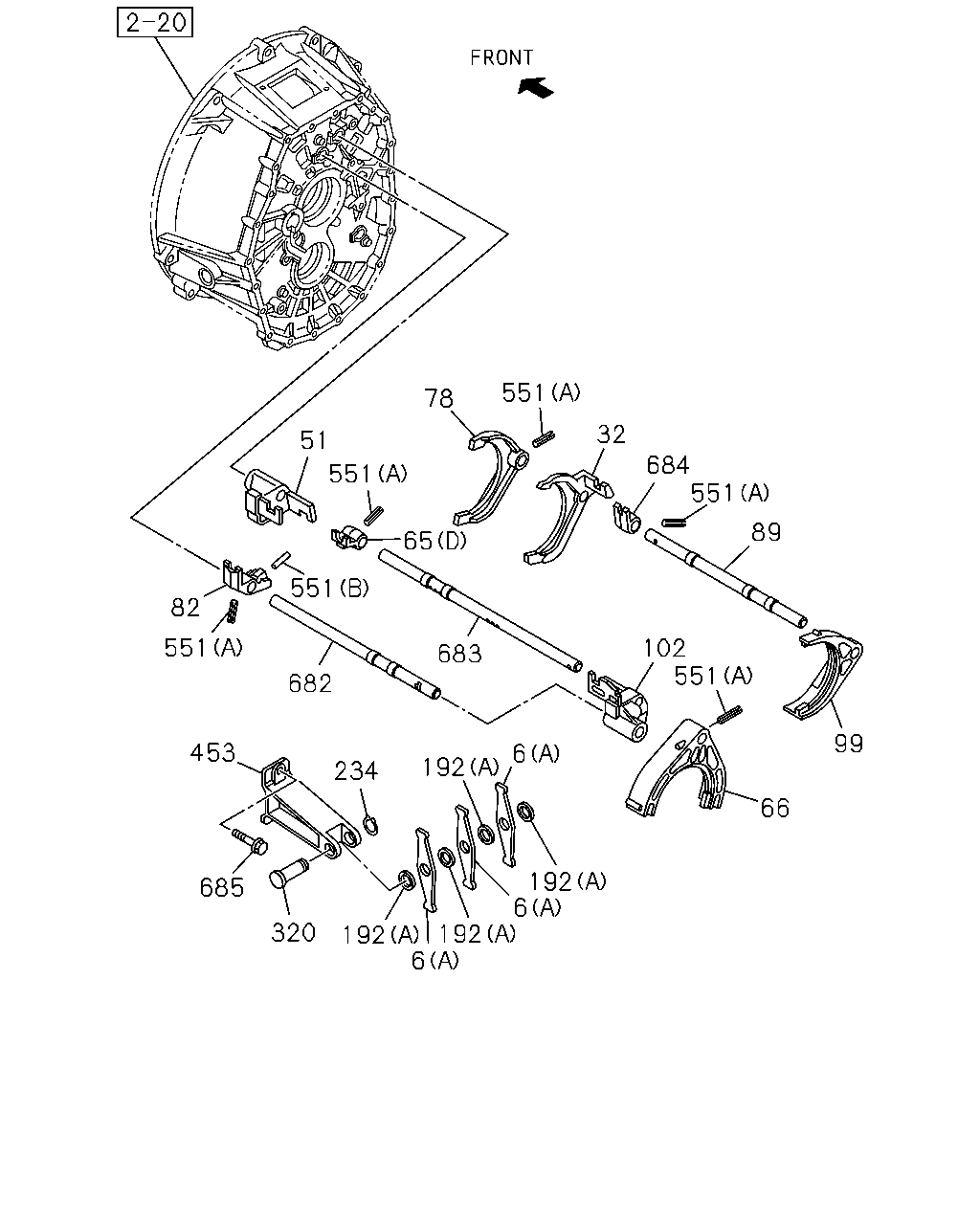

99 66 192 6 192 6 192 320 685 551 102 89 6 192 234 453 683 682 551 684 32 551 78 65 551 551 51 82 551

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-1510
6	LEVER; RELAY 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1511-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	1302-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-

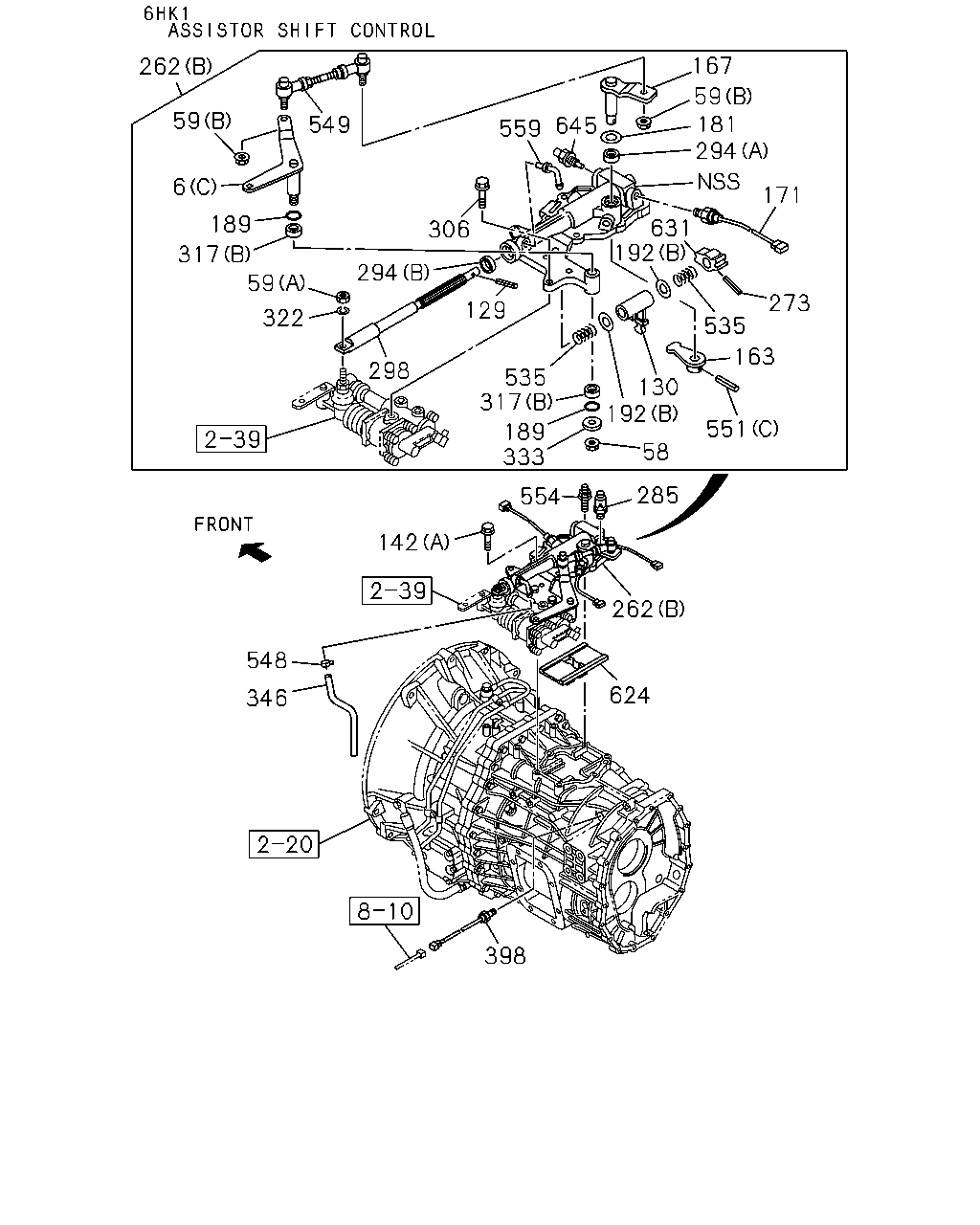

167 59 294 181 171 273 163 535 631 192 551 130 58 192 333 189 317 535 129 294 306 559 645 298 322 59 317 189 6 59 262 549 142 554 285 262 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-1510
6	LEVER; RELAY 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1511-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-1510
167	LEVER; SELECT,EXTERNAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1511-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1511-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1304
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-1510
298	SHAFT; SHIFT LEVER 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1511-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-1510
549	ROD; LINK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1511-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-1510
631	STOPPER; SPRING 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1511-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

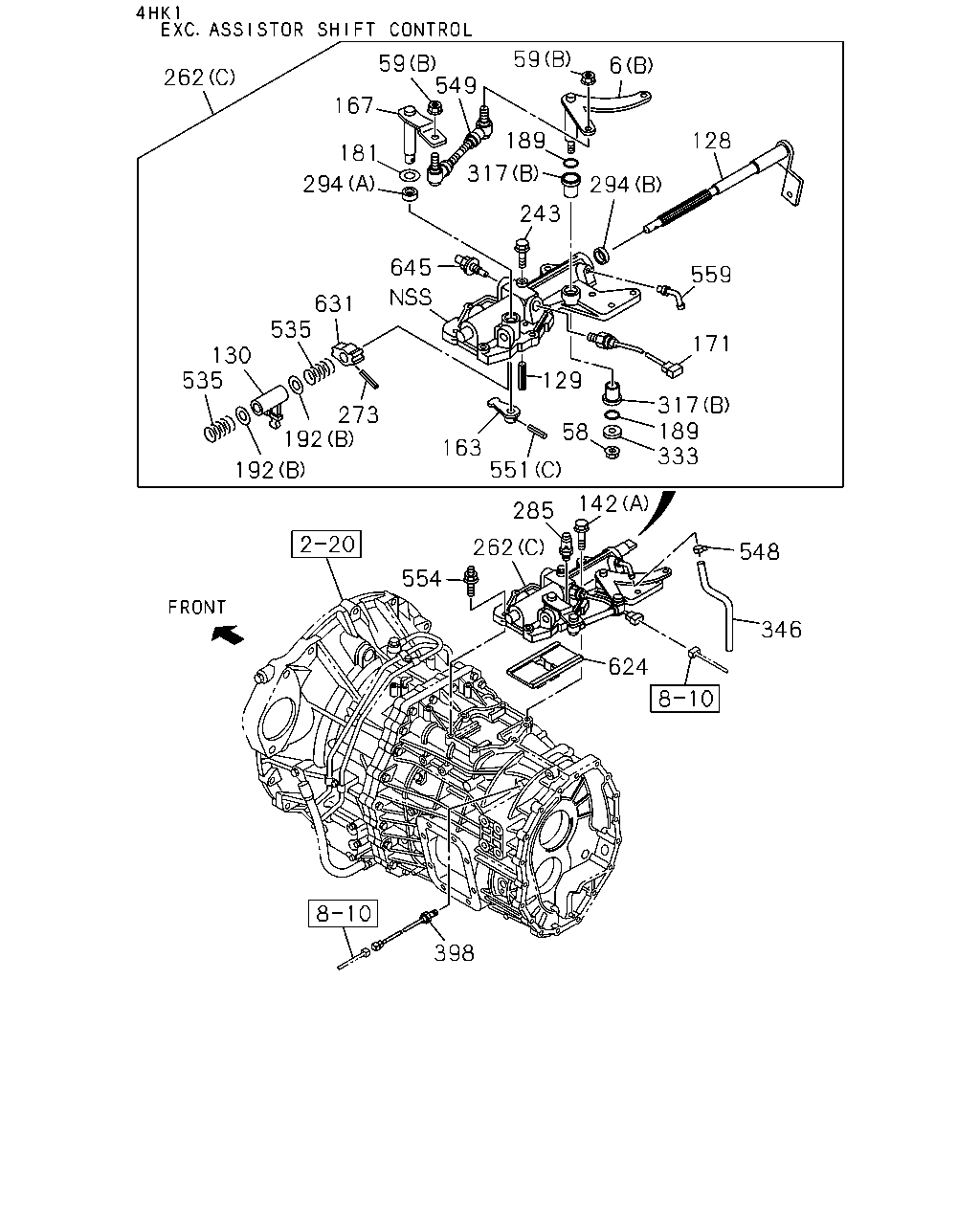

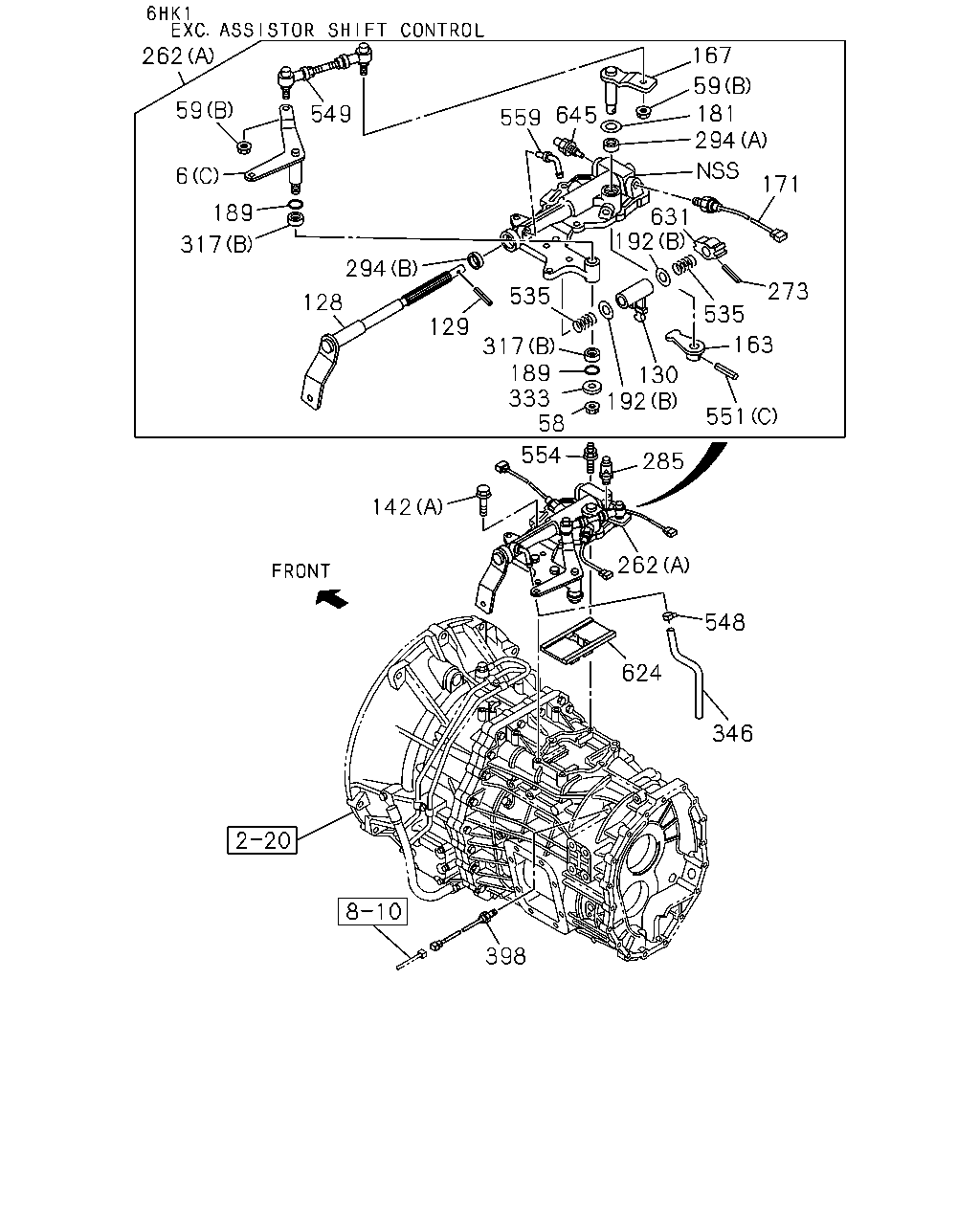

398 142 554 285 262 548 624 346 192 551 163 273 171 294 631 192 535 129 317 189 333 58 130 535 181 59 167 645 559 294 128 317 189 6 59 262 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-1510
6	LEVER; RELAY 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1511-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1304
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-1510
128	LEVER; SHIFT,EXTERNAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1511-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-1510
167	LEVER; SELECT,EXTERNAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1511-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1511-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-1510
549	ROD; LINK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1511-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-1510
631	STOPPER; SPRING 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1511-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

6 128 294 559 171 317 333 189 129 551 163 243 317 189 59 59 167 181 294 645 631 535 130 535 192 192 273 554 285 262 142 548 346 624 398 262 549 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-1510
6	LEVER; RELAY 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1511-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1304
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-1510
128	LEVER; SHIFT,EXTERNAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1511-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-1510
167	LEVER; SELECT,EXTERNAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1305-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1511-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1511-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-1510
549	ROD; LINK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1511-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-1510
631	STOPPER; SPRING 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1511-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

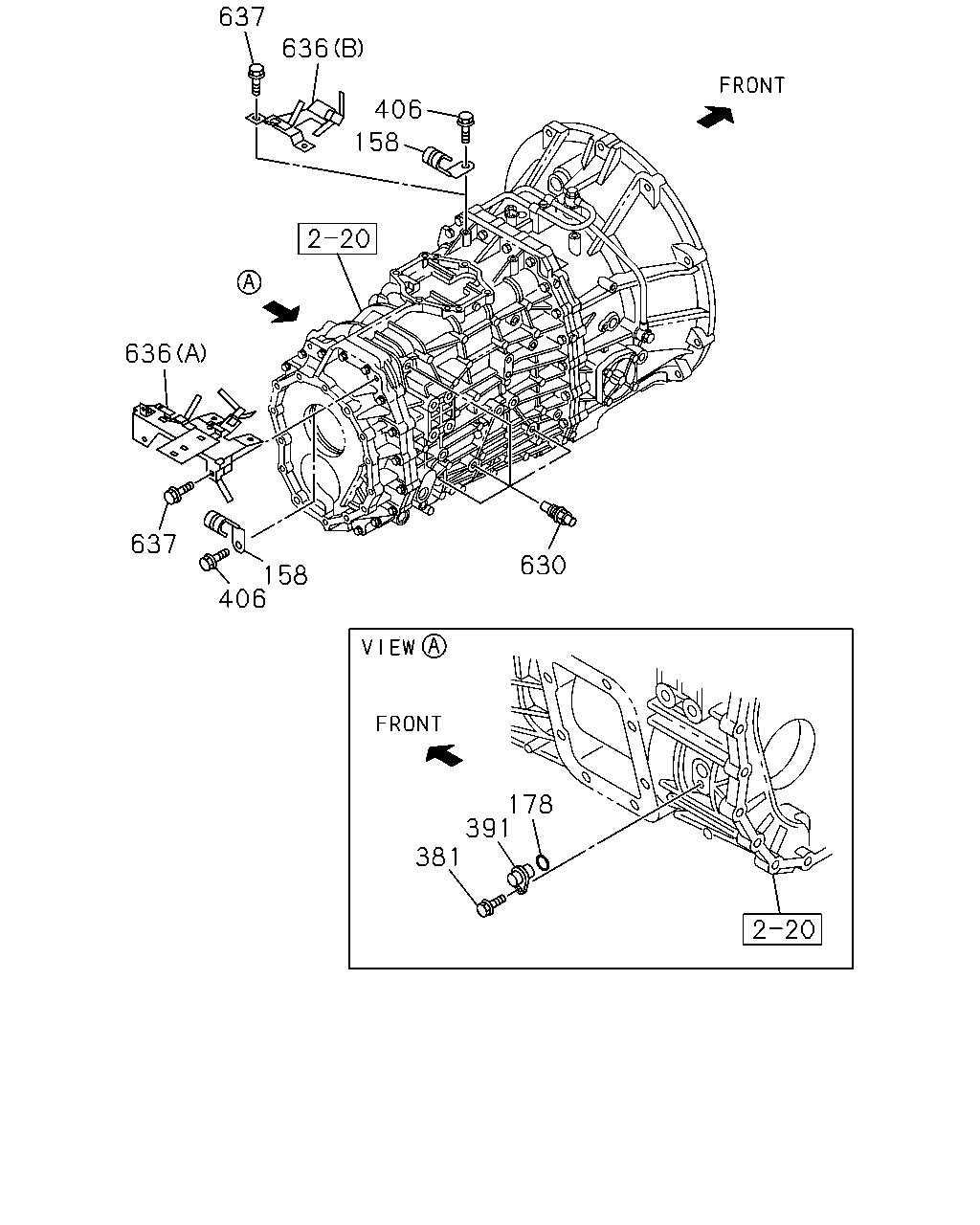

178 391 381 630 158 406 637 636 637 636 406 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-
630	DETENT ASM	8-98019-536-0	04	1	1302-
636	BRACKET; CLIP (A)	8-97610-096-2	01	1	1302-1304
636	BRACKET; CLIP 6HK1-TCN ENG(82L) (A)	8-97610-096-2	01	1	1305-1510
636	BRACKET; CLIP 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-97610-096-2	01	1	1511-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS) (B)	8-97610-092-1	01	1	1305-1502
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-1502
637	BOLT; BRACKET 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1503-1510
637	BOLT; BRACKET 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1511-

59 298 322 6 59 549 59 167 294 181 631 535 130 535 192 192 273 645 317 189 294 243 559 306 317 333 129 189 551 163 171 58 554 285 262 142 346 548 624 398 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1305-1510
6	LEVER; RELAY 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C)	8-98022-855-0	01	1	1511-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1305-1510
167	LEVER; SELECT,EXTERNAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1511-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1305-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-335-1	01	1	1511-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1508-1510
262	BOX ASM; SHIFT CONT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-336-1	01	1	1511-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1304
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-1510
298	SHAFT; SHIFT LEVER 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1511-
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER (B)	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1305-1510
549	ROD; LINK 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1511-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1305-1510
631	STOPPER; SPRING 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1511-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
