Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#114698) — 605 parça

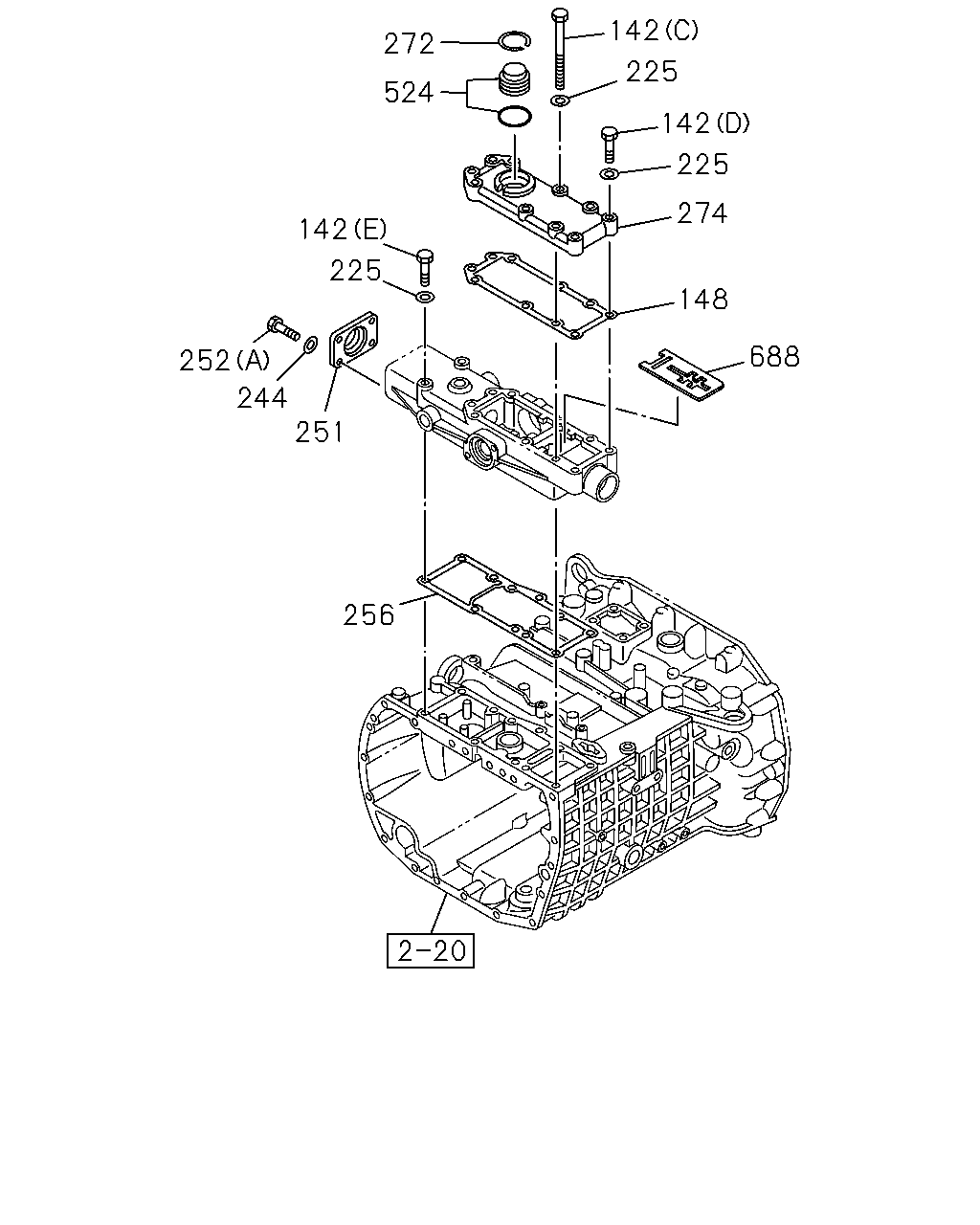

272 142 142 274 225 142 252 251 256 148 688 524 225 244 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33544-056-0	01	1	1302-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-064-0	01	1	1302-
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1302-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-
244	WASHER; LK,COVER	1-33549-159-0	04	1	1302-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-472-0	01	1	1302-1305
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM)	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1302-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1302-
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	1302-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-457-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-571-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-579-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1306-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
524	DETENT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-501-0	01	1	1302-
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	1302-

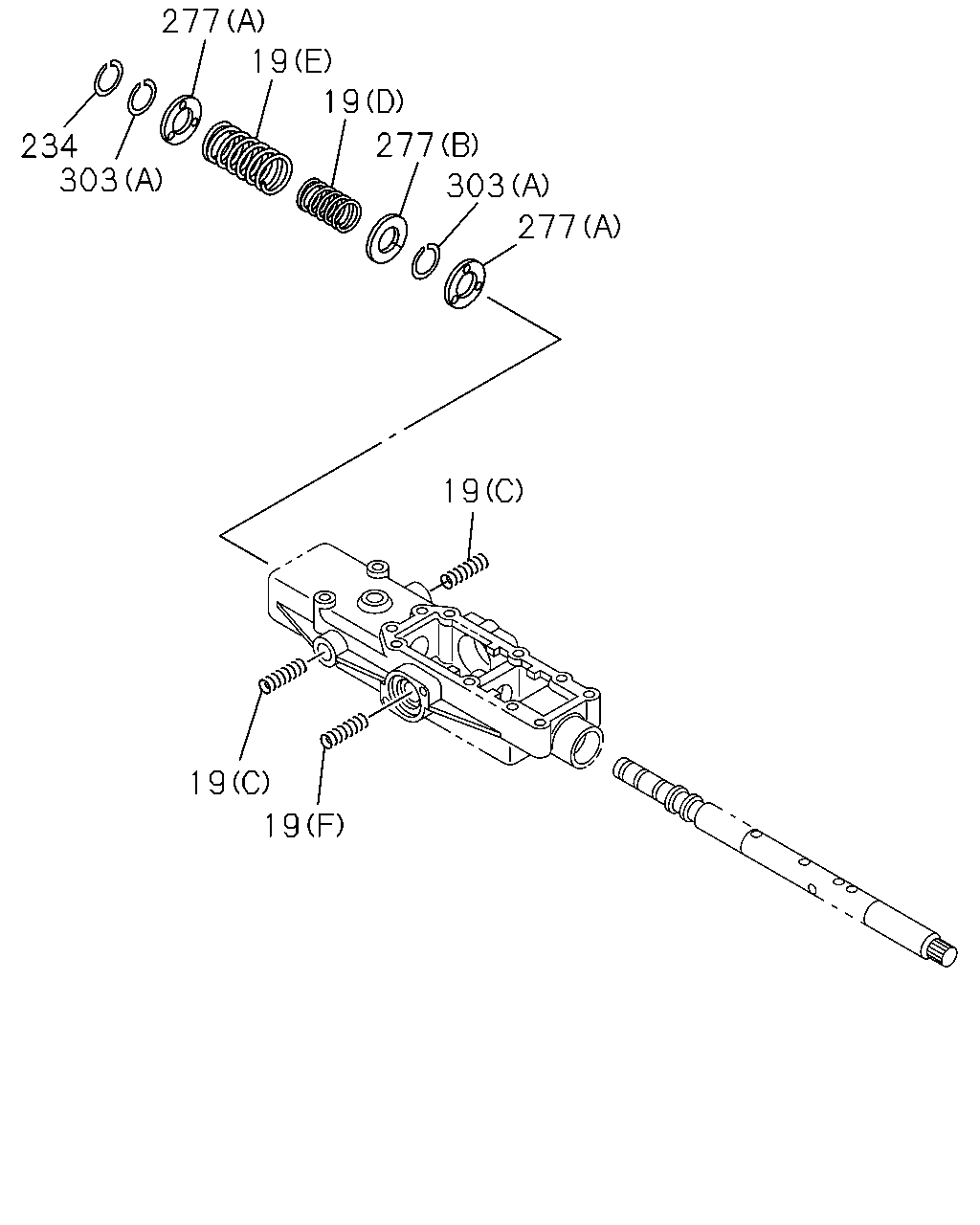

277 19 19 277 277 303 234 19 19 19 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1302-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1302-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1302-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1302-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
234	RING; SNAP	1-44519-224-0	01	1	1302-
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1302-1305
277	PLATE; SPRING SEAT (A)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-042-0	01	1	1302-1305
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-

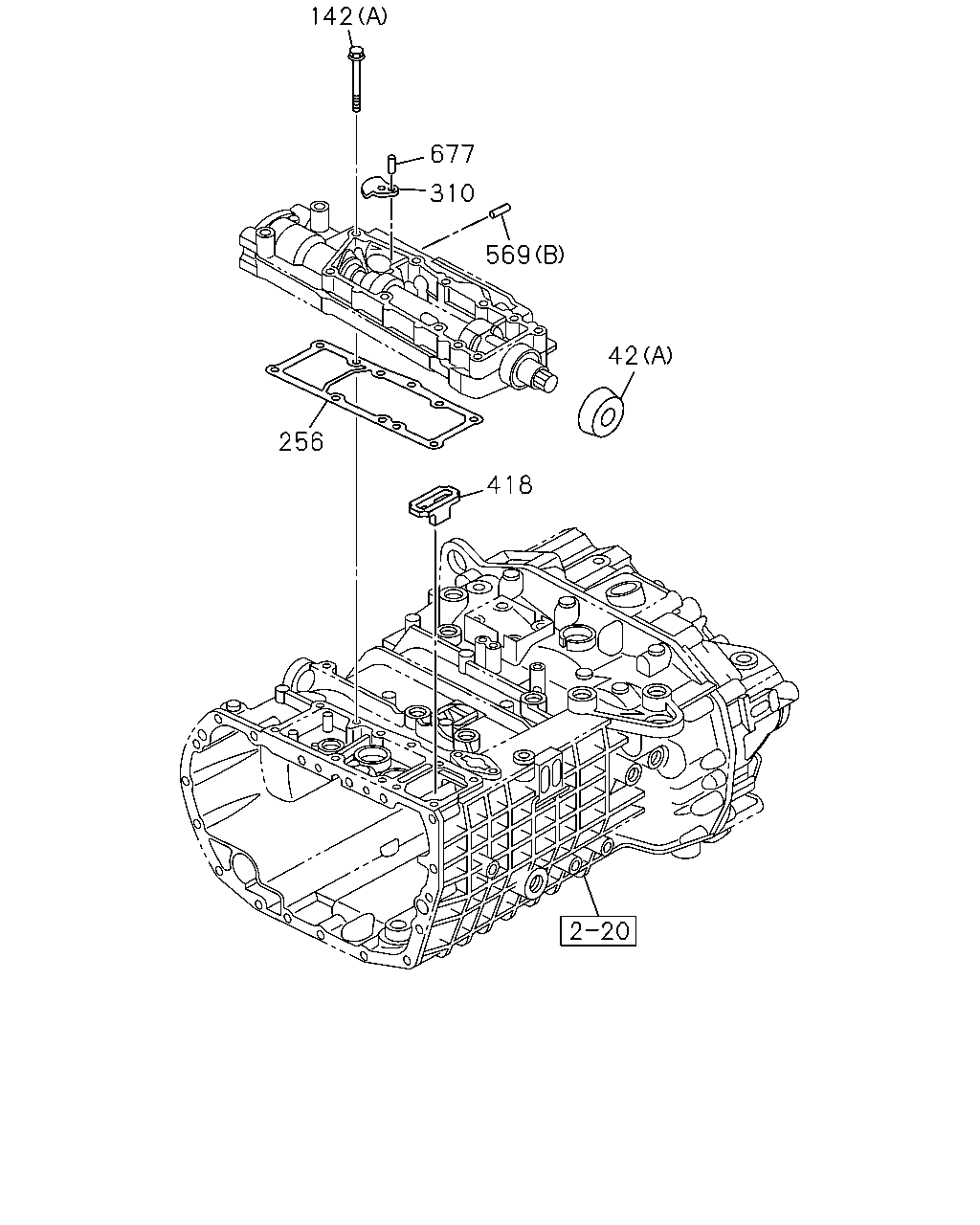

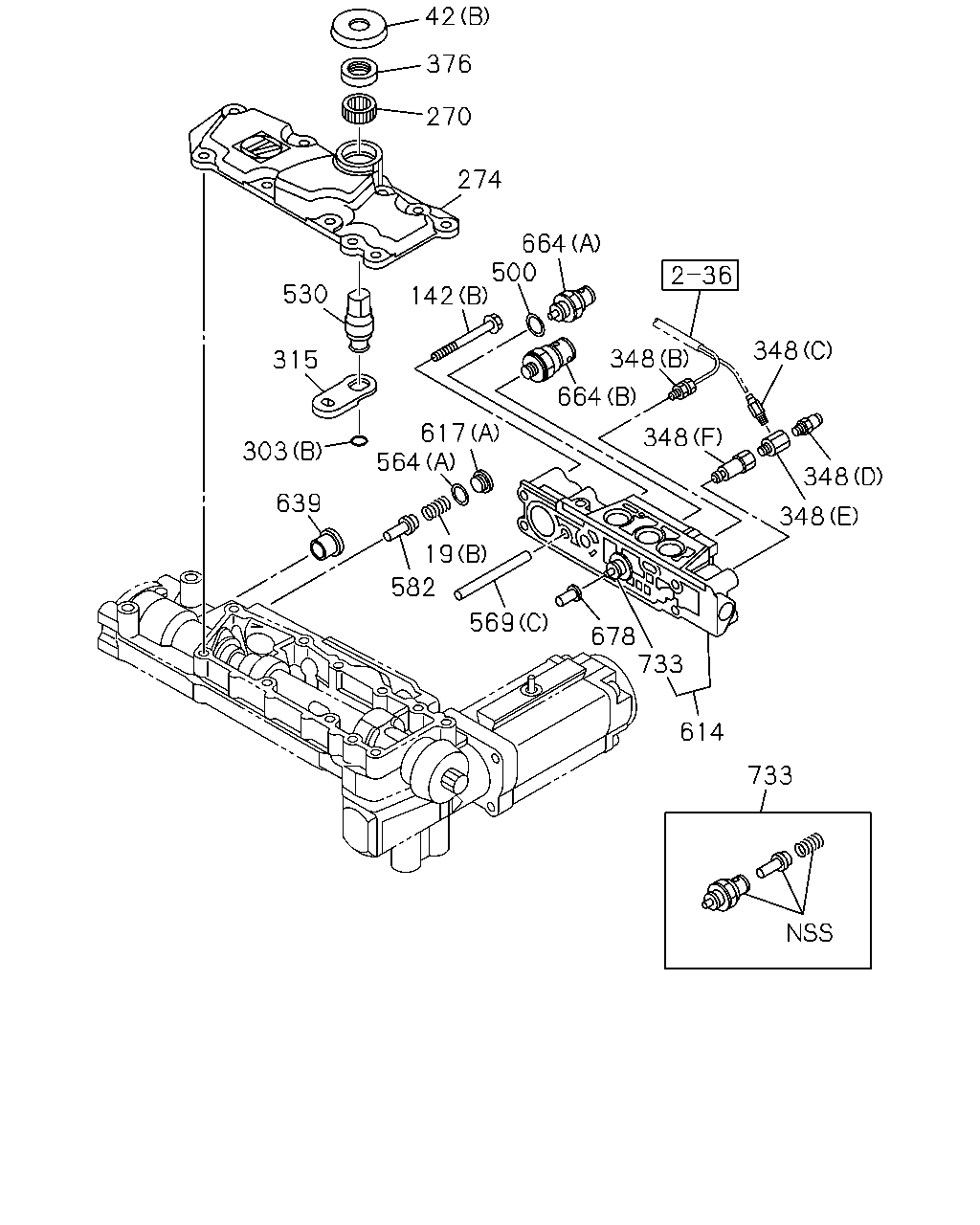

42 376 270 274 500 664 142 664 530 315 303 639 617 19 582 569 678 733 614 348 348 348 348 733 564 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1302-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1302-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1302-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1302-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	1302-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
270	BEARING; NEEDLE,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-459-0	01	1	1302-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-457-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-571-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-579-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-477-0	01	1	1306-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1302-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305
376	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33549-462-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1302-
530	SHAFT; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-460-0	01	1	1302-
564	SEAL; RING (A)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (A)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (B) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1302-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1302-
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-464-0	01	1	1302-1305
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-549-0	01	1	1306-
617	PLUG (B)	1-34129-061-0	01	1	1302-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-465-0	01	1	1302-1305
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-576-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-469-0	01	1	1302-1305
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-627-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	1302-
678	TAPPET ASSISTOR SHIFT CONTROL<WX8>	1-33549-466-0	01	1	1302-
733	REPAIR KIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-617-0	01	1	1306-

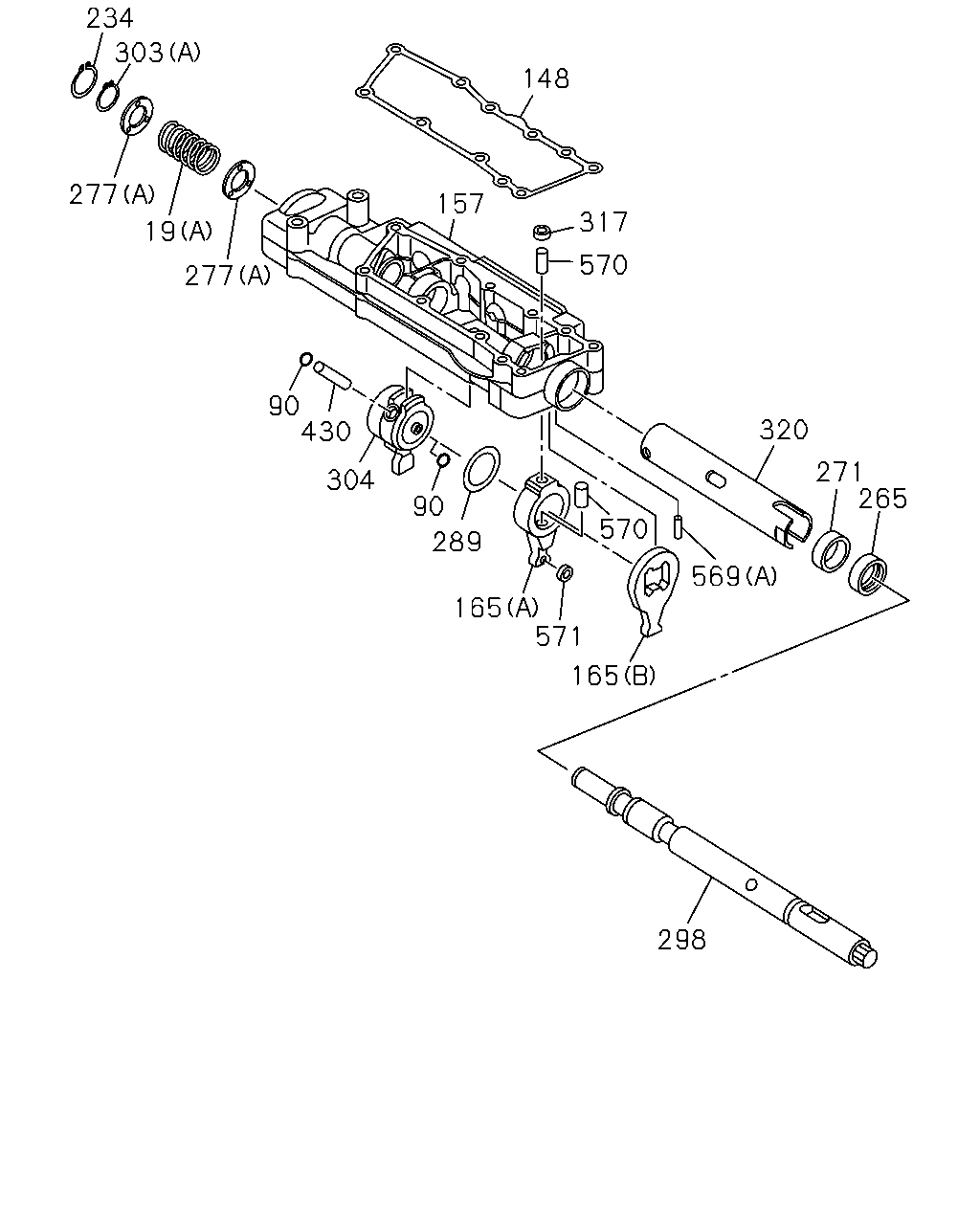

320 271 165 571 165 289 90 304 430 90 570 569 265 298 157 148 317 303 234 277 277 570 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1302-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1302-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1302-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1302-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1302-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1302-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33544-056-0	01	1	1302-
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-064-0	01	1	1302-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1302-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1302-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1306-
234	RING; SNAP	1-44519-224-0	01	1	1302-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1302-1305
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1302-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1302-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1302-
277	PLATE; SPRING SEAT (A)	1-33539-039-0	02	1	1302-1305
277	PLATE; SPRING SEAT (A)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-042-0	01	1	1302-1305
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	1302-1305
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-205-0	01	1	1302-
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1302-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1306-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1302-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1302-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1302-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1302-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1302-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33549-449-0	01	1	1302-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-493-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-451-0	02	1	1302-1305
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33529-117-0	02	1	1306-
571	ROLLER; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-324-0	01	1	1302-

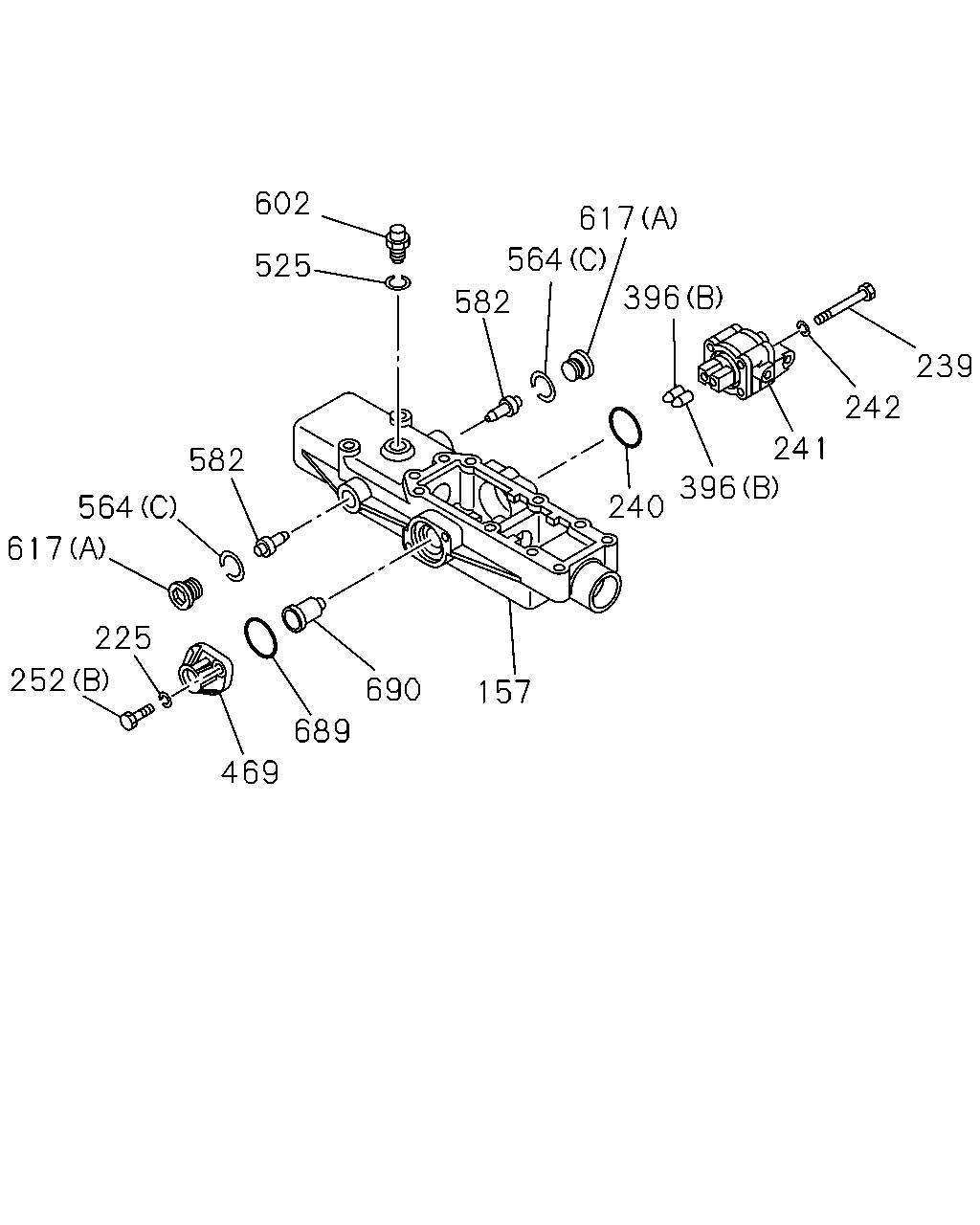

602 525 582 564 607 396 396 241 242 239 157 690 689 469 252 617 564 582 240 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8>	1-33549-445-0	01	1	1302-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-570-0	01	1	1302-
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1302-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-302-0	04	1	1302-1305
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-585-0	04	1	1306-
240	GASKET; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-198-0	01	1	1302-
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1302-
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	04	1	1302-1305
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	04	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-
469	COVER; SPRING,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-216-0	01	1	1302-
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	1302-
564	SEAL; RING (A)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (A)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (B) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8>	1-33549-471-0	01	1	1302-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-487-0	02	1	1302-
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-285-0	01	1	1302-1305
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-618-0	01	1	1306-
617	PLUG (B)	1-34129-061-0	01	1	1302-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-
689	GASKET; COVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-063-0	01	1	1302-
690	PIN; STOP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-496-0	01	1	1302-

569 332 48 42 264 265 298 90 304 430 90 271 165 165 289 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	1302-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1306-
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1302-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1302-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1302-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1302-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1306-
264	SEAL; DUST,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-119-0	01	1	1302-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-446-0	01	1	1302-1305
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-118-0	01	1	1302-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-318-0	01	1	1302-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-124-0	01	1	1302-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33522-203-0	01	1	1302-1305
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-205-0	01	1	1302-
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1302-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-204-0	01	1	1306-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-448-0	01	1	1302-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-492-0	01	1	1302-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1302-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33549-449-0	01	1	1302-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-493-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-

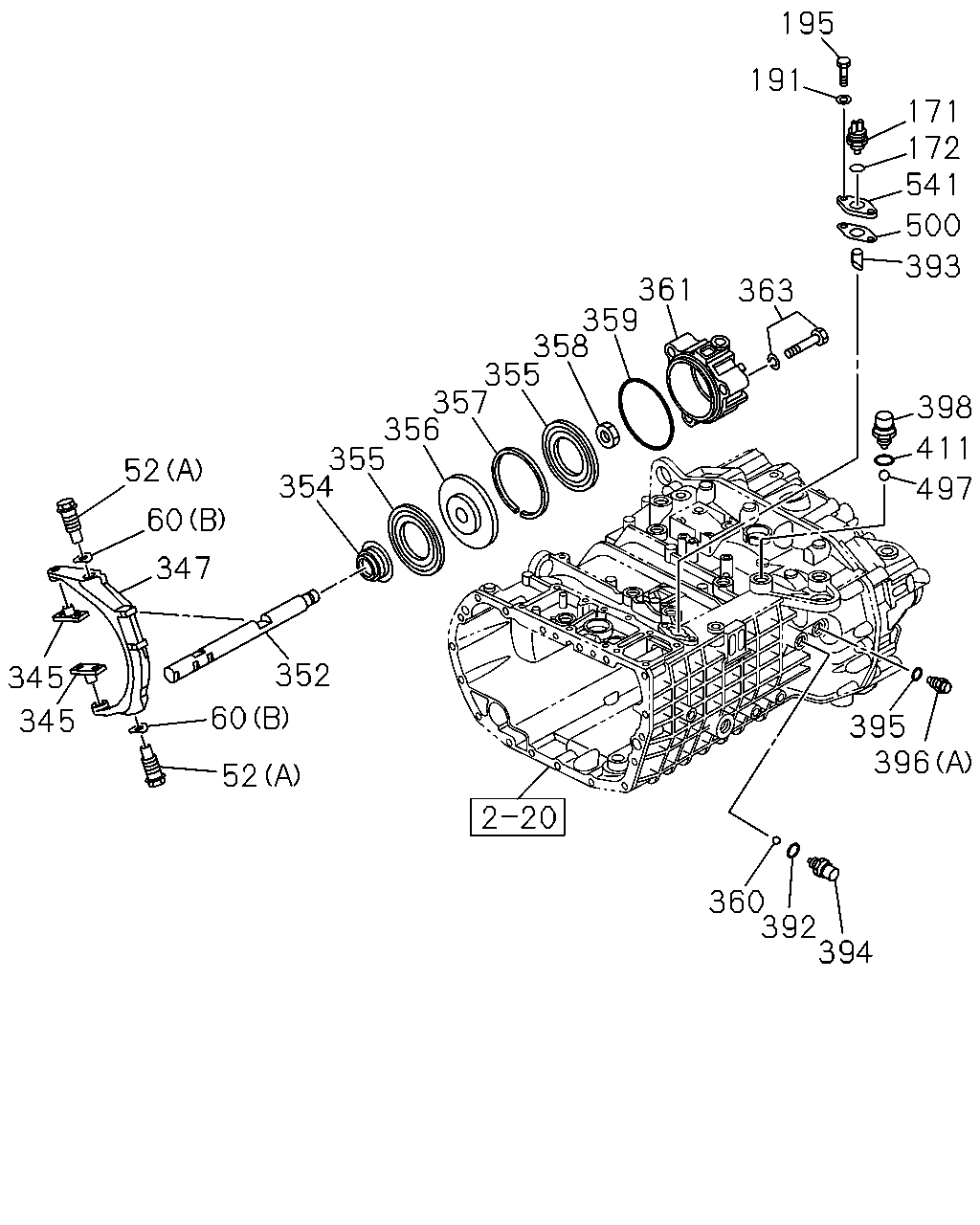

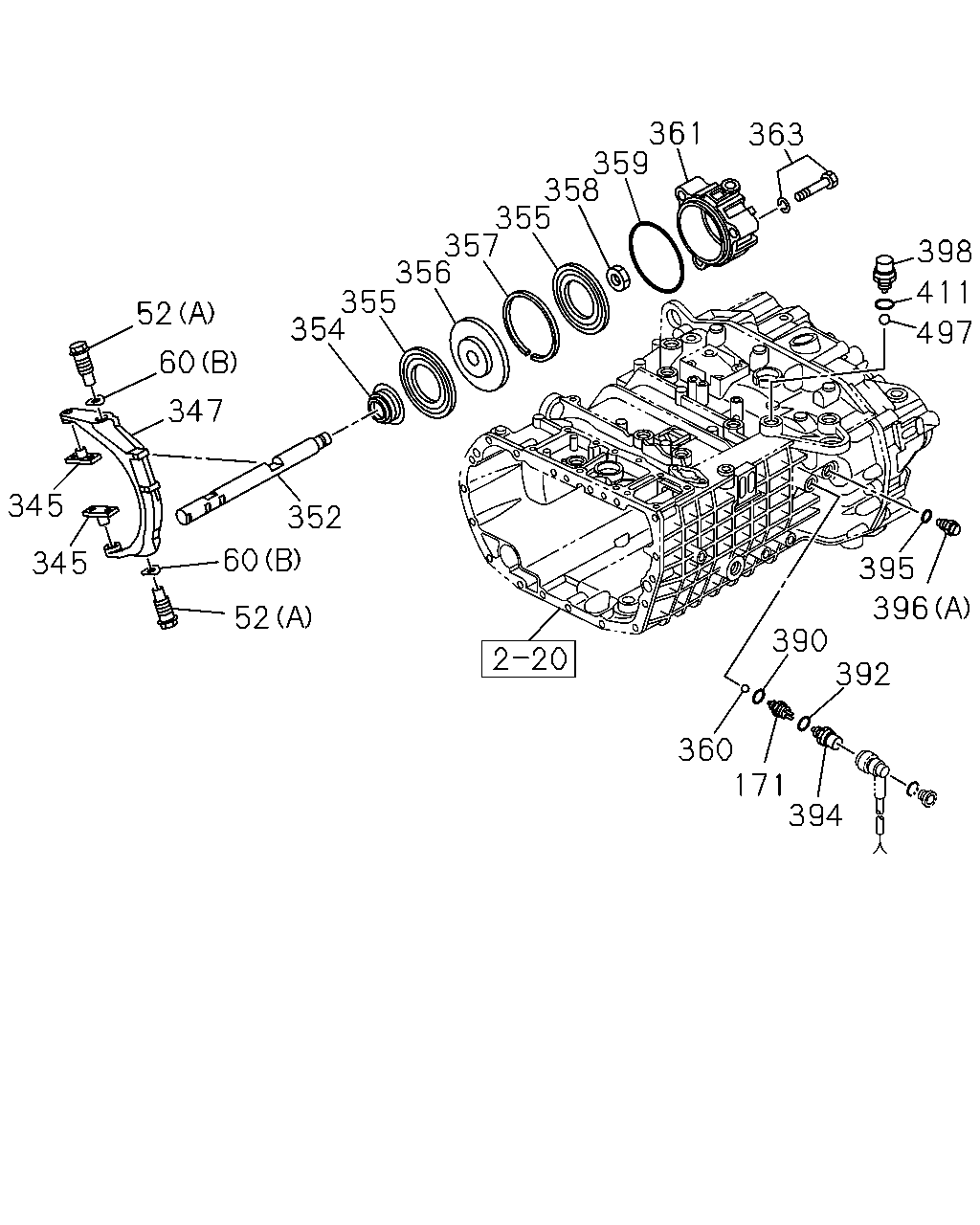

345 345 352 60 52 347 60 52 354 355 356 357 355 358 359 361 363 398 497 411 395 396 390 392 360 171 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (A)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (B)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1306-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1302-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1302-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1302-1305
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1302-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1302-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1302-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1302-
360	BALL; AIR CYL	1-33119-252-0	01	1	1302-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1302-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1302-1305
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
390	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1302-1305
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-
395	GASKET; PLUNGER	1-33519-171-0	01	1	1302-1305
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1302-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-
497	BALL; SWITCH	1-33119-252-0	01	1	1302-

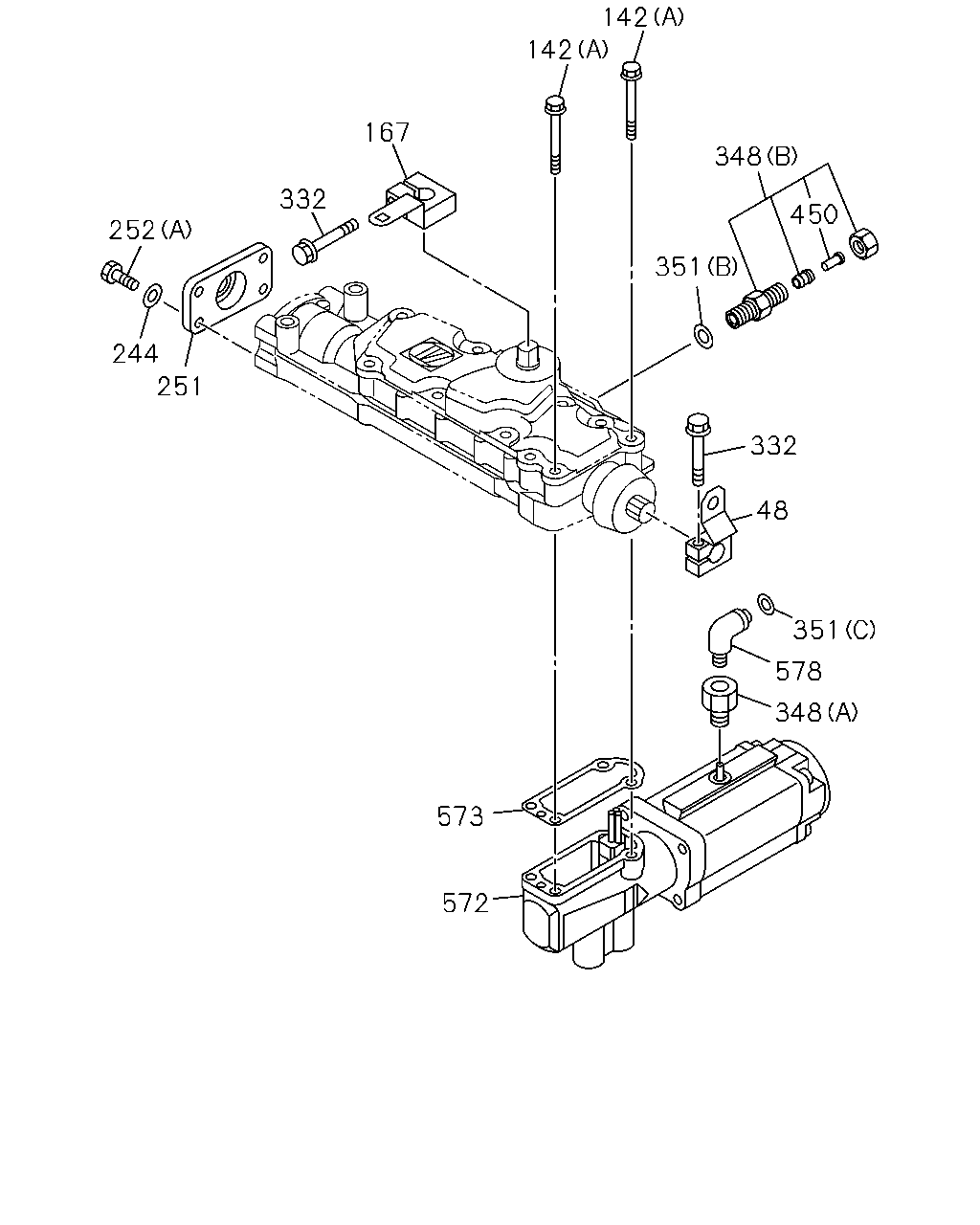

251 244 252 332 167 142 142 348 450 351 332 48 351 578 348 572 573

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33651-827-1	01	1	1302-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-725-0	01	1	1302-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33651-831-1	01	1	1302-
244	WASHER; LK,COVER	1-33549-159-0	04	1	1302-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-472-0	01	1	1302-1305
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM)	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1302-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-
572	SERVO UNIT; GEAR SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-331-0	01	1	1302-
573	GASKET; SERVO UNIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-332-0	01	1	1302-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1302-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1302-

360 392 394 396 395 497 411 398 398 500 541 172 171 191 195 52 345 45 60 347 60 52 352 354 363 361 359 358 355 357 356 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

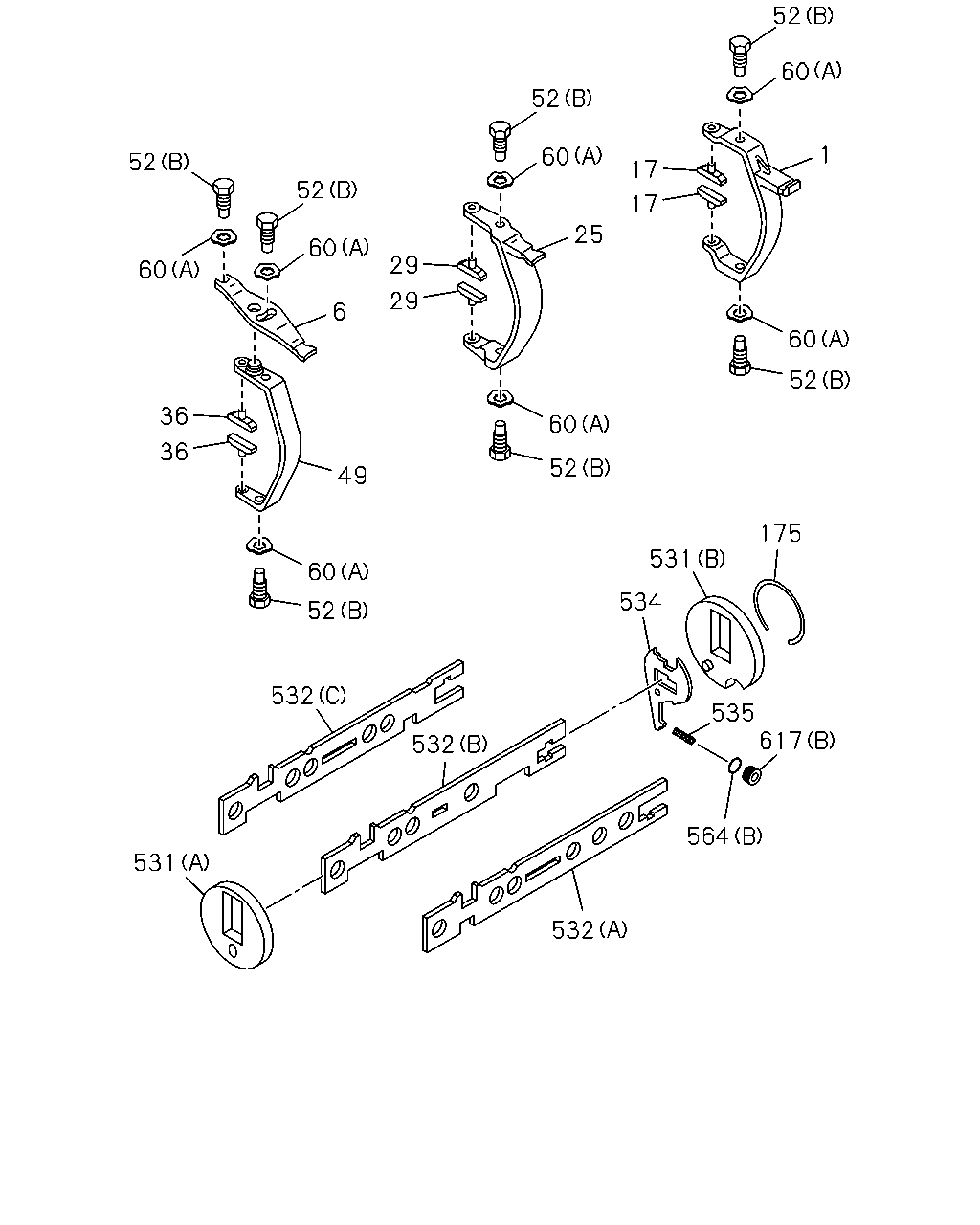

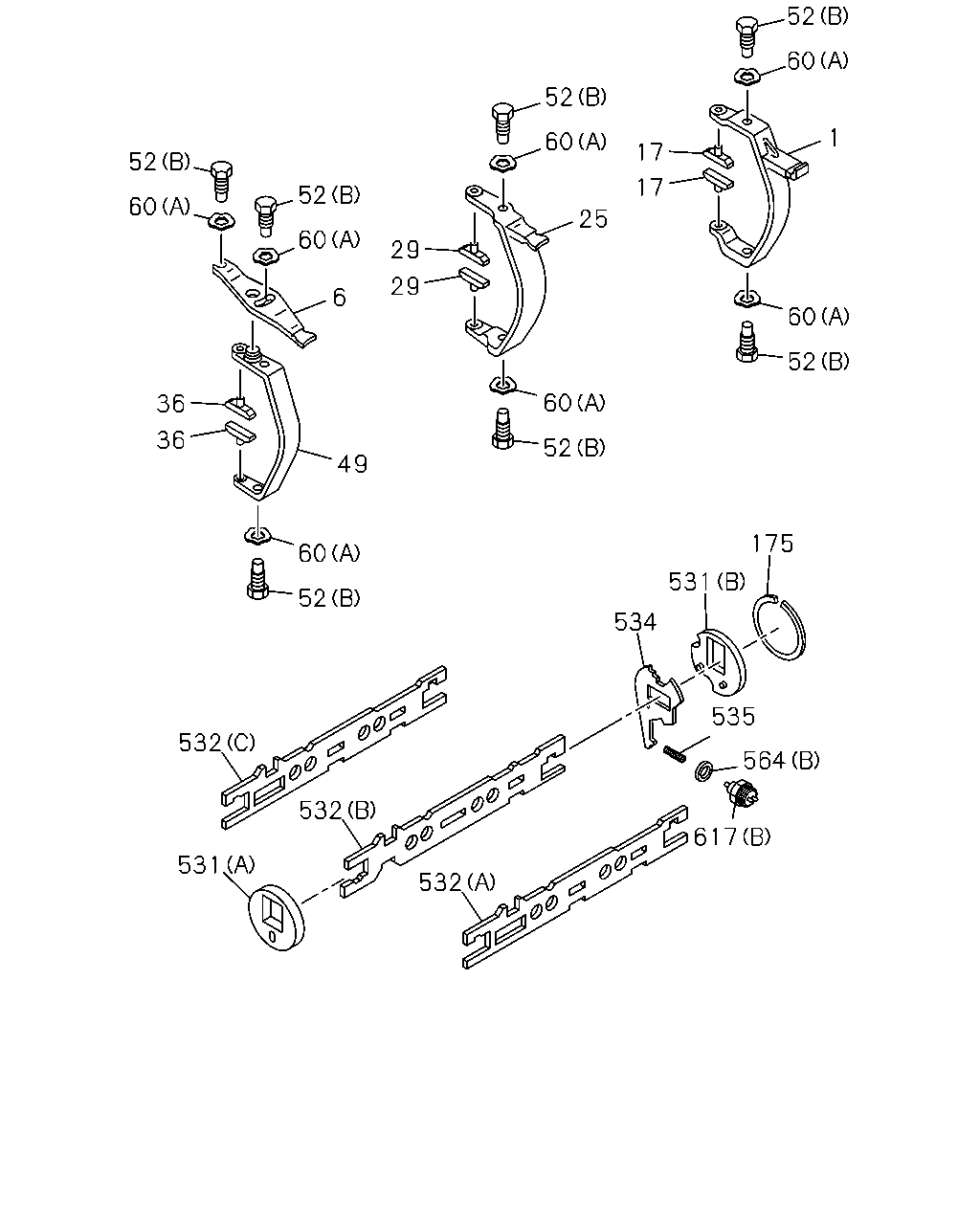

52	BOLT; SHIFT ARM (A)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (B)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33549-338-0	01	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-627-0	01	1	1306-
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-36129-007-0	02	1	1302-1305
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	02	1	1306-
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-301-0	02	1	1302-1305
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-593-0	02	1	1306-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1302-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1302-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1302-1305
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1302-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1302-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1302-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1302-
360	BALL; AIR CYL	1-33119-252-0	01	1	1302-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1302-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1302-1305
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-
395	GASKET; PLUNGER	1-33519-171-0	01	1	1302-1305
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1302-
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-
497	BALL; SWITCH	1-33119-252-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1302-
541	PLATE; SWITCH EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-300-0	01	1	1302-

349 351 348 351 346 351 578 351 348 349 351 351 351 348 351 349 351 349 353 622 353 346 513 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

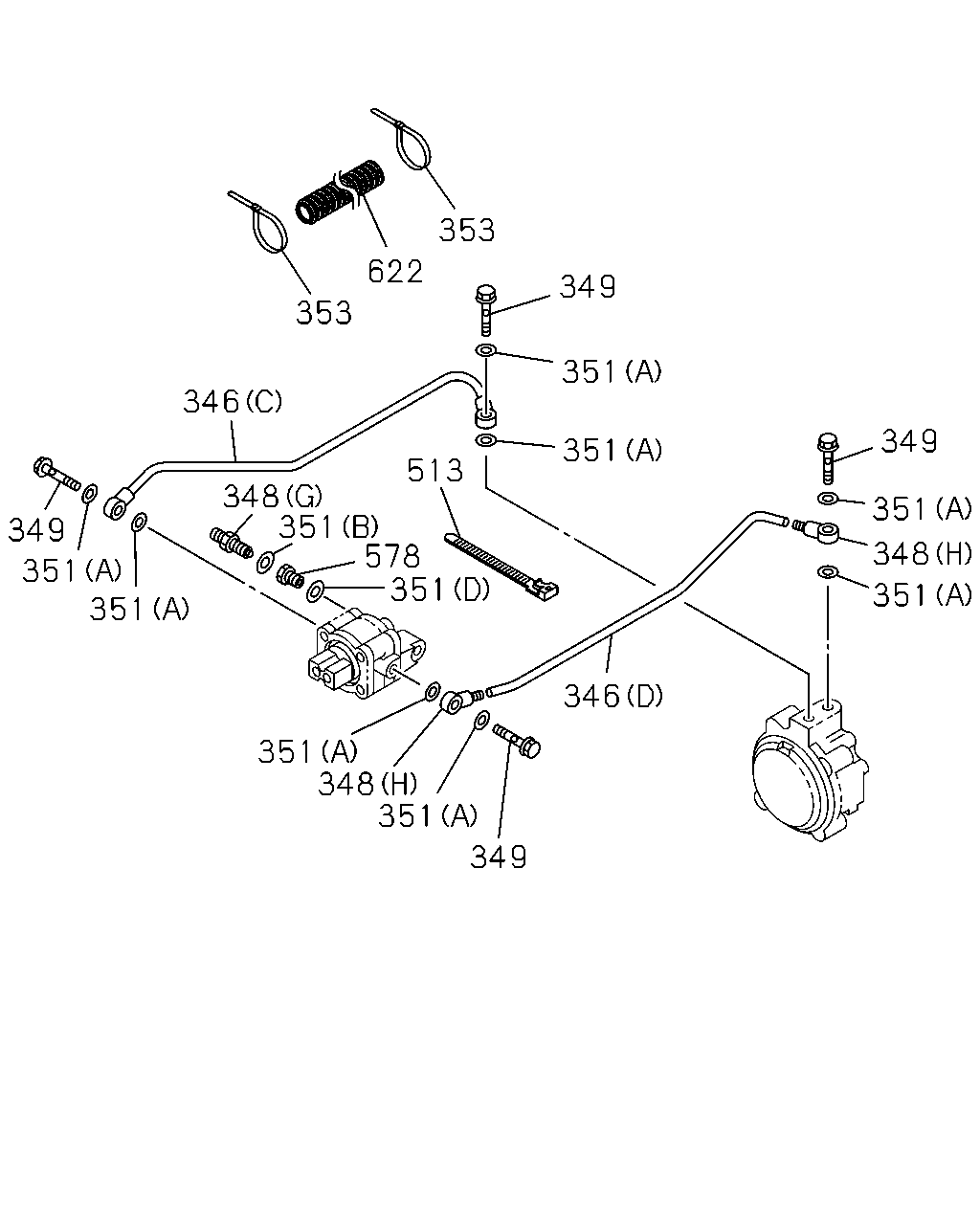

346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1302-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1302-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1306-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1306-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1302-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1302-1305
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1302-1305
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1302-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1302-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1302-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1302-

622 513 513 353 349 346 349 351 351 351 346 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

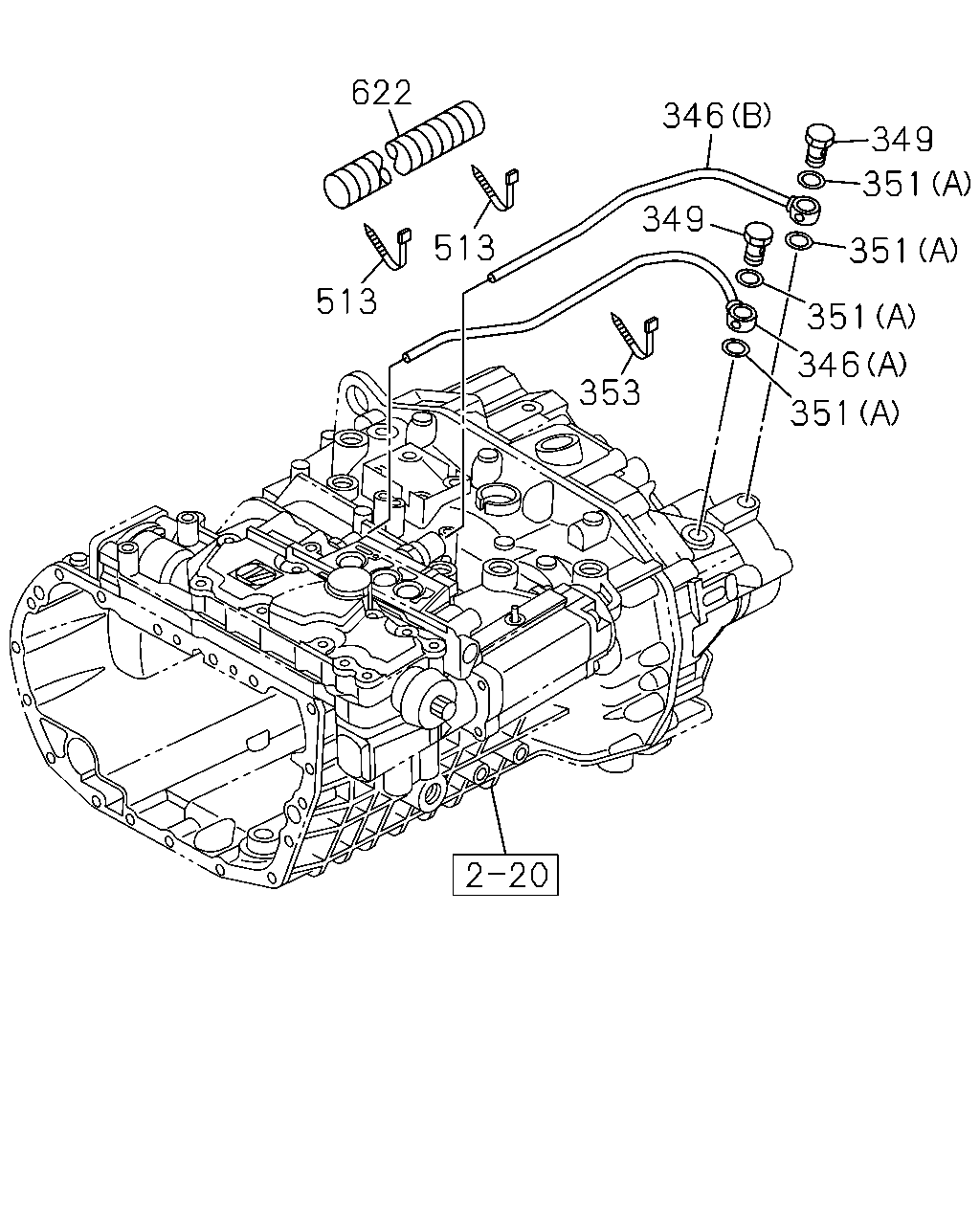

346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1302-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1302-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1306-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1306-
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1302-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1302-1305
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR (B) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR (B) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1302-1305
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1302-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1302-

418 42 256 569 310 677 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	1302-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1302-
256	GASKET; QUAD BOX TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1302-
310	PLATE; LOCK,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-453-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
418	PIECE; DIST,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-454-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-
677	PIN; PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33549-452-0	01	1	1302-

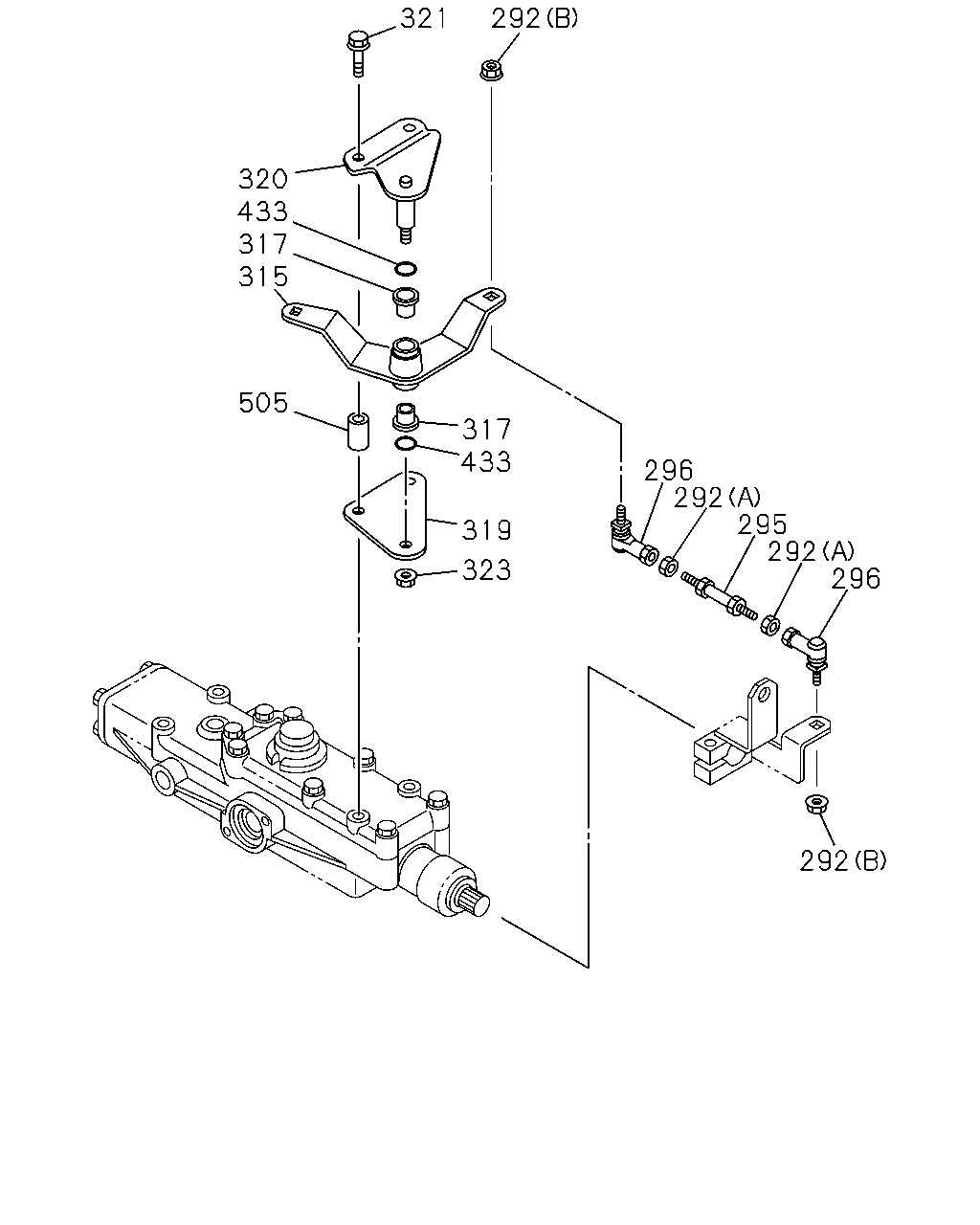

321 292 320 315 317 433 317 319 433 296 295 292 292 296 292 323 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	1302-
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	1302-
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	1302-
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	1302-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-458-0	01	1	1302-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-738-0	01	1	1302-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-322-0	01	1	1302-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	1302-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	1302-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1302-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1302-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	1302-
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1302-
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	1302-

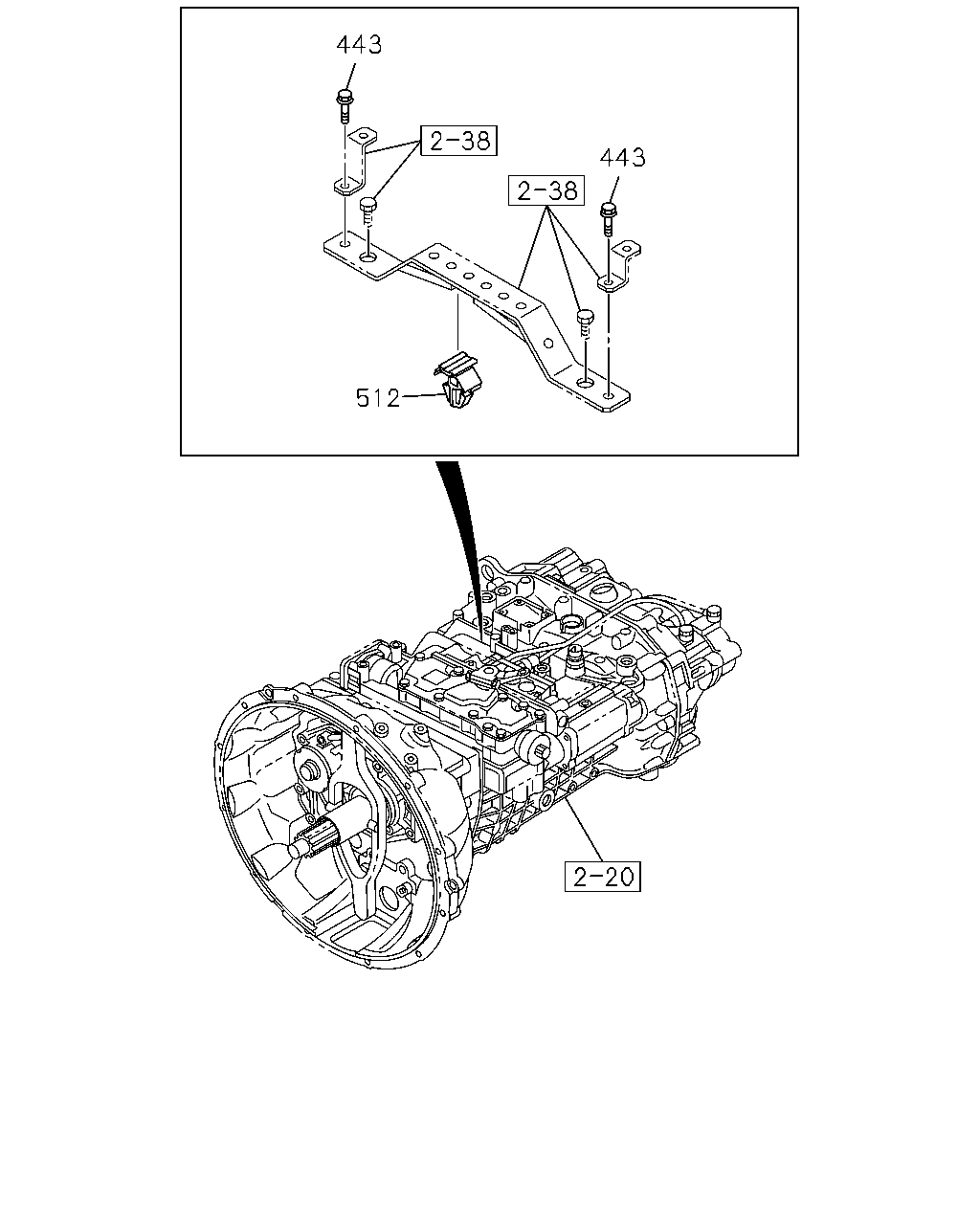

443 443 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1302-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1302-

52 52 60 60 29 29 52 52 60 25 60 52 60 52 6 36 36 49 60 52 532 531 532 534 531 175 535 564 617 532 17 17 60 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1302-1305
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1302-1305
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1302-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1302-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1302-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1302-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1302-
52	BOLT; SHIFT ARM (A)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (B)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1302-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1302-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1302-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1302-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1302-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1302-
535	SPRING; LEVER	1-33539-049-0	01	1	1302-
564	SEAL; RING (A)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (A)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (B) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
617	PLUG (B)	1-34129-061-0	01	1	1302-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-

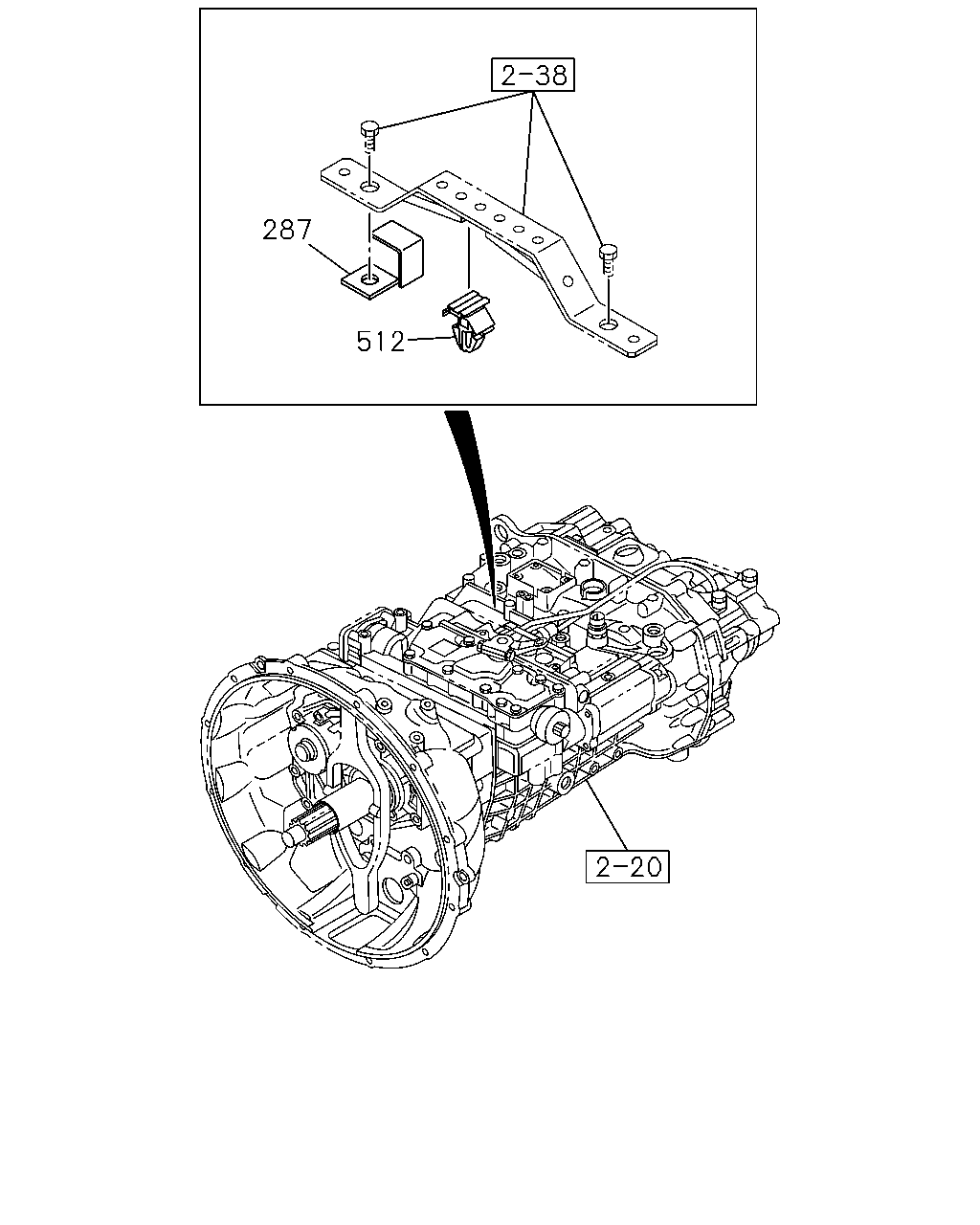

512 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
287	COVER; AIR BREATHER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34141-026-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1302-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1302-

532 564 617 535 534 175 531 532 532 531 52 60 49 36 36 6 29 29 60 52 60 52 60 52 17 17 1 60 52 60 52 60 52 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1302-1305
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1302-1305
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1302-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1302-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1302-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1302-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1302-
52	BOLT; SHIFT ARM (A)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (B)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1302-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1302-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1302-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1302-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1302-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1302-
535	SPRING; LEVER	1-33539-049-0	01	1	1302-
564	SEAL; RING (A)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (A)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (B) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
617	PLUG (B)	1-34129-061-0	01	1	1302-1305
617	PLUG (B)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-619-0	02	1	1306-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
