2-26B — MANUAL TRANSMISSION GEAR (#114697) — 295 parça
çizim 327568
325 3 301 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1302-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.20 		1-33139-047-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.10 		1-33139-050-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.05 		1-33139-203-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.15 		1-33139-204-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.25 		1-33139-205-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=0.90 		1-33139-207-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=0.95 		1-33139-208-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
ASSISTOR SHIFT CONTROL<WX8> T=1.00 		1-33139-209-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1302-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-039-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-041-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33139-223-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33139-224-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-225-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.15 		1-33139-226-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-227-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.05 		1-33139-228-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-229-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.95 		1-33139-230-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-231-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.85 		1-33139-232-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.75 		1-33139-233-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1306-
301 SHIM; TOP GEAR SHAFT
EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.65 		1-33139-234-0 01 1 1302-1305
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.50 		8-98080-571-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.60 		8-98080-572-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306-

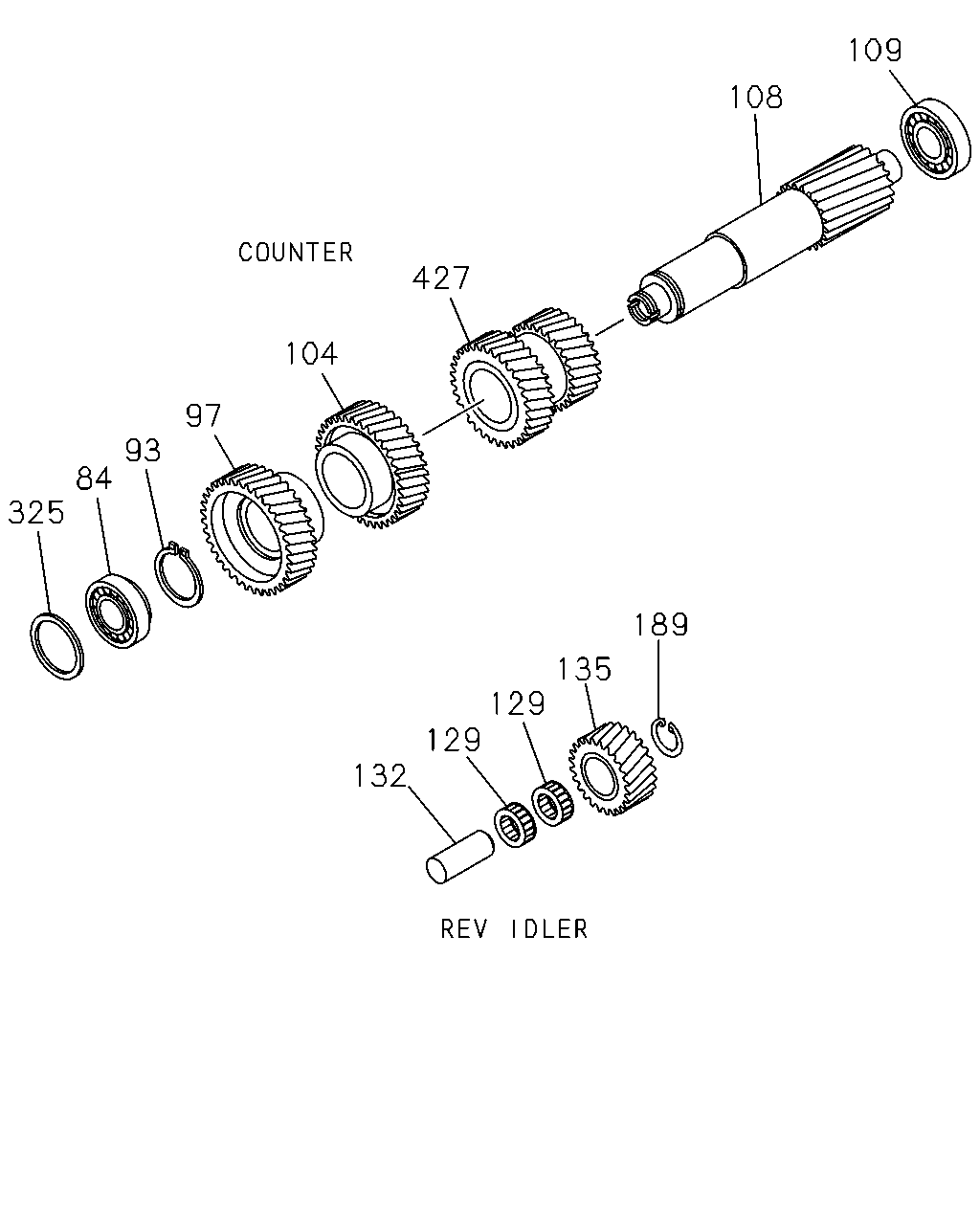

çizim 327595
325 93 84 97 104 427 108 109 132 129 129 135 189
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33312-016-0 01 1 1302-1305
84 BEARING; COUNTER SHAFT,FRT
PTO ZF TRANS RR(BDM) 		1-33312-016-0 01 1 1302-1305
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1306-
84 BEARING; COUNTER SHAFT,FRT
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33312-015-0 01 1 1302-1305
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1302-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1302-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1302-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1302-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1302-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1302-
129 BEARING; NEEDLE,IDLER
ASSISTOR SHIFT CONTROL<WX8> 		1-33369-013-0 02 1 1302-1305
129 BEARING; NEEDLE,IDLER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33369-026-0 02 1 1302-1305
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1306-
132 SHAFT; REV 1-33351-024-0 01 1 1302-
135 GEAR; REV IDLER 1-33361-092-0 01 1 1302-1305
135 GEAR; REV IDLER 1-33361-096-0 01 1 1306-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.45 		1-33389-050-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.50 		8-98080-571-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.50 		8-98080-571-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33389-051-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> T=1.60 		8-98080-572-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.60 		8-98080-572-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1302-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.40 		1-33389-086-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33389-047-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.35 		1-33389-087-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.30 		1-33389-088-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33389-049-0 01 1 1306-
325 SHIM; COUNTER SHAFT BRG
EXC. ASSISTOR SHIFT CONTROL<WX8> T=2.25 		1-33389-089-0 01 1 1302-1305
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1306-
427 GEAR; 2ND & 3RD,COUNTER
EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> 		1-33332-131-0 01 1 1302-1305
427 GEAR; 2ND & 3RD,COUNTER
PTO ZF TRANS RR(BDM) 		1-33332-131-0 01 1 1302-1305
427 GEAR; 2ND & 3RD,COUNTER
ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) 		1-33332-130-0 01 1 1302-1305
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306-

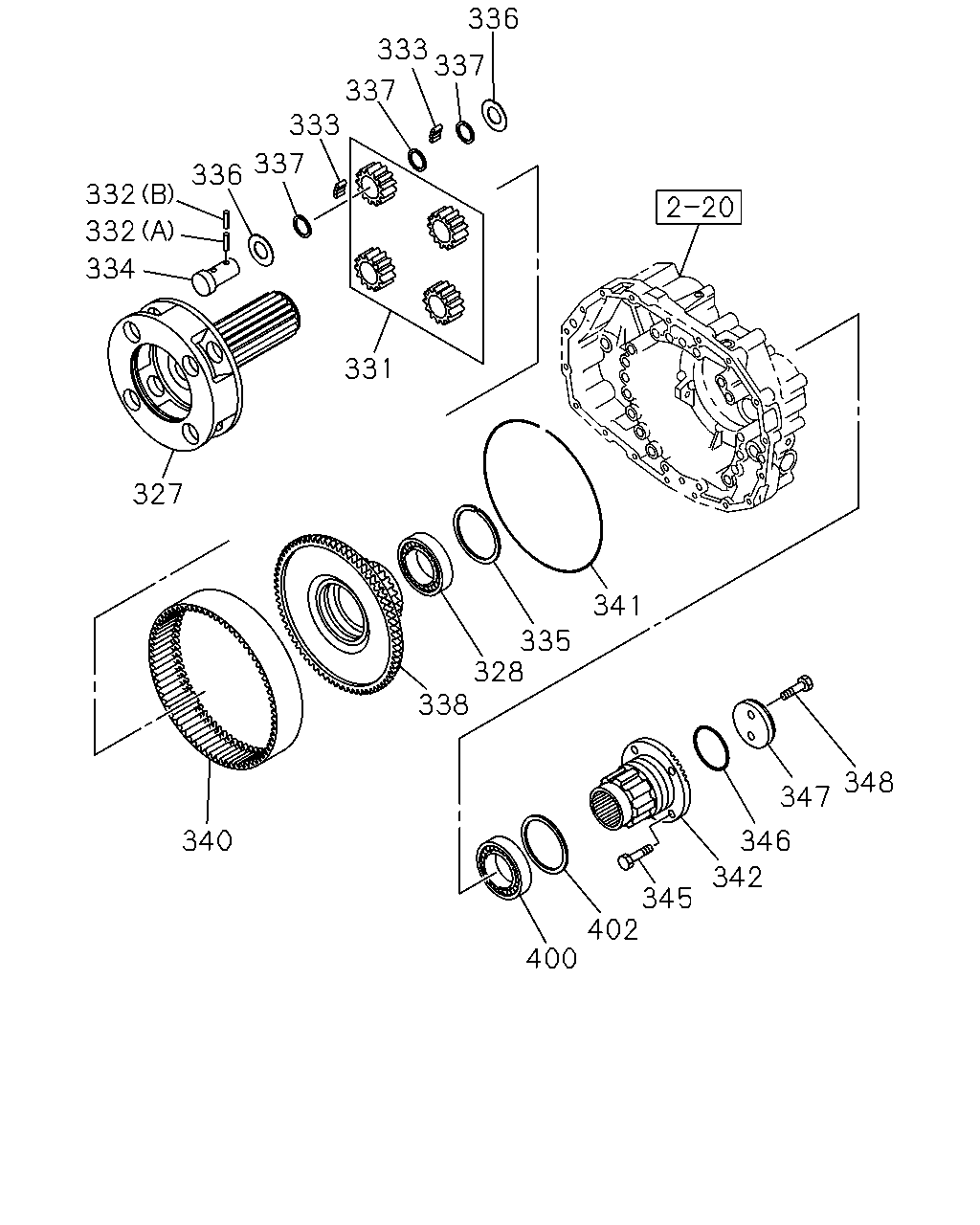

çizim 327620
400 402 345 347 346 342 348 340 338 335 328 341 331 327 334 332 332 336 337 333 337 333 336 337
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1302-
328 BEARING; CARRIER 1-33339-094-0 01 1 1302-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1302-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1302-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1302-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1302-
334 SHAFT; PLANETARY GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33239-351-0 04 1 1302-1305
334 SHAFT; PLANETARY GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33239-359-0 04 1 1302-1305
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1306-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1302-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1302-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1302-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1302-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1302-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1302-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1302-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1302-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1302-
340 GEAR; RING
ASSISTOR SHIFT CONTROL<WX8> 		1-33339-095-0 01 1 1302-1305
340 GEAR; RING
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33339-099-0 01 1 1302-1305
340 GEAR; RING 1-33339-099-0 01 1 1306-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1302-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1302-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1302-
346 GASKET; FLANGE 1-37249-156-0 01 1 1302-
347 WASHER; FLANGE 1-09509-060-0 01 1 1302-
348 BOLT; SHAFT 1-37249-207-0 02 1 1302-1305
348 BOLT; SHAFT 1-37249-215-0 02 1 1306-
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1302-
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.20 		1-33139-064-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.10 		1-33139-065-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=2.00 		1-33139-066-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.90 		1-33139-067-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.80 		1-33139-068-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.70 		1-33139-069-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.60 		1-33139-070-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.50 		1-33139-071-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.40 		1-33139-072-0 01 1 1302-1305
402 SHIM
ASSISTOR SHIFT CONTROL<WX8> T=1.30 		1-33139-073-0 01 1 1302-1305
çizim 327645
339 66 324 42 66 126 339 408 408 323
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1302-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1302-
126 RING; SNAP,CLU HUB
T=2.8 		1-33259-050-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.7 		1-33259-051-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.6 		1-33259-052-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.5 		1-33259-053-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 1302-
323 INSERT
(B) 		1-33263-027-0 09 1 1302-
323 INSERT
(A) 		1-33263-030-0 06 1 1302-
324 HUB; CLU 1-33261-230-0 01 1 1302-
339 CLUTCH; PLANETARY GEAR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33265-649-0 01 1 1306-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1302-1305
339 CLUTCH; PLANETARY GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33265-453-0 01 1 1306-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1302-
408 SPRING
(B) 		1-33269-038-0 09 1 1302-
408 SPRING
(C) 		1-33269-039-0 09 1 1302-
408 SPRING
(A) 		1-33269-042-0 06 1 1302-
çizim 331036
70 67 126 68 314 393 59 330 306 311 313 82 27 18 41 429 44 316 36 33 32 408 323 174 41 315 50 49 306 16 569 233 230 21 408 234 317 233 30 9
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1302-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1302-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1302-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1302-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1302-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1302-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1302-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1302-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1302-
27 BEARING; 4TH GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-106-0 02 1 1302-1305
27 BEARING; 4TH GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-128-0 02 1 1302-1305
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1306-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1302-
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1302-1305
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306-
33 BEARING; NEEDLE,3RD GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-065-0 01 1 1302-1305
33 BEARING; NEEDLE,3RD GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-127-0 01 1 1302-1305
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1306-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1302-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1302-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 1302-1305
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1306-
49 BEARING; NEEDLE,2ND GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-058-0 02 1 1302-1305
49 BEARING; NEEDLE,2ND GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-126-0 02 1 1302-1305
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1306-
50 GEAR; 2ND,MAINSHAFT 1-33251-435-0 01 1 1302-1305
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1306-
59 GEAR; REV MAINSHAFT 1-33257-100-0 01 1 1302-1305
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1306-
67 HUB; CLU,1ST TO REV
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-048-0 01 1 1302-1305
67 HUB; CLU,1ST TO REV
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-135-0 01 1 1302-1305
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1306-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1302-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1302-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.8 		1-33259-050-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.7 		1-33259-051-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.6 		1-33259-052-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.5 		1-33259-053-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 1302-
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 1302-
174 SYNCHRONIZER ASM; 2ND-3RD
ASSISTOR SHIFT CONTROL<WX8> 		1-33260-169-0 01 1 1302-1305
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1302-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1302-
234 SYNCHRONIZER ASM; 4TH TO 5TH
ASSISTOR SHIFT CONTROL<WX8> 		1-33260-170-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.20 		1-33319-061-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.15 		1-33319-062-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.10 		1-33319-063-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.05 		1-33319-064-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=3.00 		1-33319-065-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(A) T=2.40 		1-33319-077-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.35 		1-33319-078-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.30 		1-33319-079-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.25 		1-33319-080-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.20 		1-33319-081-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.15 		1-33319-082-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(A) T=2.10 		1-33319-083-0 01 1 1302-1305
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1302-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1302-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1302-
313 BEARING; NEEDLE,LOW GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-047-0 01 1 1302-1305
313 BEARING; NEEDLE,LOW GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-124-0 01 1 1302-1305
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1306-
314 BEARING; NEEDLE,REV GEAR
ASSISTOR SHIFT CONTROL<WX8> 		1-33259-055-0 01 1 1302-1305
314 BEARING; NEEDLE,REV GEAR
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33259-125-0 01 1 1302-1305
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1306-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1302-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1302-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1302-
323 INSERT
(B) 		1-33263-027-0 09 1 1302-
323 INSERT
(A) 		1-33263-030-0 06 1 1302-
330 GEAR; SUN 1-33259-105-0 01 1 1302-1305
330 GEAR; SUN 1-33259-134-0 01 1 1306-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1302-
408 SPRING
(B) 		1-33269-038-0 09 1 1302-
408 SPRING
(C) 		1-33269-039-0 09 1 1302-
408 SPRING
(A) 		1-33269-042-0 06 1 1302-
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 1302-1305
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1306-
569 DAM; OIL 1-33269-097-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
