◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11516 - FVM(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#114686) — 66 parça

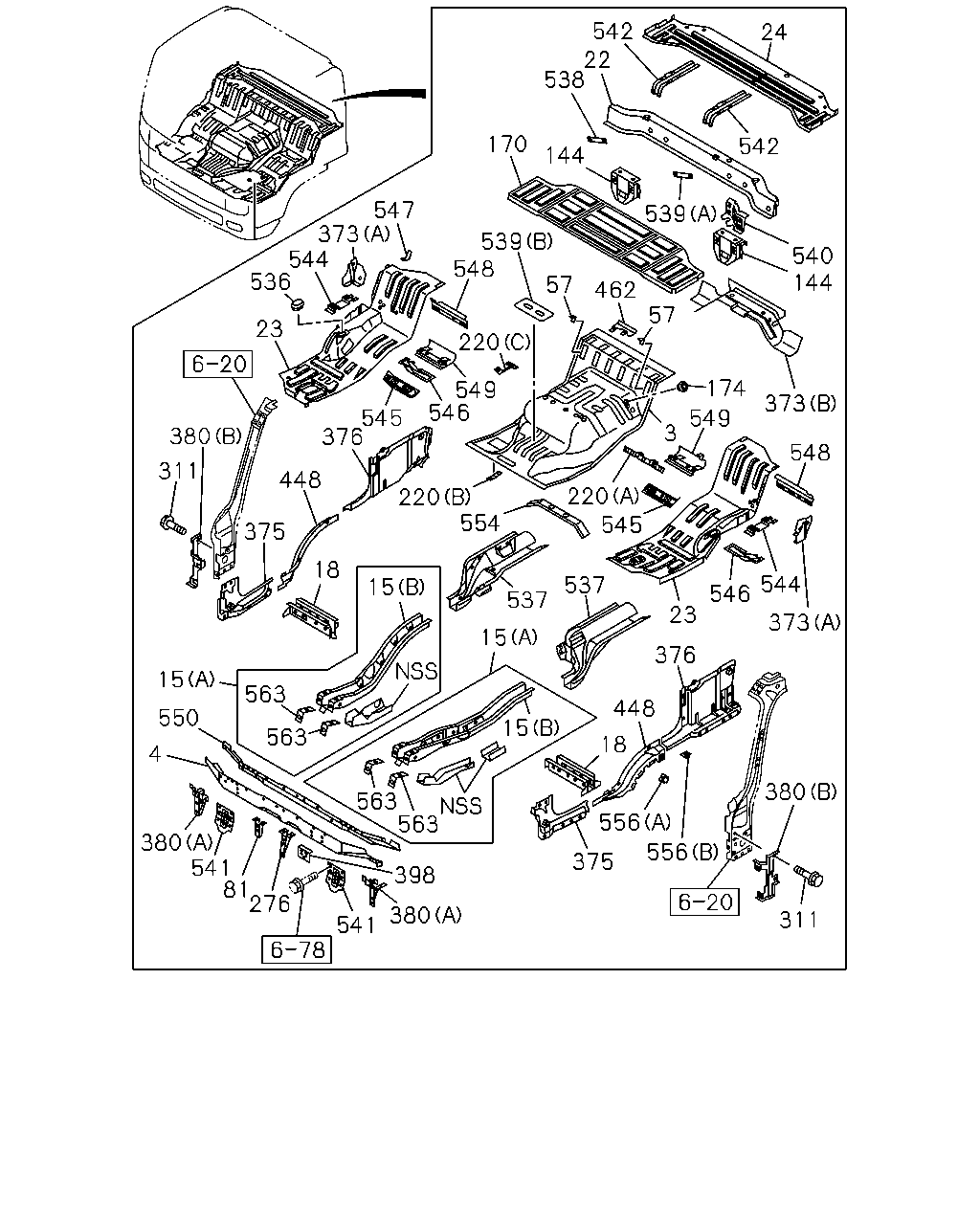

çizim 332139
542 24 22 538 170 144 539 542 540 144 462 57 539 57 174 373 547 373 544 23 536 548 220 549 546 545 376 448 380 311 375 220 554 537 15 18 15 550 563 563 563 563 398 380 541 81 276 541 380 375 556 556 380 18 448 376 23 546 544 373 537 311 15 15 220 545 3 549 548 4
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1302-
3 HOOD ASM; ENG
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1302-
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98053-677-9 01 1 1302-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1302-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1302-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1302-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1302-
24 PANEL; BED PAN 8-97584-378-6 01 1 1302-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1302-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1302-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1302-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1302-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1302-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1302-
220 PATCH
(A) 		8-97588-840-4 01 1 1302-
220 PATCH
(B) 		8-97589-603-3 01 1 1302-
220 PATCH
(C) 		8-97589-627-2 01 1 1302-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1302-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1302-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1302-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1302-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1302-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1302-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1302-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1302-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1302-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1302-
462 BRACKET; EXTINGUISHER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97585-688-1 01 1 1302-
462 BRACKET; EXTINGUISHER
ZF6S1000 M/T(Y5D) ASSISTOR SHIFT CONTROL<WX8> 		8-97585-688-1 01 1 1302-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1302-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1302-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1302-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1302-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1302-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1302-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1302-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1302-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1302-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1302-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1302-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1302-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1302-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1302-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1302-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1302-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1302-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1302-
