Sayfa 6-31 - Isuzu EPC

6-31 — FRONT DOOR GLASS AND REGULATOR (#11468) — 278 parça

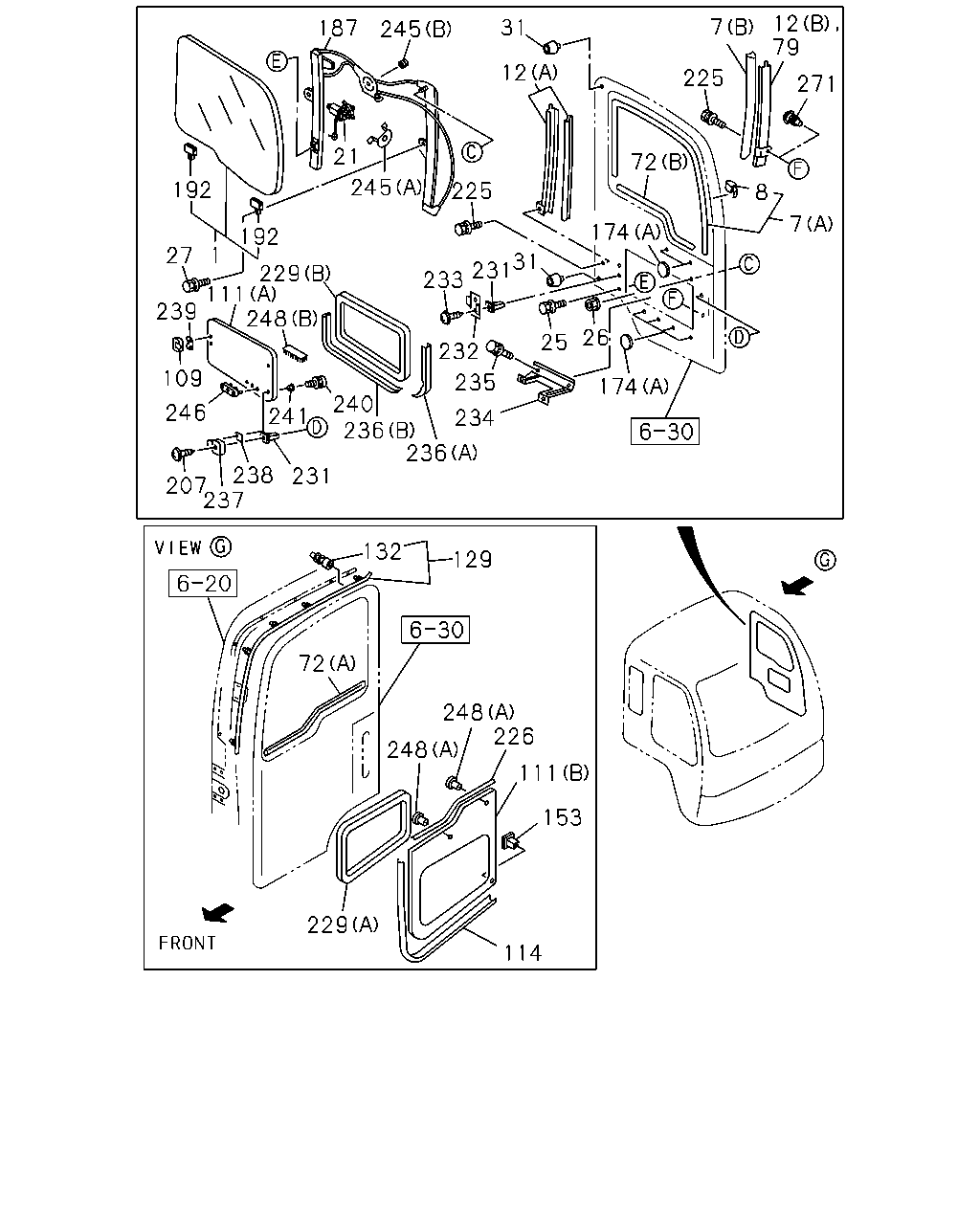

114 229 153 111 226 248 248 72 132 129 236 236 240 241 238 237 207 231 234 235 232 25 26 31 231 233 225 245 229 111 1 192 27 192 239 246 109 248 21 187 245 31 7 12 225 72 271 7 8 174 12 174 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0106-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0106-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0106-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0106-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0106-
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-052-0	01	1	0106-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76167-155-0	01	1	0106-
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76167-176-0	01	1	0106-
114	MOLDING; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-71538-038-1	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-
153	GROMMET; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0106-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-3	01	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-
207	SCREW; DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0106-
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-
226	FINISHER; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-093-6	01	1	0106-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76738-096-5	01	1	0106-
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76738-097-4	01	1	0106-
231	GROMMET; SCREW DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0106-
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-055-1	01	1	0106-
233	SCREW; STRIKER DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0106-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73338-363-5	01	1	0106-
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73338-364-5	01	1	0106-
237	HINGE; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-050-1	02	1	0106-
238	SHEET; HINGE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-051-0	02	1	0106-
239	SHEET; LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-053-0	01	1	0106-
240	SCREW; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8> M6X12	8-94279-346-0	04	1	0106-
241	GASKET; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-054-0	04	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74417-074-0	01	1	0106-0209
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-0209
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0106-
246	GRILLE; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74298-002-1	01	1	0106-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8	1-09989-019-0	02	1	0106-
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-072-0	01	1	0106-
271	PLUG; HOLE DOOR WITH UNDER VIEW WINDOW<YD8> OD=16 L=11	1-76378-155-0	01	1	0307-

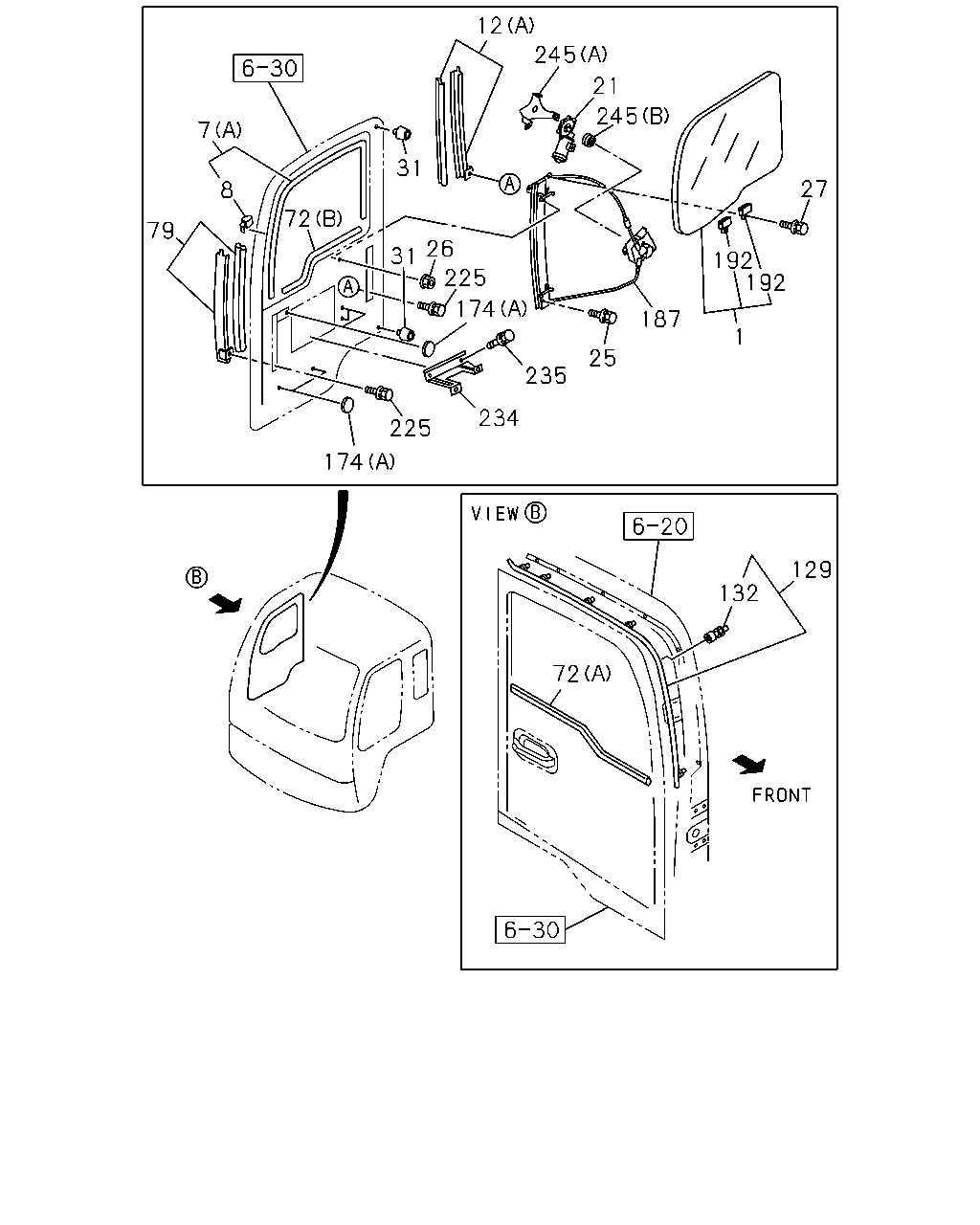

129 132 72 174 225 234 235 25 187 192 1 192 27 245 21 245 12 31 72 7 79 8 26 31 225 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0106-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0106-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0106-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0106-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0106-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0106-
187	REGULATOR ASM; DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-3	01	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74417-074-0	01	1	0106-0209
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-0209
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0106-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0106-

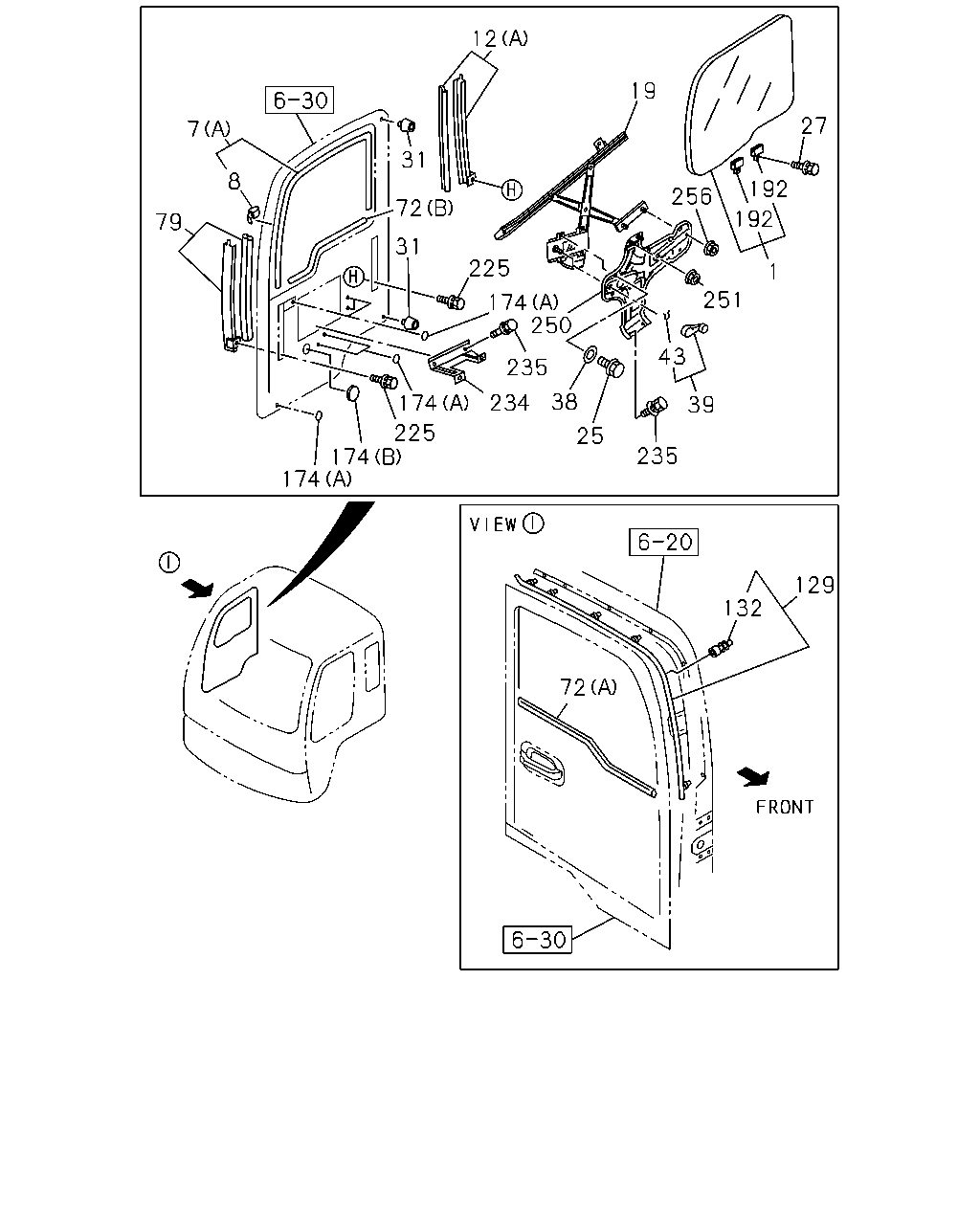

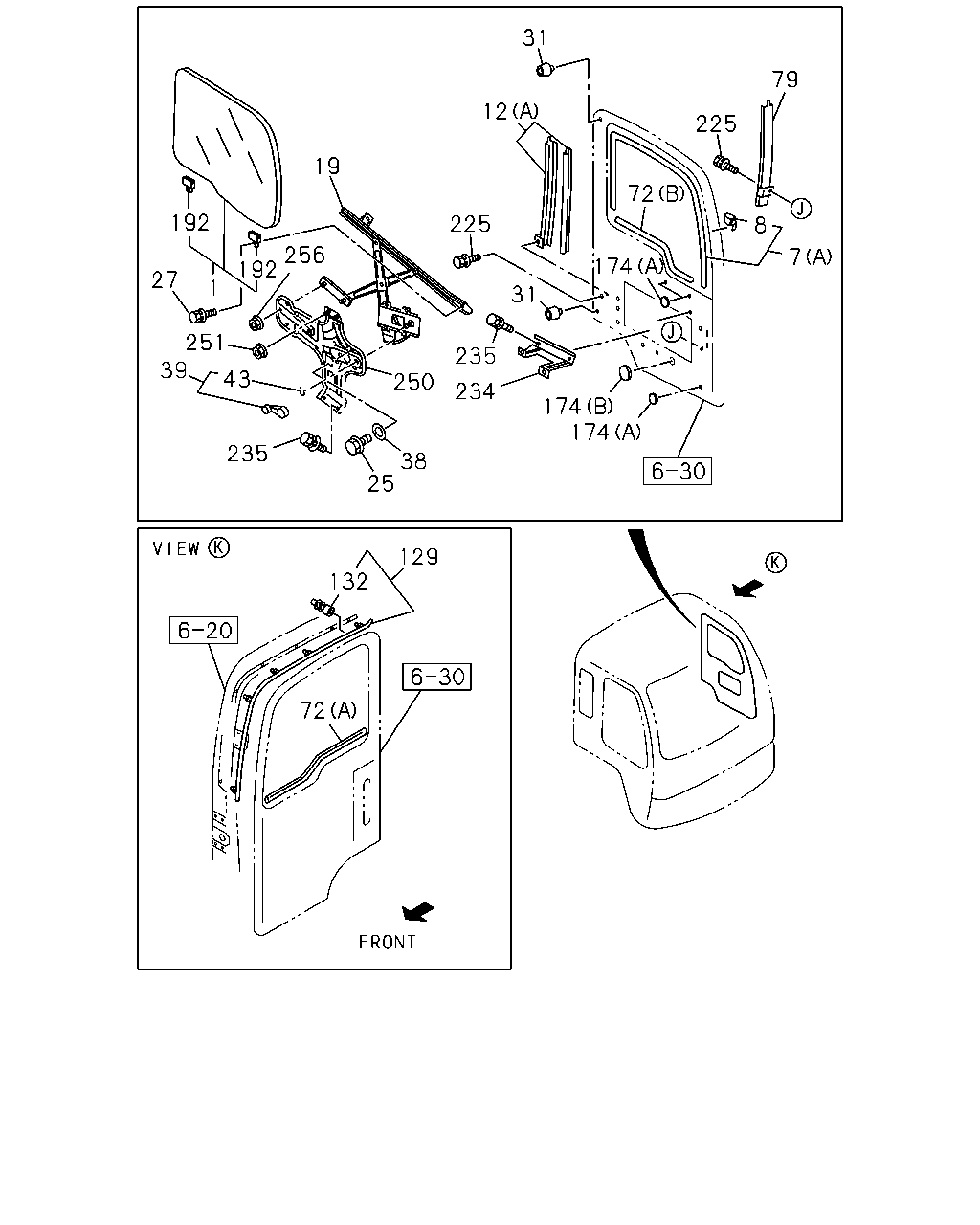

129 132 72 235 25 38 39 43 251 1 192 192 27 256 19 12 31 7 79 31 72 225 235 234 174 225 174 174 250 174 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0106-
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0106-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0106-
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0106-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0106-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0106-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> & BLACK	8-94371-427-0	02	1	0106-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0106-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0106-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0106-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-

7 8 225 79 72 12 31 19 225 256 192 192 27 251 39 235 43 25 38 250 234 235 31 174 174 174 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0106-0306
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0106-
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0106-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0106-
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0106-0306
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0106-
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0106-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0106-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0106-
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0106-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0106-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0106-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0106-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> & BLACK	8-94371-427-0	02	1	0106-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0106-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0106-
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0106-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0106-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0106-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0106-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0106-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0106-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52	1-76798-041-0	02	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0106-
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0106-
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0106-0306
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0106-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0106-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0106-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0106-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0106-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0106-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
