◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11521 - FVZ(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#114663) — 65 parça

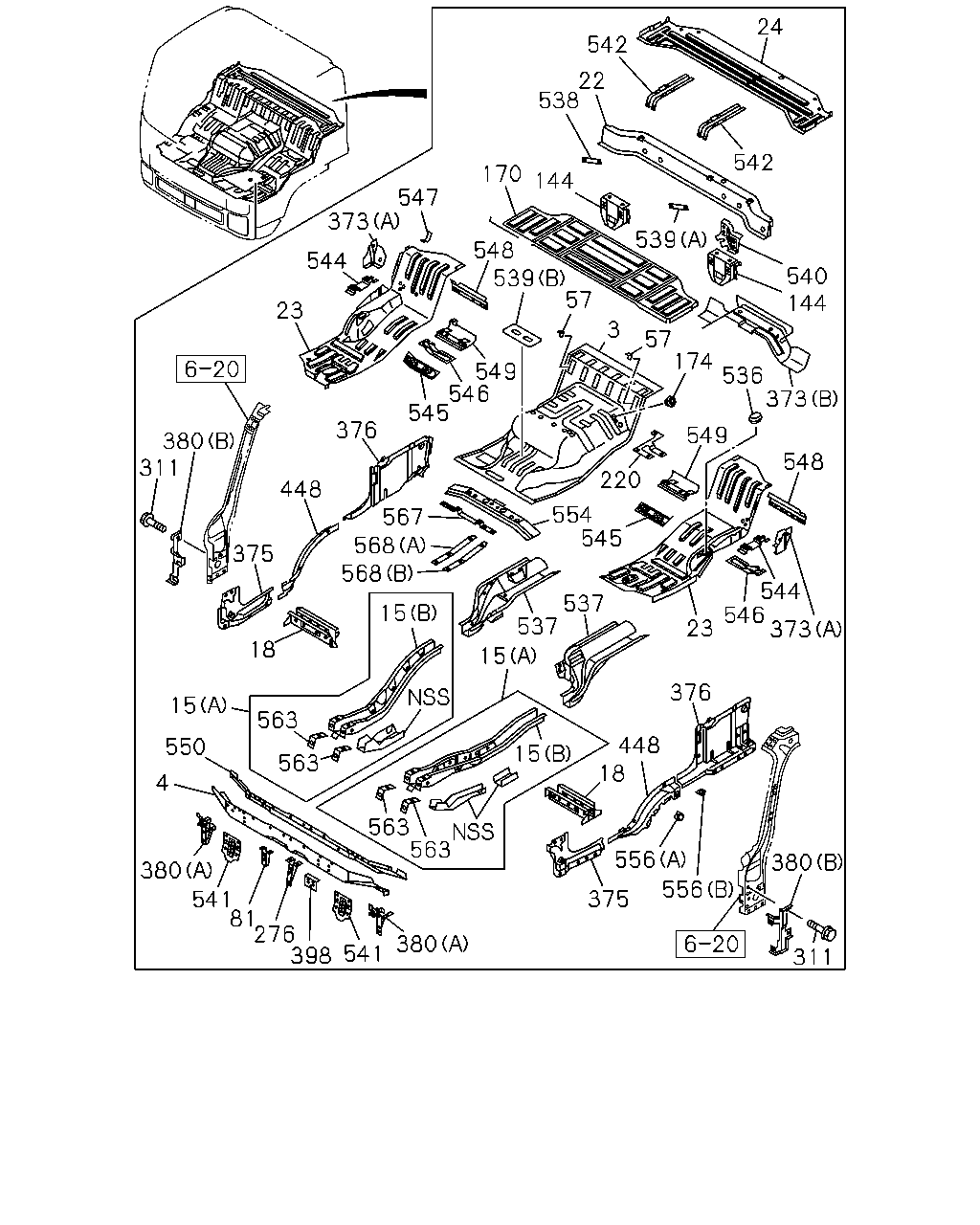

çizim 332149
542 24 22 538 542 170 144 547 373 544 23 380 311 375 448 376 545 546 549 57 539 548 539 540 144 57 3 174 536 373 548 549 220 554 545 537 537 15 23 546 544 373 376 448 18 556 375 556 380 311 380 541 398 276 81 541 380 4 550 15 563 563 563 563 15 15 18 568 568 567
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
ASSISTOR SHIFT CONTROL<WX8> 		8-98069-933-5 01 1 1302-
3 HOOD ASM; ENG
FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98069-933-5 01 1 1302-
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98036-244-5 01 1 1302-
4 FRAME; FLOOR,FRT 8-98077-807-1 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-98017-381-1 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-98017-387-1 01 1 1302-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1302-
23 PANEL; FLOOR,SIDE 8-98017-359-4 01 1 1302-
23 PANEL; FLOOR,SIDE 8-98080-739-0 01 1 1302-
24 PANEL; BED PAN 8-97584-378-6 01 1 1302-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1302-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1302-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1302-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1302-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1302-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1302-
220 PATCH 8-97589-704-0 01 1 1302-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1302-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1302-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1302-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1302-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1302-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1302-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1302-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1302-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1302-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1302-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1302-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1302-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1302-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1302-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1302-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1302-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1302-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1302-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1302-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1302-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1302-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1302-
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 1302-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1302-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1302-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1302-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1302-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1302-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1302-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1302-
