◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#114661) — 66 parça

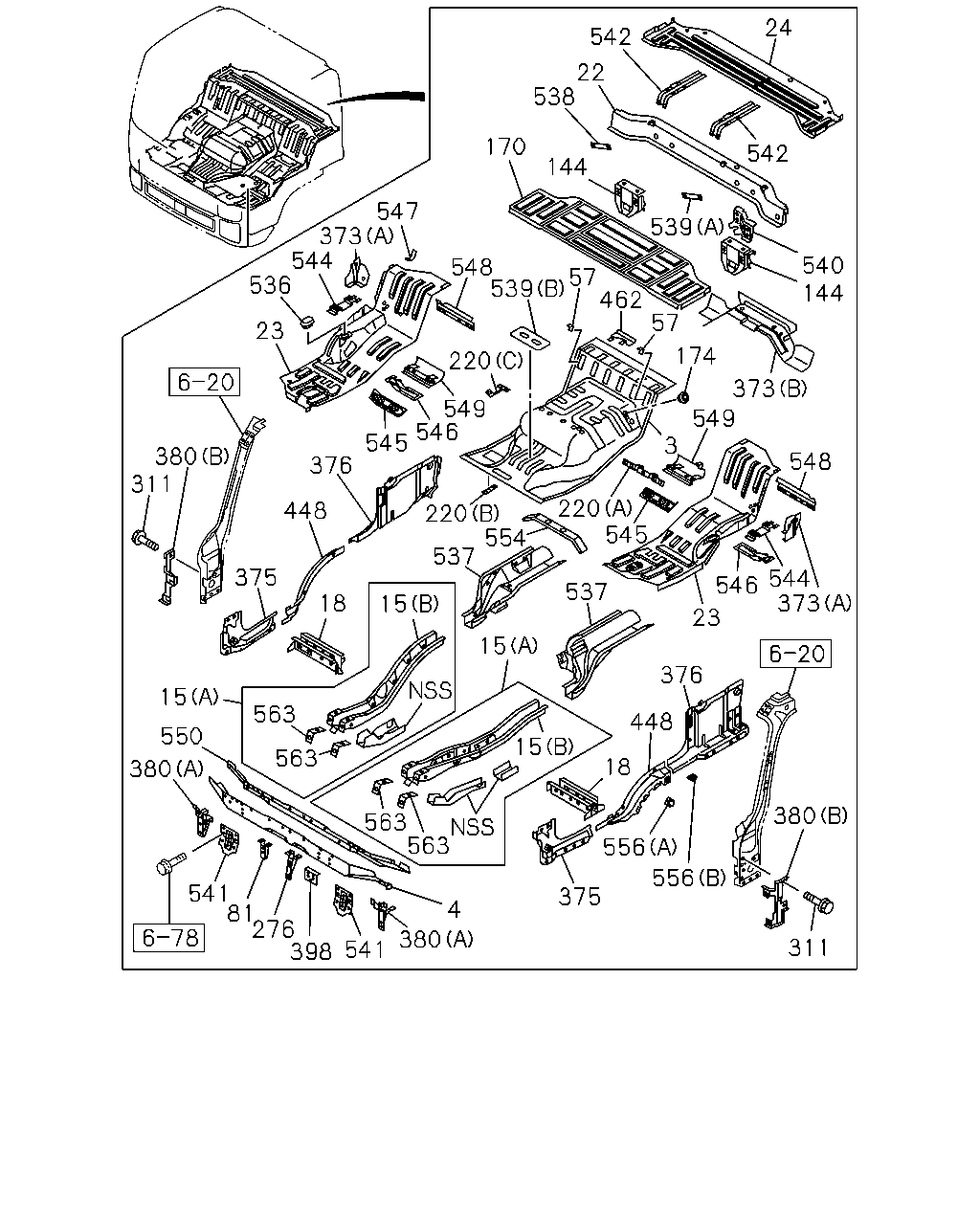

çizim 332145
542 24 22 538 170 547 373 544 536 23 380 311 448 376 545 546 549 220 539 548 144 542 540 539 462 57 174 373 375 18 15 15 15 375 4 380 541 398 276 81 541 380 563 563 15 550 563 537 220 554 537 220 563 448 376 23 546 544 373 380 556 556 18 545 548 549 311 144 57 3
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1302-
3 HOOD ASM; ENG
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1302-
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. RADIATOR HEAVY DUTY<V05> 		8-98053-677-9 01 1 1302-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1302-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1302-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1302-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1302-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1302-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1302-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1302-
24 PANEL; BED PAN 8-97584-378-6 01 1 1302-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1302-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1302-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1302-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1302-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1302-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1302-
220 PATCH
(A) 		8-97588-840-4 01 1 1302-
220 PATCH
(B) 		8-97589-603-3 01 1 1302-
220 PATCH
(C) 		8-97589-627-2 01 1 1302-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1302-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1302-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1302-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1302-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1302-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1302-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1302-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1302-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1302-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1302-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1302-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1302-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1302-
462 BRACKET; EXTINGUISHER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-97585-688-1 01 1 1302-
462 BRACKET; EXTINGUISHER
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) ASSISTOR SHIFT CONTROL<WX8> 		8-97585-688-1 01 1 1302-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1302-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1302-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1302-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1302-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1302-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1302-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1302-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1302-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1302-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1302-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1302-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1302-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1302-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1302-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1302-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1302-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1302-
554 REINFORCEMENT; FLOOR CENTER
EXC. RADIATOR HEAVY DUTY<V05> 		8-97584-351-2 01 1 1302-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1302-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1302-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1302-
