Isuzu WW
▶
TRUCKS
▶
FRR
▶
11507 - FRR RHD EURO2/4 SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

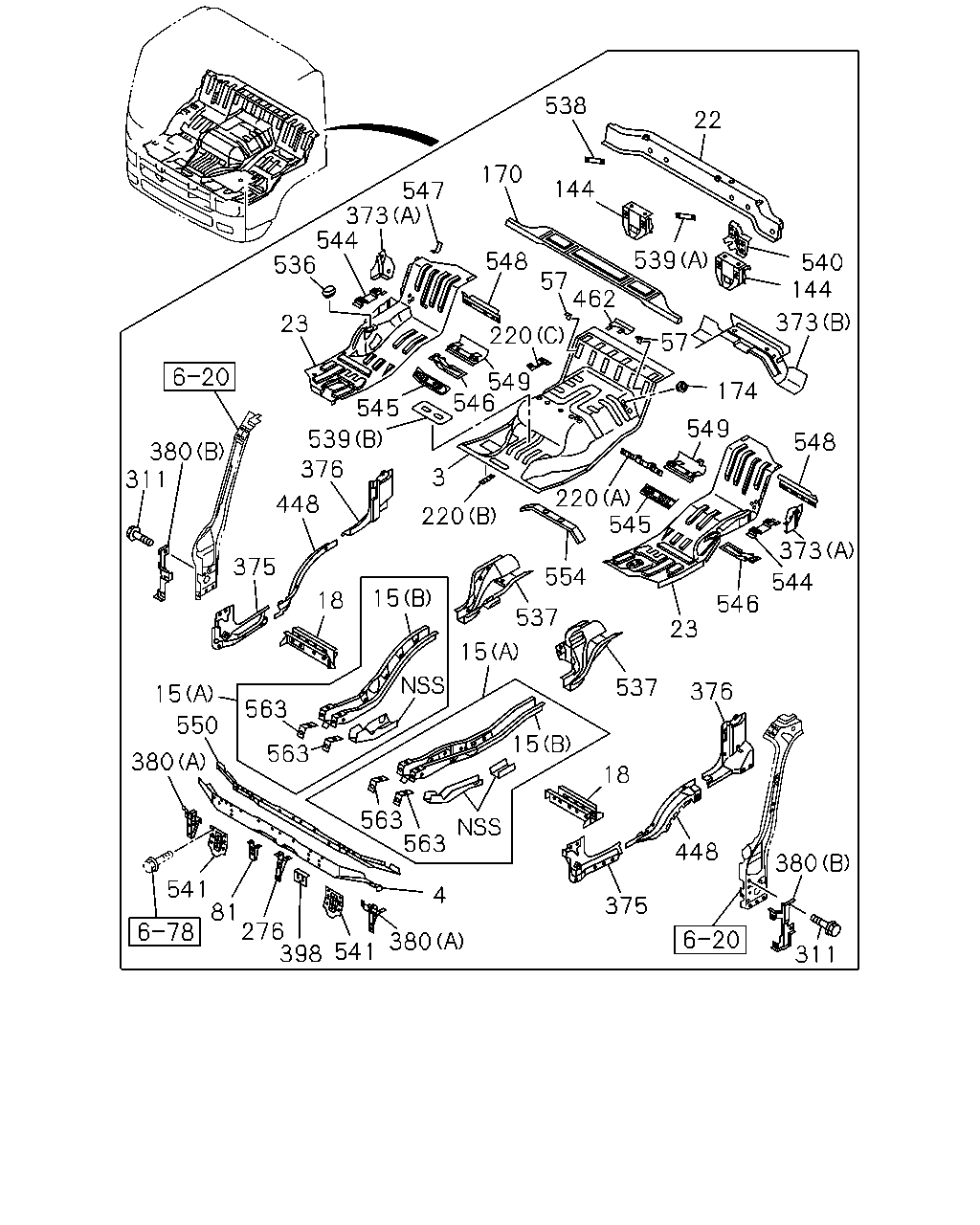

6-70 — FLOOR PANEL
(#114654) — 58 parça
538
22
170
547
144
539
540
144
373
462
57
548
373
544
536
23
220
57
174
549
546
545
539
376
448
380
311
375
18
15
554
220
3
220
545
549
548
373
544
546
23
376
537
15
18
448
380
311
563
563
380
541
398
276
81
541
380
15
550
563
563
15
537
375
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
HOOD ASM; ENG
8-98167-035-0
01
1
1302-
4
FRAME; FLOOR,FRT
8-98073-692-1
01
1
1302-
15
FRAME; UNDER
(A)
8-97584-411-9
01
1
1302-
15
FRAME; UNDER
(B)
8-97584-412-7
01
1
1302-
15
FRAME; UNDER
(A)
8-97584-387-9
01
1
1302-
15
FRAME; UNDER
(B)
8-97584-388-9
01
1
1302-
18
FRAME; FLOOR,CENTER SIDE
8-97584-420-4
01
1
1302-
18
FRAME; FLOOR,CENTER SIDE
8-97584-397-5
01
1
1302-
22
FRAME; FLOOR REAR
8-97584-430-5
01
1
1302-
23
PANEL; FLOOR,SIDE
8-97584-371-7
01
1
1302-
23
PANEL; FLOOR,SIDE
8-98073-690-1
01
1
1302-
57
BRACKET; SPARE TIRE
8-98038-970-1
02
1
1302-
81
BRACKET; HARNESS SUPPORT
8-98041-333-3
01
1
1302-
144
BRACKET; MTG,RR
8-97584-432-6
01
1
1302-
144
BRACKET; MTG,RR
8-97589-666-6
01
1
1302-
170
EXTENSION; RR FLOOR
8-97589-204-3
01
1
1302-
174
GROMMET; AIR PIPE
OD=35
8-94122-971-0
01
1
1302-
220
PATCH
(A)
8-97588-840-4
01
1
1302-
220
PATCH
(B)
8-97589-603-3
01
1
1302-
220
PATCH
(C)
8-97589-627-2
01
1
1302-
276
BRACKET; RAD GRILLE
8-97589-596-3
01
1
1302-
311
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
04
1
1302-
373
REINFORCEMENT; SEAT BELT
(B)
8-97584-345-9
01
1
1302-
373
REINFORCEMENT; SEAT BELT
(A)
8-97584-375-2
01
1
1302-
373
REINFORCEMENT; SEAT BELT
(A)
8-97584-367-2
01
1
1302-
375
CLOSING; PILLAR
8-98044-898-3
01
1
1302-
375
CLOSING; PILLAR
8-98044-897-3
01
1
1302-
376
CLOSING; PILLAR,LWR
8-97589-555-1
01
1
1302-
376
CLOSING; PILLAR,LWR
8-97589-553-1
01
1
1302-
380
BRACKET; HEAD LAMP
(A)
8-97584-460-2
01
1
1302-
380
BRACKET; HEAD LAMP
(B)
8-98032-615-1
01
1
1302-
380
BRACKET; HEAD LAMP
(A)
8-97589-506-2
01
1
1302-
380
BRACKET; HEAD LAMP
(B)
8-98032-614-1
01
1
1302-
398
BRACKET; PIPE SUPPORT
8-97589-681-3
01
1
1302-
448
CLOSING; ROCKER
8-97589-552-2
01
1
1302-
448
CLOSING; ROCKER
8-97589-551-2
01
1
1302-
462
BRACKET; EXTINGUISHER
8-97585-688-1
01
1
1302-
536
PLUG; CABLE,PTO
8-97612-074-1
01
1
1302-
537
SUPPORT ASM; MTG RR
8-97584-416-4
01
1
1302-
537
SUPPORT ASM; MTG RR
8-97584-390-4
01
1
1302-
538
REINFORCEMENT ASM; AIR INT DUCT
8-97610-207-2
01
1
1302-
539
PATCH ASM; SAFTY HOOK
(A)
8-97584-440-2
01
1
1302-
539
PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B)
8-98131-661-0
01
1
1302-
540
BRACKET ASM; CAB LOCK LEVER
8-97584-438-1
01
1
1302-
541
REINFORCEMENT; MTG,FRT
8-98067-903-0
02
1
1302-
544
BRACKET; DUMP CONT
8-98049-529-0
01
1
1302-
544
BRACKET; DUMP CONT
8-97584-363-1
01
1
1302-
545
BRACKET; SEAT FRT
8-97584-373-1
01
1
1302-
545
BRACKET; SEAT FRT
8-97584-361-1
01
1
1302-
546
REINFORCEMENT; FLOOR SIDE
8-97584-426-0
02
1
1302-
547
BRACKET; JACK HANDLE
8-97588-843-1
01
1
1302-
548
BRACKET; MUD GUARD
8-97588-965-1
01
1
1302-
548
BRACKET; MUD GUARD
8-97588-964-1
01
1
1302-
549
BRACKET; SEAT RR
8-97588-958-4
01
1
1302-
549
BRACKET; SEAT RR
8-97589-557-4
01
1
1302-
550
CLOSING ASM; MTG,FRT
8-97584-458-4
01
1
1302-
554
REINFORCEMENT; FLOOR CENTER
8-97584-351-2
01
1
1302-
563
REINFORCEMENT; MTG FRT,RR
8-97589-579-2
04
1
1302-
