◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#114648) — 75 parça

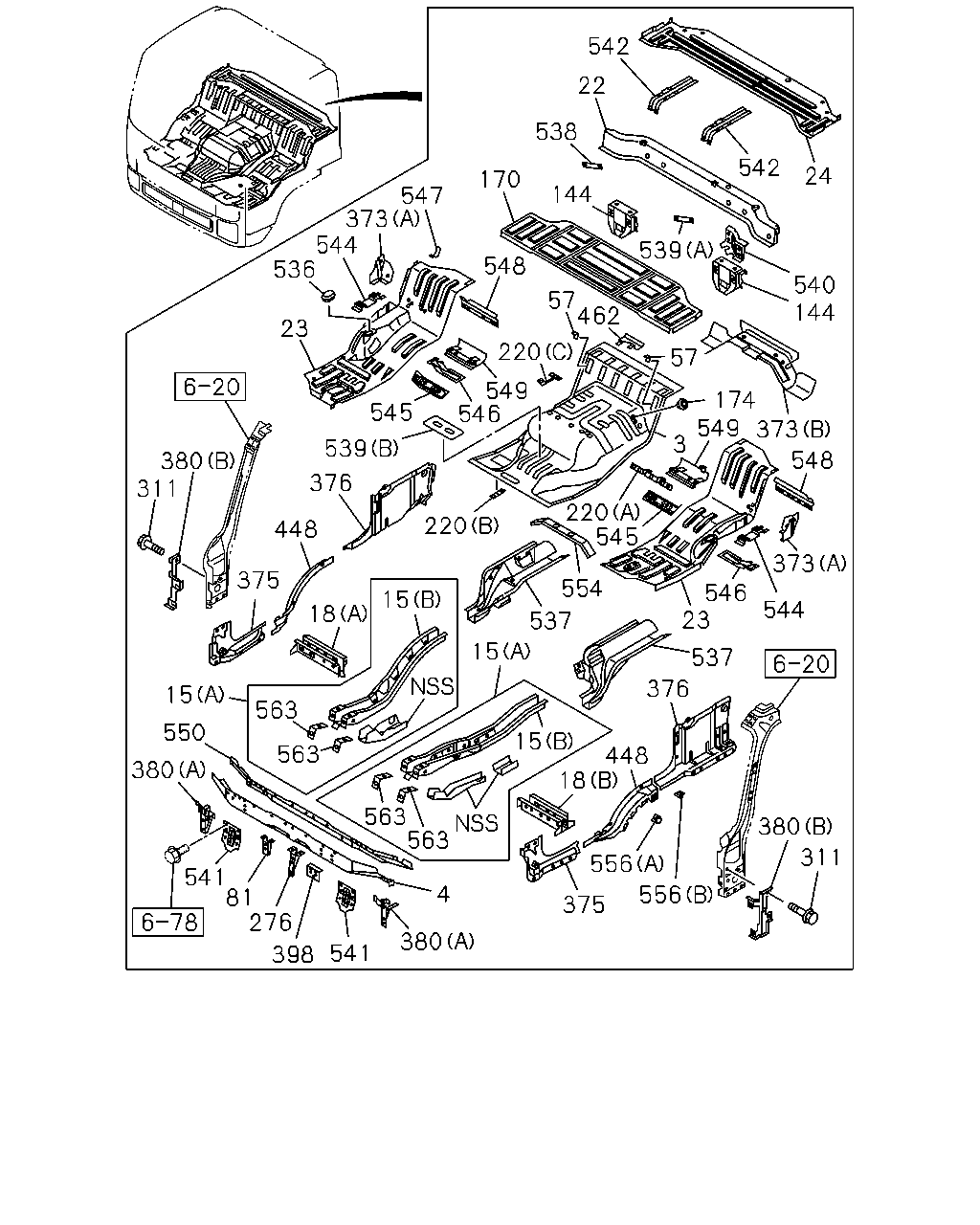

çizim 332150
542 22 538 170 547 144 542 24 539 548 373 544 536 23 545 546 549 220 57 462 57 540 144 174 380 539 376 448 375 18 15 15 537 545 220 220 549 3 373 548 373 546 544 23 537 376 563 15 550 380 563 541 81 276 398 541 380 375 4 556 556 380 311 448 15 18 563 563 554 311
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98167-036-0 01 1 1302- ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1302- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1302- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1302- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1302- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1302- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1302- ● ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1302- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1302- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1302- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1302- ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1302- ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1302- ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1302- ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1302- ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1302- ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1302- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1302- ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1302- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1302- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1302- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1302- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1302- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1302- ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1302- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1302- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1302- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1302- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1302- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1302- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1302- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1302- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1302- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1302- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1302- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1302- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1302- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1302-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1302- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1302- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1302- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1302- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1302- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1302- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1302- ● ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1302- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1302- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1302- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1302- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1302- ● ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1302- ● ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1302- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1302- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1302- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1302- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1302- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1302- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1302- ● ●
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1302- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1302- ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1302- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1302- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1302- ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1302- ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1302- ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1302- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1302- ● ●
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1302- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1302- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1302- ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1302- ● ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1302- ● ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1302- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1302- ● ●
