◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#11464) — 205 parça

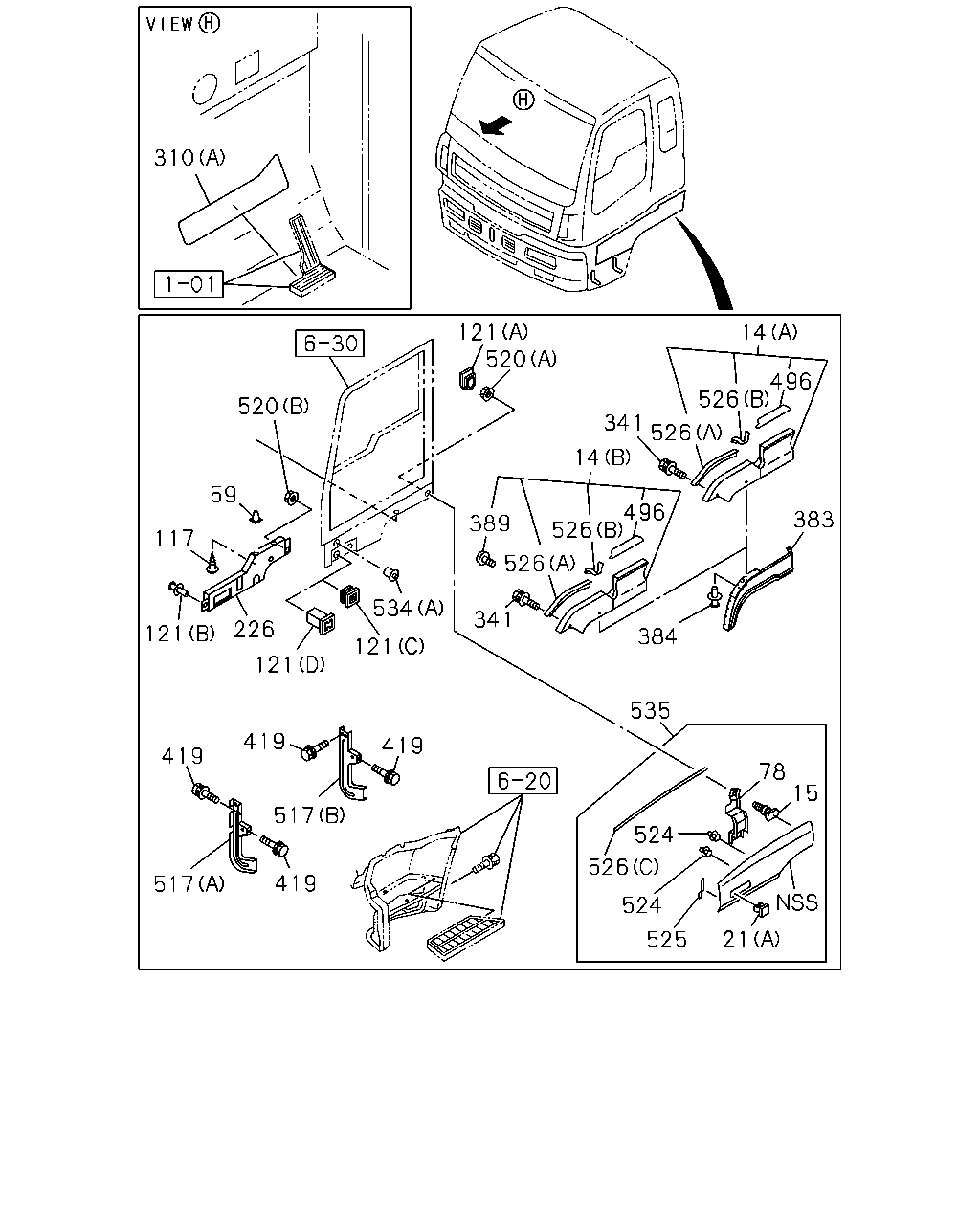

çizim 19028
310 121 520 59 117 121 226 121 419 419 419 517 419 517 525 524 15 78 524 526 535 384 383 526 341 121 534 389 526 496 526 14 341 526 496 14 520 21
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
(B) 		1-65472-874-9 01 1 0504-
14 FENDER; FRT
(B) 		1-65472-875-9 01 1 0504-
14 FENDER; FRT
(A) WHITE 		1-65472-453-0 01 1 0106-0503
14 FENDER; FRT
(A) WHITE 		1-65472-452-0 01 1 0106-0503
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.5X8.5 L=7.5 		8-94279-078-0 02 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0106-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0106-
78 BRACKET; FENDER 1-71267-214-0 01 1 0106-
78 BRACKET; FENDER 1-71267-215-0 01 1 0106-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0106-
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 0106-
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0106-
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 0106-0304
121 GROMMET; FENDER
(D) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0305-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0106-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0106-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0106-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0106-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 0106-0503
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0504-
383 GUARD; MUD,FENDER LWR 1-71907-442-2 01 1 0106-
383 GUARD; MUD,FENDER LWR 1-71907-443-2 01 1 0106-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 11 1 0106-
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0504-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0106-
496 RUBBER; STEP 1-71998-861-2 01 1 0106-
496 RUBBER; STEP 1-71998-862-2 01 1 0106-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0106-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0106-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0106-
517 SUPPORT; STEP PANEL
(A) 		1-65671-767-1 01 1 0106-0208
517 SUPPORT; STEP PANEL
(A) 		1-65671-781-0 01 1 0209-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0106-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0106-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0106-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0106-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 0106-
526 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0106-0211
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0212-
526 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0106-0211
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0212-
526 FINISHER; FENDER
(A) 		1-71998-900-3 02 1 0106-0211
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0212-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0106-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0106-
535 FENDER; BLISTER 1-71267-185-2 01 1 0106-0210
535 FENDER; BLISTER 1-71267-186-2 01 1 0106-0210
535 FENDER; BLISTER 1-71267-293-1 01 1 0211-
535 FENDER; BLISTER 1-71267-294-1 01 1 0211-

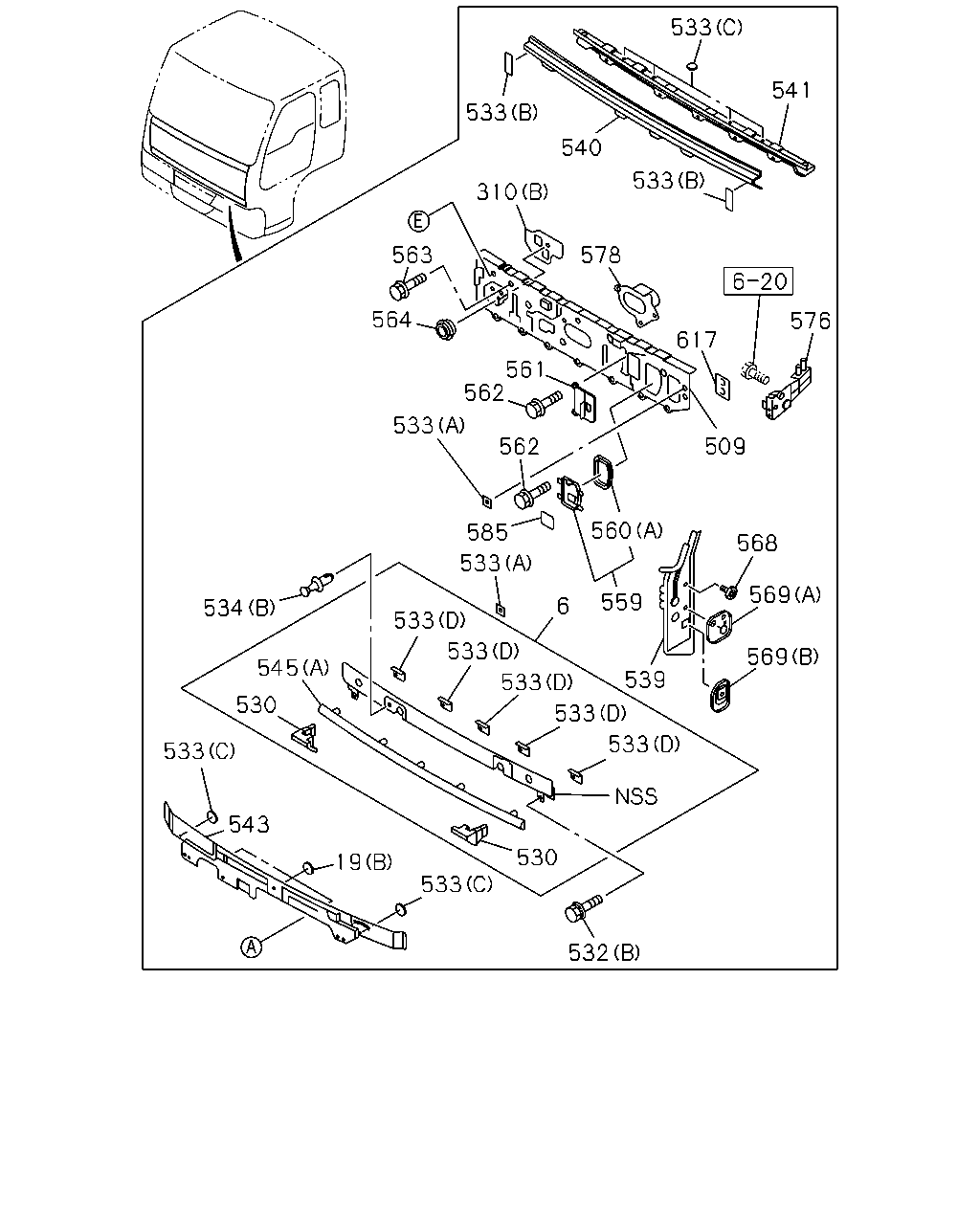

çizim 20923
541 533 540 533 310 533 563 578 617 509 576 562 533 562 561 564 568 569 559 560 533 585 533 533 533 533 533 6 539 532 533 19 543 533 534 530 545 530
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65472-549-4 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0106-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0106-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0106-
509 PANEL; DASH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-492-1 01 1 0106-0604
509 PANEL; DASH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-62270-478-5 01 1 0106-0604
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0106-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0106-
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0106-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0106-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0106-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0106-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0106-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0106-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0106-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0106-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0106-
540 PANEL; FRONT,OUTER 1-61470-688-2 01 1 0106-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0106-
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 0106-0208
543 CLOSING; FRT MTG RAIL 1-61470-716-1 01 1 0209-0505
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0506-
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0106-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106-
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0106-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0106-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0106-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0106-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0106-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0106-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0106-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 18 1 0106-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0106-
568 PATCH; INST REINF 1-61480-675-2 02 1 0106-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0106-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0106-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0106-0604
576 FRAME; INST SIDE 1-62280-177-7 01 1 0106-0604
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0106-0604
585 PLATE; EVAPOLATOR
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-71996-084-1 01 1 0106-
617 SEAL; DASH 1-61281-497-0 02 1 0106-0604

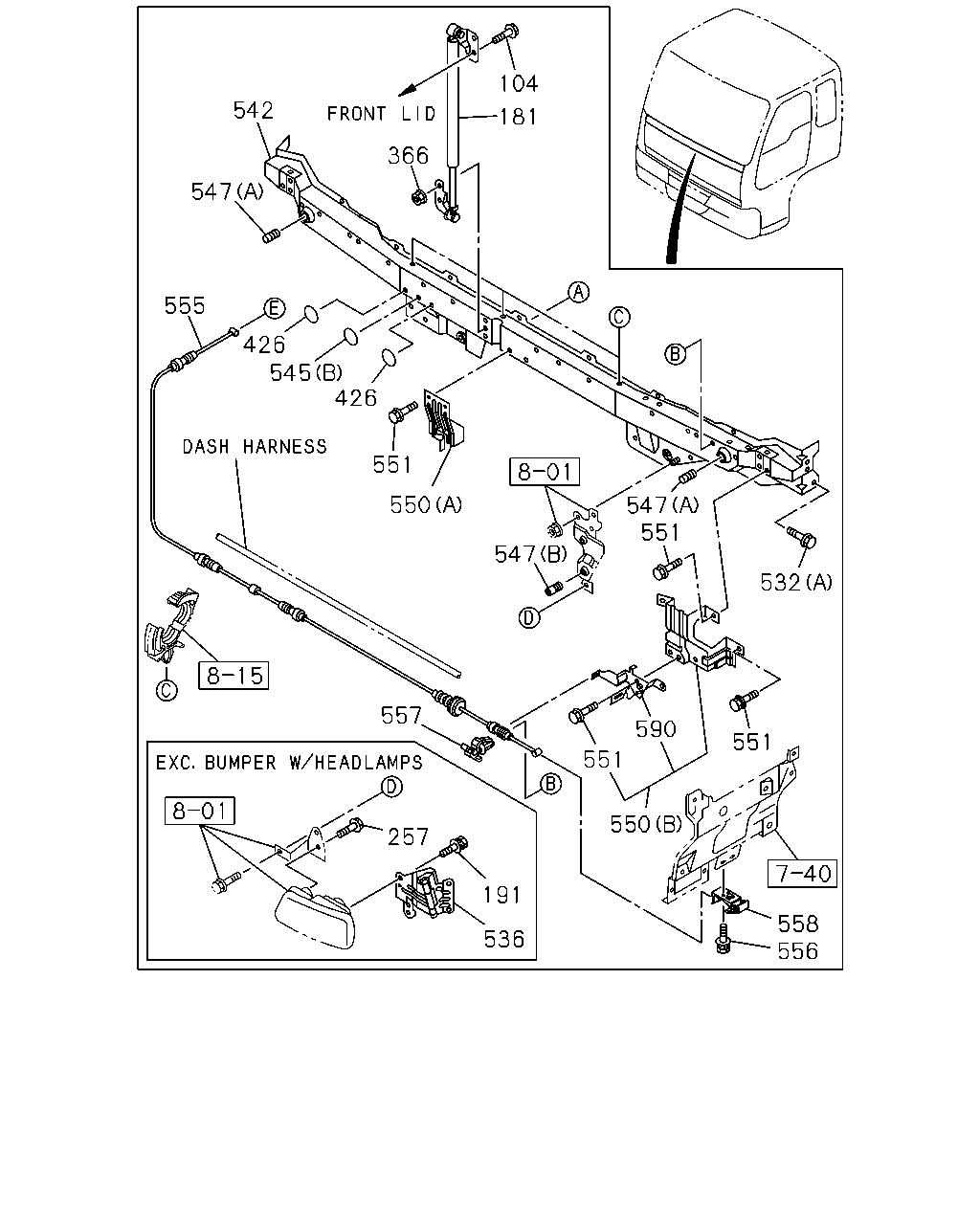

çizim 73568
104 542 547 366 181 555 426 550 551 545 426 532 551 547 547 551 590 551 557 558 556 536 191 257 550
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0106-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 0106-0412
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0501-
191 BOLT; HINGE
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0106-
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0106-0308
257 BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0309-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0106-
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0106-0111
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0112-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0106-
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0106-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-031-5 01 1 0106-
536 HINGE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-032-5 01 1 0106-
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 0106-0505
542 RAIL; FRT MOUNTING 1-61470-721-0 01 1 0506-
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0106-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106-
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0106-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 0106-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 0106-
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-011-1 01 1 0106-
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-012-1 01 1 0106-
550 LOCK ASM; FRT LID
BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-013-1 01 1 0106-
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-79317-006-2 01 1 0106-
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-007-2 01 1 0106-
550 LOCK ASM; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-79317-008-1 01 1 0106-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0106-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0106-
551 BOLT; LOCK
EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106-
555 CABLE; FRT LID
BUMPER W/HEADLAMPS<SLB> L=2512 		1-79347-007-3 01 1 0106-
555 CABLE; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> L=2682 		1-79347-005-2 01 1 0106-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0106-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0106-
558 LEVER; FRT LID 1-79338-003-1 01 1 0106-0212
558 LEVER; FRT LID 1-79338-007-0 01 1 0301-
590 LOCK; FRT LID 1-79318-009-4 01 1 0106-
590 LOCK; FRT LID 1-79318-010-2 01 1 0106-

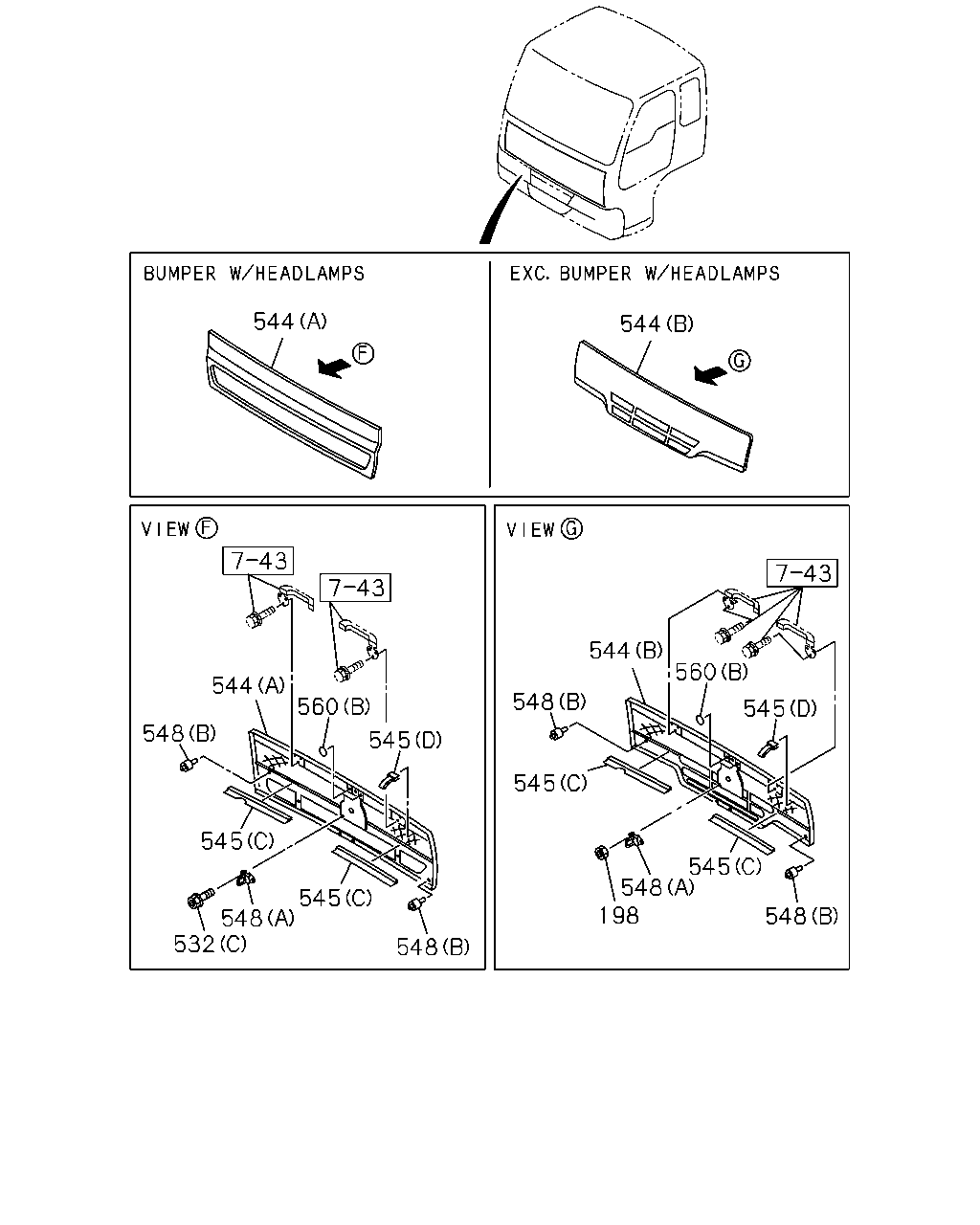

çizim 74550
544 544 544 544 560 545 548 545 545 548 532 548 198 548 545 548 545 548 560 545
BalonParca AdiParca NoAdetTipApplied Date
198 NUT; PANEL
EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		8-94197-199-0 02 1 0106-
532 BOLT; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0106-
532 BOLT; FRT PANEL
(B) M8X20 		1-79198-002-0 02 1 0106-
532 BOLT; FRT PANEL
(A) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0106-
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> DELUXE CAB(W14) (A) WHITE 		1-71107-367-2 01 1 0106-
544 LID; FRT
BUMPER W/HEADLAMPS<SLB> EXC. DELUXE CAB(W14) (A) 		1-71107-403-0 01 1 0106-
544 LID; FRT
EXC. BUMPER W/HEADLAMPS<SLB>,DELUXE CAB(W14) (B) 		1-71107-293-0 01 1 0106-
544 LID; FRT
DELUXE CAB(W14) EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-71107-217-2 01 1 0106-
545 SEAL; FRT LID
BUMPER W/HEADLAMPS<SLB> (D) 		1-71907-578-0 02 1 0106-
545 SEAL; FRT LID
(C) 		1-71907-472-0 02 1 0106-
545 SEAL; FRT LID
(A) L=2038 		1-71907-481-1 01 1 0106-
545 SEAL; FRT LID
(B) OD=25 BLACK 		1-76798-019-0 01 1 0106-
545 SEAL; FRT LID
EXC. BUMPER W/HEADLAMPS<SLB> (D) L=63 		1-71998-963-2 01 1 0106-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0106-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0106-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0106-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0106-
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0106-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0106-

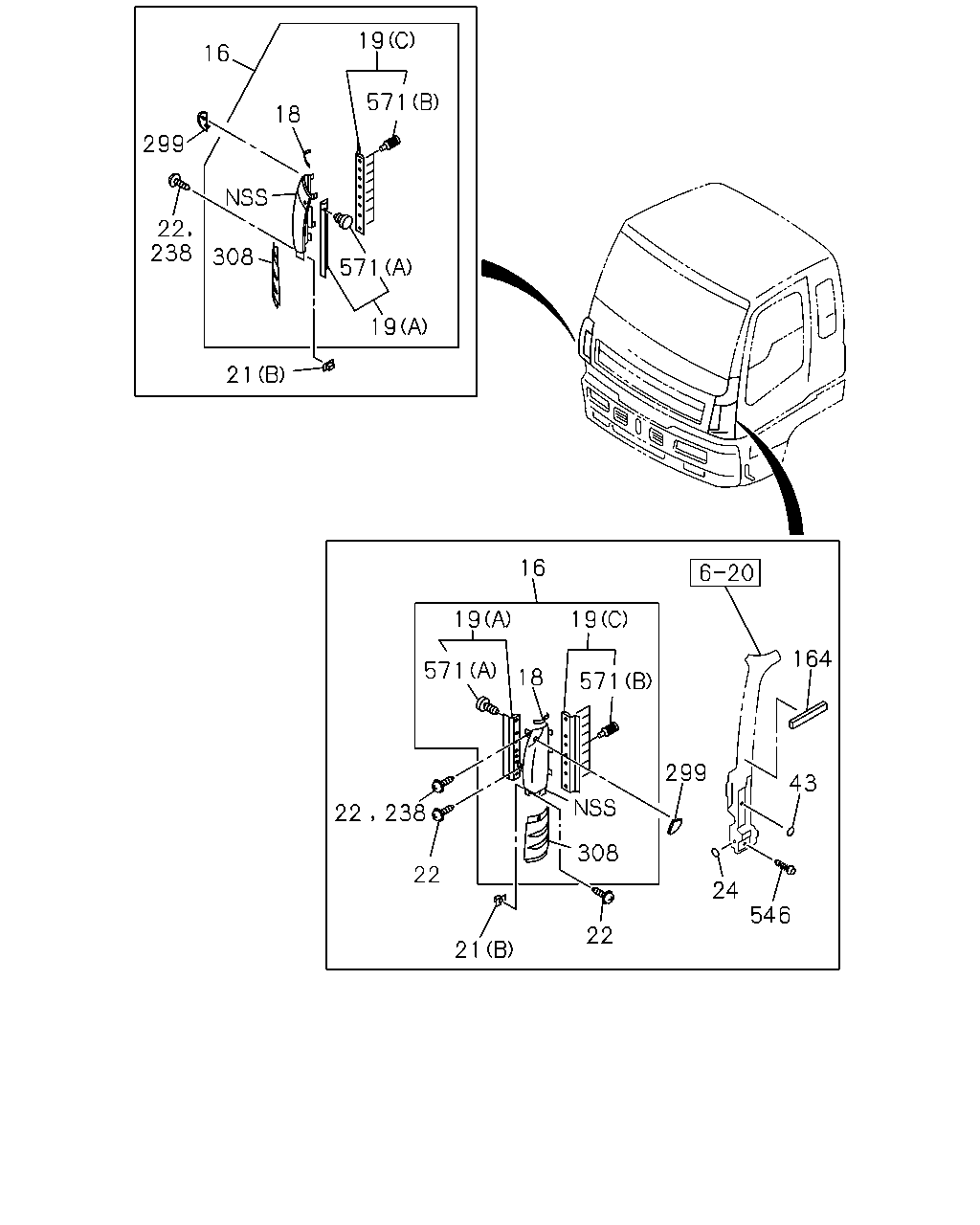

çizim 74553
571 19 18 16 299 238 22 571 21 308 19 16 571 18 19 19 571 22 22 238 308 22 21 24 546 43 299 164
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-649-2 01 1 0106-
16 PANEL; FRONT,SIDE
BUMPER W/HEADLAMPS<SLB> WHITE 		1-65472-648-2 01 1 0106-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-897-0 01 1 0106-
16 PANEL; FRONT,SIDE
EXC. BUMPER W/HEADLAMPS<SLB> 		1-65471-896-0 01 1 0106-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0106-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-579-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-580-1 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-159-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-160-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-164-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-71907-165-5 01 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0106-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.5X8.5 L=7.5 		8-94279-078-0 02 1 0106-
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. BUMPER W/HEADLAMPS<SLB> (B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0106-
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0106-
22 SCREW; FRT PANEL SIDE
EXC. BUMPER W/HEADLAMPS<SLB> M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0106-
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 06 1 0106-
24 SEAL; FRT PANEL LWR
EXC. POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 10 1 0106-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0106-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0106-
238 SCREW
BUMPER W/HEADLAMPS<SLB> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0106-
299 COVER; FRT PANEL SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-71998-996-1 01 1 0106-
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0106-
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-568-1 01 1 0106-
308 PLATE; FRT PANEL
BUMPER W/HEADLAMPS<SLB> 		1-65472-569-1 01 1 0106-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0106-
571 CLIP; SEAL
BODY COLOR MARINE BLUE(890) (A) 		1-09987-228-0 16 1 0106-
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 16 1 0106-
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A) 		1-09987-228-0 14 1 0106-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0106-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
