◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11519 - FVR/GVR-RHD EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#114634) — 25 parça

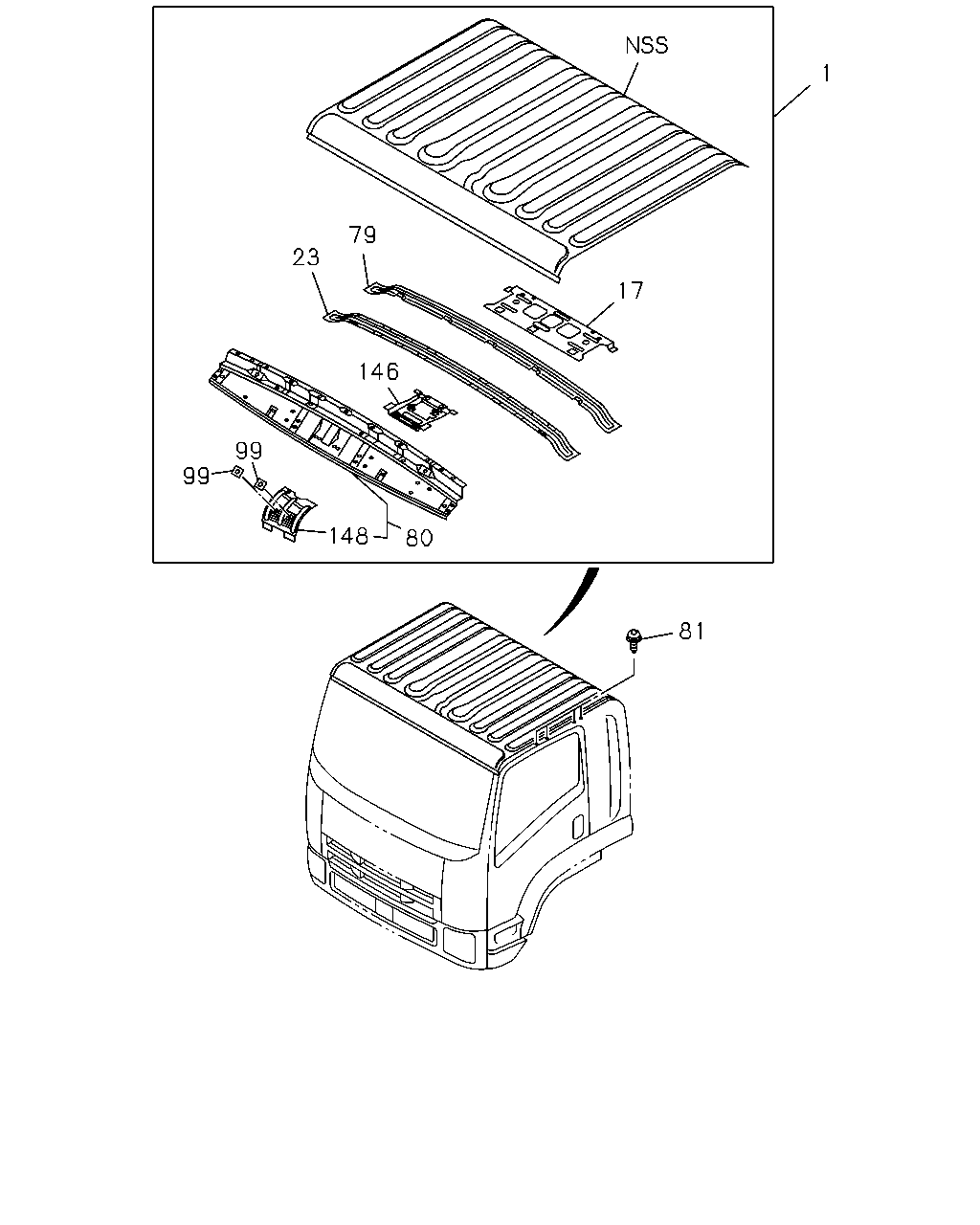

çizim 329106
1 17 79 23 146 148 80 99 99 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> 		8-97584-177-6 01 1 1302-1308
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-177-6 01 1 1302-1308
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> FLUORESCENT LAMP<6UC> 		8-98196-922-0 01 1 1309-
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98196-922-0 01 1 1309-
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1302-1308
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, FLUORESCENT LAMP<6UC> 		8-98152-805-0 01 1 1302-1308
1 PANEL; ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. FLUORESCENT LAMP<6UC> 		8-98246-477-0 01 1 1309-
1 PANEL; ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, FLUORESCENT LAMP<6UC> 		8-98246-477-0 01 1 1309-
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97584-498-5 01 1 1302-1308
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98246-475-0 01 1 1309-
1 PANEL; ROOF
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98152-806-0 01 1 1302-1308
1 PANEL; ROOF
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98246-478-0 01 1 1309-
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1302-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1302-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1302-
80 PANEL; HEADER,ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-192-3 01 1 1302-1308
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-192-3 01 1 1302-1308
80 PANEL; HEADER,ROOF
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98196-921-0 01 1 1309-
80 PANEL; HEADER,ROOF
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98196-921-0 01 1 1309-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1302-
99 SEAL; BODY,METAL
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1302-
99 SEAL; BODY,METAL
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1302-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1302-
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97411-015-1 01 1 1302-
148 REINFORCEMENT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97411-015-1 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
