◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#114633) — 11 parça

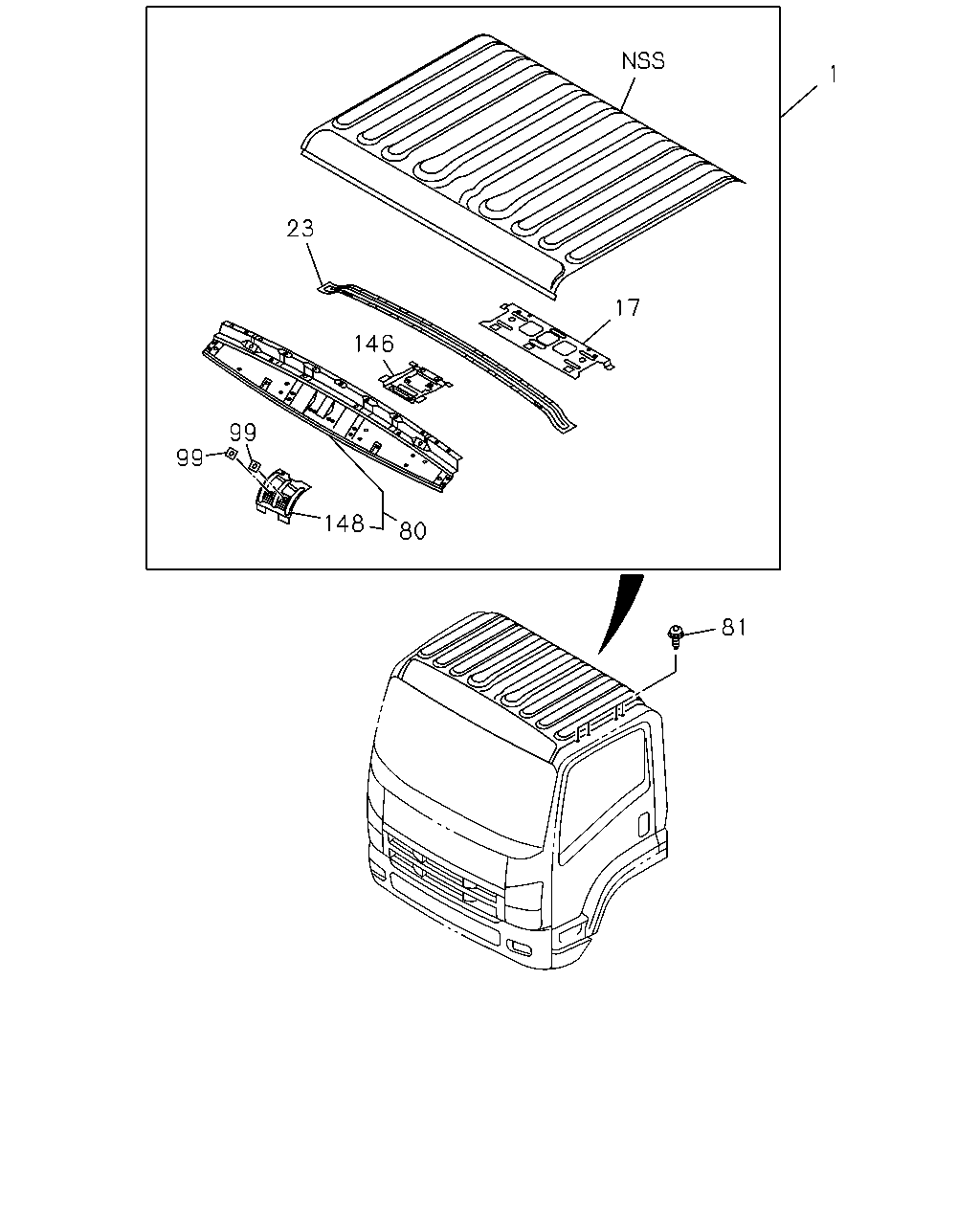

çizim 329022
1 17 23 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98038-606-5 01 1 1302-
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-98056-962-3 01 1 1302-
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98158-312-1 01 1 1302-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98158-313-1 01 1 1302-
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1302-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1302-
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98047-270-2 01 1 1302-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1302-
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1302-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1302-
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-013-0 01 1 1302-
