6-47 — MUD GUARD AND INSULATOR (#114620) — 124 parça

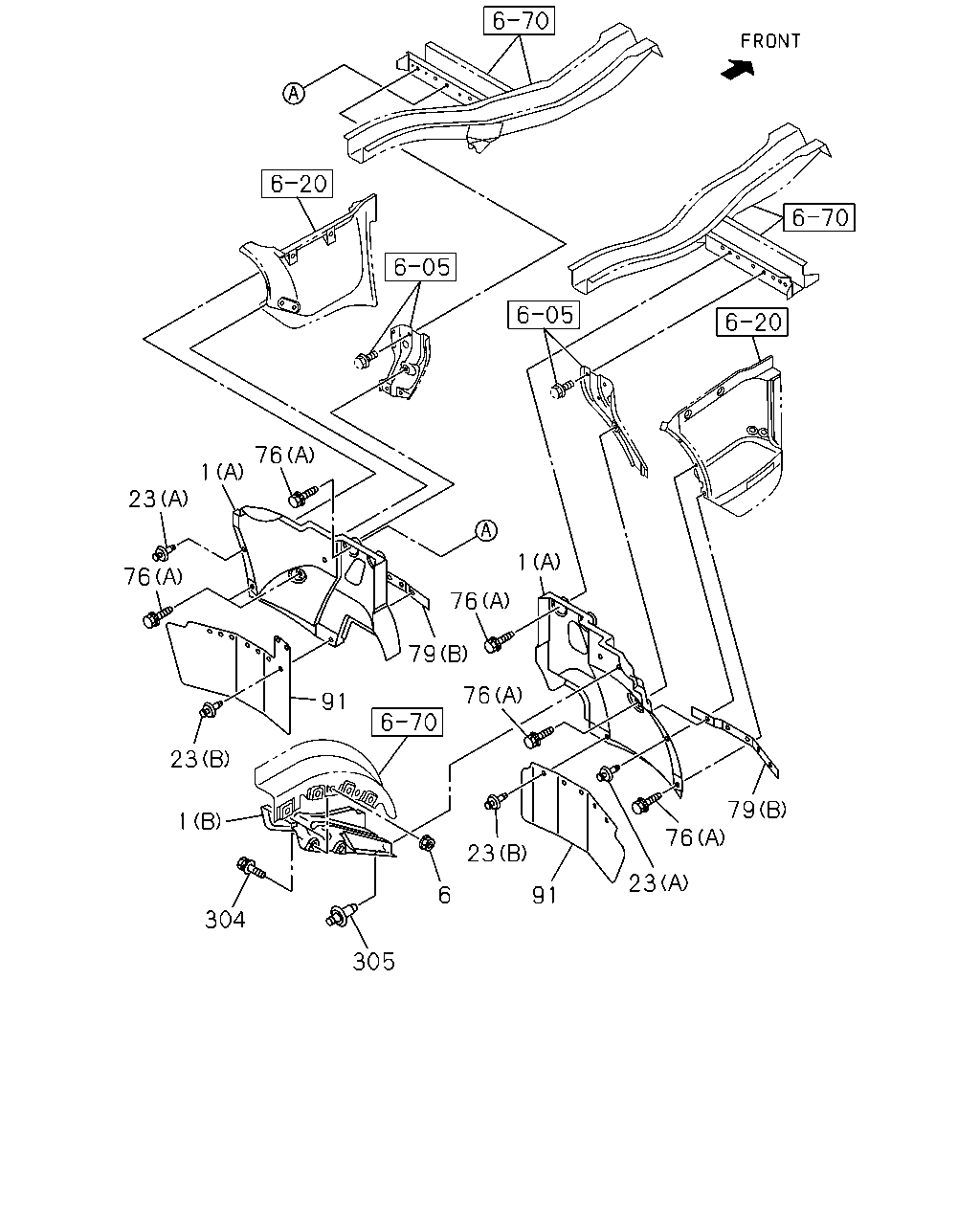

76 23 1 76 76 1 79 91 76 23 91 23 76 79 6 305 304 1 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	1302-
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	1302-
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-188-0	01	1	1302-
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1302-
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	1302-
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1302-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1302-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1302-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1302-
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-428-2	01	1	1302-
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-214-3	01	1	1302-
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98093-464-0	01	1	1302-
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98093-463-0	01	1	1302-
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-836-0	01	1	1302-
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98092-834-0	01	1	1302-
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1302-
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1302-

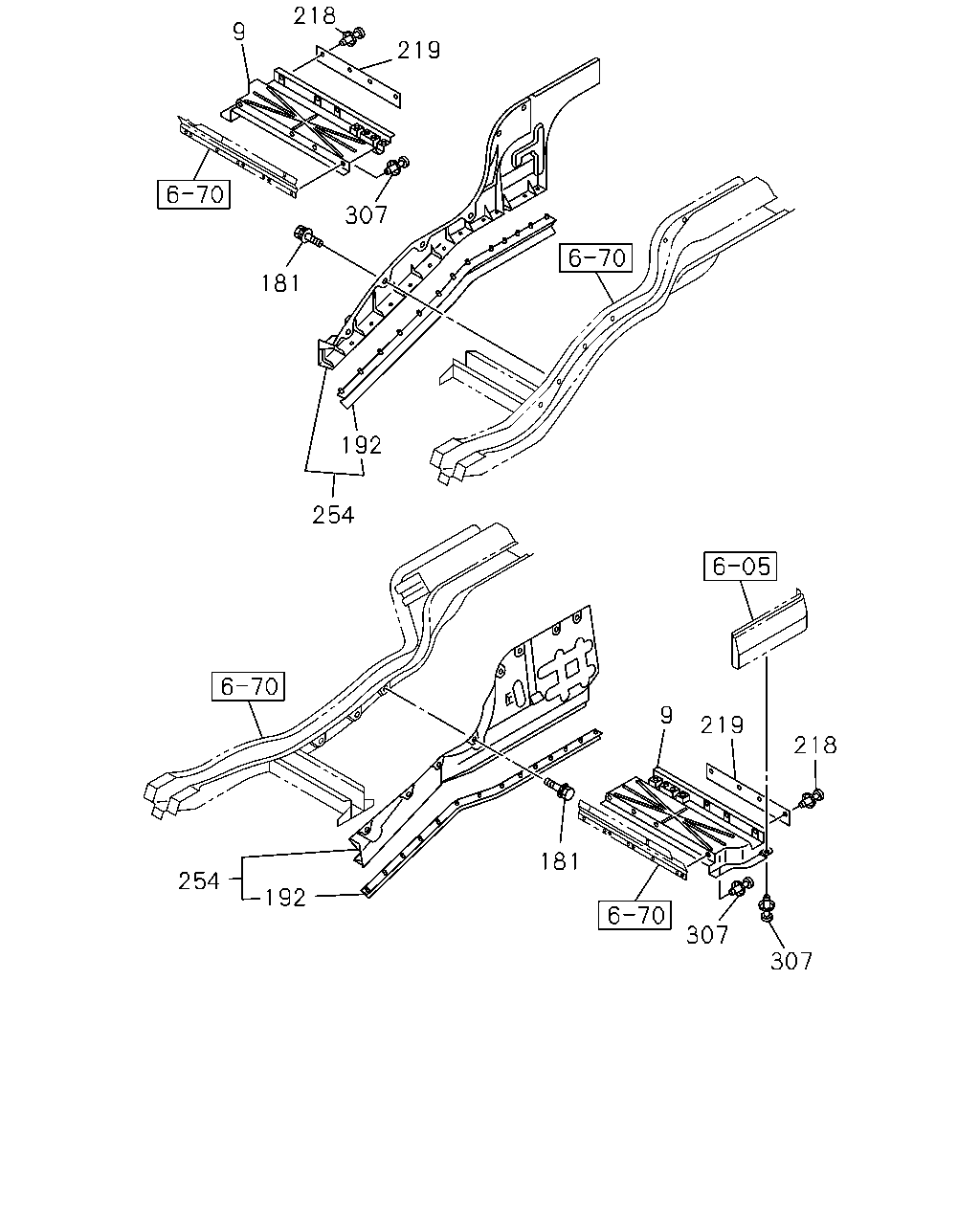

9 218 219 307 181 192 254 254 192 181 9 219 218 307 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-122-0	01	1	1302-
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-121-0	01	1	1302-
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	1302-
192	SEAL; MUD COVER	8-98041-159-2	01	1	1302-
192	SEAL; MUD COVER	8-98041-158-1	01	1	1302-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1302-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-148-1	02	1	1302-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-150-1	02	1	1302-
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98041-150-1	02	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-920-1	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-919-2	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-926-1	01	1	1302-
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-926-1	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-925-2	01	1	1302-
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-925-2	01	1	1302-
307	RETAINER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5	1-09987-248-1	08	1	1302-

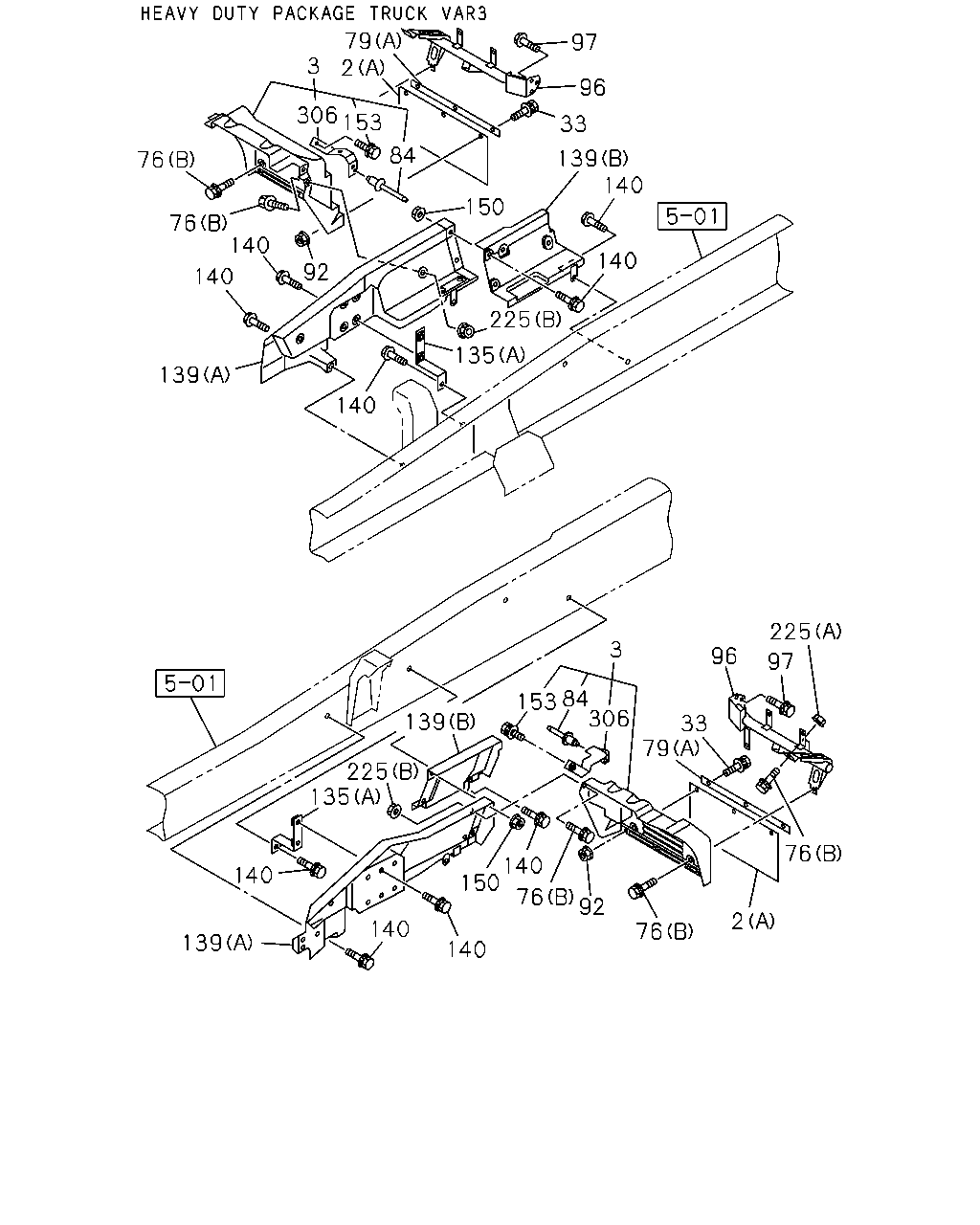

79 97 96 2 3 33 306 153 84 150 139 140 225 135 140 140 140 139 140 92 76 76 97 225 96 33 76 79 2 76 92 76 140 150 140 140 306 3 84 153 139 683 225 135 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	1302-
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	1302-
3	GUARD; MUD,RR	8-98196-103-0	01	1	1302-
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1302-
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1302-
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1302-
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	1302-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1302-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1302-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1302-
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1302-
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	1302-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98066-745-2	01	1	1302-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-479-3	01	1	1302-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-523-2	01	1	1302-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-522-2	01	1	1302-
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	1302-
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	1302-
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-53457-191-0	02	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98089-388-0	01	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98089-387-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-590-0	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-868-0	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-867-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1302-
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1302-
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	1302-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1302-
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1302-
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1302-
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1302-
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1302-
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98199-233-0	01	1	1302-

79 2 3 97 96 33 139 140 140 150 84 153 306 76 76 140 140 92 225 135 140 139 225 96 97 33 76 2 79 76 92 76 306 3 84 153 140 150 140 139 225 135 140 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	1302-
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	1302-
3	GUARD; MUD,RR	8-98196-103-0	01	1	1302-
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1302-
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1302-
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1302-
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	1302-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1302-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1302-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1302-
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1302-
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	1302-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98066-745-2	01	1	1302-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-479-3	01	1	1302-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-523-2	01	1	1302-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-522-2	01	1	1302-
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	1302-
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	1302-
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-53457-191-0	02	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98089-388-0	01	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98089-387-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-590-0	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-868-0	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-867-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1302-
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1302-
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	1302-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1302-
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1302-
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1302-
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1302-
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1302-
