6-01 — FRONT BUMPER (#11462) — 134 parça

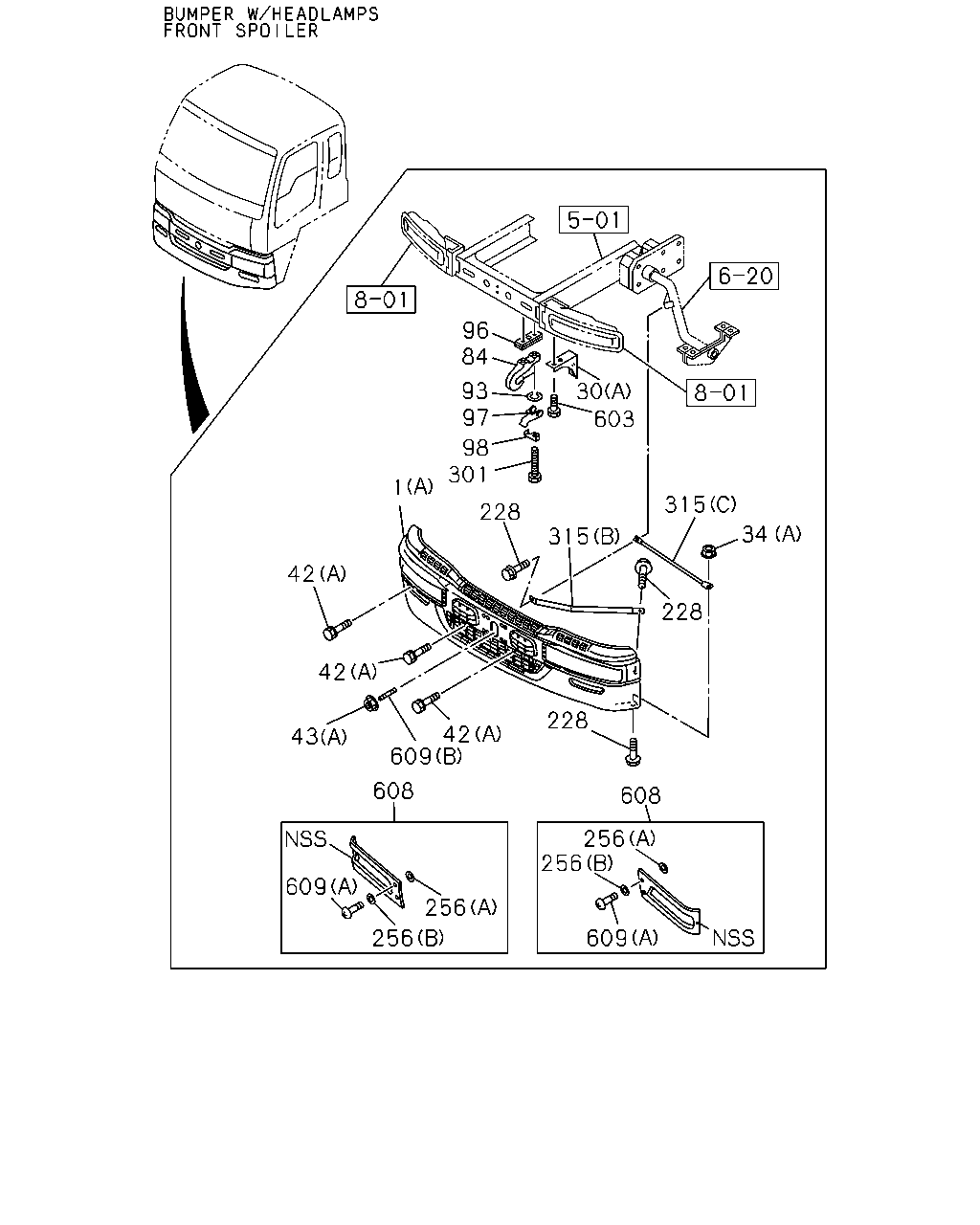

96 315 315 228 301 98 97 93 84 1 42 42 43 609 608 228 608 256 256 609 256 609 256 42 603 30 34 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (A)	1-71210-769-6	01	1	0106-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	0106-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-428-0	01	1	0106-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-429-0	01	1	0106-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-282-1	01	1	0106-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-283-1	01	1	0106-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91180-108-0	02	1	0603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91150-108-0	17	1	0106-0602
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91180-108-0	17	1	0603-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE	0-91150-108-0	15	1	0106-0602
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE	0-91180-108-0	15	1	0603-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28681-025-0	07	1	0106-0512
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28651-025-0	07	1	0601-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X25 FLANGE	0-28081-025-0	08	1	0106-0512
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X25 FLANGE	0-28051-025-0	08	1	0601-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10 FLANGE	0-91150-210-0	01	1	0106-0602
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10 FLANGE	0-91180-210-0	01	1	0603-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	0106-
84	HOOK	1-57181-027-1	01	1	0106-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0106-0603
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>	1-53497-473-0	01	1	0106-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	0106-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	0106-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28680-825-0	06	1	0106-0512
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28650-825-0	06	1	0601-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	0106-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0106-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X90	0-10811-690-0	01	1	0106-0512
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X90	0-10861-690-0	01	1	0601-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X95	0-10811-695-0	01	1	0106-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	0106-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10861-660-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	0106-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10861-670-0	01	1	0601-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-346-2	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-347-2	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-380-0	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-381-1	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-502-0	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-503-0	01	1	0106-
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28680-825-0	04	1	0106-0512
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE	0-28650-825-0	04	1	0601-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	0106-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	0106-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71260-175-0	06	1	0106-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> (B) M10X35 L=50	5-09300-050-0	01	1	0106-

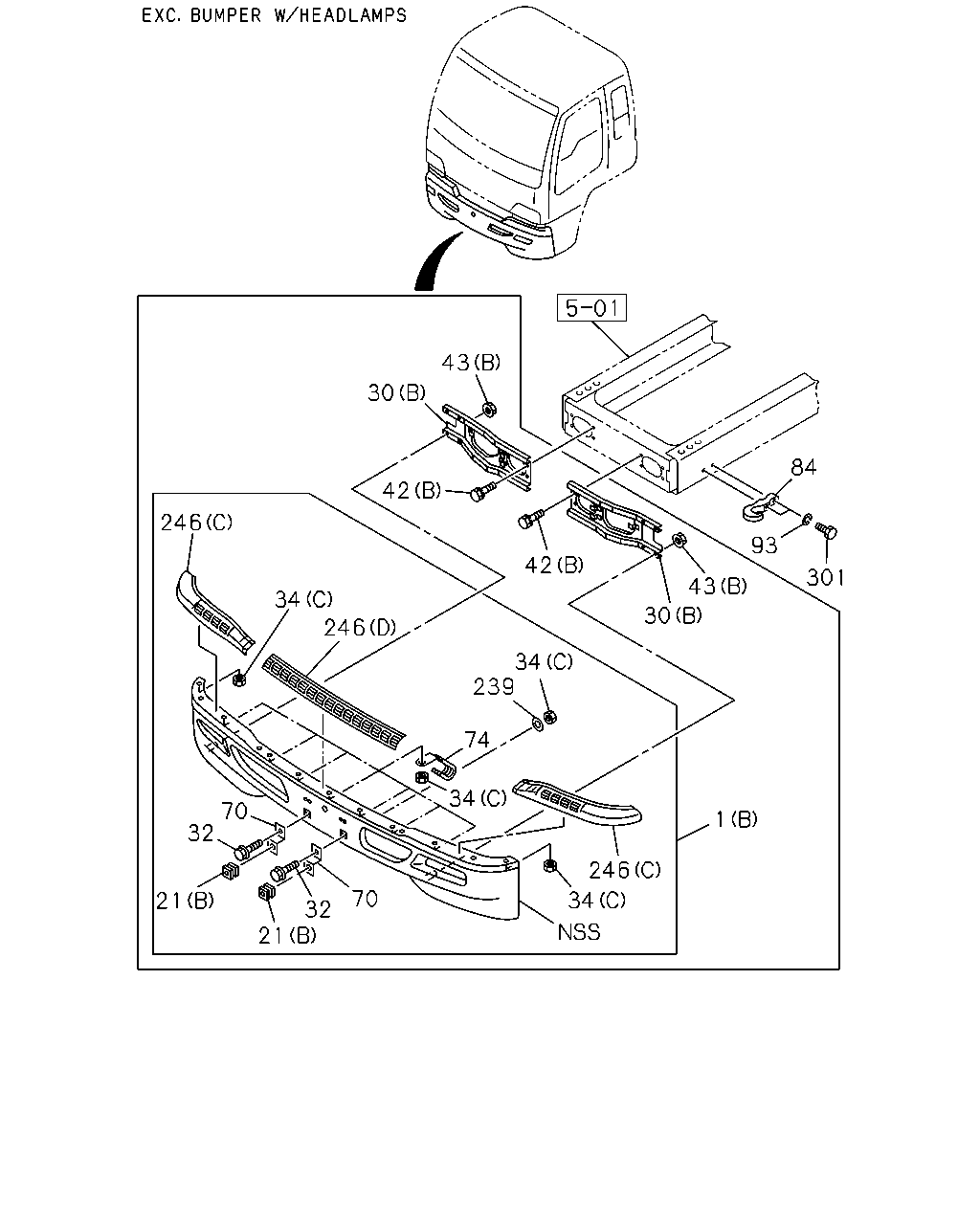

43 84 301 93 43 30 42 42 30 246 34 246 239 34 1 246 34 70 32 21 70 32 34 74 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (A)	1-71210-769-6	01	1	0106-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	0106-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	0106-0211
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> (A) D=9X9 L=7 M5	8-94163-979-0	22	1	0212-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	0106-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	0106-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-428-0	01	1	0106-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-429-0	01	1	0106-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-282-1	01	1	0106-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71230-283-1	01	1	0106-
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0106-0512
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91180-108-0	02	1	0603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91150-108-0	17	1	0106-0602
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91180-108-0	17	1	0603-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE	0-91150-108-0	15	1	0106-0602
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE	0-91180-108-0	15	1	0603-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28681-025-0	07	1	0106-0512
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X25 FLANGE	0-28651-025-0	07	1	0601-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X25 FLANGE	0-28081-025-0	08	1	0106-0512
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X25 FLANGE	0-28051-025-0	08	1	0601-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10 FLANGE	0-91150-210-0	01	1	0106-0602
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10 FLANGE	0-91180-210-0	01	1	0603-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	0106-
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>	1-71260-150-0	02	1	0106-
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>	1-09701-203-0	07	1	0106-
84	HOOK	1-57181-027-1	01	1	0106-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0106-0603
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	02	1	0106-0605
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	0-91610-708-0	02	1	0606-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71260-156-1	01	1	0106-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-162-0	06	1	0106-
246	PROTECTOR; BUMPER (C)	1-71260-094-1	01	1	0106-
246	PROTECTOR; BUMPER (C)	1-71260-095-1	01	1	0106-
246	PROTECTOR; BUMPER (D)	1-71260-155-0	01	1	0106-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X90	0-10811-690-0	01	1	0106-0512
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X90	0-10861-690-0	01	1	0601-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> M16X95	0-10811-695-0	01	1	0106-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10811-660-0	01	1	0106-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X60	0-10861-660-0	01	1	0601-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10811-670-0	01	1	0106-0512
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB> M16X70	0-10861-670-0	01	1	0601-

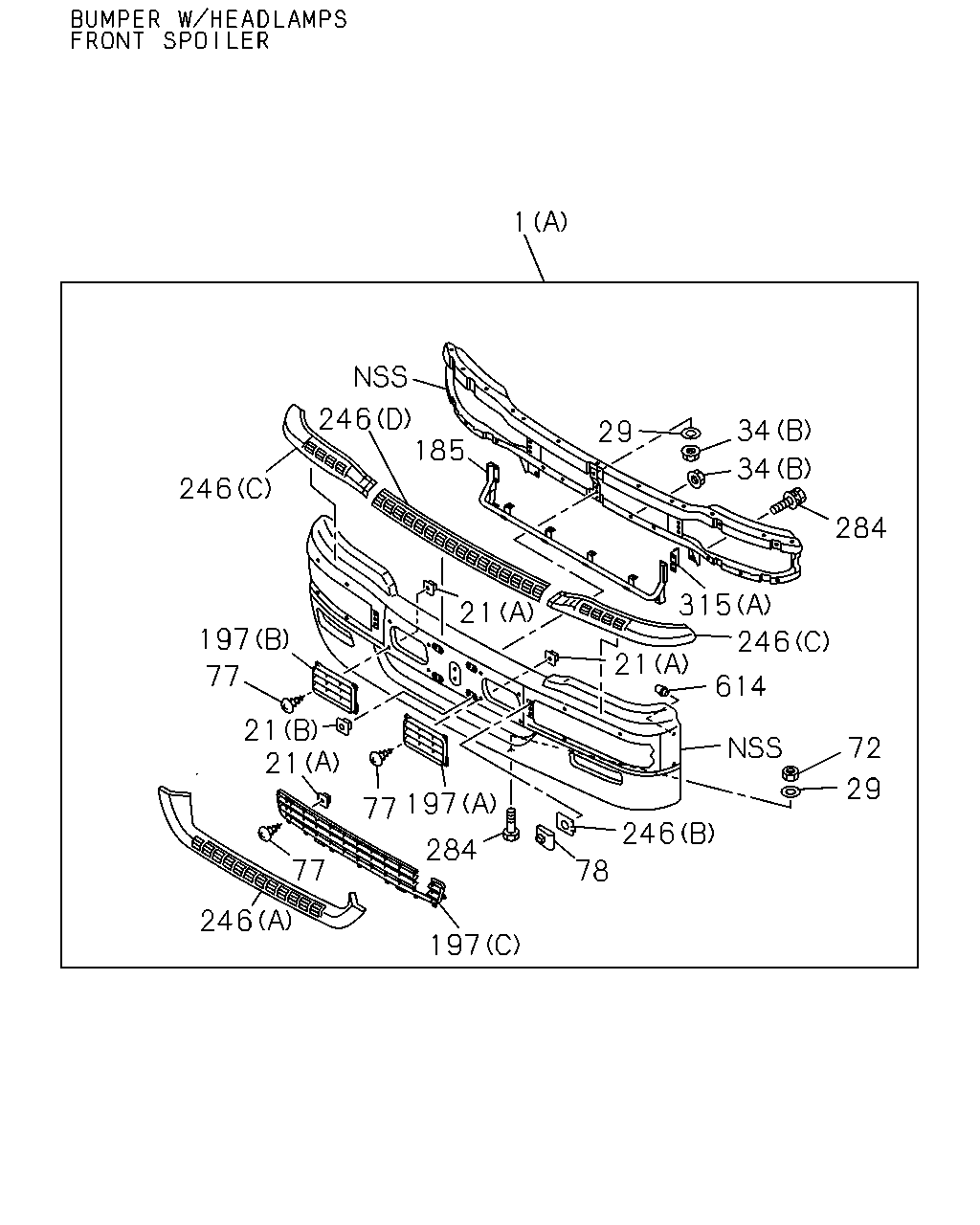

1 246 246 185 29 34 34 284 246 315 21 614 72 29 246 78 284 197 77 21 21 77 197 197 246 77 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (A)	1-71210-769-6	01	1	0106-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71210-806-0	01	1	0106-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	0106-0211
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> (A) D=9X9 L=7 M5	8-94163-979-0	22	1	0212-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	0106-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	0106-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	19	1	0106-0211
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	9-09160-708-0	17	1	0212-0605
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=22	0-91610-708-0	17	1	0606-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M8 FLANGE	0-91180-108-0	02	1	0603-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91150-108-0	17	1	0106-0602
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M8 FLANGE	0-91180-108-0	17	1	0603-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE	0-91150-108-0	15	1	0106-0602
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE	0-91180-108-0	15	1	0603-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> M8	9-09110-508-0	02	1	0106-0211
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> M5X20	9-93490-520-0	24	1	0106-0211
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> M5X16 TAPPING	9-07076-516-0	22	1	0212-0603
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> M5X16 TAPPING	0-71240-516-0	22	1	0604-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB>	1-71260-152-0	06	1	0106-0211
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB>	1-71260-174-0	06	1	0212-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB>	1-71230-416-0	01	1	0106-0211
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71260-115-1	01	1	0106-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-116-1	01	1	0106-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71260-117-0	01	1	0106-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71260-156-1	01	1	0106-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71260-162-0	06	1	0106-
246	PROTECTOR; BUMPER (C)	1-71260-094-1	01	1	0106-
246	PROTECTOR; BUMPER (C)	1-71260-095-1	01	1	0106-
246	PROTECTOR; BUMPER (D)	1-71260-155-0	01	1	0106-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0106-0211
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0106-0512
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-346-2	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-347-2	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-380-0	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (B)	1-71230-381-1	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-502-0	01	1	0106-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> (C)	1-71230-503-0	01	1	0106-
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB>	1-71260-163-0	12	1	0106-
