Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#114613) — 295 parça

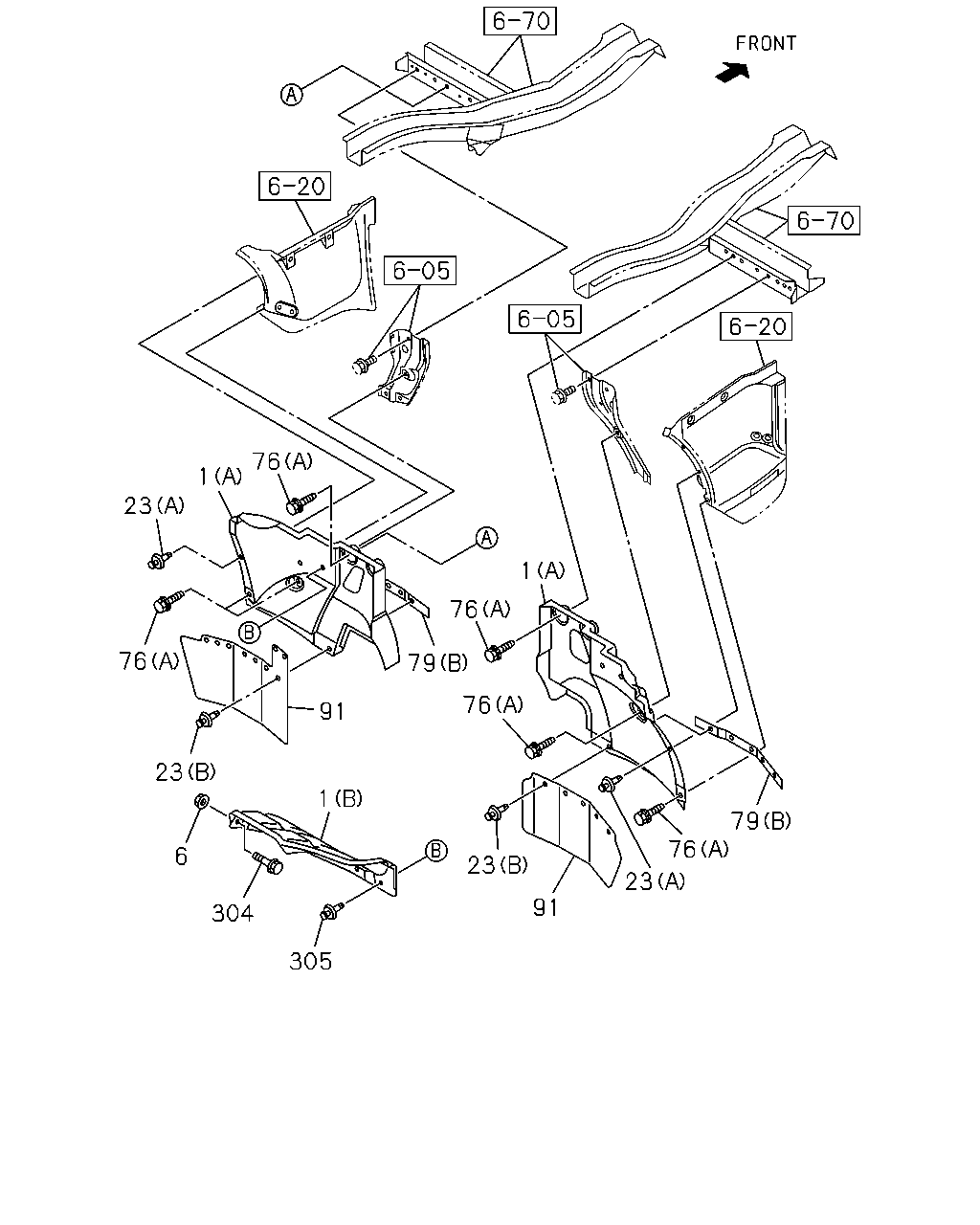

23 1 76 76 79 1 76 91 1 23 91 23 76 79 305 304 6 23 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	1302-
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	1302-
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-191-0	01	1	1302-
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1302-
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	1302-
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1302-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-1405
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1302-
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1302-1405
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98083-606-1	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98117-496-0	04	1	1406-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1302-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-484-0	02	1	1302-1405
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-484-0	02	1	1406-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1302-
79	RETAINER; MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98225-448-1	02	1	1302-
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-214-3	01	1	1302-
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-428-2	01	1	1302-
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98093-463-0	01	1	1302-
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98093-464-0	01	1	1302-
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-430-2	01	1	1302-
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98057-432-2	01	1	1302-
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1302-
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1302-

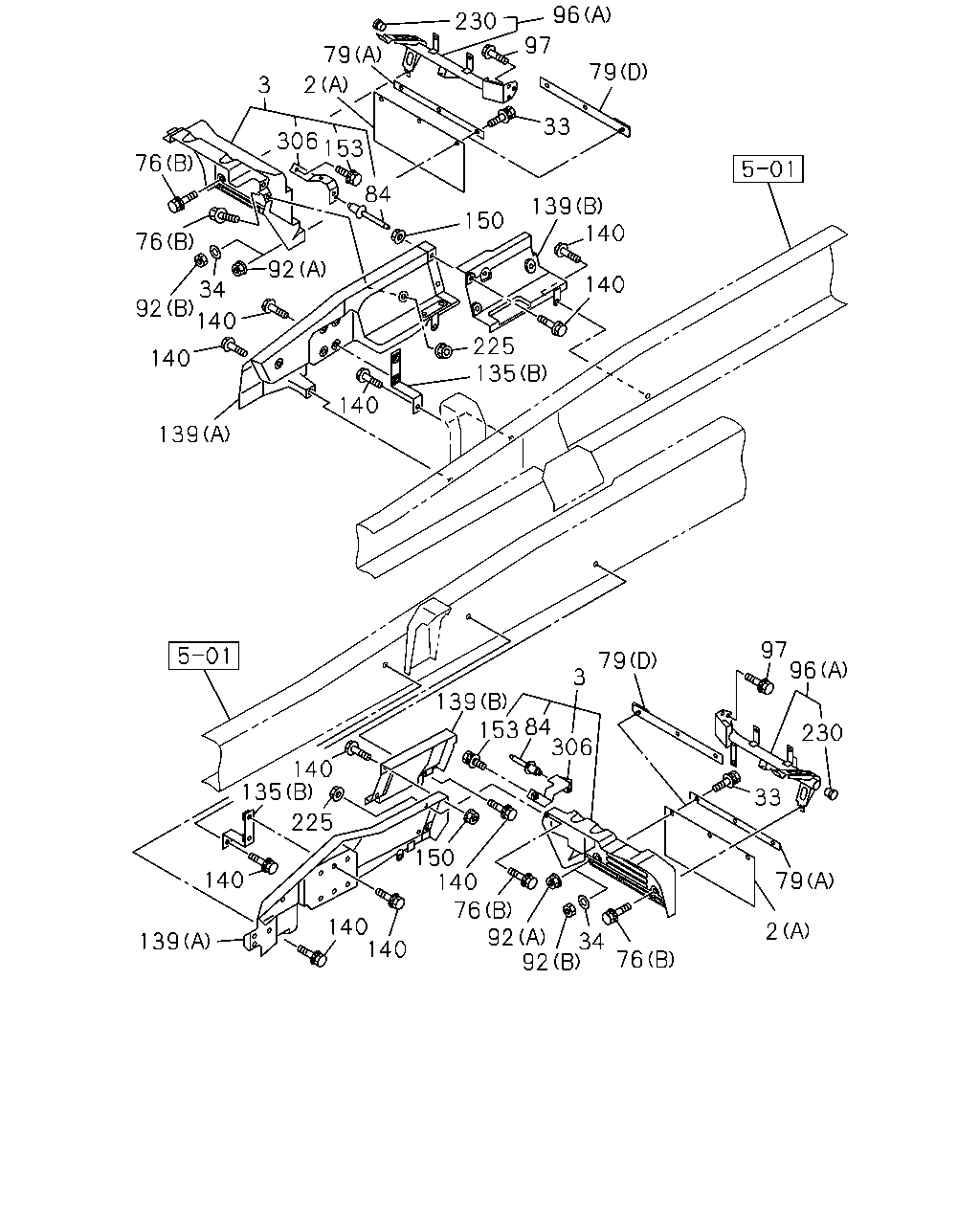

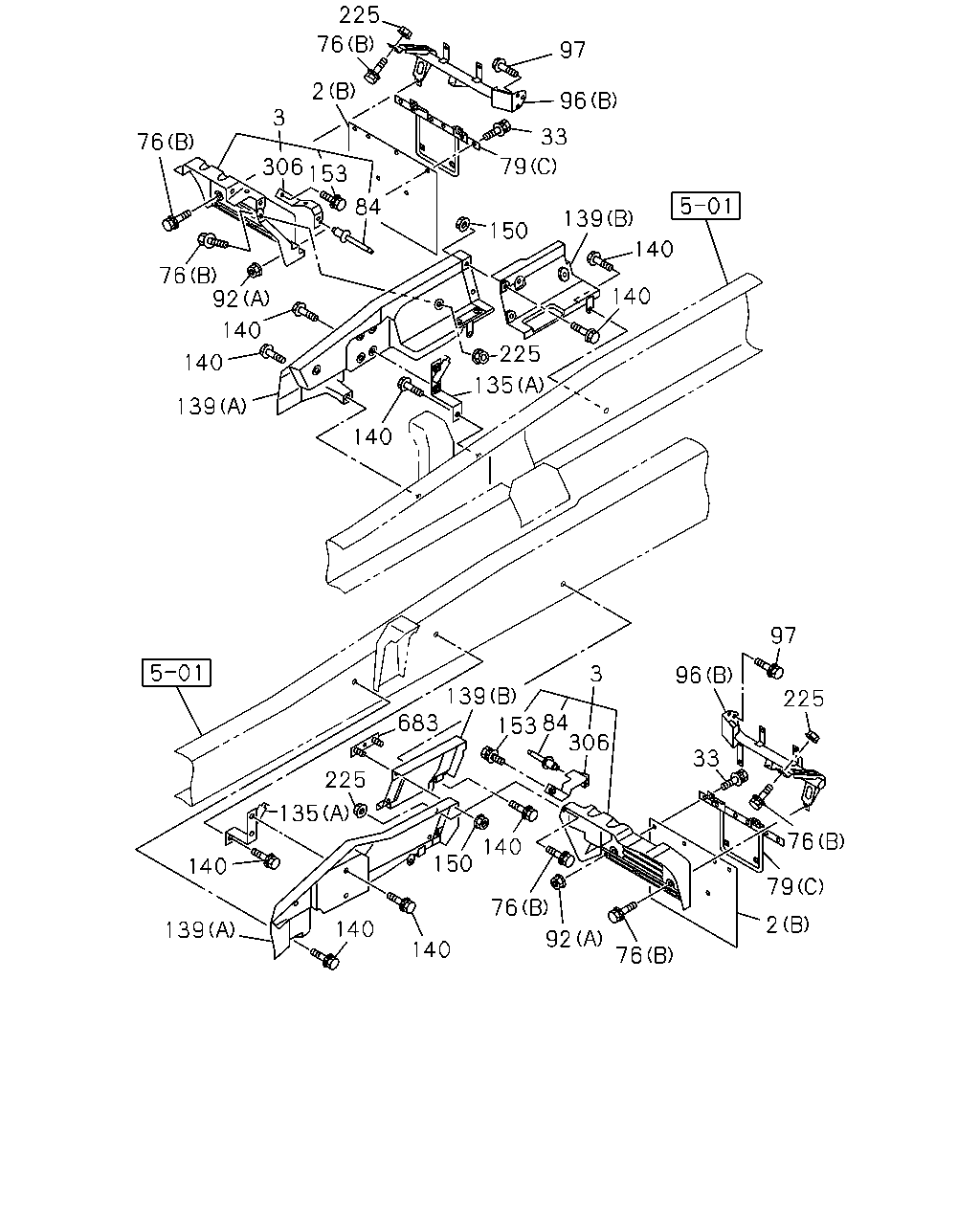

97 96 33 79 2 3 92 34 140 34 92 150 139 140 225 140 140 139 135 139 79 79 96 97 33 34 92 92 140 92 92 79 140 3 140 135 140 139 140 140 34 2 150 76 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98261-619-0	01	1	1406-
2	COVER; MUD,TIRE RR 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98261-620-0	01	1	1406-
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-482-0	02	1	1302-1405
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-482-0	02	1	1406-
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	1302-
2	COVER; MUD,TIRE RR RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98229-558-0	02	1	1302-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98090-849-1	01	1	1406-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98090-850-2	01	1	1406-
3	GUARD; MUD,RR	8-98196-103-0	01	1	1302-1405
3	GUARD; MUD,RR EXC. MOROCCO EQUIPMENT(CGA)	8-98196-103-0	01	1	1406-
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1302-1405
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA)	8-98196-111-0	01	1	1406-
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1302-
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1302-1405
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1406-
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	1302-
33	BOLT; MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	1302-
34	WASHER; PL,MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.1	0-91510-606-0	02	1	1302-
34	WASHER; PL,MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.4	0-91610-606-0	02	1	1302-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-1405
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1302-
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1302-1405
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98083-606-1	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98117-496-0	04	1	1406-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1302-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-484-0	02	1	1302-1405
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-484-0	02	1	1406-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1302-
79	RETAINER; MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98225-448-1	02	1	1302-
92	NUT; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8 W/DISHED WASHER	8-97329-625-0	16	1	1406-
92	NUT; MUD COVER RUSSIA EQUIPMENT(B12) (B) M6	0-91110-506-0	02	1	1302-
92	NUT; MUD COVER RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	04	1	1302-
92	NUT; MUD COVER EXC. RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	06	1	1302-1405
92	NUT; MUD COVER EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M6 FLANGE	0-91180-106-0	06	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98079-026-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98079-027-1	01	1	1406-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98066-745-2	01	1	1302-1405
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	8-98066-745-2	01	1	1406-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-479-3	01	1	1302-1405
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-479-3	01	1	1406-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-523-2	01	1	1302-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-522-2	01	1	1302-
96	STAY; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98225-450-1	01	1	1302-
96	STAY; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98225-449-1	01	1	1302-
97	BOLT; STAY TO FRAME MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE	0-28651-035-0	08	1	1406-
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	1302-1405
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) M10X30 FLANGE	0-28651-030-0	07	1	1406-
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	1302-
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-53457-191-0	02	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-388-0	01	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-387-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-590-1	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-868-0	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-867-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1302-
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1302-
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	1302-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-
225	NUT; MUD GUARD RUSSIA EQUIPMENT(B12) M8 W/DISHED WASHER	8-97329-625-0	06	1	1302-
225	NUT; MUD GUARD EXC. RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1302-
225	NUT; MUD GUARD EXC. RUSSIA EQUIPMENT(B12) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-

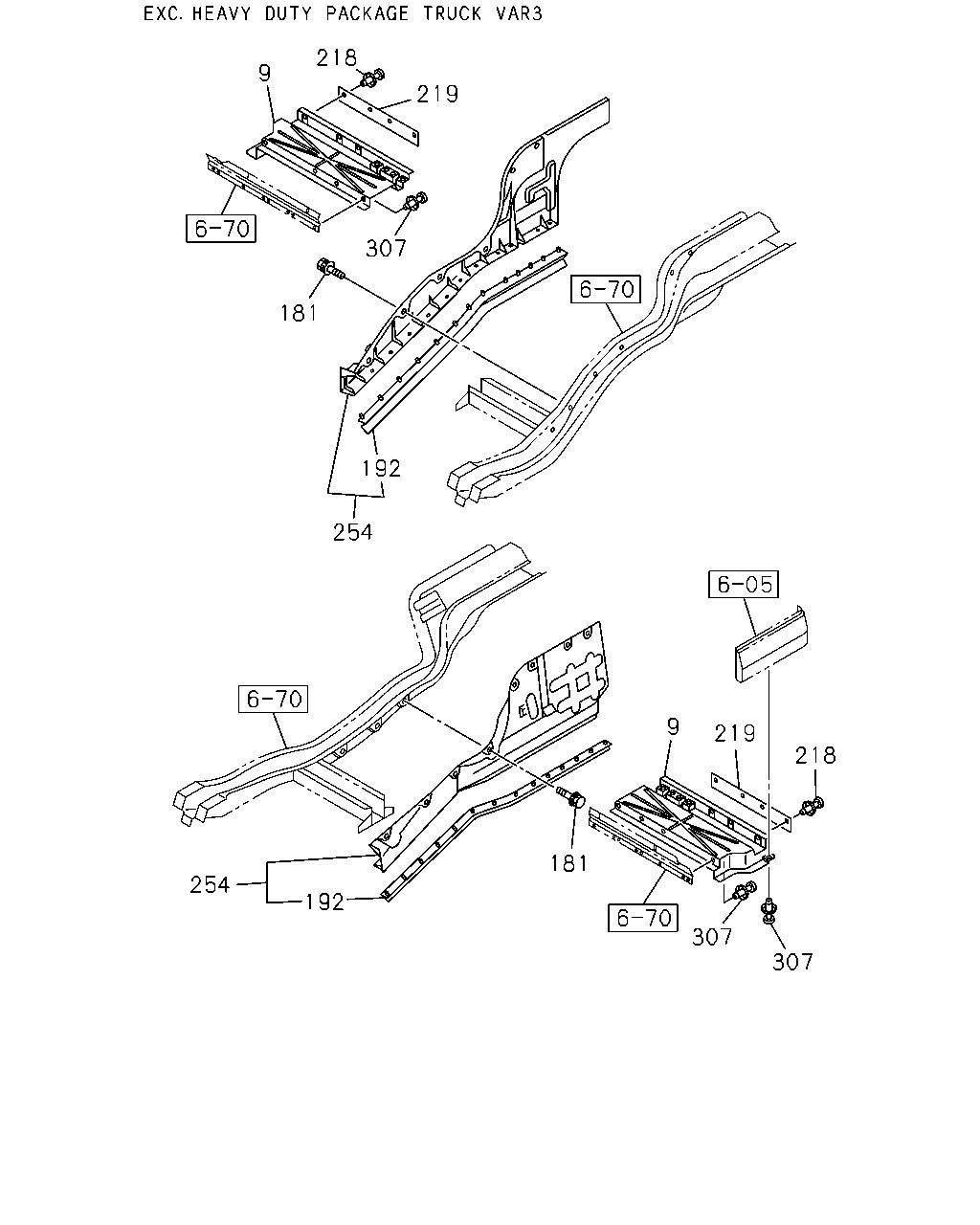

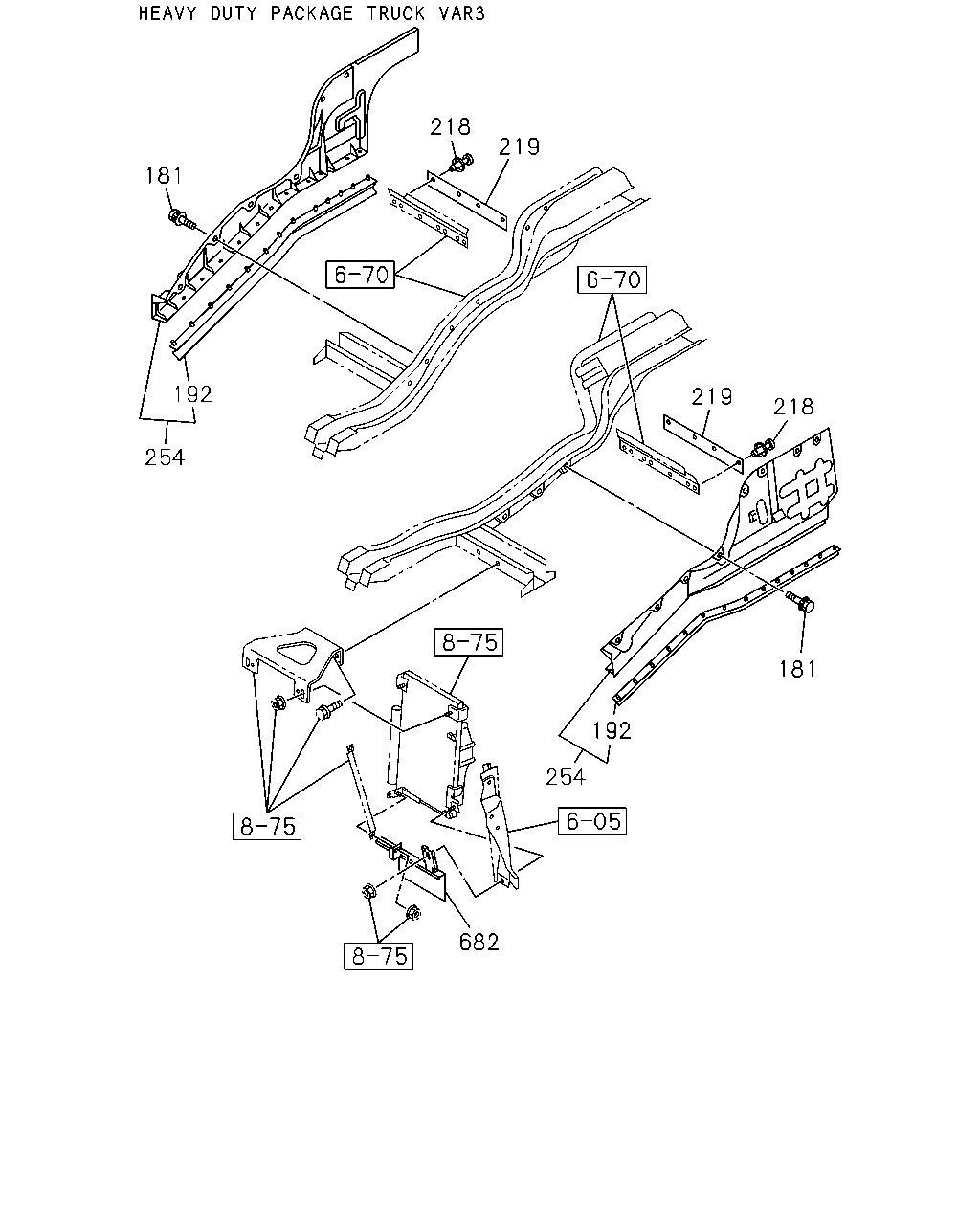

9 219 218 307 181 192 254 9 219 218 181 307 192 254 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-122-0	01	1	1302-
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-121-0	01	1	1302-
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	1302-
192	SEAL; MUD COVER	8-98041-159-2	01	1	1302-
192	SEAL; MUD COVER	8-98041-158-1	01	1	1302-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1302-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-148-1	02	1	1302-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-150-1	02	1	1302-
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98041-150-1	02	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-920-1	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-919-2	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-926-1	01	1	1302-
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-926-1	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-925-2	01	1	1302-
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-925-2	01	1	1302-
307	RETAINER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5	1-09987-248-1	08	1	1302-

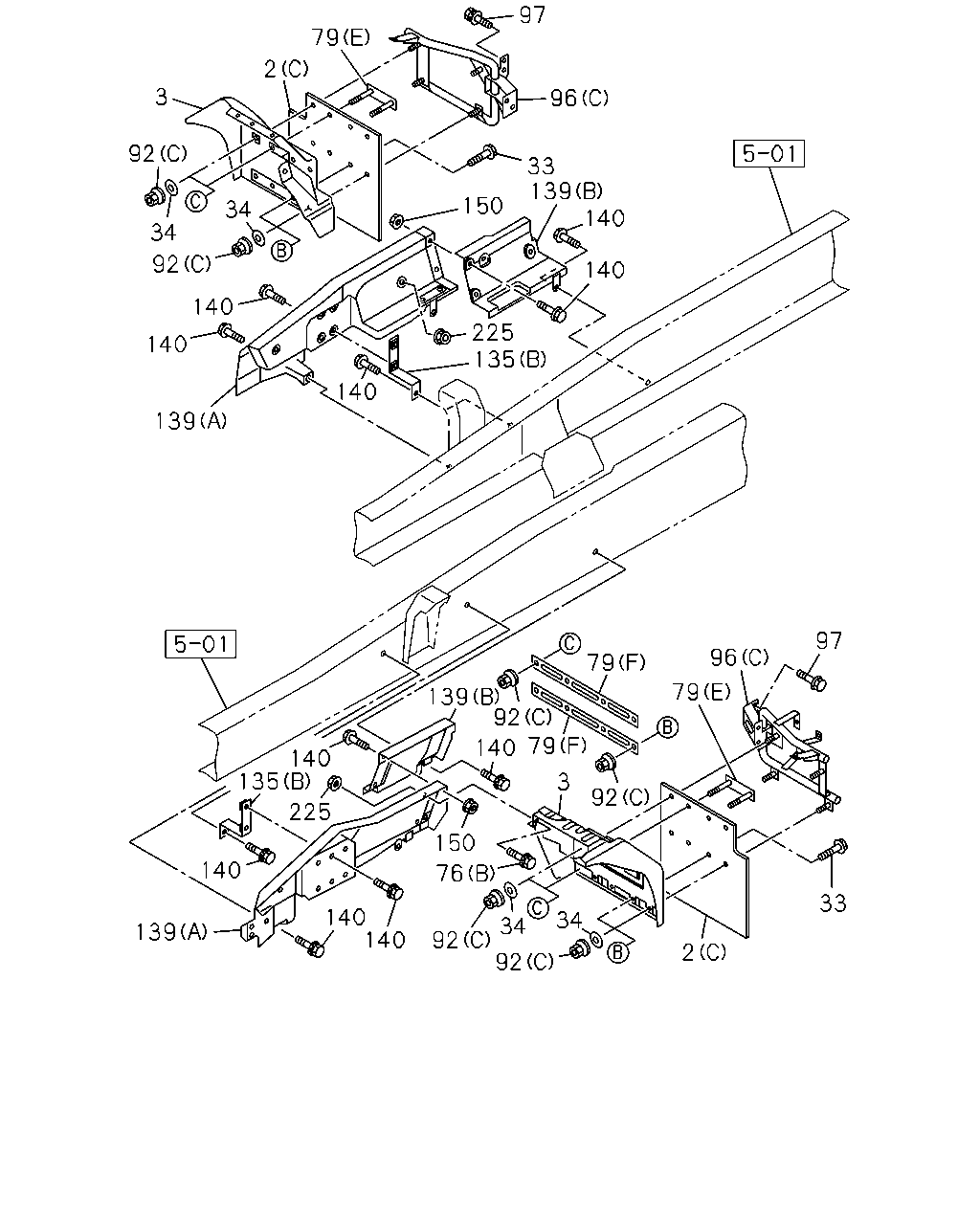

3 79 230 96 79 97 2 306 92 150 139 225 139 140 140 140 135 140 140 84 33 76 76 89 140 135 139 140 153 79 3 84 306 150 140 140 140 76 92 92 76 34 33 79 230 96 97 225 153 2 34 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98261-619-0	01	1	1406-
2	COVER; MUD,TIRE RR 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98261-620-0	01	1	1406-
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-482-0	02	1	1302-1405
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-482-0	02	1	1406-
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	1302-
2	COVER; MUD,TIRE RR RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98229-558-0	02	1	1302-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98090-849-1	01	1	1406-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98090-850-2	01	1	1406-
3	GUARD; MUD,RR	8-98196-103-0	01	1	1302-1405
3	GUARD; MUD,RR EXC. MOROCCO EQUIPMENT(CGA)	8-98196-103-0	01	1	1406-
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1302-1405
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA)	8-98196-111-0	01	1	1406-
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1302-
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1302-1405
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1406-
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	1302-
33	BOLT; MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	1302-
34	WASHER; PL,MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.1	0-91510-606-0	02	1	1302-
34	WASHER; PL,MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=6.4	0-91610-606-0	02	1	1302-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-1405
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1302-
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1302-1405
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98083-606-1	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98117-496-0	04	1	1406-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1302-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-484-0	02	1	1302-1405
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-484-0	02	1	1406-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1302-
79	RETAINER; MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98225-448-1	02	1	1302-
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1302-1405
84	RIVET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	5-09734-006-1	02	1	1406-
84	RIVET; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA)	5-09734-006-1	02	1	1406-
84	RIVET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA)	5-09734-006-1	02	1	1406-
92	NUT; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8 W/DISHED WASHER	8-97329-625-0	16	1	1406-
92	NUT; MUD COVER RUSSIA EQUIPMENT(B12) (B) M6	0-91110-506-0	02	1	1302-
92	NUT; MUD COVER RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	04	1	1302-
92	NUT; MUD COVER EXC. RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	06	1	1302-1405
92	NUT; MUD COVER EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M6 FLANGE	0-91180-106-0	06	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98079-026-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98079-027-1	01	1	1406-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98066-745-2	01	1	1302-1405
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	8-98066-745-2	01	1	1406-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-479-3	01	1	1302-1405
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-479-3	01	1	1406-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-523-2	01	1	1302-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-522-2	01	1	1302-
96	STAY; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98225-450-1	01	1	1302-
96	STAY; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98225-449-1	01	1	1302-
97	BOLT; STAY TO FRAME MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE	0-28651-035-0	08	1	1406-
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	1302-1405
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) M10X30 FLANGE	0-28651-030-0	07	1	1406-
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	1302-
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-53457-191-0	02	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-388-0	01	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-387-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-590-1	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-868-0	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-867-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1302-
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1302-
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	1302-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1302-1405
153	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
153	BOLT; BRKT EXC. MOROCCO EQUIPMENT(CGA) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
153	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
225	NUT; MUD GUARD RUSSIA EQUIPMENT(B12) M8 W/DISHED WASHER	8-97329-625-0	06	1	1302-
225	NUT; MUD GUARD EXC. RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1302-
225	NUT; MUD GUARD EXC. RUSSIA EQUIPMENT(B12) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
230	PLUG; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98226-684-0	01	1	1302-
230	PLUG; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98226-684-0	01	1	1302-
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1302-1405
306	BRACKET; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA)	8-98196-125-0	01	1	1406-
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1302-1405
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA)	8-98196-126-0	01	1	1406-
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1302-

225 2 97 96 79 33 150 139 140 140 225 135 140 139 140 76 140 76 3 76 306 84 153 92 140 139 135 140 140 150 76 92 76 140 153 139 683 225 306 3 96 97 225 33 76 79 2 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98261-619-0	01	1	1406-
2	COVER; MUD,TIRE RR 245/70R19.5-136/134M RIB EEC MICHELIN BRAND(5R0) MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98261-620-0	01	1	1406-
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-482-0	02	1	1302-1405
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-482-0	02	1	1406-
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	1302-
2	COVER; MUD,TIRE RR RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98229-558-0	02	1	1302-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98090-849-1	01	1	1406-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98090-850-2	01	1	1406-
3	GUARD; MUD,RR	8-98196-103-0	01	1	1302-1405
3	GUARD; MUD,RR EXC. MOROCCO EQUIPMENT(CGA)	8-98196-103-0	01	1	1406-
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1302-1405
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA)	8-98196-111-0	01	1	1406-
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1302-
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1302-1405
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	1406-
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	1302-
33	BOLT; MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	1302-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-1405
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1302-
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1302-1405
76	BOLT; MUD GUARD RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98083-606-1	04	1	1406-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F)	8-98117-496-0	04	1	1406-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	1302-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-484-0	02	1	1302-1405
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-484-0	02	1	1406-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	1302-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	1302-
79	RETAINER; MUD COVER RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98225-448-1	02	1	1302-
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1302-1405
84	RIVET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	5-09734-006-1	02	1	1406-
84	RIVET; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA)	5-09734-006-1	02	1	1406-
84	RIVET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA)	5-09734-006-1	02	1	1406-
92	NUT; MUD COVER MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8 W/DISHED WASHER	8-97329-625-0	16	1	1406-
92	NUT; MUD COVER RUSSIA EQUIPMENT(B12) (B) M6	0-91110-506-0	02	1	1302-
92	NUT; MUD COVER RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	04	1	1302-
92	NUT; MUD COVER EXC. RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	06	1	1302-1405
92	NUT; MUD COVER EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M6 FLANGE	0-91180-106-0	06	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98079-026-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98079-027-1	01	1	1406-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	8-98066-745-2	01	1	1302-1405
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	8-98066-745-2	01	1	1406-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (A)	1-79931-479-3	01	1	1302-1405
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A)	1-79931-479-3	01	1	1406-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-523-2	01	1	1302-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-522-2	01	1	1302-
96	STAY; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98225-450-1	01	1	1302-
96	STAY; MUD GUARD RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98225-449-1	01	1	1302-
97	BOLT; STAY TO FRAME MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X35 FLANGE	0-28651-035-0	08	1	1406-
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	1302-1405
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) M10X30 FLANGE	0-28651-030-0	07	1	1406-
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	1302-
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-53457-191-0	02	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-388-0	01	1	1302-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-387-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1302-
139	PANEL; SIDE (B)	1-53194-590-1	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-868-0	01	1	1302-
139	PANEL; SIDE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98196-867-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-078-0	01	1	1302-
139	PANEL; SIDE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
139	PANEL; SIDE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98090-077-0	01	1	1302-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	1302-
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	1302-
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	1302-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1302-1405
153	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
153	BOLT; BRKT EXC. MOROCCO EQUIPMENT(CGA) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
153	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
225	NUT; MUD GUARD RUSSIA EQUIPMENT(B12) M8 W/DISHED WASHER	8-97329-625-0	06	1	1302-
225	NUT; MUD GUARD EXC. RUSSIA EQUIPMENT(B12) M8 FLANGE	0-91180-108-0	02	1	1302-
225	NUT; MUD GUARD EXC. RUSSIA EQUIPMENT(B12) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1302-1405
306	BRACKET; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA)	8-98196-125-0	01	1	1406-
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1302-1405
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. MOROCCO EQUIPMENT(CGA)	8-98196-126-0	01	1	1406-
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1302-
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98199-233-0	01	1	1302-

181 254 192 682 219 218 254 192 181 218 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	1302-
192	SEAL; MUD COVER	8-98041-159-2	01	1	1302-
192	SEAL; MUD COVER	8-98041-158-1	01	1	1302-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	1302-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-148-1	02	1	1302-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98041-150-1	02	1	1302-
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98041-150-1	02	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-920-1	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-919-2	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-926-1	01	1	1302-
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-926-1	01	1	1302-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98039-925-2	01	1	1302-
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-925-2	01	1	1302-
682	FLAP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60) FRONT UNDER RUN PROTECTOR<EBE>	8-98090-119-1	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
