Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#114612) — 199 parça

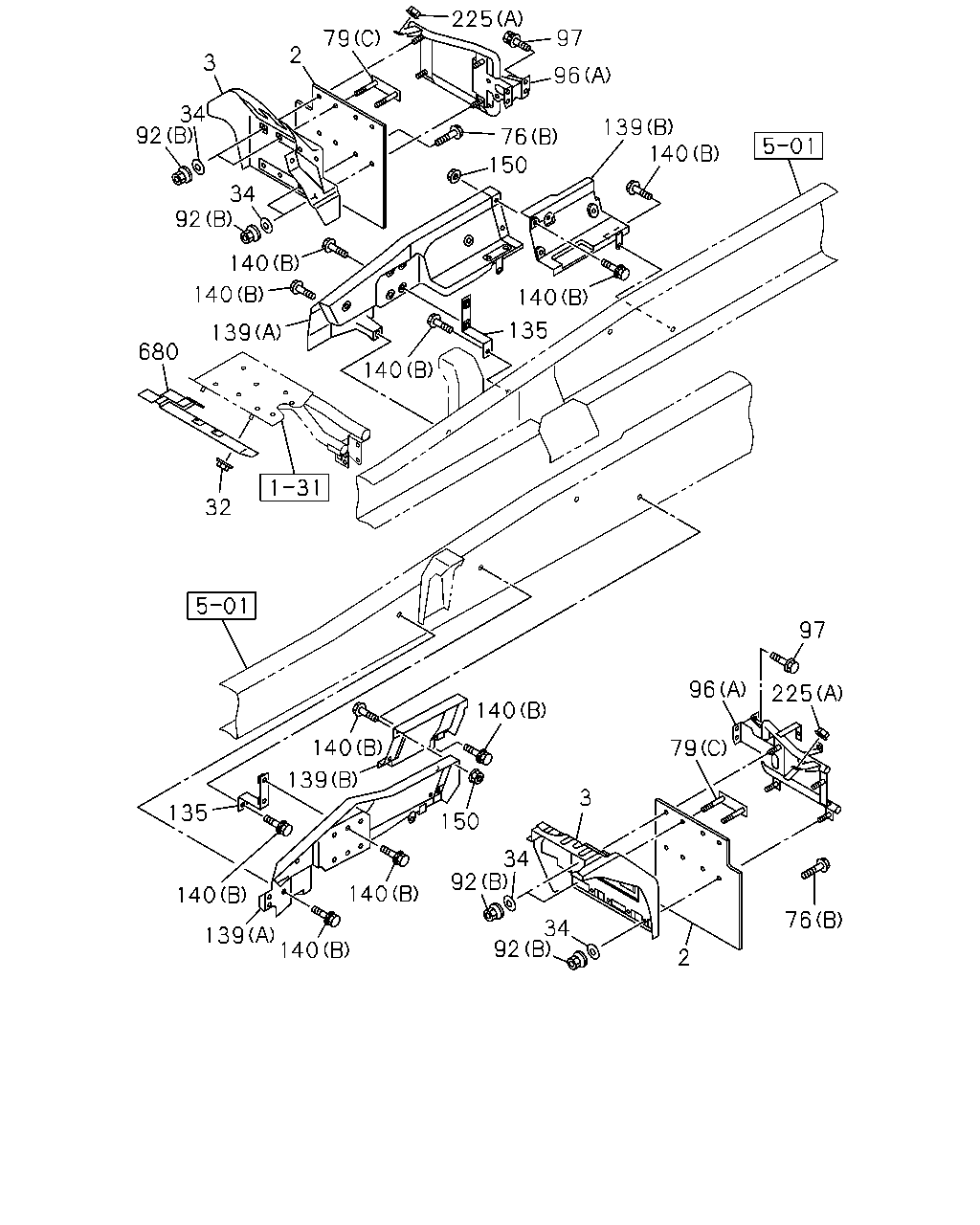

225 97 96 139 76 150 140 140 135 140 139 140 140 92 34 2 79 3 34 92 680 96 97 225 79 76 3 2 34 34 92 92 140 140 139 140 135 139 150 140 140 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR TIRE 11R22.5-14 RIB(45N),TIRE 11.00R-22.5-16 RIB(55N) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98261-623-0	01	1	1406-
2	COVER; MUD,TIRE RR TIRE 11R22.5-14 RIB(45N),TIRE 11.00R-22.5-16 RIB(55N) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98261-624-0	01	1	1406-
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1302-1405
2	COVER; MUD,TIRE RR MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	1-79931-512-1	02	1	1406-
2	COVER; MUD,TIRE RR EXC. MOROCCO EQUIPMENT(CGA)	1-79931-512-1	02	1	1406-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98271-585-0	01	1	1406-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98271-586-0	01	1	1406-
3	GUARD; MUD,RR	8-98219-767-0	01	1	1302-1405
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	8-98219-767-0	01	1	1406-
3	GUARD; MUD,RR EXC. MOROCCO EQUIPMENT(CGA)	8-98219-767-0	01	1	1406-
3	GUARD; MUD,RR	8-98196-109-0	01	1	1302-1405
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	8-98196-109-0	01	1	1406-
3	GUARD; MUD,RR EXC. MOROCCO EQUIPMENT(CGA)	8-98196-109-0	01	1	1406-
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
34	WASHER; PL,MUD COVER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> ID=8.4 OD=26	0-91614-808-0	16	1	1406-
76	BOLT; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-1405
76	BOLT; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1406-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C)	8-98083-606-1	04	1	1406-
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	1302-
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1302-1405
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98102-106-0	01	1	1406-
79	RETAINER; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A)	8-98102-106-0	01	1	1406-
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1302-1405
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98102-105-0	01	1	1406-
79	RETAINER; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A)	8-98102-105-0	01	1	1406-
92	NUT; MUD COVER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) M8 W/DISHED WASHER	8-97329-625-0	16	1	1406-
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1302-1405
92	NUT; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A) M6 FLANGE	0-91180-106-0	08	1	1406-
92	NUT; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A) M6 FLANGE	0-91180-106-0	08	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A)	8-98070-668-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A)	8-98070-669-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B)	8-98082-316-0	02	1	1406-
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1302-1405
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C)	1-79931-519-4	01	1	1406-
96	STAY; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (C)	1-79931-519-4	01	1	1406-
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1302-1405
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C)	1-79931-540-3	01	1	1406-
96	STAY; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (C)	1-79931-540-3	01	1	1406-
97	BOLT; STAY TO FRAME MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> M12X35 FLANGE	0-28051-235-0	08	1	1406-
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1302-1405
97	BOLT; STAY TO FRAME MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> M10X30 FLANGE	0-28651-030-0	08	1	1406-
97	BOLT; STAY TO FRAME EXC. MOROCCO EQUIPMENT(CGA) M10X30 FLANGE	0-28651-030-0	08	1	1406-
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	1302-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1302-
139	PANEL; SIDE (A)	1-53194-620-5	01	1	1302-
139	PANEL; SIDE (B)	1-53194-590-1	01	1	1302-
139	PANEL; SIDE (A)	1-53194-619-4	01	1	1302-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	1406-
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	1302-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1302-
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
680	GUARD; MUD,UPPER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98121-838-0	01	1	1406-
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1302-1405
680	GUARD; MUD,UPPER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	8-98123-402-0	01	1	1406-
680	GUARD; MUD,UPPER EXC. MOROCCO EQUIPMENT(CGA)	8-98123-402-0	01	1	1406-

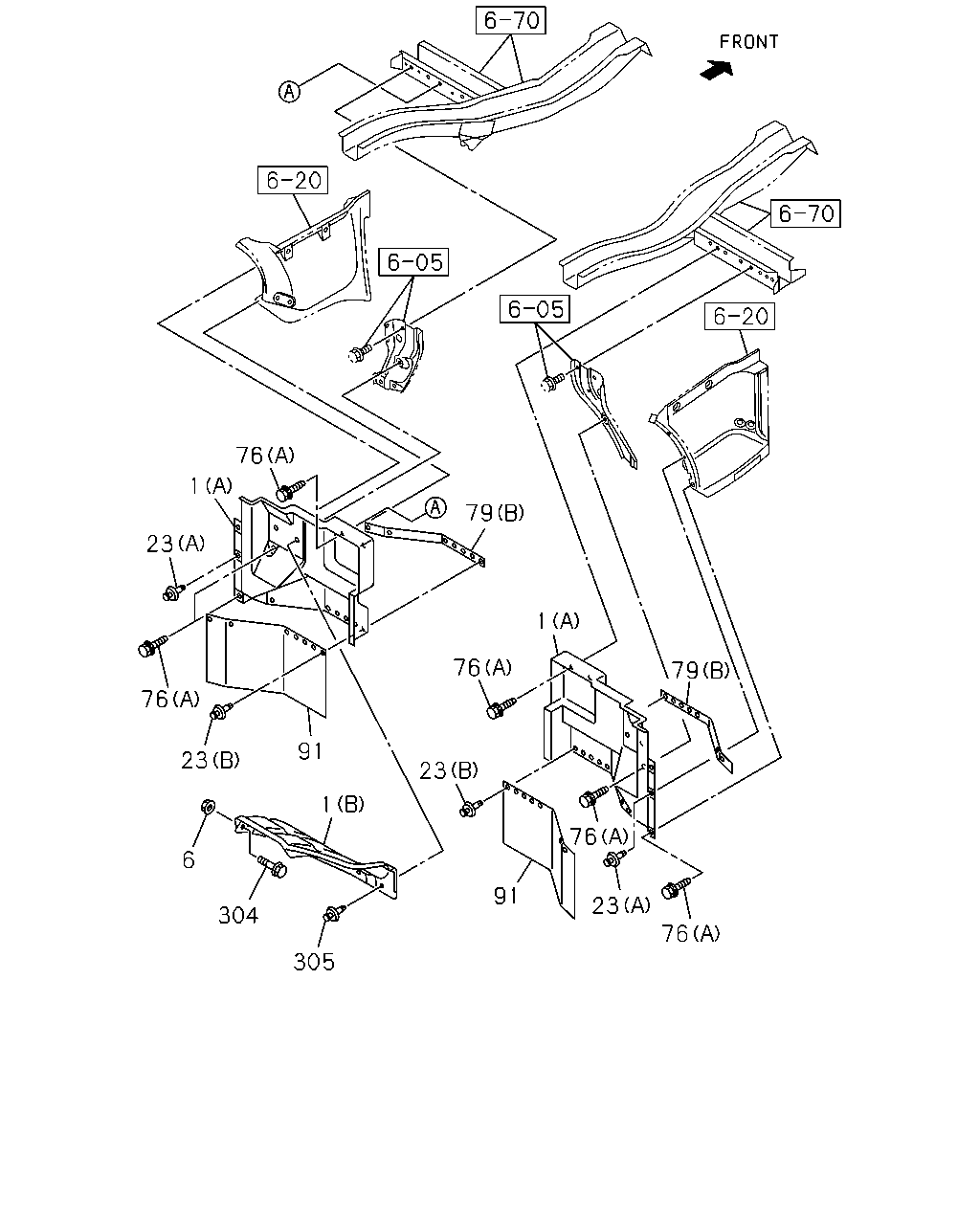

76 1 23 76 23 91 1 6 304 305 91 23 76 76 23 76 1 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	1302-
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	1302-
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98158-184-0	01	1	1302-
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1302-
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	1302-
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1302-
76	BOLT; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-1405
76	BOLT; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1406-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C)	8-98083-606-1	04	1	1406-
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	1302-
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1302-1405
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98102-106-0	01	1	1406-
79	RETAINER; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A)	8-98102-106-0	01	1	1406-
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1302-1405
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98102-105-0	01	1	1406-
79	RETAINER; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A)	8-98102-105-0	01	1	1406-
91	COVER; MUD,FRT	8-98060-067-1	02	1	1302-
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1302-
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1302-

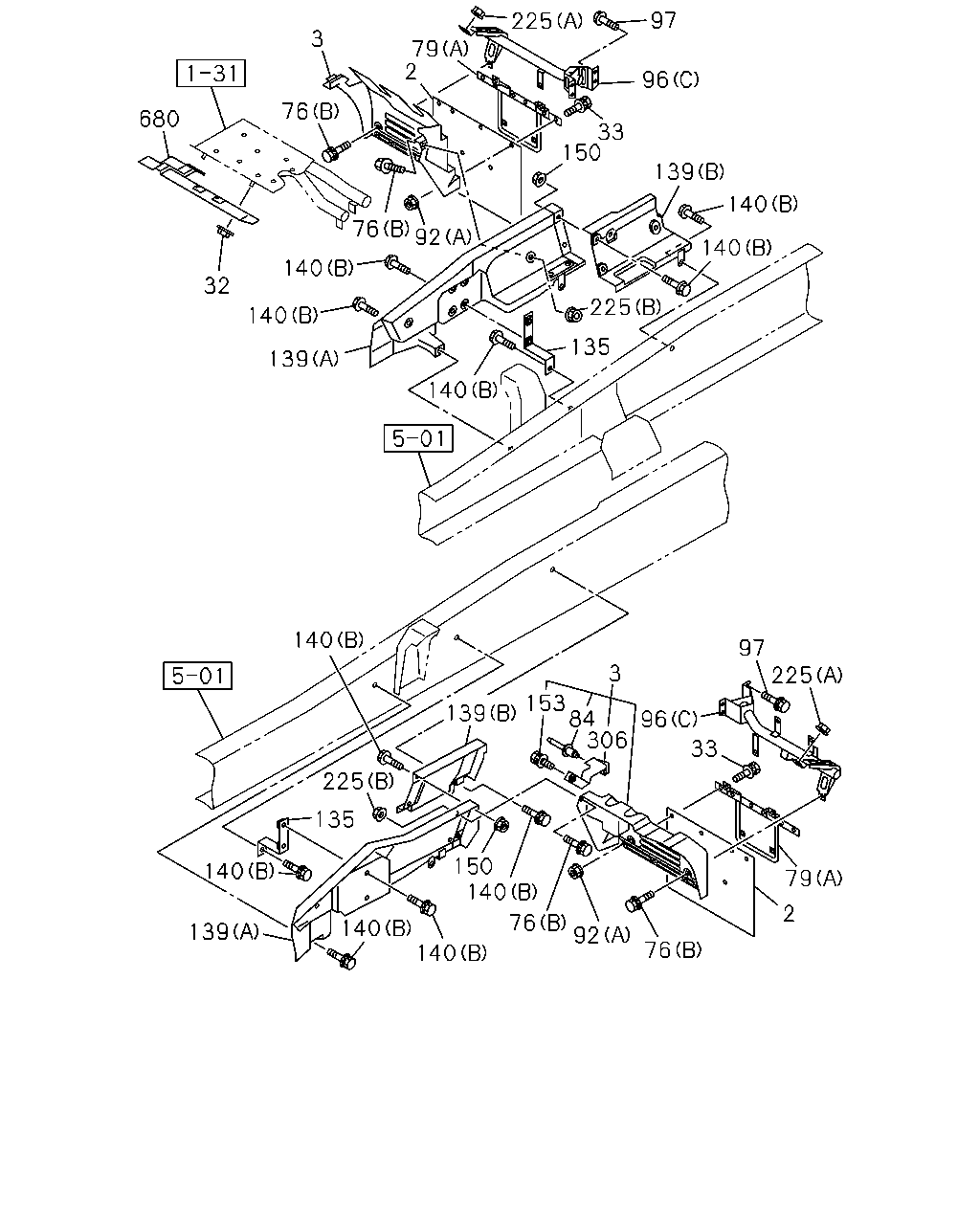

3 79 2 76 680 76 92 140 140 32 139 140 135 225 140 140 139 150 33 96 97 225 97 225 96 33 79 2 76 92 76 140 150 140 140 139 140 135 225 139 153 3 84 306 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR TIRE 11R22.5-14 RIB(45N),TIRE 11.00R-22.5-16 RIB(55N) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98261-623-0	01	1	1406-
2	COVER; MUD,TIRE RR TIRE 11R22.5-14 RIB(45N),TIRE 11.00R-22.5-16 RIB(55N) MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98261-624-0	01	1	1406-
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1302-1405
2	COVER; MUD,TIRE RR MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	1-79931-512-1	02	1	1406-
2	COVER; MUD,TIRE RR EXC. MOROCCO EQUIPMENT(CGA)	1-79931-512-1	02	1	1406-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98271-585-0	01	1	1406-
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98271-586-0	01	1	1406-
3	GUARD; MUD,RR	8-98219-767-0	01	1	1302-1405
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	8-98219-767-0	01	1	1406-
3	GUARD; MUD,RR EXC. MOROCCO EQUIPMENT(CGA)	8-98219-767-0	01	1	1406-
3	GUARD; MUD,RR	8-98196-109-0	01	1	1302-1405
3	GUARD; MUD,RR MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	8-98196-109-0	01	1	1406-
3	GUARD; MUD,RR EXC. MOROCCO EQUIPMENT(CGA)	8-98196-109-0	01	1	1406-
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1302-1405
33	BOLT; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1406-
33	BOLT; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1406-
76	BOLT; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1406-
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1302-1405
76	BOLT; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1406-
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1302-
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (C)	8-98083-606-1	04	1	1406-
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	1302-
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1302-1405
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98102-106-0	01	1	1406-
79	RETAINER; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A)	8-98102-106-0	01	1	1406-
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1302-1405
79	RETAINER; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98102-105-0	01	1	1406-
79	RETAINER; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A)	8-98102-105-0	01	1	1406-
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1302-1405
84	RIVET; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	5-09734-006-1	02	1	1406-
84	RIVET; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA)	5-09734-006-1	02	1	1406-
92	NUT; MUD COVER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B) M8 W/DISHED WASHER	8-97329-625-0	16	1	1406-
92	NUT; MUD COVER (A) M6 FLANGE	0-91180-106-0	08	1	1302-1405
92	NUT; MUD COVER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (A) M6 FLANGE	0-91180-106-0	08	1	1406-
92	NUT; MUD COVER EXC. MOROCCO EQUIPMENT(CGA) (A) M6 FLANGE	0-91180-106-0	08	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A)	8-98070-668-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A)	8-98070-669-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B)	8-98082-316-0	02	1	1406-
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1302-1405
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C)	1-79931-519-4	01	1	1406-
96	STAY; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (C)	1-79931-519-4	01	1	1406-
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1302-1405
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C)	1-79931-540-3	01	1	1406-
96	STAY; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (C)	1-79931-540-3	01	1	1406-
97	BOLT; STAY TO FRAME MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> M12X35 FLANGE	0-28051-235-0	08	1	1406-
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1302-1405
97	BOLT; STAY TO FRAME MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> M10X30 FLANGE	0-28651-030-0	08	1	1406-
97	BOLT; STAY TO FRAME EXC. MOROCCO EQUIPMENT(CGA) M10X30 FLANGE	0-28651-030-0	08	1	1406-
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	1302-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1302-
139	PANEL; SIDE (A)	1-53194-620-5	01	1	1302-
139	PANEL; SIDE (B)	1-53194-590-1	01	1	1302-
139	PANEL; SIDE (A)	1-53194-619-4	01	1	1302-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	1406-
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	1302-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1302-
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1302-1405
153	BOLT; BRKT MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
153	BOLT; BRKT EXC. MOROCCO EQUIPMENT(CGA) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1406-
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1302-
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1302-1405
306	BRACKET; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	8-98196-125-0	01	1	1406-
306	BRACKET; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA)	8-98196-125-0	01	1	1406-
680	GUARD; MUD,UPPER MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE>	8-98121-838-0	01	1	1406-
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1302-1405
680	GUARD; MUD,UPPER MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE>	8-98123-402-0	01	1	1406-
680	GUARD; MUD,UPPER EXC. MOROCCO EQUIPMENT(CGA)	8-98123-402-0	01	1	1406-

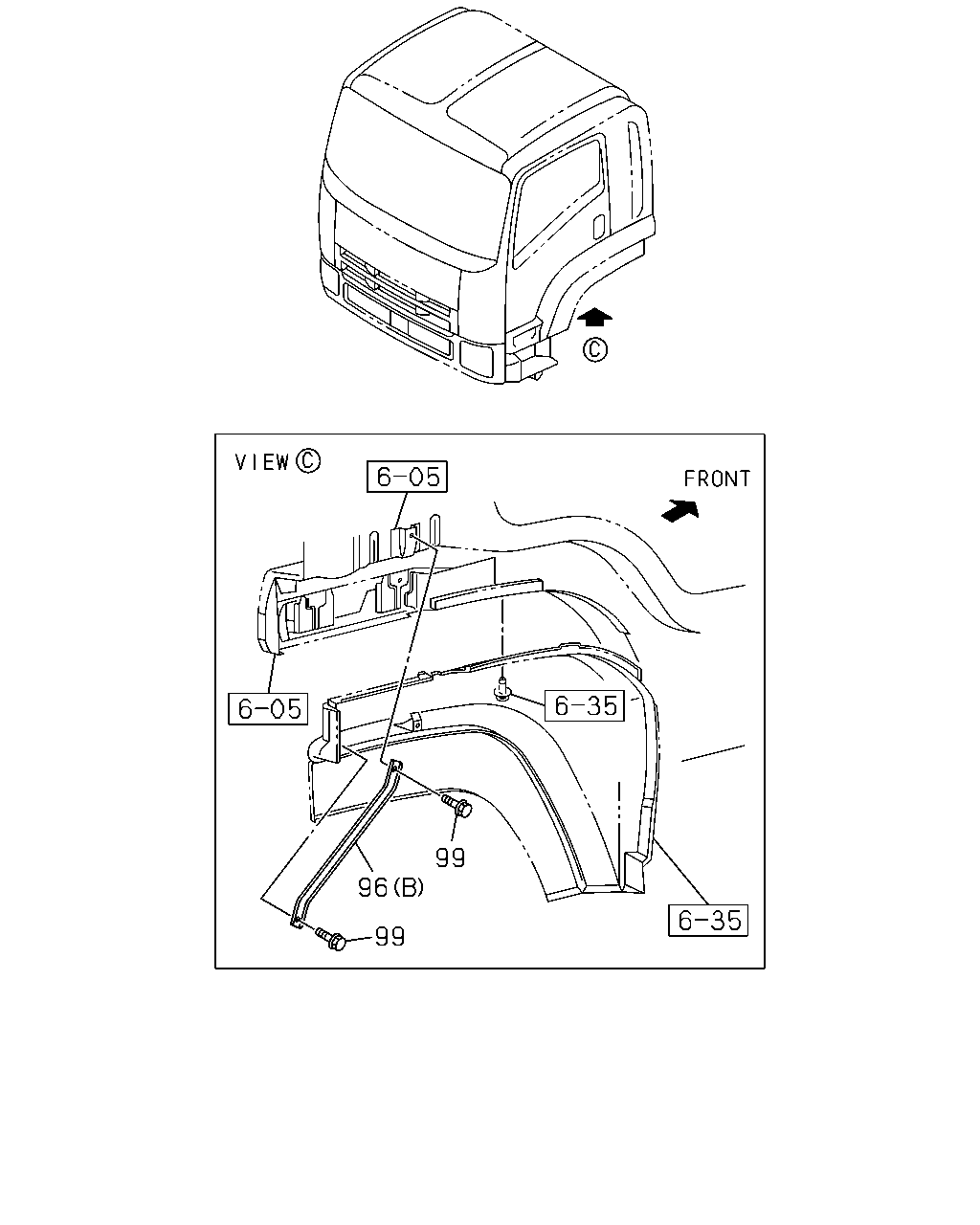

99 96 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A)	8-98070-668-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (A)	8-98070-669-1	01	1	1406-
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> (B)	8-98082-316-0	02	1	1406-
96	STAY; MUD GUARD (C)	1-79931-519-4	01	1	1302-1405
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C)	1-79931-519-4	01	1	1406-
96	STAY; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (C)	1-79931-519-4	01	1	1406-
96	STAY; MUD GUARD (C)	1-79931-540-3	01	1	1302-1405
96	STAY; MUD GUARD MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> (C)	1-79931-540-3	01	1	1406-
96	STAY; MUD GUARD EXC. MOROCCO EQUIPMENT(CGA) (C)	1-79931-540-3	01	1	1406-
99	BOLT; STAY TO MUD GUARD MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> M6X16 FLANGE	0-28650-616-0	04	1	1406-

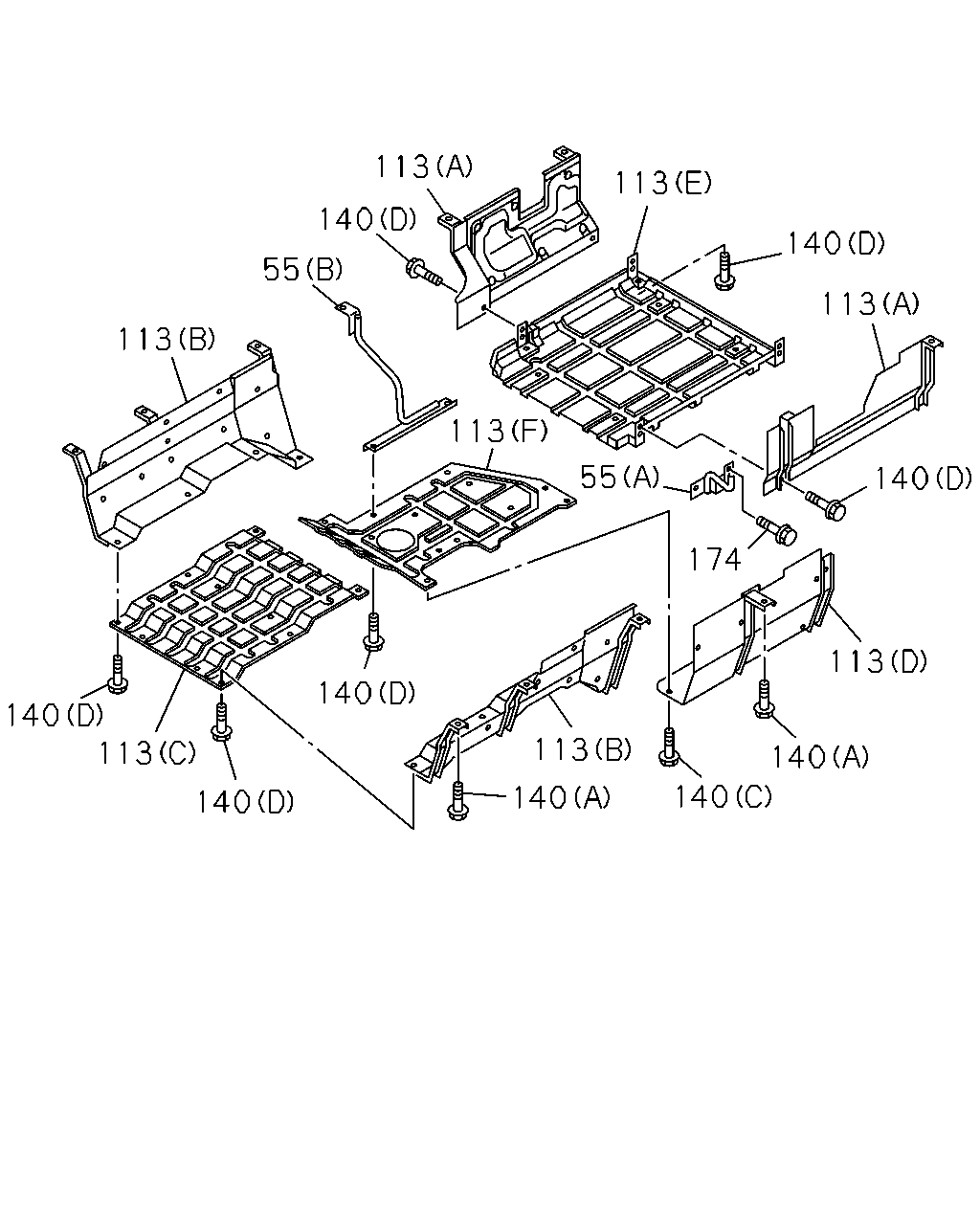

113 140 55 113 140 113 140 140 113 140 113 55 113 140 113 140 113 140 140 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	STAY; UNDER COVER,RR 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98064-086-2	01	1	1406-
55	STAY; UNDER COVER,RR 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98239-846-0	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98017-756-2	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E)	8-98017-772-1	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98114-851-0	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F)	8-98217-709-0	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98239-842-0	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98239-843-0	01	1	1406-
113	PANEL; SIDE 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98239-844-1	01	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	03	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	1406-
140	BOLT; SIDE PANEL 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	1406-
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	1302-
174	BOLT; STAY FIX 6HK1-TCN ENG(82L) MOROCCO EQUIPMENT(CGA) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	1406-

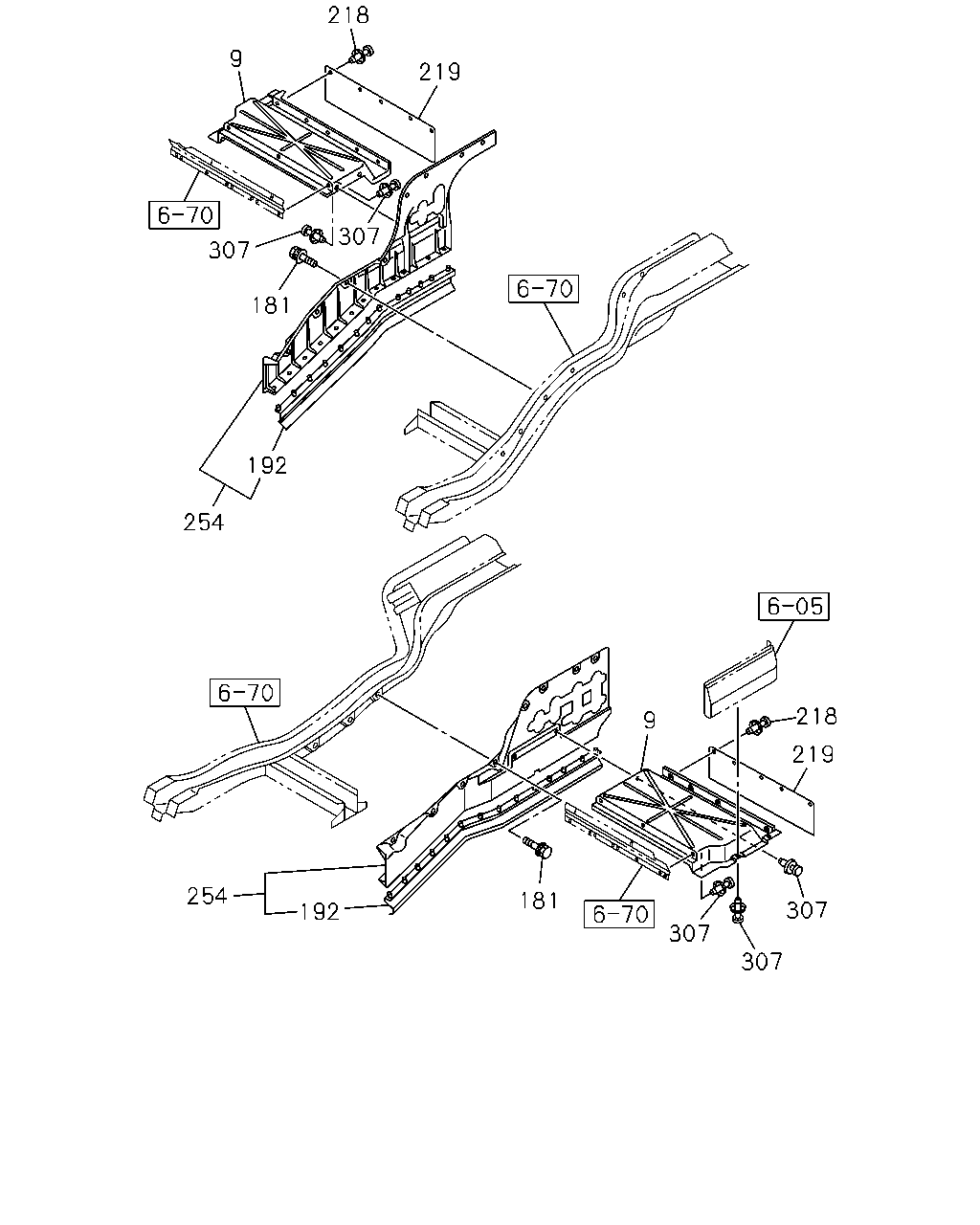

218 219 9 307 307 181 192 254 254 192 181 307 307 307 219 218 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	1302-
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	1302-
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	1302-
192	SEAL; MUD COVER	8-98041-159-2	01	1	1302-
192	SEAL; MUD COVER	8-98041-158-1	01	1	1302-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	1302-
219	FLAP; MUD GUARD	8-98041-149-1	02	1	1302-
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	1302-
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	1302-
307	RETAINER D8X13.5	1-09987-248-1	14	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
