◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#11461) — 16 parça

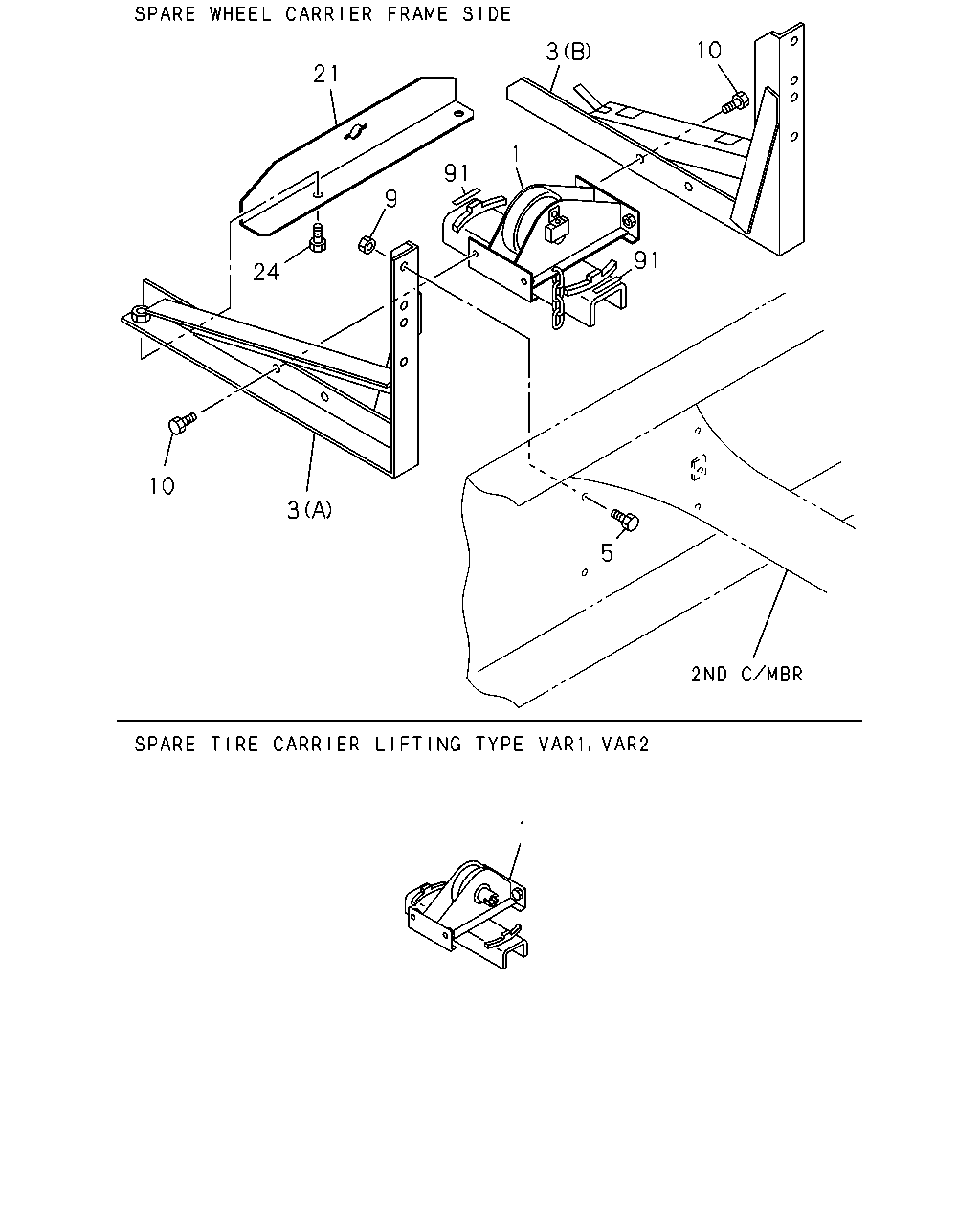

çizim 21000
10 3 21 91 1 9 24 3 10 5 91 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-1 01 1 0106-
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> 		1-53630-210-1 02 1 0106-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (B) 		1-53631-388-0 01 1 0106-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (A) 		1-53631-434-0 01 1 0106-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (B) 		1-53631-389-0 01 1 0106-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (A) 		1-53631-393-0 01 1 0106-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 0106-0512
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28651-240-0 06 1 0601-
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 0106-0512
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 03 1 0601-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 0106-0512
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0601-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 0106-
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28681-225-0 02 1 0106-0512
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28651-225-0 02 1 0601-
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0106-
