Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

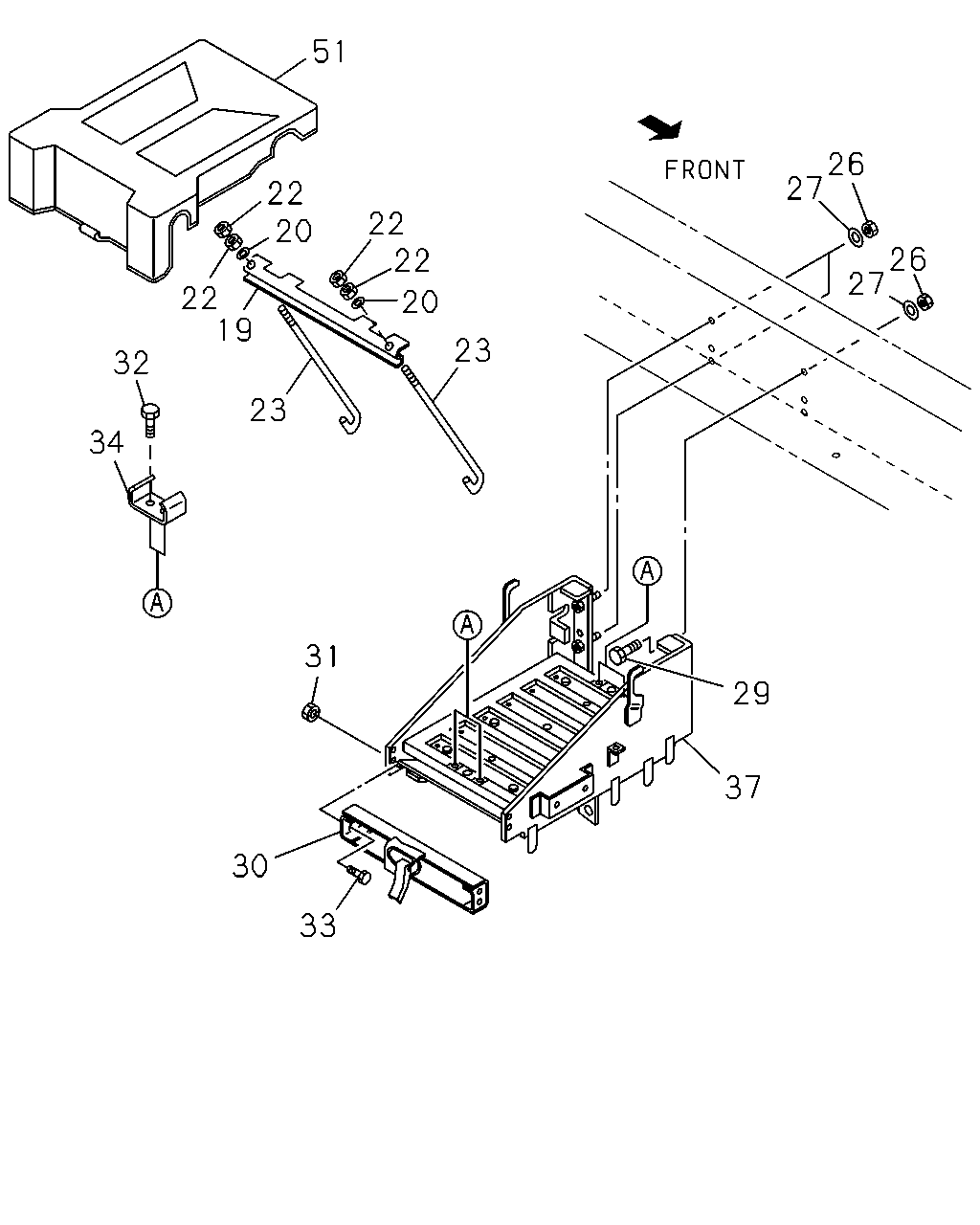

5-20 — BATTERY CARRIER
(#11460) — 22 parça
26
26
27
27
29
37
33
30
31
23
23
20
22
22
20
22
19
22
32
34
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
1-53618-039-2
01
1
0106-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0106-0605
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
22
NUT; STAY
M8
9-09110-408-0
04
1
0106-0512
22
NUT; STAY
M8
0-91110-508-0
04
1
0601-
23
BOLT; STAY
L=250
1-53616-108-0
02
1
0106-
26
NUT; BRKT
M14
9-99110-514-0
04
1
0106-0512
26
NUT; BRKT
M14
0-91110-514-0
04
1
0601-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0106-0603
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0604-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
0106-0512
29
BOLT; BRKT TO FRAME
M14X40
0-20851-440-0
02
1
0601-
30
PLATE; BATTERY
1-53619-086-0
01
1
0106-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0106-0602
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0603-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0106-0512
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28050-816-0
04
1
0601-
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0106-0512
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28050-816-0
04
1
0601-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
0106-
37
BRACKET; BATTERY
1-53610-130-0
01
1
0106-
51
COVER; BATTERY
1-53612-040-1
01
1
0106-
