10863 - EXR RHD FUEL TANK 200L+200L
▶
5 - Frame, Cab Mounting
▶
5-17 - CYLINDER; CAB TILT
▶
5-17 — CYLINDER; CAB TILT
(#11459) — 26 parça
◀

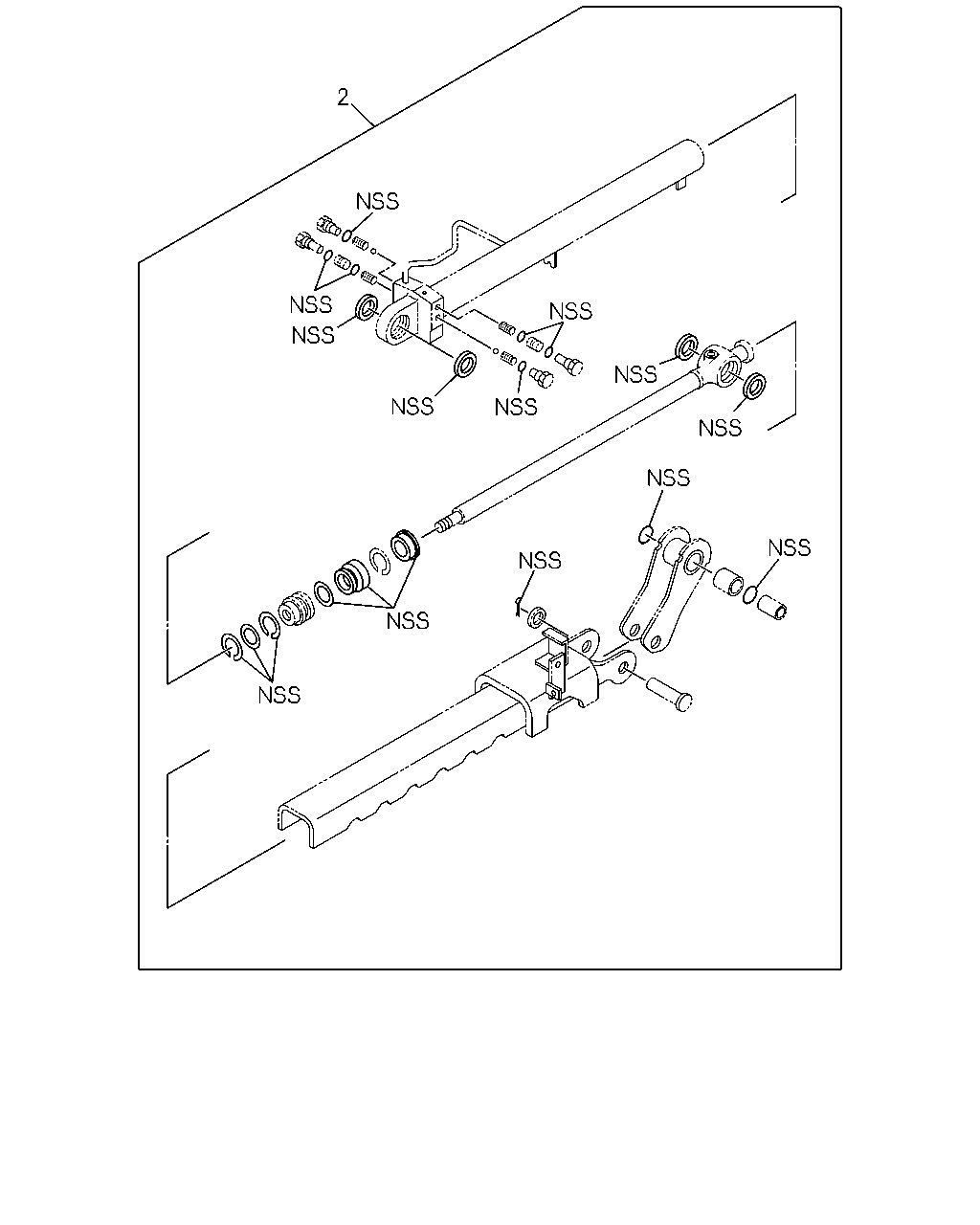

[517A] REPAIR KIT (1 parça)

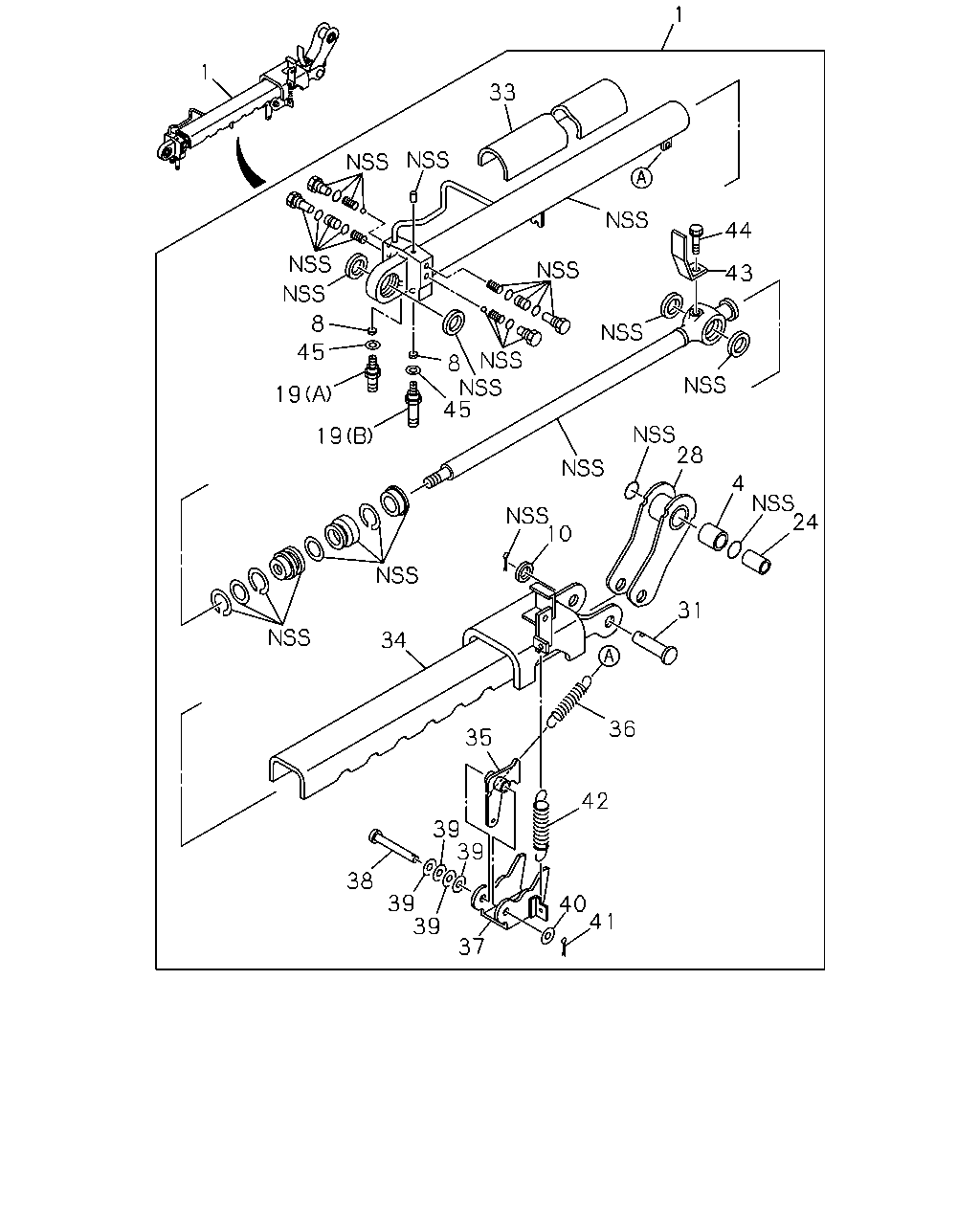

[517A] COMPONENT (25 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL CYL
1-85579-067-0
01
1
0106-
1
33
1
44
43
24
4
28
31
36
42
40
41
37
39
39
38
35
39
39
34
45
8
19
19
45
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
1-53458-917-0
01
1
0106-
4
BUSHING; OIL CYL
1-53458-405-0
01
1
0106-
8
FILTER; OIL CYL
1-53458-102-0
02
1
0106-
10
WASHER; OIL CYL
1-53458-401-0
01
1
0106-
19
NIPPLE; OIL CYL
(A)
1-53457-044-0
01
1
0106-
19
NIPPLE; OIL CYL
(B)
1-53457-045-0
01
1
0106-
24
COLLAR; LEVER
1-53458-398-0
01
1
0106-
28
LEVER; OIL CYL
1-53458-557-1
01
1
0106-
31
PIN; OIL CYL
1-53458-554-0
01
1
0106-
33
COVER; CYL
1-53458-556-0
01
1
0106-
34
STOPPER; OIL CYL
1-53458-555-0
01
1
0106-
35
LEVER; WIRE
1-53458-689-0
01
1
0106-
36
SPRING; WIRE LEVER
1-53458-552-0
01
1
0106-
37
LEVER; STOPPER
1-53458-551-0
01
1
0106-
38
PIN; STOPPER
1-53458-550-0
01
1
0106-
39
SHIM; LEVER
T=0.7
1-53458-546-0
AR
1
0106-
39
SHIM; LEVER
T=0.5
1-53458-547-0
AR
1
0106-
39
SHIM; LEVER
T=0.3
1-53458-548-0
AR
1
0106-
39
SHIM; LEVER
T=0.1
1-53458-549-0
AR
1
0106-
40
WASHER; STOPPER PIN
1-53458-045-0
01
1
0106-
41
PIN; SPLIT
1-53458-545-0
01
1
0106-
42
SPRING; LOCK LEVER
1-53458-544-0
01
1
0106-
43
PLATE; SW
1-53458-543-0
01
1
0106-
44
BOLT; SW PLATE
M6X12
1-53458-542-0
01
1
0106-
45
GASKET; OIL CYL
1-53458-073-0
02
1
0106-
