◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11506 - FRR RHD EURO2 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#114586) — 21 parça

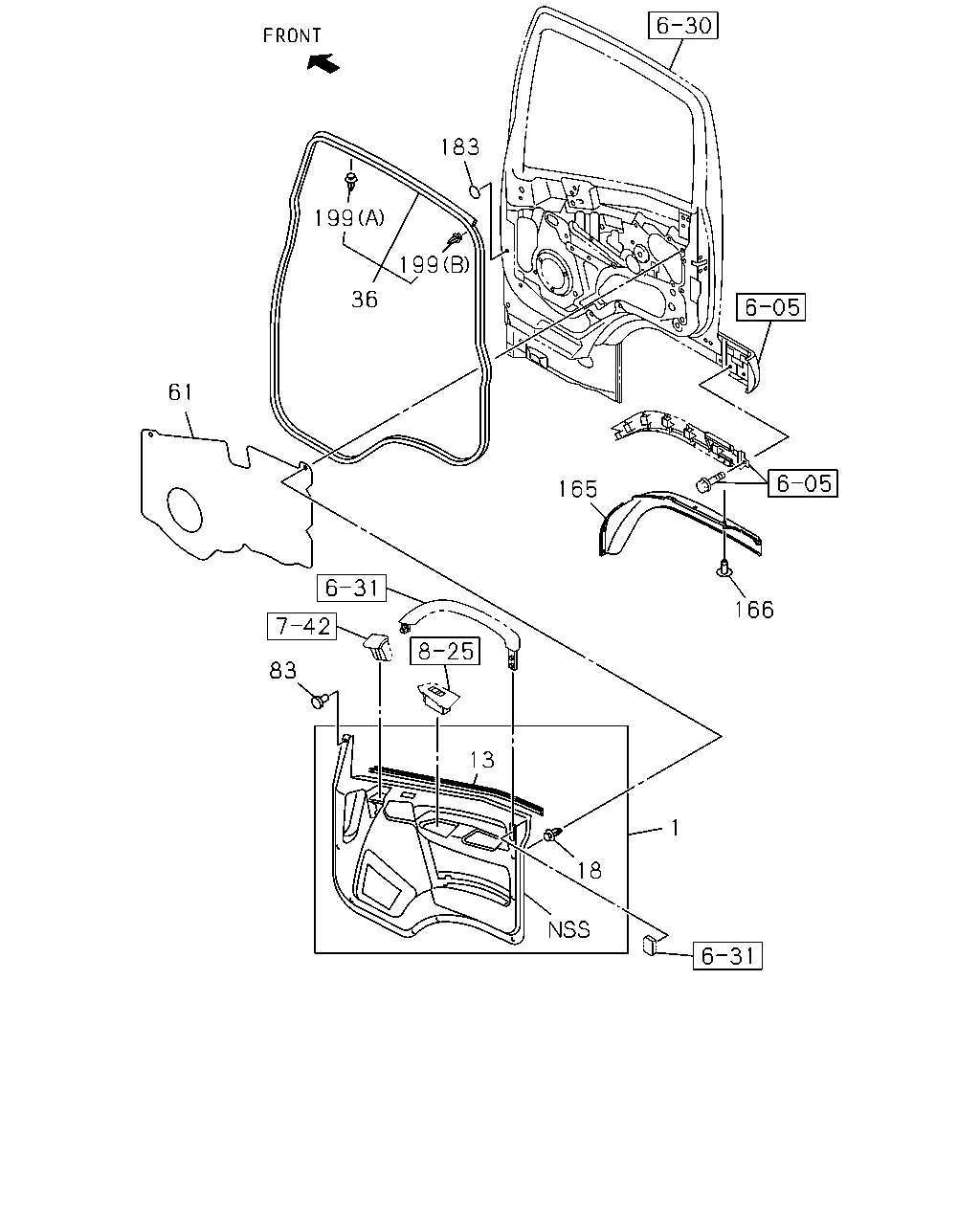

çizim 332091
1 8 13 83 61 36 199 199 183 165 166
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-306-6 01 1 1302-
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-304-6 01 1 1302-
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-307-6 01 1 1302-
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-305-6 01 1 1302-
13 SEAL; DOOR TRIM 8-98029-202-1 01 1 1302-
13 SEAL; DOOR TRIM 8-98029-201-1 01 1 1302-
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1302-
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1302-
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1302-
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-395-2 01 1 1302-
61 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> 		8-98029-394-2 01 1 1302-
61 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95> 		8-98029-396-0 02 1 1302-
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1302-
165 LINER; DOOR LWR 8-98038-286-1 01 1 1302-1412
165 LINER; DOOR LWR 8-98299-436-0 01 1 1501-
165 LINER; DOOR LWR 8-98038-285-1 01 1 1302-1412
165 LINER; DOOR LWR 8-98299-434-0 01 1 1501-
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 10 1 1302-
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1302-
199 CLIP; SEAL
(A) NATURAL 		8-98062-270-0 80 1 1302-
199 CLIP; SEAL
(B) RED 		8-98062-271-0 02 1 1302-
