Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#11456) — 309 parça

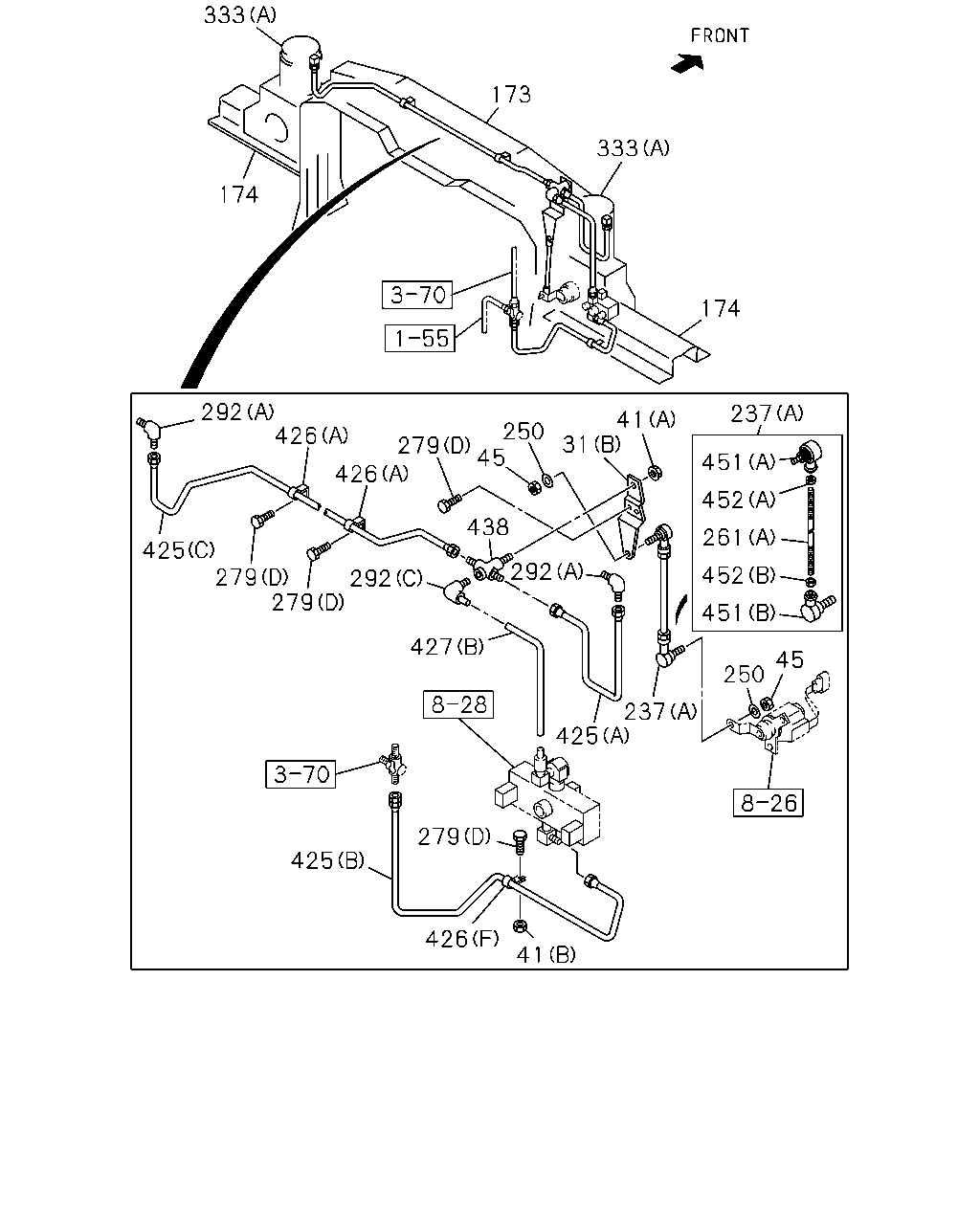

41 426 425 425 279 427 279 426 426 292 425 279 279 292 292 438 237 451 451 452 261 452 45 250 237 41 31 250 174 173 174 333 45 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-
31	BRACKET; CAB (A)	1-44226-146-2	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	0106-0602
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	0603-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	0106-0602
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	0603-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0106-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-581-1	01	1	0106-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0106-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0106-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C)	1-49113-541-0	01	1	0106-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B) L=510	1-49122-367-0	01	1	0106-
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	9-09524-665-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	0-95234-665-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0106-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-

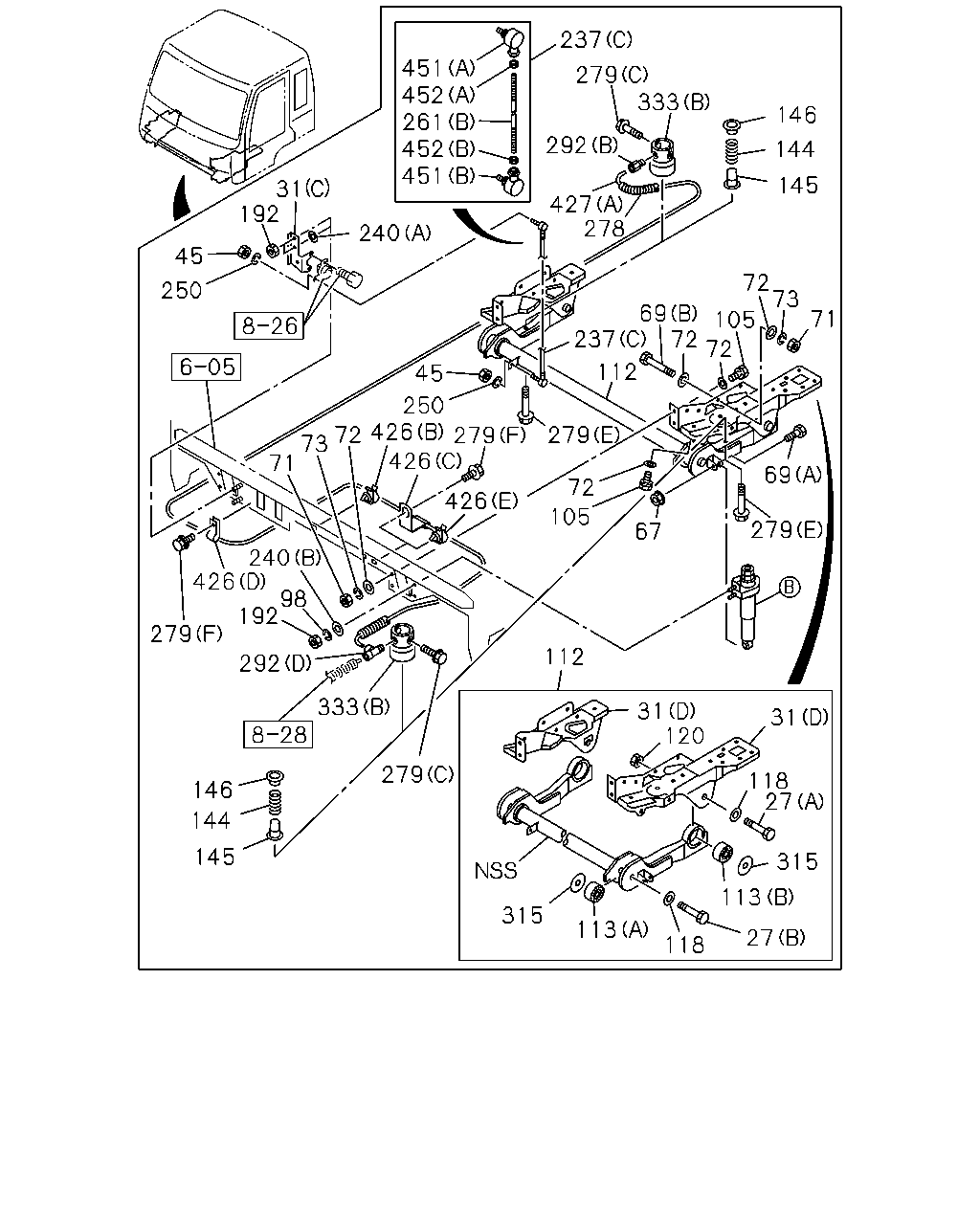

144 146 333 279 237 451 451 452 261 452 31 192 45 250 240 71 73 72 45 426 250 112 72 72 105 71 73 72 145 278 427 237 69 279 279 105 72 426 426 240 426 279 292 112 31 120 31 118 27 315 113 27 118 113 315 279 145 144 146 333 67 279 69 292 192 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0106-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-
31	BRACKET; CAB (A)	1-44226-146-2	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	0106-0512
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0601-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	0106-0602
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0603-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0106-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0106-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0106-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0106-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0106-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-645-1	01	1	0106-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-6	01	1	0106-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	0106-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	0106-0111
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A),(B)	1-53458-714-0	04	1	0112-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0106-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	0106-0512
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0601-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	0106-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	0106-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	0106-
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0106-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0106-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0106-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	0106-0603
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0604-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0106-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0106-
278	COVER DELUXE CAB(W14) FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0106-
278	COVER FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0106-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0106-
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0106-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0106-
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	9-09524-665-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (F) ID=7 L=32	0-95234-665-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	0106-0606
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0607-
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	0106-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0106-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	0106-0512
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0601-

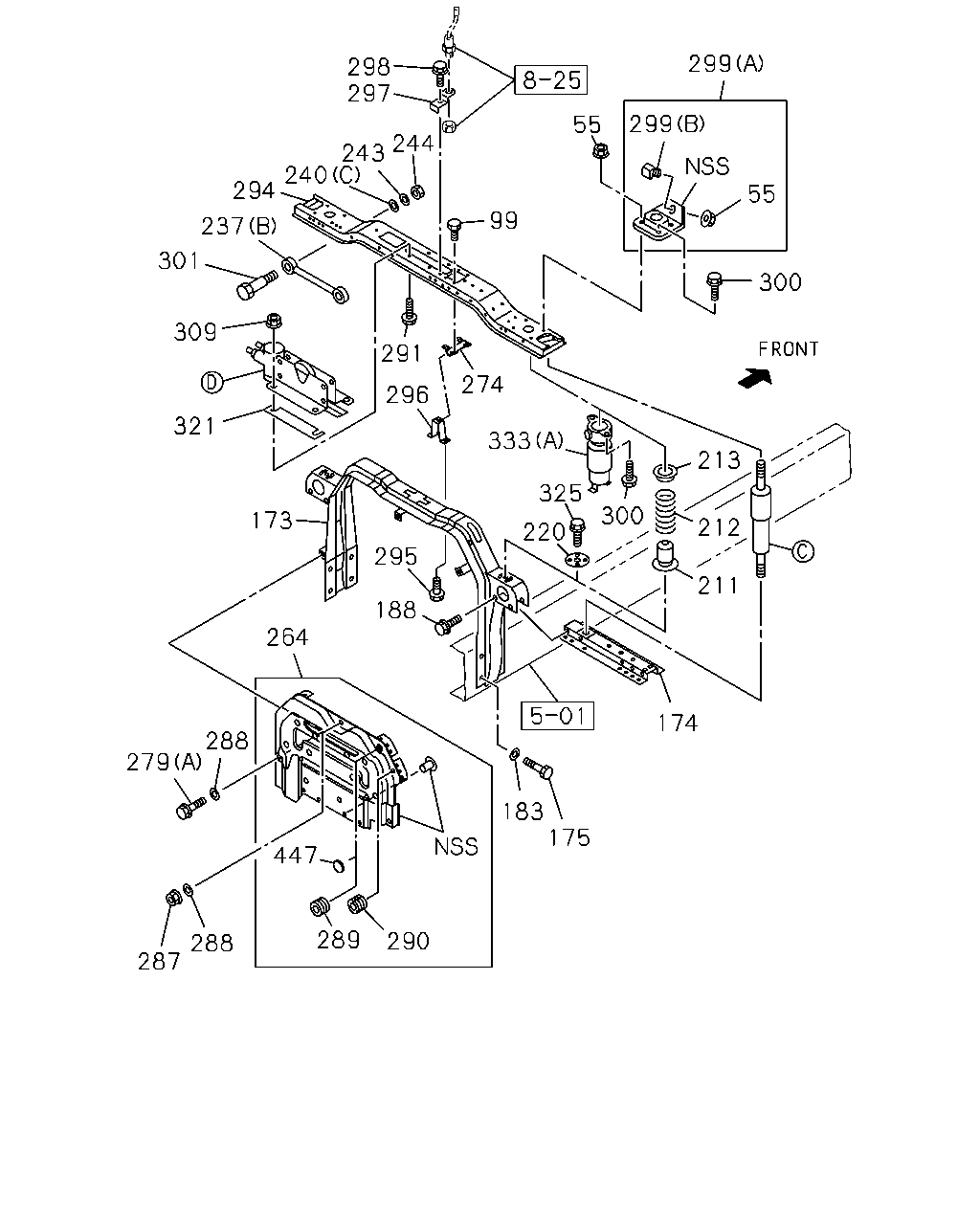

300 55 299 299 55 298 99 244 243 240 294 237 301 309 321 173 188 264 295 220 300 213 211 212 325 333 274 296 291 174 175 183 290 289 447 288 287 288 279 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91150-108-0	06	1	0106-0602
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0603-
99	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0106-0512
99	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-581-1	01	1	0106-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0106-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	0106-0512
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	0601-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0106-
188	BOLT; OUTRIGGER M10X25 FLANGE	0-28681-025-0	08	1	0106-0512
188	BOLT; OUTRIGGER M10X25 FLANGE	0-28651-025-0	08	1	0601-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	0106-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	0106-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	0106-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0106-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0106-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0106-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0106-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0106-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	0106-0605
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0606-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	0106-0603
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0604-
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	0106-0512
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0601-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-606-2	01	1	0106-
274	PIN	1-53458-996-0	01	1	0106-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	0106-0602
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	01	1	0603-
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	0106-0605
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	0-91614-808-0	03	1	0606-
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	0106-0312
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	0106-
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	0106-0512
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0601-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0106-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0106-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28681-020-0	02	1	0106-0512
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0601-
296	STOPPER; UPR	1-53458-973-0	01	1	0106-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0106-
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0106-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	0106-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28050-816-0	04	1	0601-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0106-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	0106-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0106-
309	NUT M10 FLANGE	0-91150-210-0	04	1	0106-0602
309	NUT M10 FLANGE	0-91180-210-0	04	1	0603-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0106-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	0601-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-2	02	1	0106-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-2	02	1	0106-
447	SEAL ANTI NOISE EQUIPMENT<SV9> OD=45 BLACK	1-76798-017-0	02	1	0401-

65 203 204 70 72 69 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0106-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	0106-0301
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0302-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0106-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0106-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	0106-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0106-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0106-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0106-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	0106-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	0106-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0106-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0106-

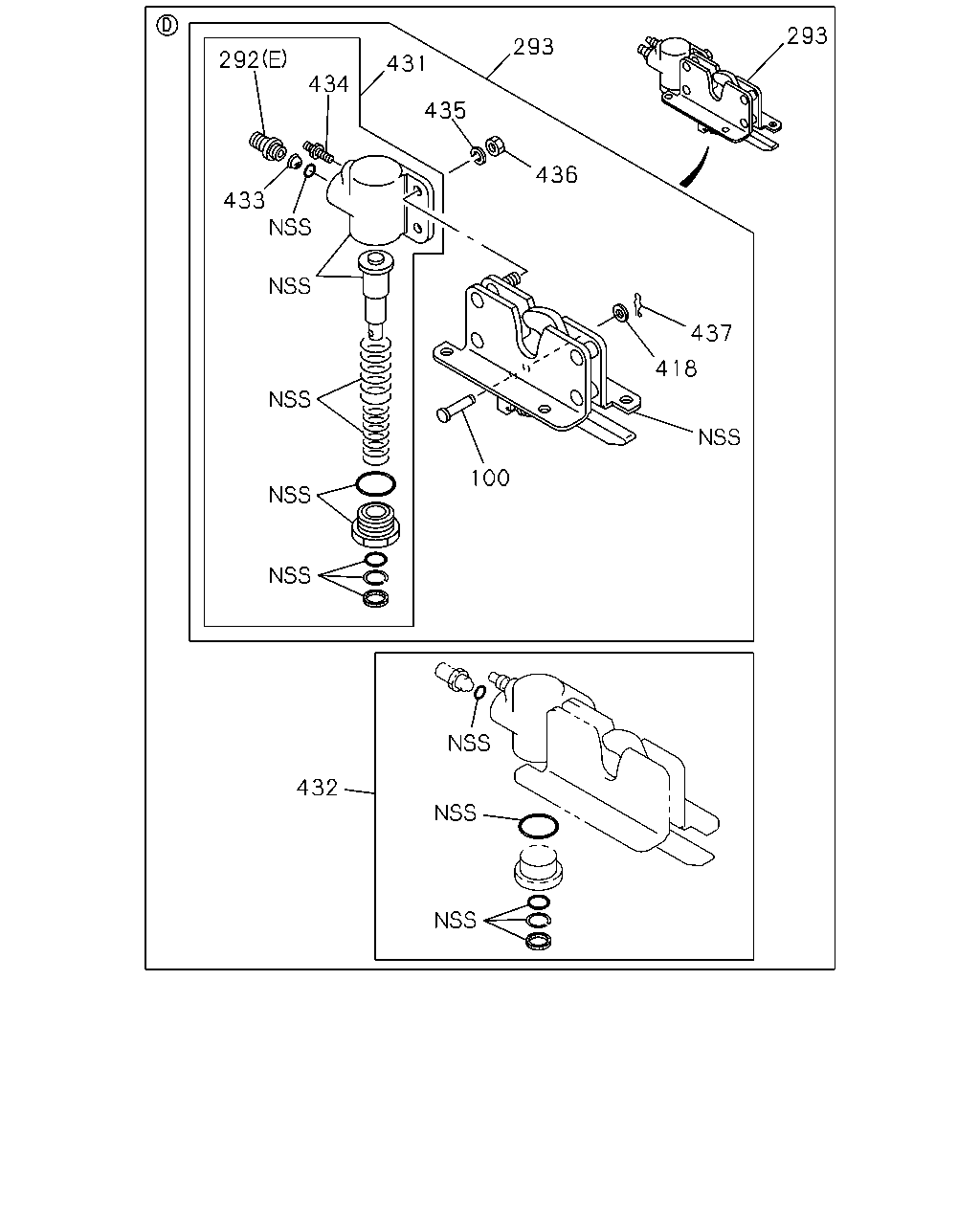

418 437 100 433 434 292 431 293 436 435 293 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	0106-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0106-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0106-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0106-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0106-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0106-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0106-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0106-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0106-
436	NUT; AIR CYL	1-53458-528-0	02	1	0106-
437	PIN; SNAP	1-53458-526-0	01	1	0106-

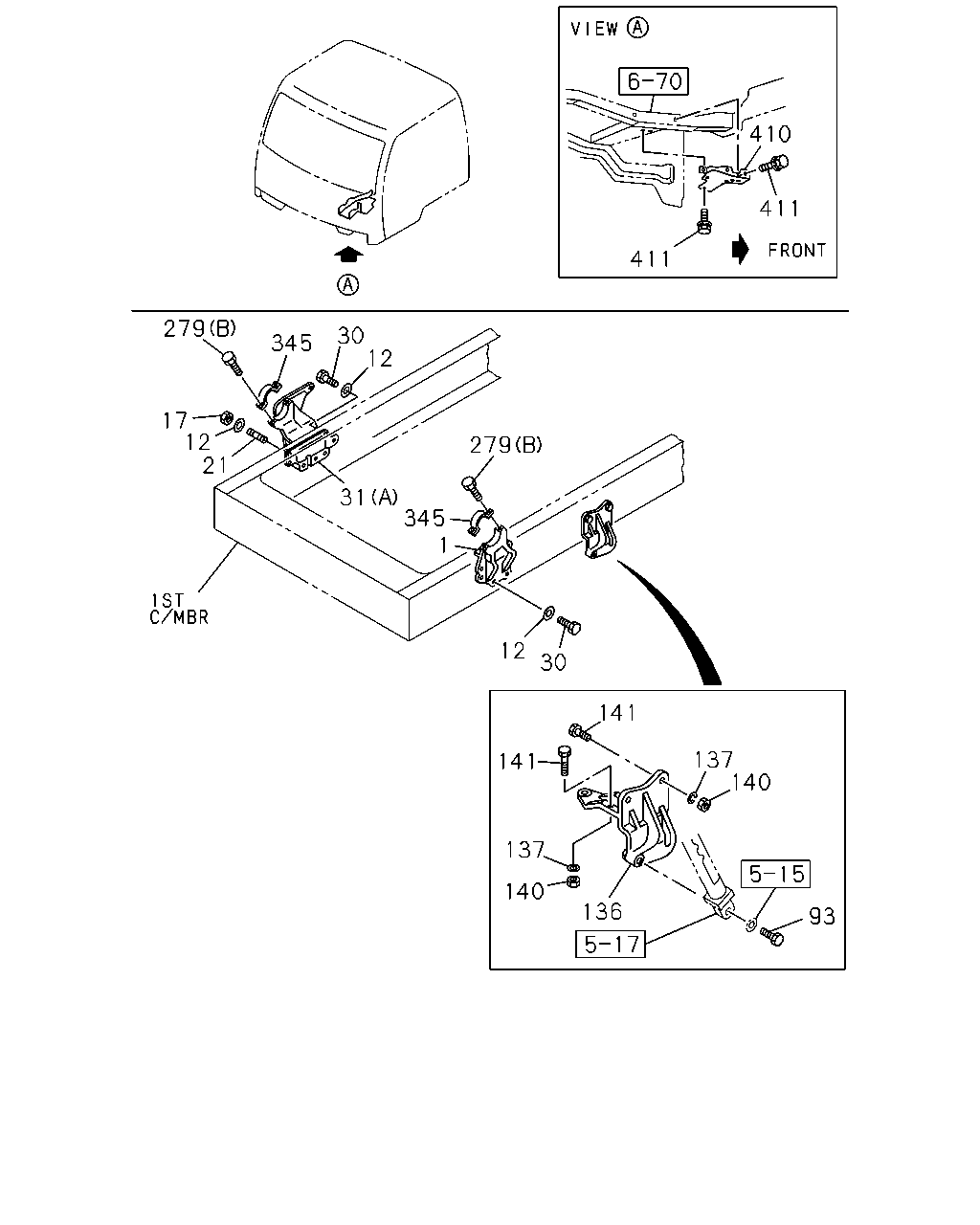

411 411 410 279 345 31 21 12 17 279 30 12 345 12 1 30 141 141 137 140 136 140 137 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-214-2	01	1	0106-
12	WASHER; LK,BRKT ID=15	9-09651-069-0	11	1	0106-
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	01	1	0106-0512
17	NUT; BRKT,CAB TILT M14	0-91110-514-0	01	1	0601-
21	STUD; BRKT,CAB TILT M14X48 L=75	1-09300-094-0	01	1	0106-
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	10	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0106-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0106-
31	BRACKET; CAB (A)	1-44226-146-2	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	0106-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	0106-
93	BOLT; PIN M10X20 FLANGE	0-28681-020-0	01	1	0106-0512
93	BOLT; PIN M10X20 FLANGE	0-28651-020-0	01	1	0601-
136	BRACKET; OIL CYL	1-53458-623-0	01	1	0106-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0106-
140	NUT; BRKT M14	9-99110-514-0	02	1	0106-0512
140	NUT; BRKT M14	0-91110-514-0	02	1	0601-
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	0106-0512
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0601-
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0106-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0601-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0106-0512
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	06	1	0601-
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0106-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	0106-0512
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0601-
345	CAP; CAB	1-53458-336-3	02	1	0106-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0106-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0106-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0106-

201 205 174 205 204 203 202 202 173 203 204 203 204 205 204 203 294 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-581-1	01	1	0106-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-638-2	01	1	0106-
174	OUTRIGGER	1-53456-277-3	01	1	0106-
174	OUTRIGGER	1-53456-278-3	01	1	0106-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	0106-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0106-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0106-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0106-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	0106-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	0106-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0106-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0106-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	0106-0311
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-949-1	01	1	0312-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	0106-0311
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-950-2	01	1	0312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
