Isuzu WW
▶
TRUCKS
▶
FTR
▶
11513 - FTR-RHD EURO2
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#114558) — 72 parça
◀

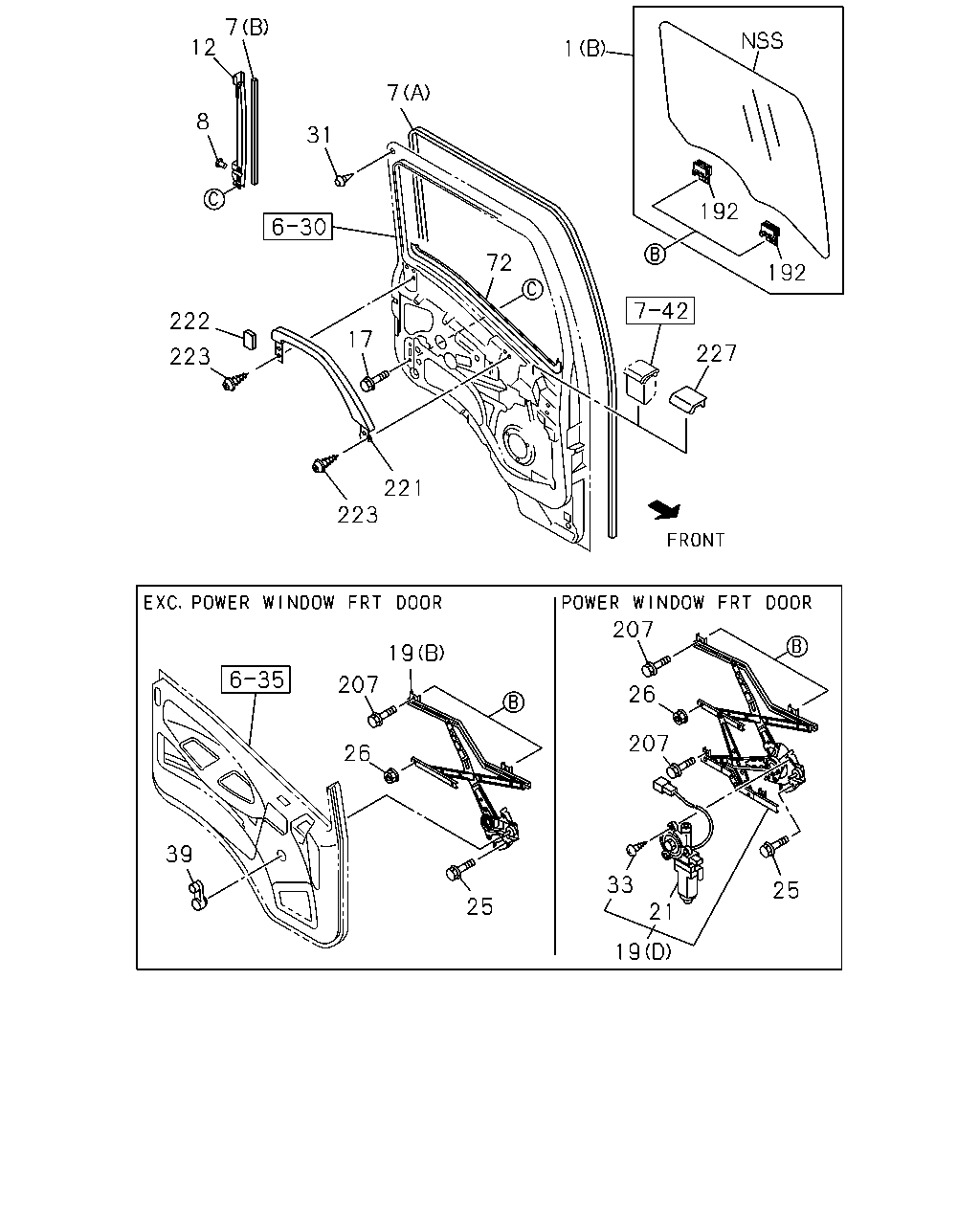

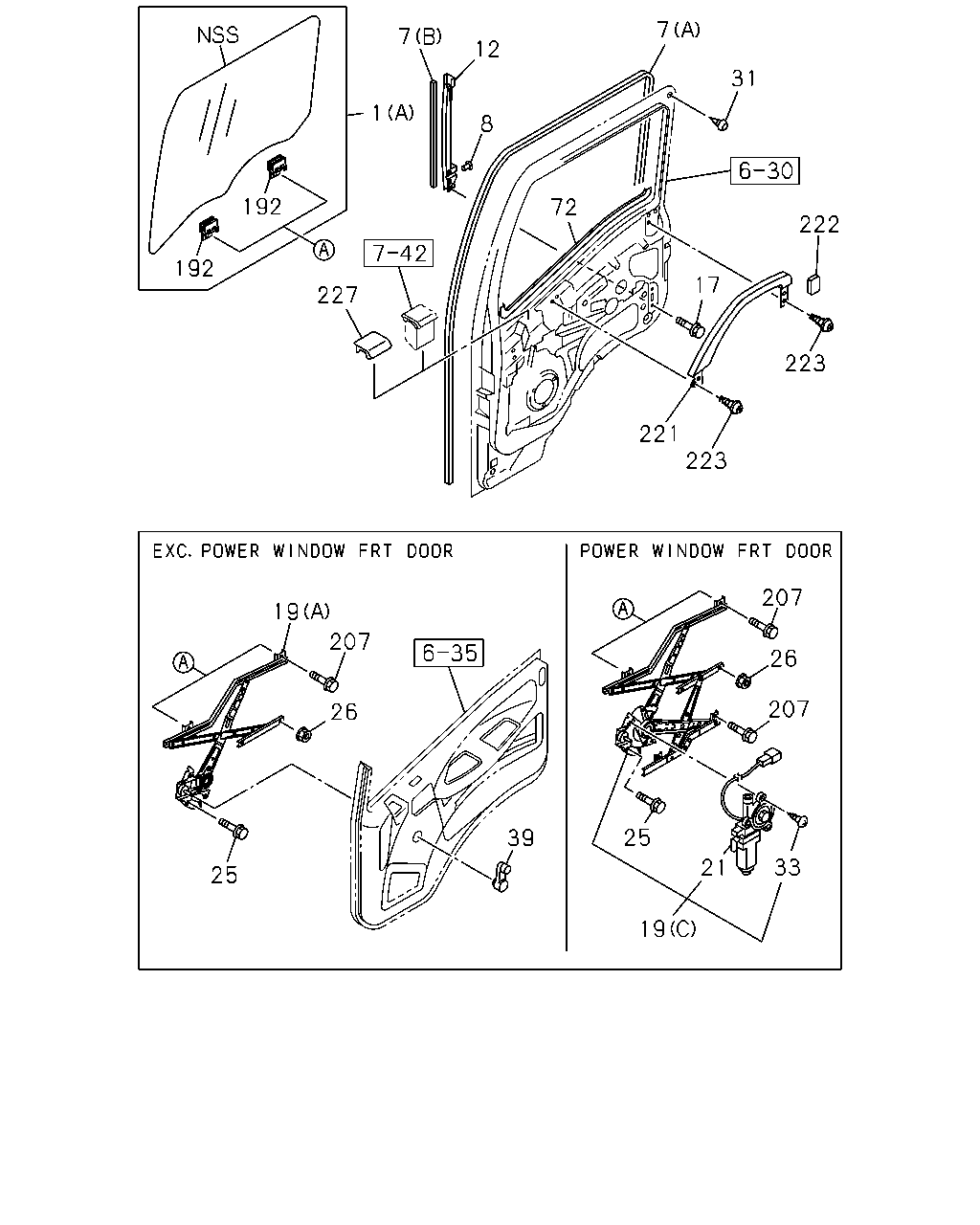

[631A] LH (36 parça)
[631A] RH (36 parça)
▶
25
19
25
39
26
207
21
33
207
26
207
19
221
223
223
222
17
72
227
192
192
1
7
31
7
12
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
(B)
8-98211-765-0
01
1
1302-
1
GLASS; FRT DOOR
(A)
8-98211-764-0
01
1
1302-
7
GLASS RUN; FRT DOOR
(B)
8-98031-742-2
02
1
1302-1411
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98029-196-3
01
1
1302-1411
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98029-195-3
01
1
1302-1411
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1412-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1302-
12
CHANNEL; GLASS RUN,FRT
8-98188-419-0
01
1
1302-1411
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1412-
12
CHANNEL; GLASS RUN,FRT
8-98188-418-0
01
1
1302-1411
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1412-
17
SCREW; RR CHANNEL
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (D)
8-98029-237-3
01
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (C)
8-98029-236-3
01
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (B)
8-98029-234-3
01
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A)
8-98029-233-3
01
1
1302-
21
MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32>
8-98058-430-0
01
1
1302-
21
MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32>
8-98058-429-0
01
1
1302-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1302-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1302-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1302-
33
SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32>
8-98058-431-0
06
1
1302-
39
HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY
8-97405-313-3
02
1
1302-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1302-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1302-
192
HOLDER; DOOR GLASS
8-98211-762-0
04
1
1302-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1302-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1302-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1302-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1302-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1302-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1302-
227
RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY
8-97405-321-0
01
1
1302-
227
RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY
8-97405-321-0
01
1
1302-
192
192
1
7
227
72
8
7
31
222
17
223
221
223
207
26
207
25
21
33
19
39
207
26
19
25
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; FRT DOOR
(B)
8-98211-765-0
01
1
1302-
1
GLASS; FRT DOOR
(A)
8-98211-764-0
01
1
1302-
7
GLASS RUN; FRT DOOR
(B)
8-98031-742-2
02
1
1302-1411
7
GLASS RUN; FRT DOOR
(B)
8-98260-310-0
02
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98029-196-3
01
1
1302-1411
7
GLASS RUN; FRT DOOR
(A)
8-98260-309-0
01
1
1412-
7
GLASS RUN; FRT DOOR
(A)
8-98029-195-3
01
1
1302-1411
7
GLASS RUN; FRT DOOR
(A)
8-98260-308-0
01
1
1412-
8
CLIP; GLASS GUIDE
8-98048-796-0
02
1
1302-
12
CHANNEL; GLASS RUN,FRT
8-98188-419-0
01
1
1302-1411
12
CHANNEL; GLASS RUN,FRT
8-98260-319-0
01
1
1412-
12
CHANNEL; GLASS RUN,FRT
8-98188-418-0
01
1
1302-1411
12
CHANNEL; GLASS RUN,FRT
8-98260-318-0
01
1
1412-
17
SCREW; RR CHANNEL
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (D)
8-98029-237-3
01
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (C)
8-98029-236-3
01
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (B)
8-98029-234-3
01
1
1302-
19
REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A)
8-98029-233-3
01
1
1302-
21
MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32>
8-98058-430-0
01
1
1302-
21
MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32>
8-98058-429-0
01
1
1302-
25
BOLT; WINDOW REG
M6X10 FLANGE
0-28050-610-0
08
1
1302-
26
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
1302-
31
STOPPER; RUBBER,DOOR INNER
8-94358-581-0
04
1
1302-
33
SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32>
8-98058-431-0
06
1
1302-
39
HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY
8-97405-313-3
02
1
1302-
72
SEAL; WAIST,FRT DOOR
8-98029-193-1
01
1
1302-
72
SEAL; WAIST,FRT DOOR
8-98029-192-1
01
1
1302-
192
HOLDER; DOOR GLASS
8-98211-762-0
04
1
1302-
207
SCREW; DOOR GLASS
BOLT M6X10 FLANGE
0-28050-610-0
04
1
1302-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-317-2
01
1
1302-
221
BAR ASM; DOOR GLASS GUARD
DARK GRAY
8-97405-316-2
01
1
1302-
222
CAP; GUARD BAR
GRAY
8-97405-319-0
01
1
1302-
222
CAP; GUARD BAR
GRAY
8-97405-318-0
01
1
1302-
223
SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET
0-38050-625-0
08
1
1302-
227
RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY
8-97405-321-0
01
1
1302-
227
RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY
8-97405-321-0
01
1
1302-
