6-30 — FRONT DOOR AND HINGE (#114555) — 18 parça

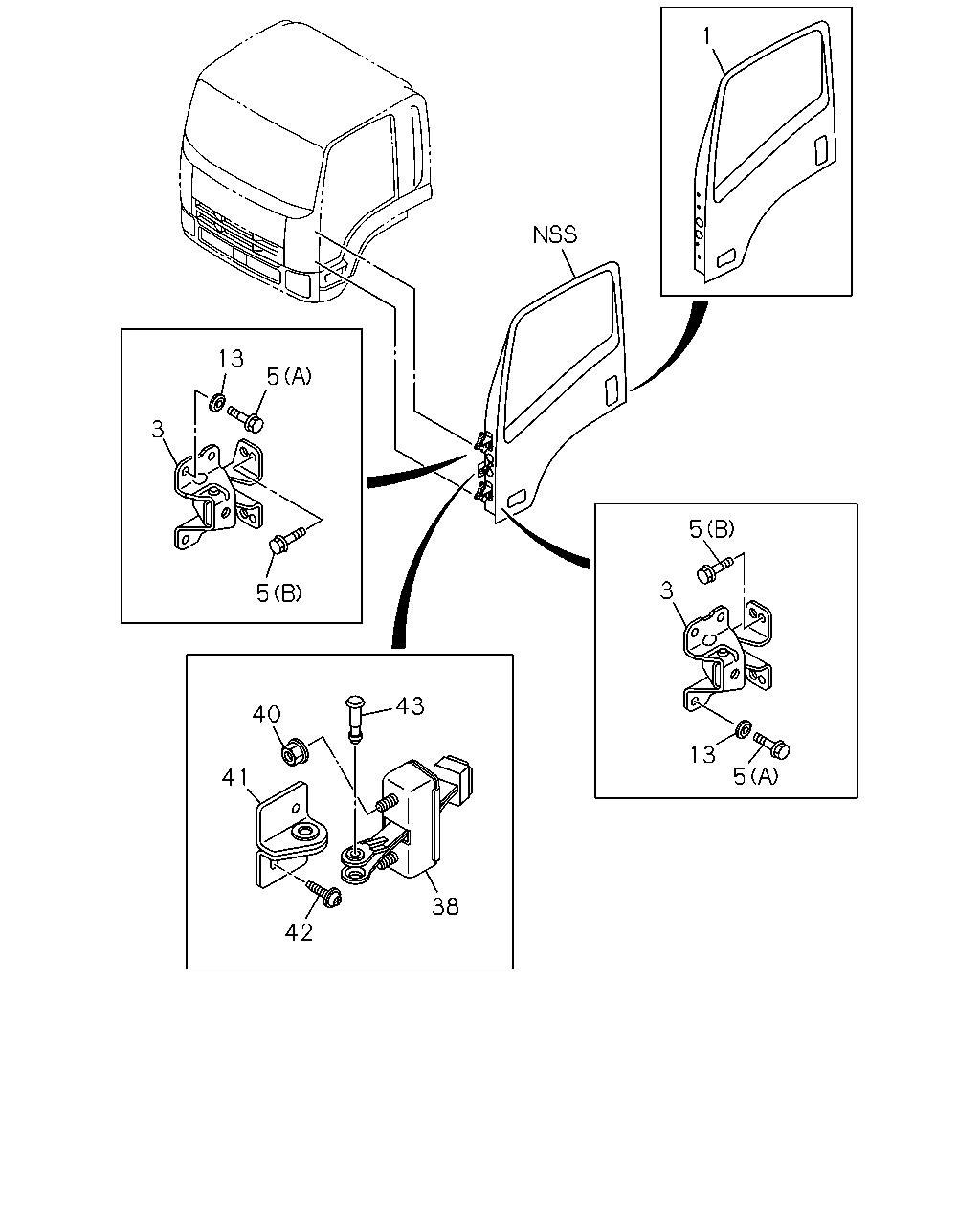

çizim 329242
5 3 13 5 1 5 13 3 5 40 41 43 38 42
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM 8-98171-231-0 01 1 1302-1411
1 DOOR ASM; FRT,WO/TRIM 8-98260-598-0 01 1 1412-
1 DOOR ASM; FRT,WO/TRIM 8-98171-223-0 01 1 1302-1411
1 DOOR ASM; FRT,WO/TRIM 8-98260-597-0 01 1 1412-
3 HINGE; DOOR FRT 8-98191-302-0 04 1 1302-
5 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1302-
5 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (B) M8X20 FLANGE 		8-98049-756-0 08 1 1302-
5 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1302-
13 WASHER; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> ID=8.1 W/SEAL 		8-97890-584-1 04 1 1302-
38 CHECKER ASM; DOOR 8-98031-730-6 02 1 1302-1508
38 CHECKER ASM; DOOR 8-98296-602-0 02 1 1509-
40 NUT; CHECKER
KD PREPARATORY PACK VAR.4<7TV> M8 W/DISHED WASHER 		8-97329-625-0 04 1 1510-
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1302-1508
40 NUT; CHECKER
M8 W/DISHED WASHER 		8-98302-918-0 04 1 1509-1509
40 NUT; CHECKER
EXC. KD PREPARATORY PACK VAR.4<7TV> M8 W/DISHED WASHER 		8-98302-918-0 04 1 1510-
41 BRACKET; CHECKER 8-98029-290-3 02 1 1302-
42 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1302-
43 PIN 8-98037-152-2 02 1 1302-
