6-20 — SIDE PANEL AND STEP (#114543) — 152 parça

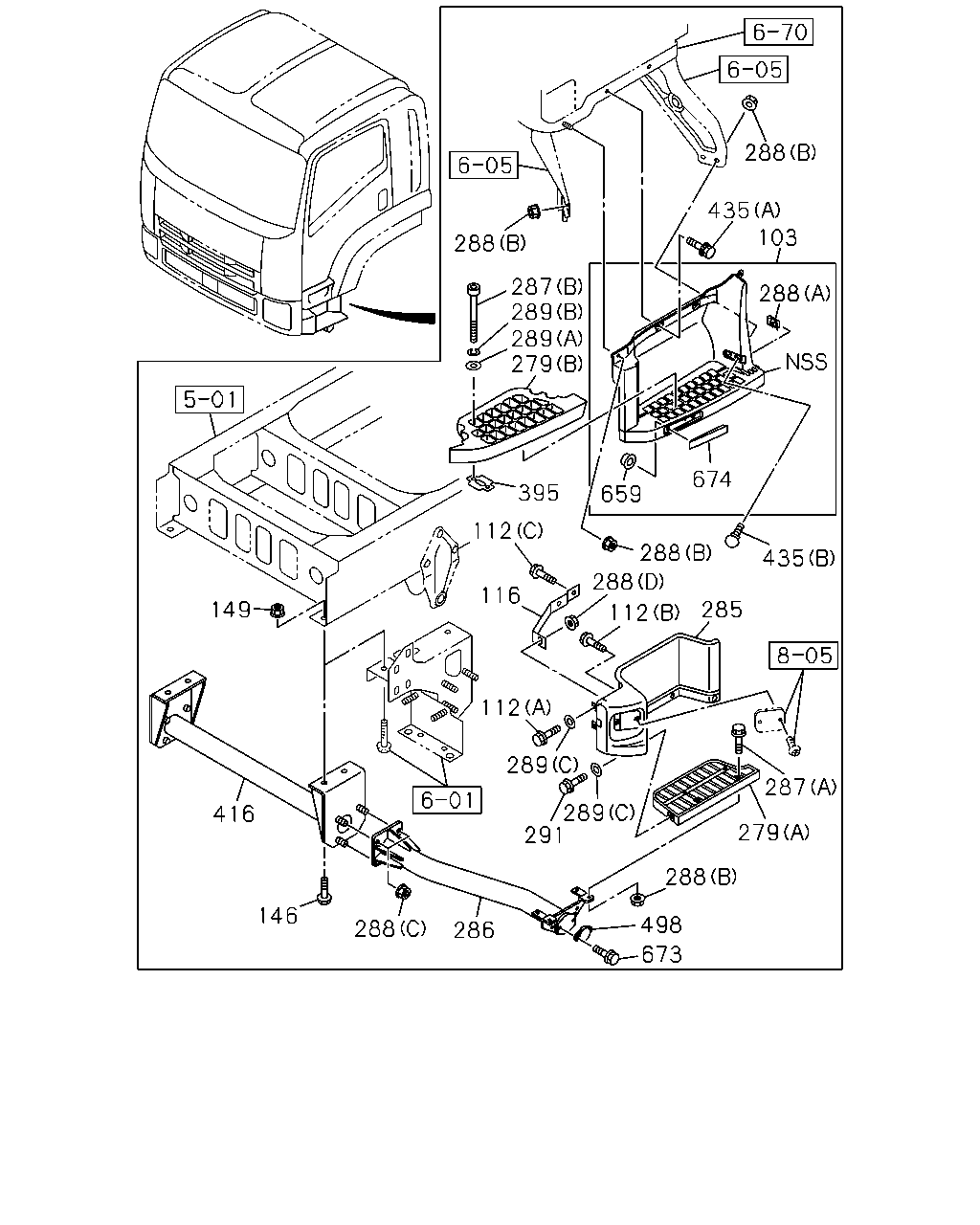

çizim 329009
288 289 287 289 395 279 659 674 288 103 435 288 288 288 112 285 287 279 288 498 673 291 289 289 112 116 112 149 416 146 288 286 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98069-977-2 01 1 1302- ● ●
103 PLATE; STEP 8-98069-976-2 01 1 1302- ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1302- ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1302- ● ●
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1302- ● ●
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1302- ● ●
146 BOLT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE 		0-28851-445-0 04 1 1302- ●
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1302- ●
149 NUT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE 		0-91180-214-0 04 1 1302- ●
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 1302- ●
279 BOARD; STEP 1ST
IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B) 		8-98080-630-0 01 1 1601- ●
279 BOARD; STEP 1ST
IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B) 		8-98080-631-0 01 1 1601- ●
279 BOARD; STEP 1ST
(A) 		1-53414-181-0 01 1 1302- ● ●
279 BOARD; STEP 1ST
(A) 		1-53414-180-0 01 1 1302- ● ●
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1302- ● ●
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1302- ● ●
286 STEP ASM; 1ST 8-98082-430-2 01 1 1302- ● ●
286 STEP ASM; 1ST 8-98082-431-2 01 1 1302- ● ●
287 BOLT; BOARD STEP
IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B) 		8-98165-009-0 08 1 1601- ●
287 BOLT; BOARD STEP
(A) M8X35 FLANGE 		0-28650-835-0 08 1 1302- ● ●
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1302- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1302- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1302- ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1302- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1302- ● ●
289 WASHER; PL,STEP
IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (A) 		8-98112-672-1 08 1 1601- ●
289 WASHER; PL,STEP
IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> (B) 		8-98112-673-1 08 1 1601- ●
289 WASHER; PL,STEP
(C) ID=6.4 OD=18 		0-91610-706-0 10 1 1302- ● ●
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1302- ● ●
395 BRACKET; SIDE STEP
IRAN EQUIPMENT(D8T) KD PREPARATORY PACK<6HF> 		8-98080-646-1 04 1 1601- ●
416 BRACKET; ASSIST STEP
MANUAL TRANSMISSION<X9C> EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98053-542-4 01 1 1302- ●
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 1302- ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1302- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1302- ● ●
498 REFLECTOR 1-82290-011-1 02 1 1302- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1302- ● ●
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1302- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 1302- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 1302- ● ●

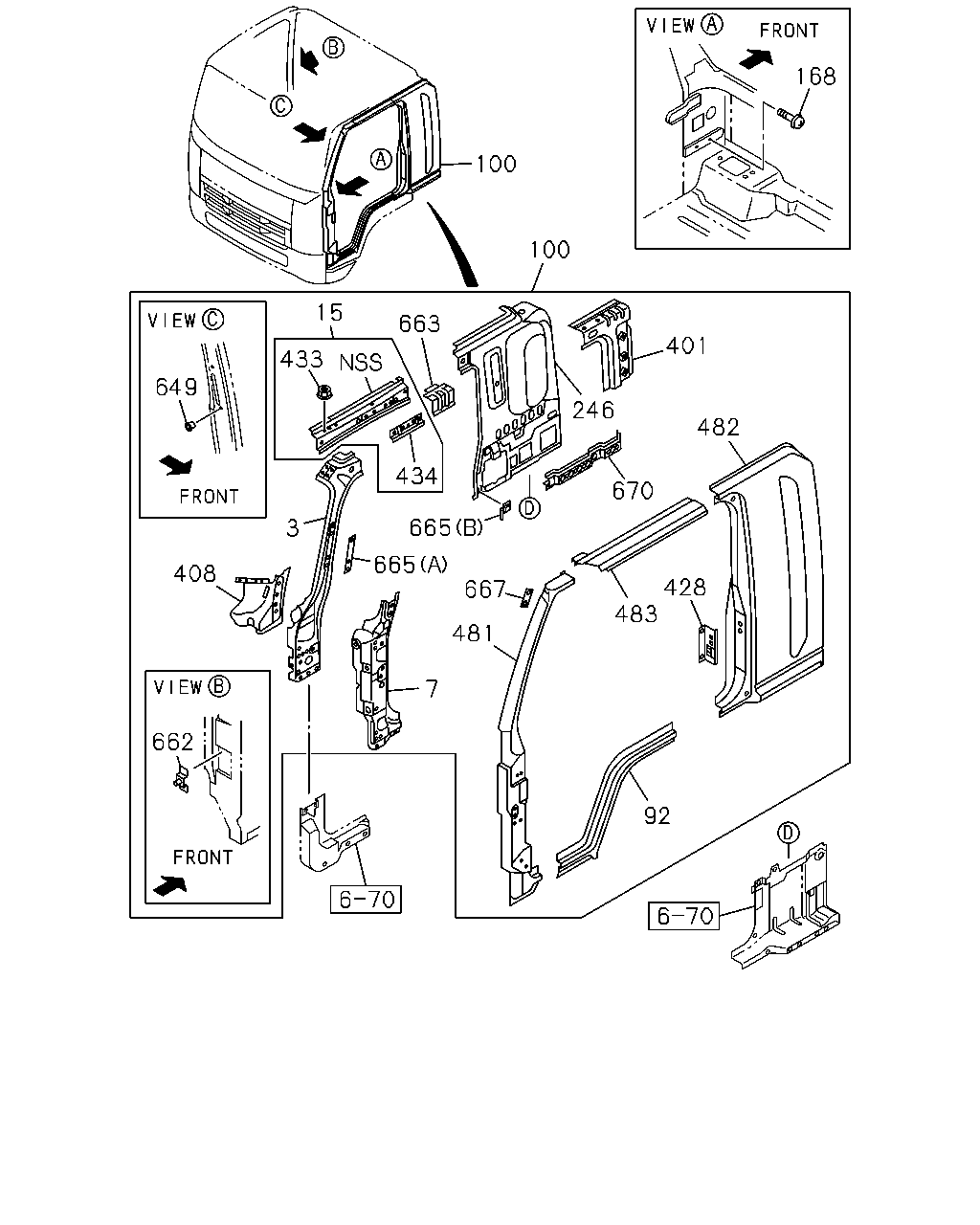

çizim 329139
100 168 100 15 663 433 649 3 434 665 665 408 662 667 481 7 483 670 482 428 92 246 401
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1302- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1302- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1302- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1302- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1302- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1302- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1302- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1302- ● ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98293-261-0 01 1 1410- ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98293-261-0 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2015<VZF> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98293-261-0 01 1 1410- ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) VIN MODEL YEAR 2014<VZE> EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98214-442-0 01 1 1410- ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98214-442-0 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) VIN MODEL YEAR 2015<VZF> EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98214-442-0 01 1 1410- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-076-6 01 1 1302- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9> 		8-97586-068-5 01 1 1302-1405 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,VIN MODEL YEAR 2014<VZE> 		8-97586-068-5 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), MIRROR O/S UNDER VIEW<RR9> 		8-97586-068-5 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-97586-068-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), MIRROR O/S UNDER VIEW<RR9>,ALGERIA EQUIPMENT(WN1) 		8-97586-068-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),MIRROR O/S UNDER VIEW<RR9>,ALGERIA EQUIPMENT(WN1) 		8-97586-068-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-074-6 01 1 1302- ●
100 PANEL ASM; BODY SIDE 8-97586-074-6 01 1 1302- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12) 		8-98020-223-7 01 1 1302-1405 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),VIN MODEL YEAR 2014<VZE> 		8-98020-223-7 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98020-223-7 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. RUSSIA EQUIPMENT(B12),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98020-223-7 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) 		8-98020-223-7 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) 		8-98020-223-7 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 1302-1405 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-479-7 01 1 1302-1405 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE> 		8-98059-479-7 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-479-7 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98059-479-7 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-98059-479-7 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-98059-479-7 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-479-7 01 1 1410- ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98088-580-5 01 1 1302-1405 ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> 		8-98088-580-5 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE> 		8-98088-580-5 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> 		8-98088-580-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98088-580-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2015<VZF> 		8-98088-580-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-067-5 01 1 1302-1405 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1302-1405 ●
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-067-5 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE> 		8-97586-067-5 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1406-1409 ●
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-97586-067-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-97586-067-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-97586-067-5 01 1 1410- ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1410- ●
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1302- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1302- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1302- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1302- ● ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1302- ● ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1302- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1302- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1302- ● ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1302- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1302- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1302- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1302- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1302- ● ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-581-0 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-715-1 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-802-0 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-911-0 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98092-912-0 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-912-0 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98072-787-0 01 1 1302- ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-787-0 01 1 1302- ●
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12) 		8-98092-923-0 01 1 1302-1405 ●
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12) 		8-98092-923-0 01 1 1406-1408 ●
482 PANEL; SIDE RR PILLAR
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		8-98092-923-0 01 1 1406-1408 ●
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		8-98092-923-0 01 1 1409-1409 ●
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12) EXC. VIN MODEL YEAR 2014<VZE> 		8-98092-923-0 01 1 1409-1409 ●
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98092-923-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98092-923-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12) 		8-98055-468-0 01 1 1302-1405 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1302-1405 ●
482 PANEL; SIDE RR PILLAR
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> 		8-98055-468-0 01 1 1406-1408 ●
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98055-468-0 01 1 1406-1408 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1406-1408 ●
482 PANEL; SIDE RR PILLAR
VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98055-468-0 01 1 1409-1409 ●
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12),VIN MODEL YEAR 2014<VZE> 		8-98055-468-0 01 1 1409-1409 ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1409-1409 ●
482 PANEL; SIDE RR PILLAR
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) 		8-98055-468-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12),VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98055-468-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1410- ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1302- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1302- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1302- ● ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1302- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1302- ● ●
663 BRACKET; AIR 8-97585-208-2 01 1 1302- ● ●
663 BRACKET; AIR 8-97585-207-2 01 1 1302- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1302- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1302- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1302- ● ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1302- ● ●
667 BRACKET; MIRROR
RUSSIA EQUIPMENT(B12) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1302-1405 ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12) 		8-98109-948-0 01 1 1302-1405 ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1302-1405 ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1406- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1302- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1302- ● ●

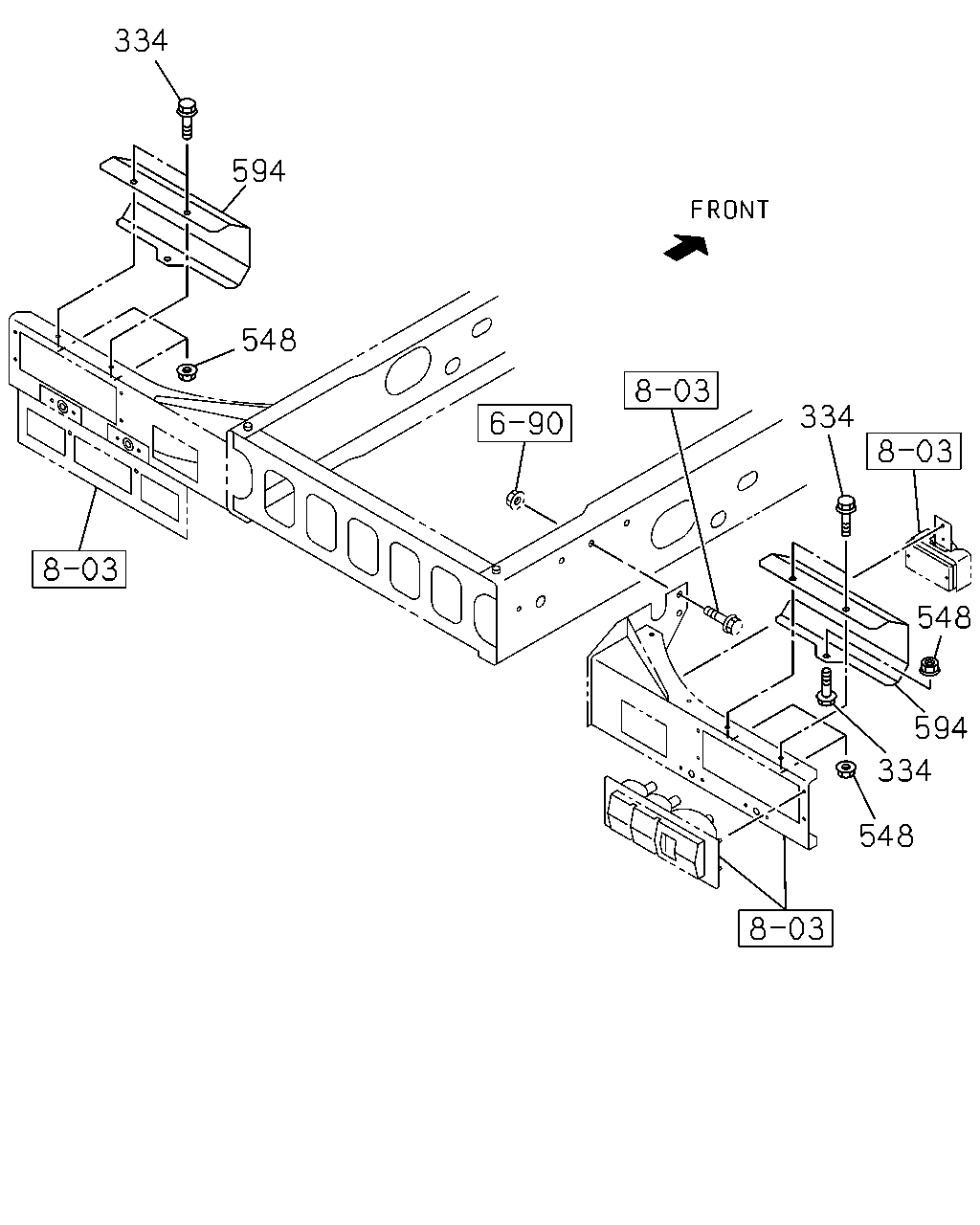

çizim 502727
334 594 334 548 548 334 548 594
BalonParca AdiParca NoAdetTipApplied Date A B
334 BOLT; COVER
RUSSIA EQUIPMENT(B12) M8X12 FLANGE 		0-28060-812-0 06 1 1510- ●
548 NUT; BRKT
RUSSIA EQUIPMENT(B12) M8 CAP NUT FLANGE 		8-98261-347-0 06 1 1510- ●
594 COVER; RR COMB LAMP
RUSSIA EQUIPMENT(B12) 		8-98249-274-0 02 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
