◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#114538) — 90 parça

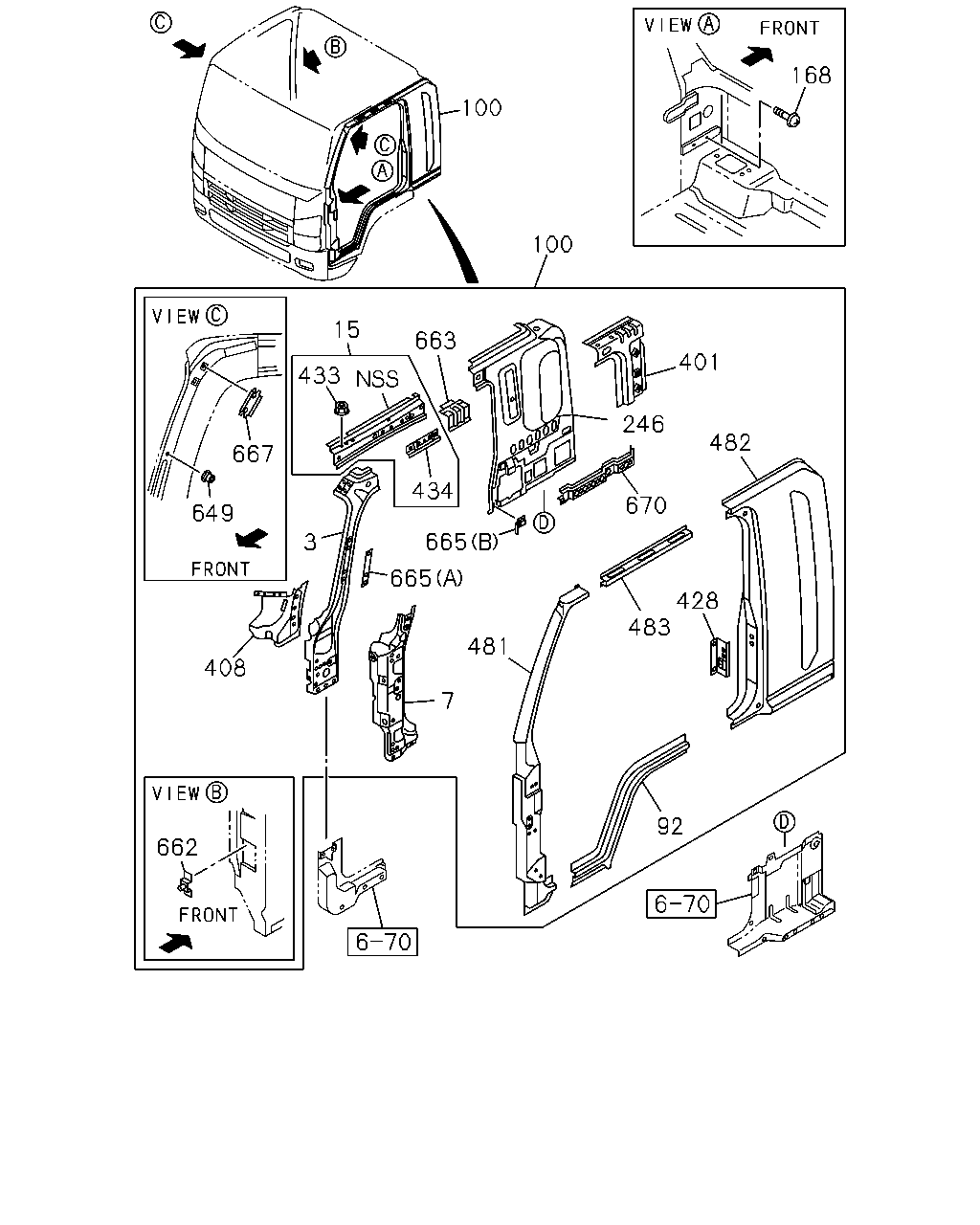

çizim 329030
92 481 7 483 670 482 246 401 100 100 663 15 433 667 3 434 665 665 428 408 649 662 168
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1302-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1302-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1302-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1302-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1302-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1302-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1302-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1302-
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98293-261-0 01 1 1410-
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98293-261-0 01 1 1410-
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98214-442-0 01 1 1410-
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98214-442-0 01 1 1410-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-076-6 01 1 1302-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-074-6 01 1 1302-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 1302-1405
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE> 		8-98059-479-7 01 1 1406-1409
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 1406-1409
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98059-479-7 01 1 1410-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-98059-479-7 01 1 1410-
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98088-580-5 01 1 1302-1405
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> 		8-98088-580-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE> 		8-98088-580-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98088-580-5 01 1 1410-
100 PANEL ASM; BODY SIDE
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98088-580-5 01 1 1410-
100 PANEL ASM; BODY SIDE
EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-067-5 01 1 1302-1405
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-067-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE> 		8-97586-067-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-97586-067-5 01 1 1410-
100 PANEL ASM; BODY SIDE
EXC. RUSSIA EQUIPMENT(B12),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-97586-067-5 01 1 1410-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1302-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1302-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1302-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1302-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1302-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1302-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1302-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1302-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1302-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1302-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1302-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-581-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-802-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-911-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98092-912-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98072-787-0 01 1 1302-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1302-
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12) 		8-98092-923-0 01 1 1302-1405
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12) 		8-98092-923-0 01 1 1406-1408
482 PANEL; SIDE RR PILLAR
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		8-98092-923-0 01 1 1406-1408
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		8-98092-923-0 01 1 1409-1409
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12) EXC. VIN MODEL YEAR 2014<VZE> 		8-98092-923-0 01 1 1409-1409
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98092-923-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98092-923-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12) 		8-98055-468-0 01 1 1302-1405
482 PANEL; SIDE RR PILLAR
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> 		8-98055-468-0 01 1 1406-1408
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98055-468-0 01 1 1406-1408
482 PANEL; SIDE RR PILLAR
VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) 		8-98055-468-0 01 1 1409-1409
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12),VIN MODEL YEAR 2014<VZE> 		8-98055-468-0 01 1 1409-1409
482 PANEL; SIDE RR PILLAR
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) 		8-98055-468-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
EXC. RUSSIA EQUIPMENT(B12),VIN MODEL YEAR 2014<VZE> ,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98055-468-0 01 1 1410-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1302-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1302-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1302-
662 BRACKET; DUCT 8-97584-611-1 01 1 1302-
663 BRACKET; AIR 8-97585-208-2 01 1 1302-
663 BRACKET; AIR 8-97585-207-2 01 1 1302-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1302-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1302-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1302-1405
667 BRACKET; MIRROR
RUSSIA EQUIPMENT(B12) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1302-1405
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> EXC. RUSSIA EQUIPMENT(B12),LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE> 		8-98109-948-0 01 1 1406-1409
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1406-1409
667 BRACKET; MIRROR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> 		8-98109-948-0 01 1 1406-1409
667 BRACKET; MIRROR
RUSSIA EQUIPMENT(B12) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE> 		8-98109-948-0 01 1 1406-1409
667 BRACKET; MIRROR
RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98109-948-0 01 1 1410-
667 BRACKET; MIRROR
RUSSIA EQUIPMENT(B12),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98109-948-0 01 1 1410-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1410-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1302-

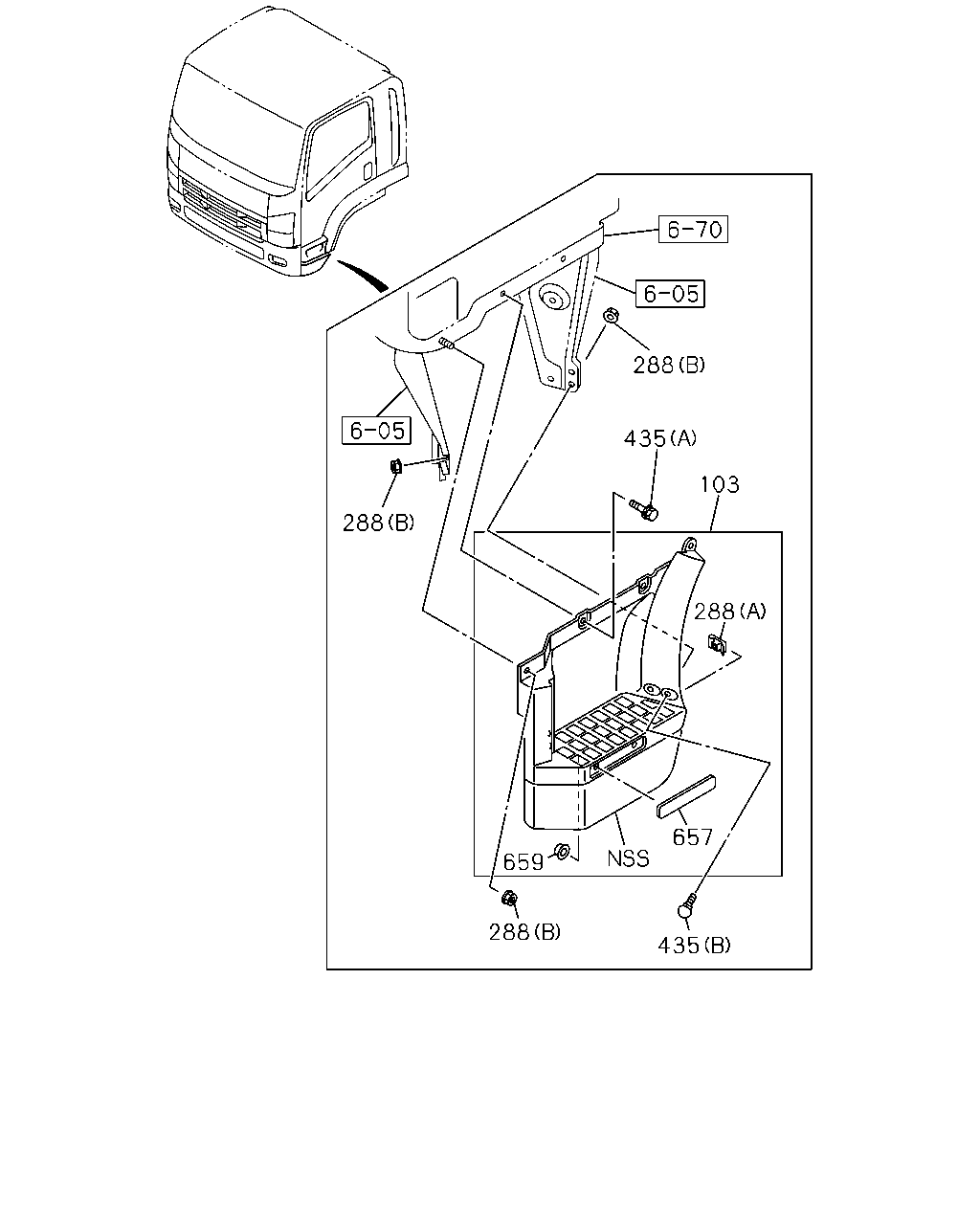

çizim 332080
288 288 435 288 657 435 288 659 103
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-326-3 01 1 1302-
103 PLATE; STEP 8-98037-325-3 01 1 1302-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1302-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1302-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1302-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1302-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1302-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1302-

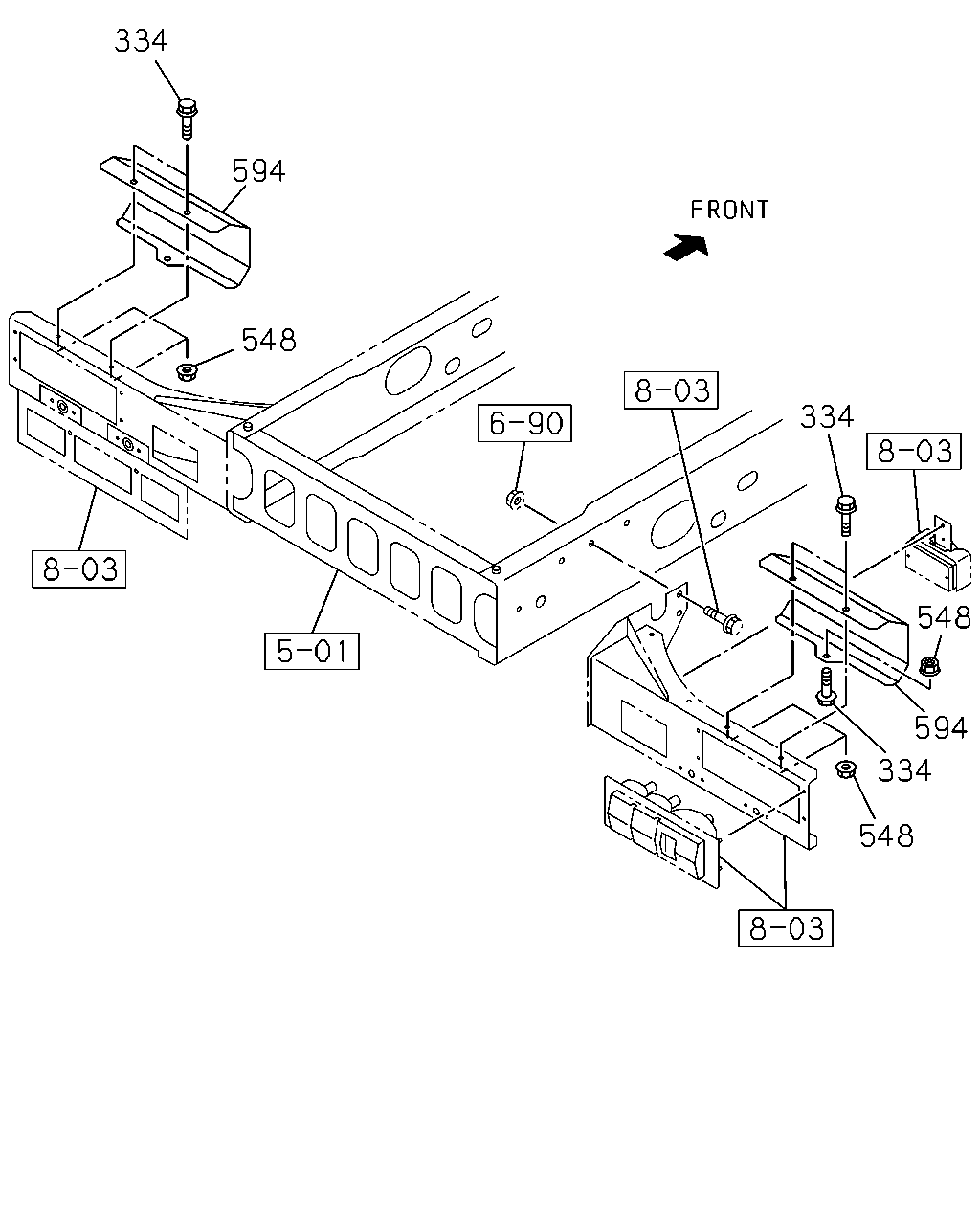

çizim 488269
334 594 548 334 548 594 334 548
BalonParca AdiParca NoAdetTipApplied Date
334 BOLT; COVER
RUSSIA EQUIPMENT(B12) M8X12 FLANGE 		0-28060-812-0 06 1 1508-
548 NUT; BRKT
RUSSIA EQUIPMENT(B12) M8 CAP NUT FLANGE 		8-98261-347-0 06 1 1508-
594 COVER; RR COMB LAMP
RUSSIA EQUIPMENT(B12) 		8-98249-274-0 02 1 1508-
