6-20 — SIDE PANEL AND STEP (#114534) — 131 parça

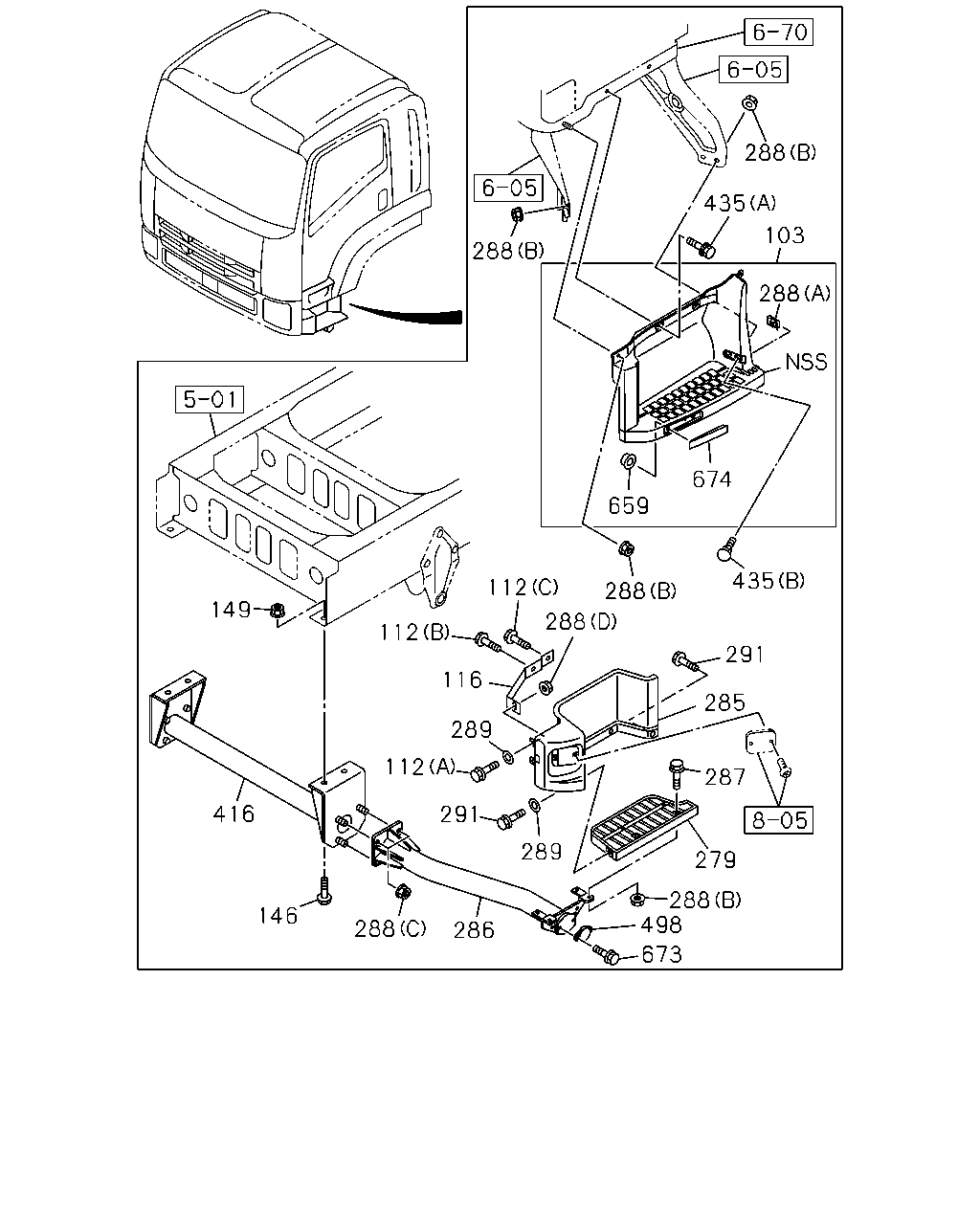

çizim 328923
673 498 288 279 287 285 291 435 288 288 289 286 288 291 112 289 116 112 112 146 416 149 659 674 288 288 435 288 103
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98069-977-2 01 1 1302-
103 PLATE; STEP 8-98069-976-2 01 1 1302-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1302-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1302-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1302-
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1302-
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1302-1401
146 BOLT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE 		0-28851-445-0 04 1 1402-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 1302-1401
149 NUT; STEP BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE 		0-91180-214-0 04 1 1402-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1302-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1302-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1302-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1302-
286 STEP ASM; 1ST 8-98082-430-2 01 1 1302-
286 STEP ASM; 1ST 8-98082-431-2 01 1 1302-
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1302-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1302-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1302-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1302-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 1302-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1302-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1302-
291 BOLT; STEP PLATE
M6X12 FLANGE 		0-28050-612-0 06 1 1302-
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 1302-1401
416 BRACKET; ASSIST STEP
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98053-542-4 01 1 1402-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1302-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1302-
498 REFLECTOR 1-82290-011-1 02 1 1302-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1302-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1302-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1302-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1302-

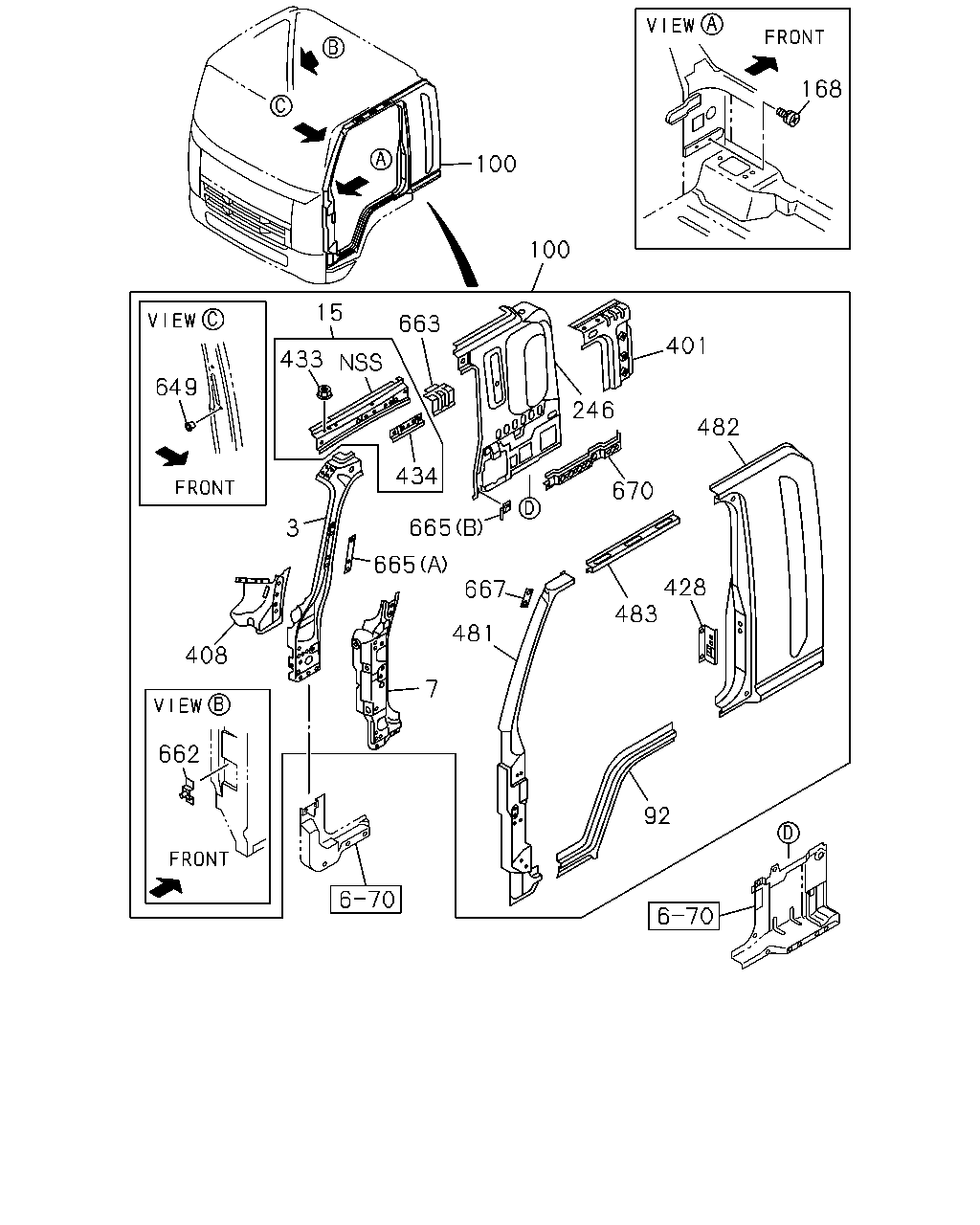

çizim 329090
168 100 100 649 15 433 663 434 246 401 482 670 665 3 665 667 428 483 481 7 408 92 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1302-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1302-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1302-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1302-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1302-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1302-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1302-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1302-
100 PANEL ASM; BODY SIDE
ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98293-261-0 01 1 1410-
100 PANEL ASM; BODY SIDE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98293-261-0 01 1 1410-
100 PANEL ASM; BODY SIDE
ALGERIA EQUIPMENT(WN1) EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98214-442-0 01 1 1410-
100 PANEL ASM; BODY SIDE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98214-442-0 01 1 1410-
100 PANEL ASM; BODY SIDE
MOROCCO EQUIPMENT(CGA) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> 		8-98088-580-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98088-580-5 01 1 1410-
100 PANEL ASM; BODY SIDE
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98088-580-5 01 1 1410-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98020-223-7 01 1 1402-1405
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE> 		8-98020-223-7 01 1 1406-1409
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) 		8-98020-223-7 01 1 1406-1409
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98020-223-7 01 1 1410-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) 		8-98020-223-7 01 1 1410-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-076-6 01 1 1402-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-068-5 01 1 1402-1405
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9>,VIN MODEL YEAR 2014<VZE> 		8-97586-068-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA),MIRROR O/S UNDER VIEW<RR9> 		8-97586-068-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-97586-068-5 01 1 1410-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),MIRROR O/S UNDER VIEW<RR9>,ALGERIA EQUIPMENT(WN1) 		8-97586-068-5 01 1 1410-
100 PANEL ASM; BODY SIDE 8-97586-074-6 01 1 1302-1401
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-074-6 01 1 1402-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-479-7 01 1 1302-1401
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 1402-1405
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE> 		8-98059-479-7 01 1 1406-1409
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA),LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 1406-1409
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98059-479-7 01 1 1410-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-98059-479-7 01 1 1410-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1302-1401
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-067-5 01 1 1402-1405
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-067-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE> 		8-97586-067-5 01 1 1406-1409
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-97586-067-5 01 1 1410-
100 PANEL ASM; BODY SIDE
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC>,ALGERIA EQUIPMENT(WN1) 		8-97586-067-5 01 1 1410-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1302-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1302-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1302-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1302-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1302-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1302-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1302-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1302-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1302-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1302-1401
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1402-1405
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1406-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1406-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1302-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1302-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-911-0 01 1 1402-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-581-0 01 1 1402-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-715-1 01 1 1402-
481 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1302-1401
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-802-0 01 1 1402-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-912-0 01 1 1302-1401
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98092-912-0 01 1 1402-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-787-0 01 1 1302-1401
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98072-787-0 01 1 1402-
482 PANEL; SIDE RR PILLAR
MOROCCO EQUIPMENT(CGA) VIN MODEL YEAR 2014<VZE> 		8-98092-923-0 01 1 1406-1409
482 PANEL; SIDE RR PILLAR
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98092-923-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
ALGERIA EQUIPMENT(WN1) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 		8-98092-923-0 01 1 1410-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1302-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1302-1405
482 PANEL; SIDE RR PILLAR
MOROCCO EQUIPMENT(CGA) EXC. VIN MODEL YEAR 2014<VZE> 		8-98055-468-0 01 1 1406-1408
482 PANEL; SIDE RR PILLAR
EXC. MOROCCO EQUIPMENT(CGA) 		8-98055-468-0 01 1 1406-1408
482 PANEL; SIDE RR PILLAR
VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) 		8-98055-468-0 01 1 1409-1409
482 PANEL; SIDE RR PILLAR
EXC. VIN MODEL YEAR 2014<VZE> 		8-98055-468-0 01 1 1409-1409
482 PANEL; SIDE RR PILLAR
VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> EXC. MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) 		8-98055-468-0 01 1 1410-
482 PANEL; SIDE RR PILLAR
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>,ALGERIA EQUIPMENT(WN1) 		8-98055-468-0 01 1 1410-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1302-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1302-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1302-
662 BRACKET; DUCT 8-97584-611-1 01 1 1302-
663 BRACKET; AIR 8-97585-208-2 01 1 1302-
663 BRACKET; AIR 8-97585-207-2 01 1 1302-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1302-1401
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1402-1405
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1406-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1406-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1302-1401
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1402-1405
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1406-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1406-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1302-1405
667 BRACKET; MIRROR
MOROCCO EQUIPMENT(CGA) MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> VIN MODEL YEAR 2014<VZE> 		8-98109-948-0 01 1 1406-1409
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> EXC. VIN MODEL YEAR 2014<VZE> 		8-98109-948-0 01 1 1406-1409
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) 		8-98109-948-0 01 1 1406-1409
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1410-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1302-1401
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1402-1405
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1406-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1406-
