Isuzu WW
▶
TRUCKS
▶
EXR
▶
10863 - EXR RHD FUEL TANK 200L+200L
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

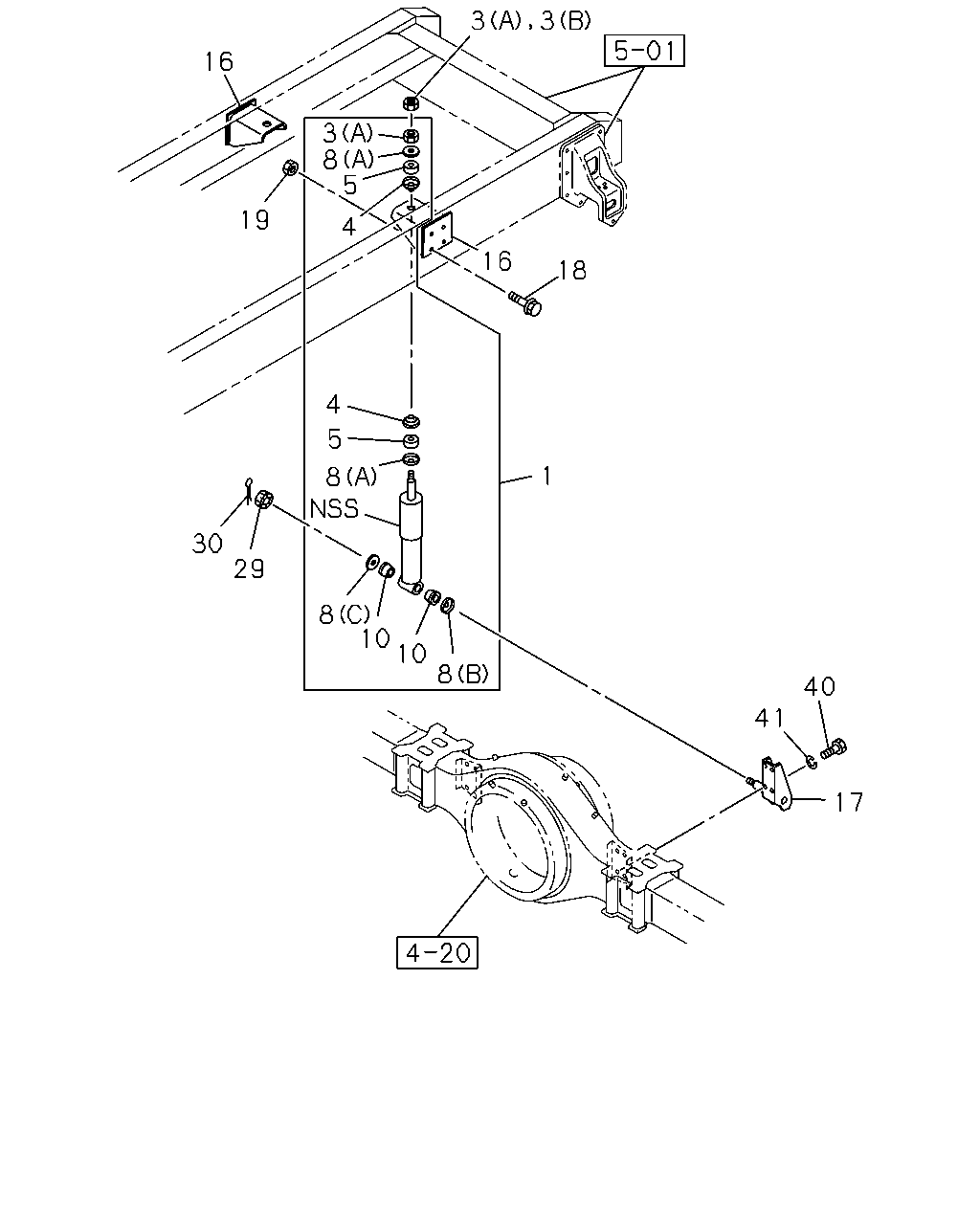

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#11452) — 25 parça
17
41
40
1
8
10
10
8
29
30
4
5
8
18
16
4
19
16
3
3
3
8
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
1-51630-496-0
02
1
0106-0110
1
ABSORBER ASM; SHOCK,RR
1-51630-602-0
02
1
0111-
3
NUT; S/ABS
(B) M18
0-91111-518-0
02
1
0601-
3
NUT; S/ABS
(A) M18
9-99111-418-0
04
1
0106-0512
3
NUT; S/ABS
(A) M18
9-99111-418-0
02
1
0601-
4
WASHER; CENTER,S/ABS
1-51631-072-0
04
1
0106-
5
BUSHING; RUBBER,S/ABS,UPR
1-51631-073-0
04
1
0106-
8
WASHER; S/ABS
(A)
1-51631-071-0
04
1
0106-
8
WASHER; S/ABS
(B)
1-51631-074-0
02
1
0106-
8
WASHER; S/ABS
(C)
1-51631-075-0
02
1
0106-
10
BUSHING; RUBBER,S/ABS
1-51631-076-0
04
1
0106-
16
BRACKET; S/ABS,RR
1-51681-372-2
02
1
0106-
17
BRACKET; S/ABS LWR
1-51681-716-0
01
1
0106-
17
BRACKET; S/ABS LWR
1-51681-717-0
01
1
0106-
18
BOLT; S/ABS BRKT
M14X40
9-92061-440-0
08
1
0106-0512
18
BOLT; S/ABS BRKT
M14X40
0-20951-440-0
08
1
0601-
19
NUT; S/ABS BRKT
M14
9-99110-514-0
08
1
0106-0512
19
NUT; S/ABS BRKT
M14
0-91110-514-0
08
1
0601-
29
NUT; LK,S/ABS,RR SUSP
M24
9-99116-424-0
02
1
0106-
30
PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45
9-08115-045-0
02
1
0106-0606
30
PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45
0-81125-045-0
02
1
0607-
40
BOLT; LWR BRKT
M14X30
0-20801-430-0
08
1
0106-0512
40
BOLT; LWR BRKT
M14X30
0-20851-430-0
08
1
0601-
41
WASHER; LK
ID=14.2
9-09150-614-0
08
1
0106-0603
41
WASHER; LK
ID=14.2
0-91510-614-0
08
1
0604-
