◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#114511) — 917 parça

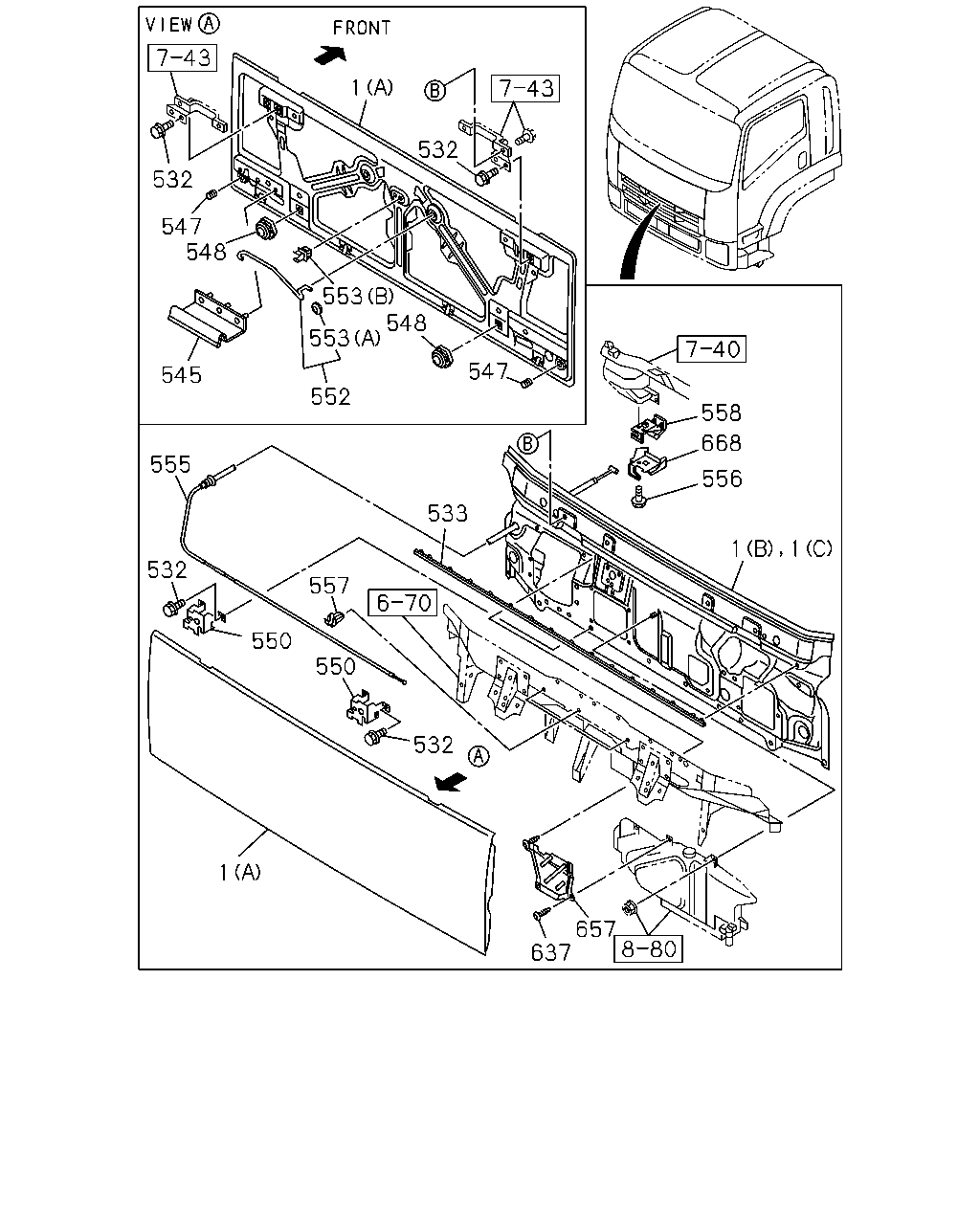

çizim 328604
532 547 545 552 553 553 532 1 547 548 558 668 556 1 533 557 550 550 532 1 637 657 532 555 548 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302- ●
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1302- ●
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1302- ● ●
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1302- ●
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1302- ●
545 SEAL; FRT LID 8-98123-264-0 01 1 1302- ●
545 SEAL; FRT LID 8-98123-265-0 01 1 1302- ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1302- ● ●
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1302- ● ●
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1302- ● ●
552 STAY; FRT LID 8-98089-836-0 01 1 1302- ●
552 STAY; FRT LID 8-98089-838-0 01 1 1302- ●
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1302- ●
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1302- ● ●
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1302- ●
555 CABLE; FRT LID 8-98036-573-1 01 1 1302- ●
555 CABLE; FRT LID 8-98036-574-1 01 1 1302- ●
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1302- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1302- ● ●
558 LEVER; FRT LID 1-79338-007-1 01 1 1302- ● ●
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1302- ●
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1302- ●
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1302- ● ●

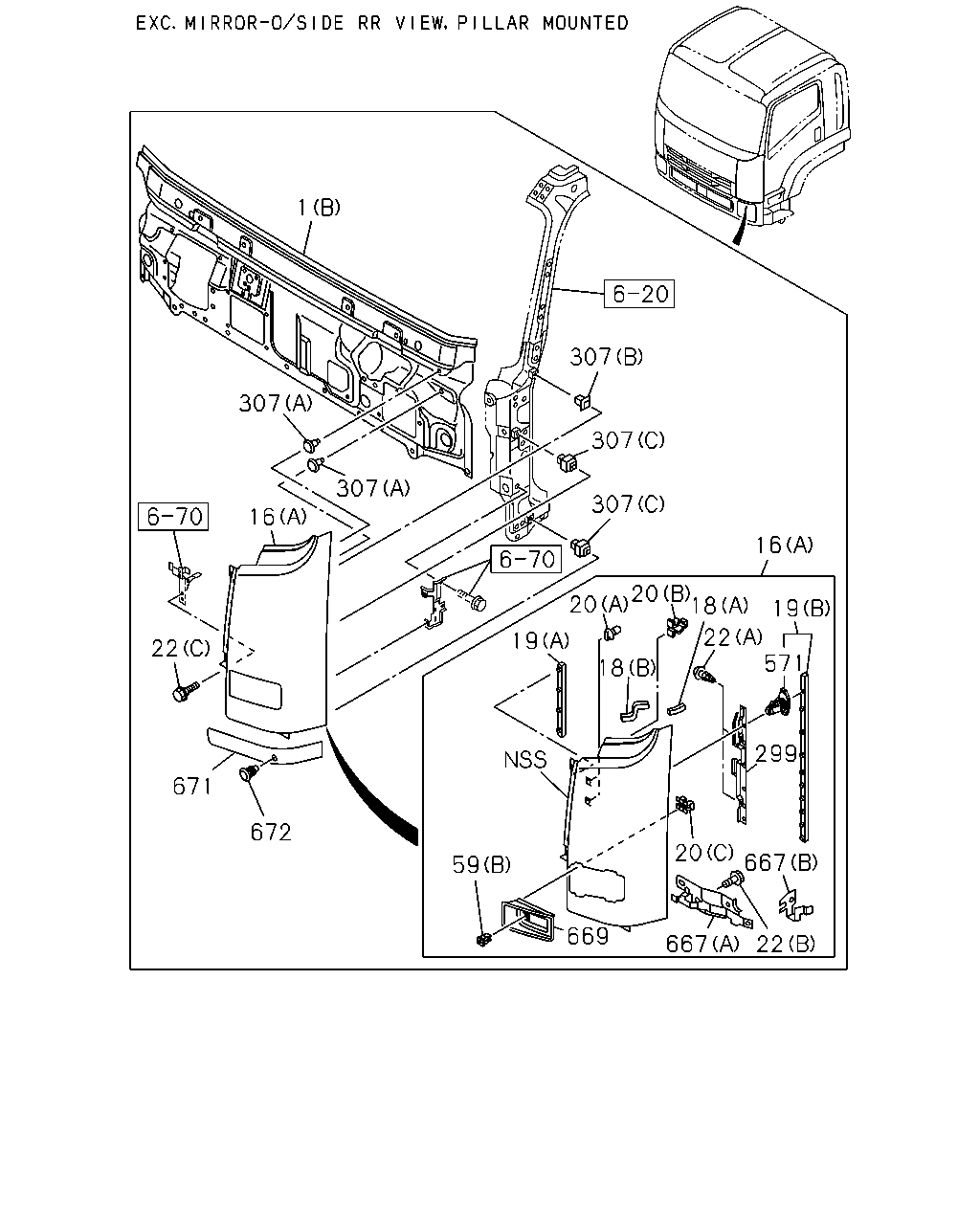

çizim 328943
307 307 307 16 19 18 20 19 18 20 299 667 667 669 59 20 22 571 22 16 307 307 1 22 671 672
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302- ●
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GRAY 		8-97413-586-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-587-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97413-588-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-589-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97407-511-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-286-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) DARK GREEN 		8-97413-590-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97413-591-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BEIGE 		8-97411-287-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-592-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97411-290-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-082-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-289-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ORANGE 		8-97413-593-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97417-652-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97413-595-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97411-291-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-247-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97417-796-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-256-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97412-464-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-485-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-465-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-250-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-800-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-488-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-468-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-249-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97417-799-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-487-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-467-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-258-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97417-806-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-255-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97417-804-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-253-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-803-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-793-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-805-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-248-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-798-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-486-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-466-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-489-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-469-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-252-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-802-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-251-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97417-801-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97413-576-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GRAY 		8-97417-654-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97407-509-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97409-901-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-292-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-298-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97413-579-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97415-030-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-295-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-301-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97413-578-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97417-656-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-296-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97411-302-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97413-585-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-660-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97413-583-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ORANGE 		8-97417-658-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97413-582-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97417-657-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-083-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-084-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-653-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97417-659-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97413-577-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97417-655-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-293-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BEIGE 		8-97411-299-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-297-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97411-303-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97413-581-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97415-032-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97413-580-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) DARK GREEN 		8-97415-031-4 01 1 1302- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1302-1405 ●

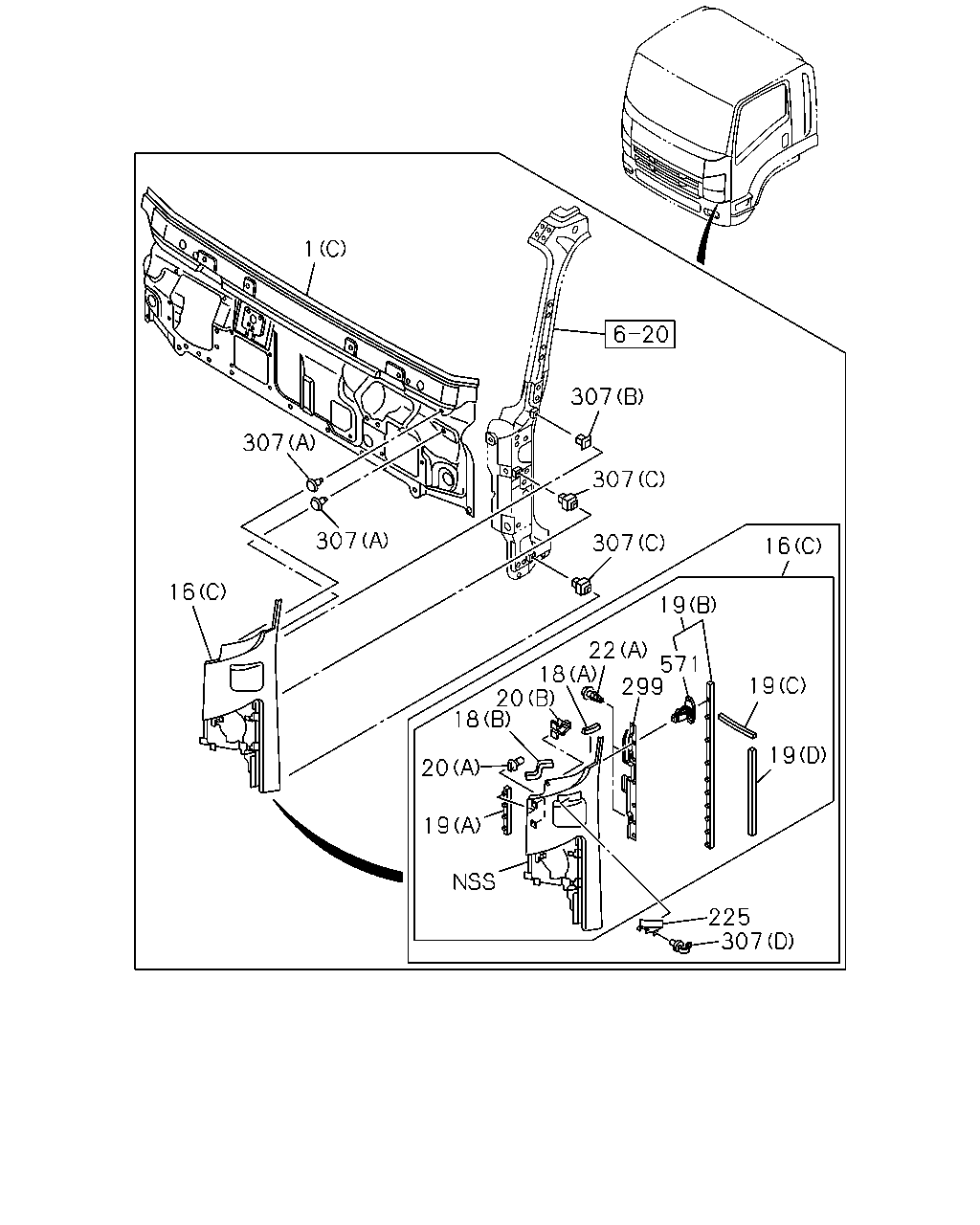

18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (C) 		8-98035-268-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (D) 		8-98062-215-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (D) 		8-98062-215-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98046-457-0 04 1 1302- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98046-457-0 04 1 1302- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-3 01 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1302-1505 ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 08 1 1302- ● ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302- ● ●
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 10 1 1302- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1302-1405 ●
299 COVER; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1302-1405 ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR DARK BLUE(695) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1302- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1302- ●
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BO DY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98028-743-0 01 1 1406- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1302- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1302- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1302- ● ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1406- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98088-642-0 01 1 1302- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98088-644-1 01 1 1302- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98088-641-0 01 1 1302- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98088-643-1 01 1 1302- ●

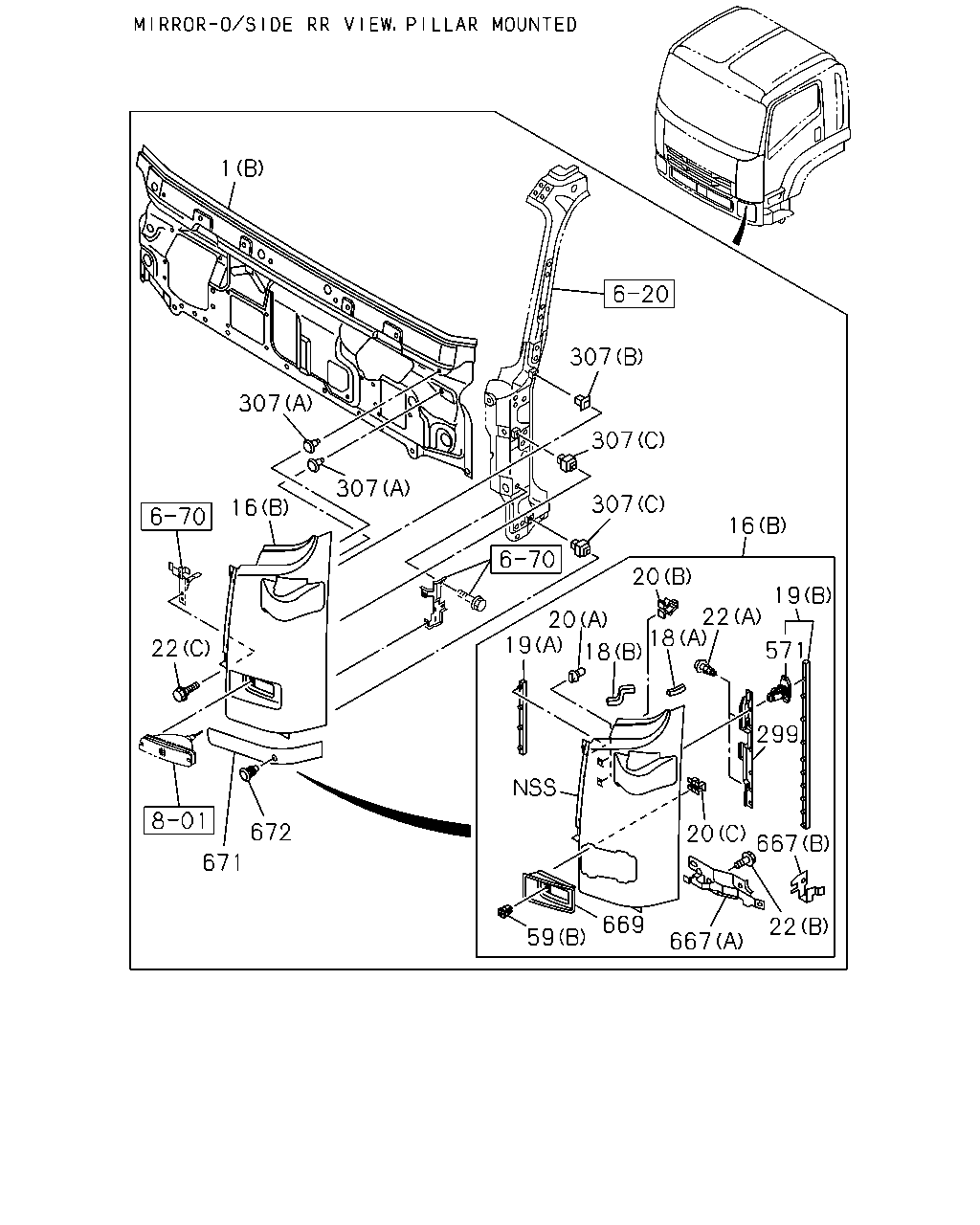

669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-473-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-489-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-261-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-265-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-509-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-519-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-479-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-383-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-512-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-522-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-477-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-380-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-511-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-521-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-471-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-430-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-464-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-436-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-462-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-422-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-987-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97418-047-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-475-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-377-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-510-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-520-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-513-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-523-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-461-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-490-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-460-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-386-0 01 1 1302- ●
671 RUBBER; SIDE PANEL 8-98088-646-1 02 1 1302- ●
672 PLUG; SIDE PANEL
OD=16 L=11 		1-76378-155-0 02 1 1302- ●

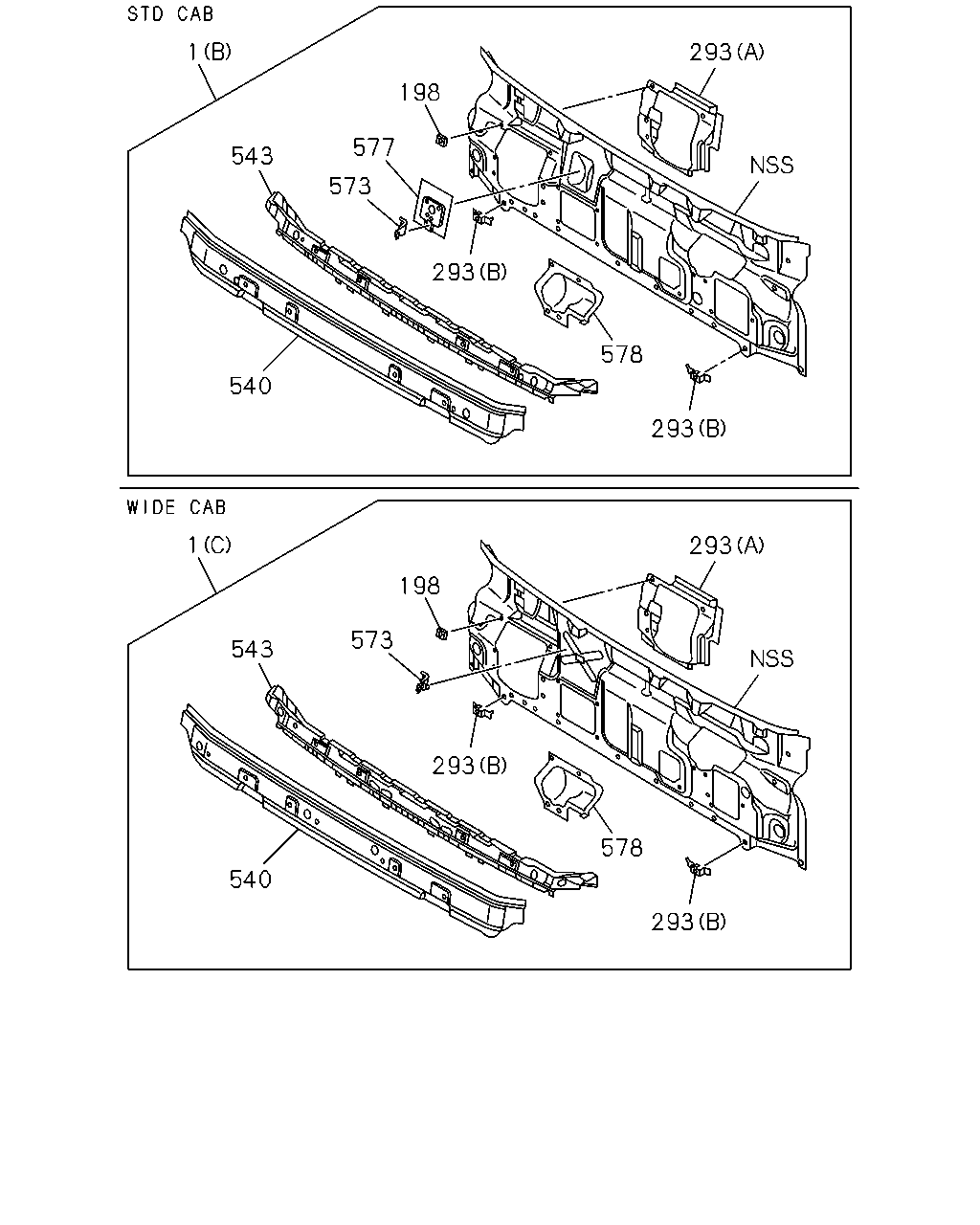

çizim 329087
293 578 293 198 573 293 540 543 1 293 578 293 573 543 540 577 198 293 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302- ●
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1302- ●
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1302- ● ●
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1302- ● ●
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1302- ● ●
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1302- ● ●
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1302- ●
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1302- ●
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1302- ●
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1302- ●
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1302- ●
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1302- ●
577 BRACKET; IDLER 8-97586-019-1 01 1 1302- ●
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1302- ● ●

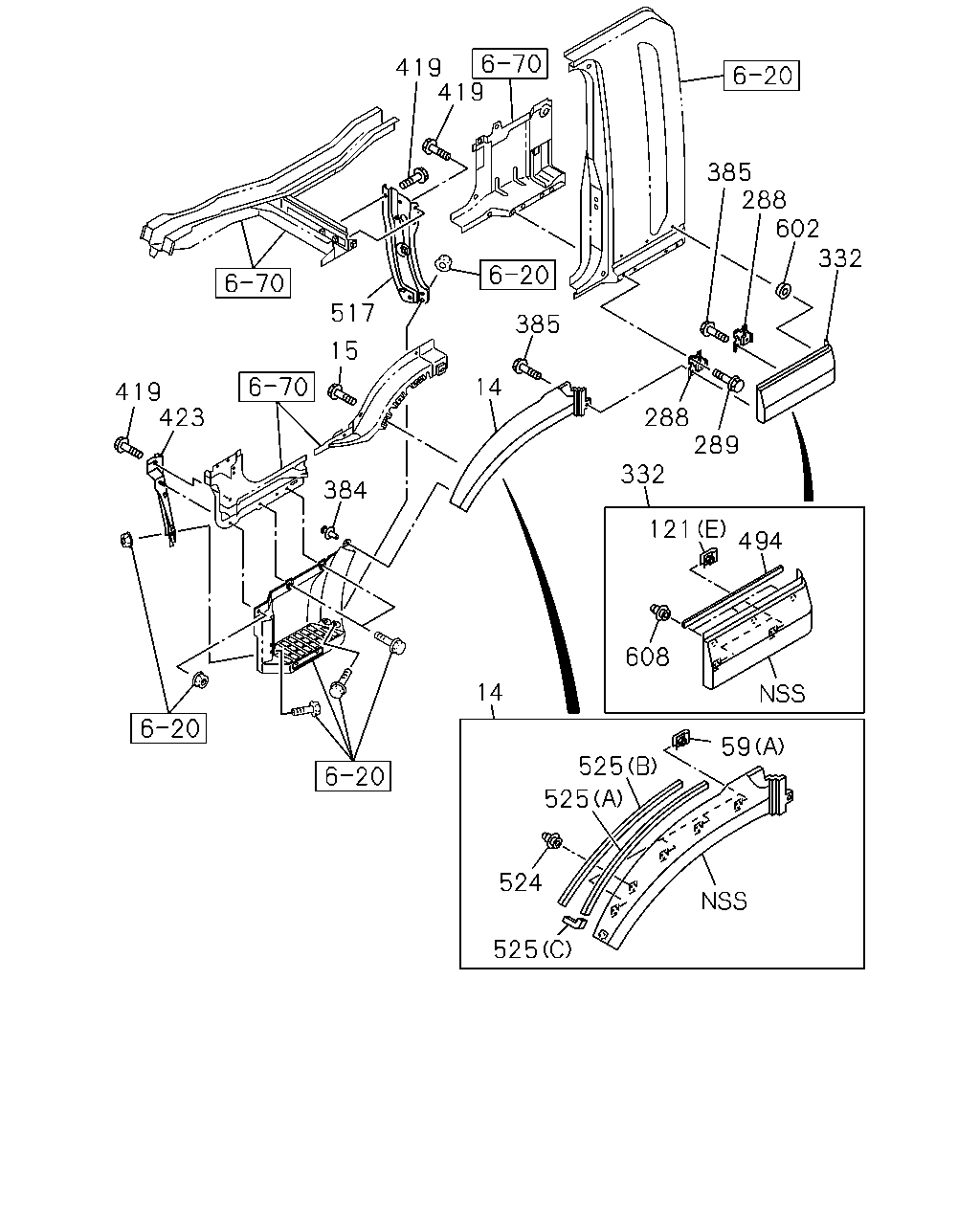

çizim 329137
14 525 524 525 525 59 608 121 494 332 289 288 332 602 288 385 385 14 384 423 419 517 15 419 419
BalonParca AdiParca NoAdetTipApplied Date A B
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1302- ● ●
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1302- ● ●
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1302- ● ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 08 1 1302- ● ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302- ● ●
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 10 1 1302- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302- ● ●
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (E) 		8-94279-723-0 04 1 1302- ● ●
121 GROMMET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> (E) 		8-94279-723-0 04 1 1302- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1302- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1302- ● ●
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 1302- ● ●
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 1302- ● ●
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1302- ● ●
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1302- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1302- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1302- ● ●
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1302- ● ●
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-086-2 01 1 1302- ●
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-085-2 01 1 1302- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1302- ● ●
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1302- ● ●
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1302- ● ●
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1302- ● ●
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1302- ● ●
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 1302- ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 1302- ● ●
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 1302- ● ●
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 1302- ● ●
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1302- ● ●
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1302- ● ●
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1302- ● ●
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1302- ● ●
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1302- ● ●
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1302- ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 1302-1302 ● ●
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303- ● ●
608 CLIP
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 1302- ● ●
608 CLIP
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 1302- ● ●
çizim 329156
307 307 307 16 20 22 19 571 18 18 20 19 307 307 16 22 671 672 59 669 667 22 667 20 299 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302- ●
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GRAY 		8-97413-586-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-587-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97413-588-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-589-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97407-511-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-286-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) DARK GREEN 		8-97413-590-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97413-591-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BEIGE 		8-97411-287-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-592-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97411-290-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-082-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-289-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ORANGE 		8-97413-593-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97417-652-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97413-595-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97411-291-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-247-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97417-796-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-256-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97412-464-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-485-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-465-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-250-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-800-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-488-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-468-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-249-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97417-799-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-487-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-467-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-258-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97417-806-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-255-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97417-804-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-253-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-803-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-793-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-805-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-248-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-798-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-486-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-466-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-489-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-469-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-252-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-802-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-251-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97417-801-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97413-576-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GRAY 		8-97417-654-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97407-509-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97409-901-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-292-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-298-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97413-579-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97415-030-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-295-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-301-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97413-578-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97417-656-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-296-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97411-302-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97413-585-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-660-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97413-583-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ORANGE 		8-97417-658-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97413-582-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97417-657-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-083-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-084-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-653-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97417-659-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97413-577-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97417-655-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-293-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BEIGE 		8-97411-299-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-297-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97411-303-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97413-581-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97415-032-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97413-580-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) DARK GREEN 		8-97415-031-4 01 1 1302- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (C) 		8-98035-268-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (D) 		8-98062-215-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (D) 		8-98062-215-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98046-457-0 04 1 1302- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98046-457-0 04 1 1302- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-3 01 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1302-1505 ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 08 1 1302- ● ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302- ● ●
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 10 1 1302- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1302-1405 ●
299 COVER; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1302-1405 ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR DARK BLUE(695) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1302- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1302- ●
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BO DY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98028-743-0 01 1 1406- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1302- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1302- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1302- ● ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1406- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98088-642-0 01 1 1302- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98088-644-1 01 1 1302- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98088-641-0 01 1 1302- ●
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98088-643-1 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-473-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-489-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-261-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-265-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-509-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-519-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-479-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-383-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-512-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-522-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-477-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-380-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-511-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-521-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-471-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-430-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-464-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-436-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-462-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-422-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-987-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97418-047-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-475-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-377-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-510-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-520-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-513-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-523-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-461-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-490-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-460-0 01 1 1302- ●
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-386-0 01 1 1302- ●
671 RUBBER; SIDE PANEL 8-98088-646-1 02 1 1302- ●
672 PLUG; SIDE PANEL
OD=16 L=11 		1-76378-155-0 02 1 1302- ●
çizim 329195
546 546 226 472 121 472 121 226 121 121 534 535 472 78 534 121 472 535 659 59 666 658 666 659 650 664 665
BalonParca AdiParca NoAdetTipApplied Date A B
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1302- ●
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 08 1 1302- ● ●
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302- ● ●
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 10 1 1302- ● ●
78 BRACKET; FENDER 8-98041-166-1 01 1 1302- ● ●
78 BRACKET; FENDER 8-98041-165-1 01 1 1302- ● ●
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302- ● ●
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (E) 		8-94279-723-0 04 1 1302- ● ●
121 GROMMET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) CAB ALL PAINTING<TFD> (E) 		8-94279-723-0 04 1 1302- ● ●
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1302- ● ●
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1302- ● ●
121 GROMMET; FENDER
(A) 		8-98073-421-0 01 1 1302- ● ●
121 GROMMET; FENDER
(A) 		8-98073-420-0 01 1 1302- ● ●
226 PROTECTOR; FRT 8-98037-713-2 01 1 1302- ● ●
226 PROTECTOR; FRT 8-98037-712-2 01 1 1302- ● ●
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1302- ● ●
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1302- ● ●
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1302- ● ●
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1302-1302 ● ●
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-340-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-320-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-345-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-325-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-342-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-322-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-334-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-314-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-343-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-323-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-341-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-321-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-348-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-328-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-337-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-317-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-349-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-329-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-352-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-332-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-743-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-742-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-333-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-313-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-351-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-331-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-335-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-315-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-350-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-330-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-339-1 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-319-1 01 1 1302- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-499-0 01 1 1302- ● ●
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-498-0 01 1 1302- ● ●
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-090-1 01 1 1302- ●
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-089-1 01 1 1302- ●
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1302- ● ●
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1302- ● ●
650 NUT; SPIRE
EXC. CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1302- ● ●
650 NUT; SPIRE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1302- ● ●
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1302- ● ●
658 FINISHER; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1302- ● ●
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1302- ● ●
658 FINISHER; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1302- ● ●
659 CLIP; FENDER
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1302- ● ●
659 CLIP; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1302- ● ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97421-603-0 01 1 1302- ●
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97421-601-0 01 1 1302- ●
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1302- ● ●
665 SCREW; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1302- ● ●
666 CLIP; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1302- ● ●
666 CLIP; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1302- ● ●
çizim 332046
656 655 656 1 655
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302- ●
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1302- ●
655 PATCH; HINGE 8-98031-263-0 01 1 1302- ● ●
655 PATCH; HINGE 8-98031-264-0 01 1 1302- ● ●
656 PATCH; STRIKER 8-98031-265-0 02 1 1302- ● ●
çizim 332076
1 307 307 16 307 307 307 16 19 22 18 20 18 20 19 299 571 19 19 225 307
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302- ●
1 PANEL ASM; FRT
(C) 		8-97585-960-9 01 1 1302- ●
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GRAY 		8-97413-586-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-587-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97413-588-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-589-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97407-511-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-286-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) DARK GREEN 		8-97413-590-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97413-591-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BEIGE 		8-97411-287-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97413-592-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97411-290-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-082-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-289-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ORANGE 		8-97413-593-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97417-652-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97413-595-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97411-291-5 01 1 1406- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97414-259-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GRAY 		8-97414-247-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GRAY 		8-97417-796-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97409-257-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97409-256-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97412-464-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97412-490-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-485-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-465-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97414-262-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-250-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-800-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97412-493-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97412-488-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97412-468-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97414-261-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) RED 		8-97414-249-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) RED 		8-97417-799-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97412-492-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97412-487-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97412-467-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97414-270-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) GREEN 		8-97414-258-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) GREEN 		8-97417-806-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97414-267-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) ORANGE 		8-97414-255-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) ORANGE 		8-97417-804-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97414-265-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-253-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-803-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-795-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) WHITE 		8-97417-793-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) WHITE 		8-97417-805-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97414-260-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97414-248-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97417-798-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97412-491-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BEIGE 		8-97412-486-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BEIGE 		8-97412-466-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97412-494-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) BLUE 		8-97412-489-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) BLUE 		8-97412-469-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97414-264-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) YELLOW 		8-97414-252-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) YELLOW 		8-97417-802-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97414-263-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) DARK GREEN 		8-97414-251-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) DARK GREEN 		8-97417-801-5 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (C) GRAY 		8-97413-576-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GRAY 		8-97417-654-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (C) WHITE 		8-97407-509-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97409-901-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (C) RED 		8-97411-292-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-298-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (C) BLUE 		8-97413-579-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97415-030-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (C) RED 		8-97411-295-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97411-301-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (C) RED 		8-97413-578-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) RED 		8-97417-656-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (C) YELLOW 		8-97411-296-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97411-302-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (C) GREEN 		8-97413-585-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-660-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (C) ORANGE 		8-97413-583-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) ORANGE 		8-97417-658-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (C) BLUE 		8-97413-582-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97417-657-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) (C) GREEN 		8-97417-083-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) GREEN 		8-97417-084-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (C) WHITE 		8-97417-653-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) WHITE 		8-97417-659-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (C) BLUE 		8-97413-577-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97417-655-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (C) BEIGE 		8-97411-293-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BEIGE 		8-97411-299-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (C) BLUE 		8-97411-297-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) BLUE 		8-97411-303-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (C) YELLOW 		8-97413-581-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) YELLOW 		8-97415-032-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (C) DARK GREEN 		8-97413-580-4 01 1 1302- ●
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) DARK GREEN 		8-97415-031-4 01 1 1302- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98038-608-0 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-1405 ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-98043-511-1 01 1 1406- ●
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98043-511-1 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-98036-581-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-98041-359-2 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 1302- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (C) 		8-98035-268-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (C) 		8-98035-268-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (D) 		8-98062-215-0 01 1 1302-1405 ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (D) 		8-98062-215-0 01 1 1406- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98062-215-0 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98046-457-0 04 1 1302- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98046-457-0 04 1 1302- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-0 02 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) 		8-97410-739-1 02 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-2 01 1 1302-1405 ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (B) 		8-97410-740-3 01 1 1406- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (B) 		8-97410-740-3 01 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1302- ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 1302-1505 ●
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-1405 ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1406- ●
225 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BO DY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98041-431-1 01 1 1406- ● ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1302-1405 ●
299 COVER; FRT PANEL SIDE
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1302-1405 ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR DARK BLUE(695) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) 		8-98034-814-1 01 1 1406- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1302- ●
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1302- ●
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BO DY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) (D) 		8-98028-743-0 01 1 1406- ● ●
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1302- ● ●
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1302- ● ●
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1302- ● ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-1405 ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),B ODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR DARK BLUE(695), BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1406- ●
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED(DNB) NATURAL 		8-98027-457-0 10 1 1406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
