◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11505 - FRR(LHD) SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#114509) — 268 parça

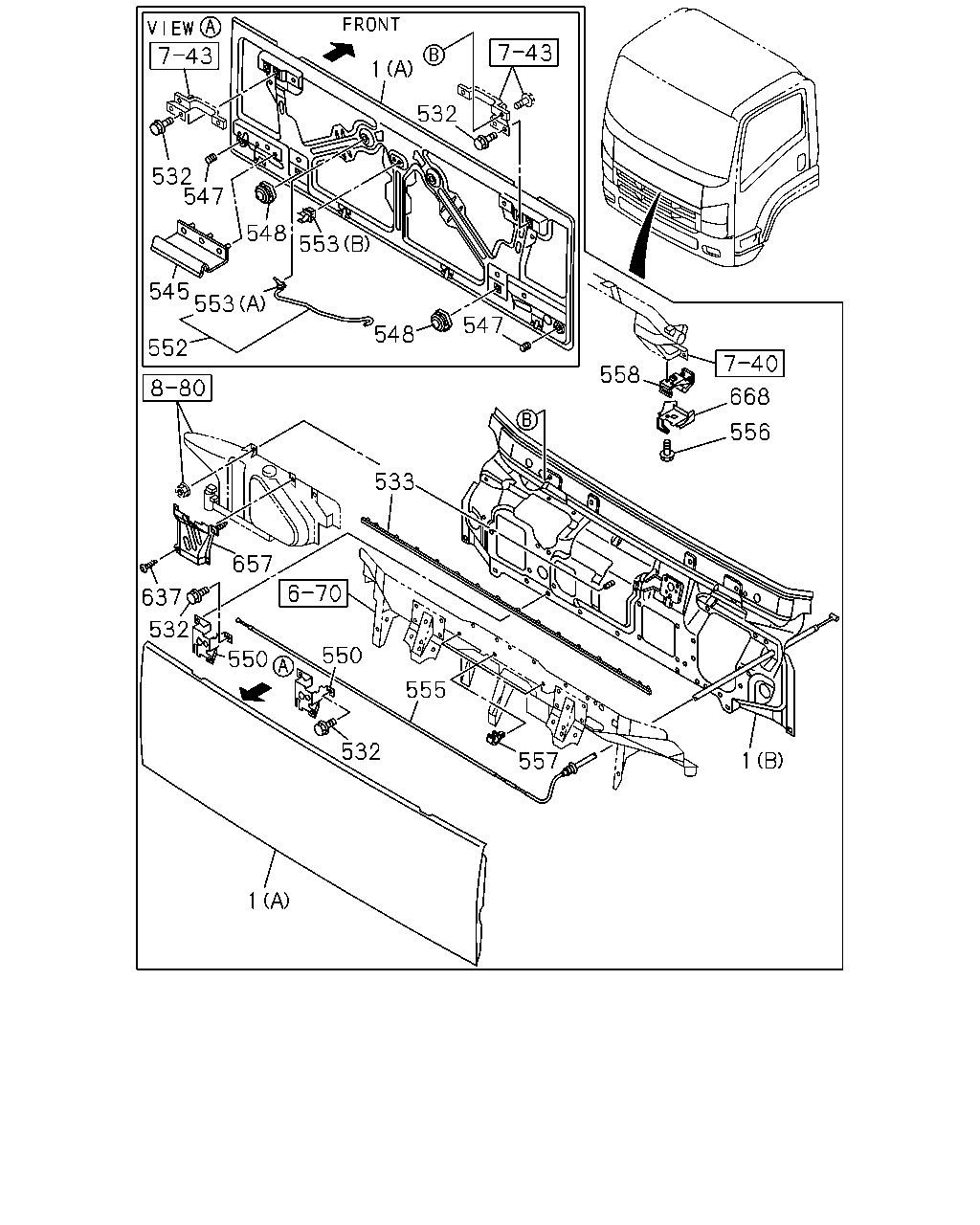

çizim 328533
532 548 553 532 1 558 668 556 533 548 547 657 637 532 550 550 555 557 1 1 532 553 545 547 552
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1302-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1302-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1302-
545 SEAL; FRT LID 8-98123-264-0 01 1 1302-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1302-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1302-
550 LOCK ASM; FRT LID 8-98036-568-2 02 1 1302-
552 STAY; FRT LID 8-98089-837-1 01 1 1302-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1302-
553 CLIP; STAY
(A) 		8-98094-541-0 01 1 1302-
555 CABLE; FRT LID 8-98036-573-1 01 1 1302-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1302-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1302-
558 LEVER; FRT LID 8-97865-110-0 01 1 1302-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1302-
657 COVER; WIPER IDLER 8-98060-907-0 01 1 1302-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1302-

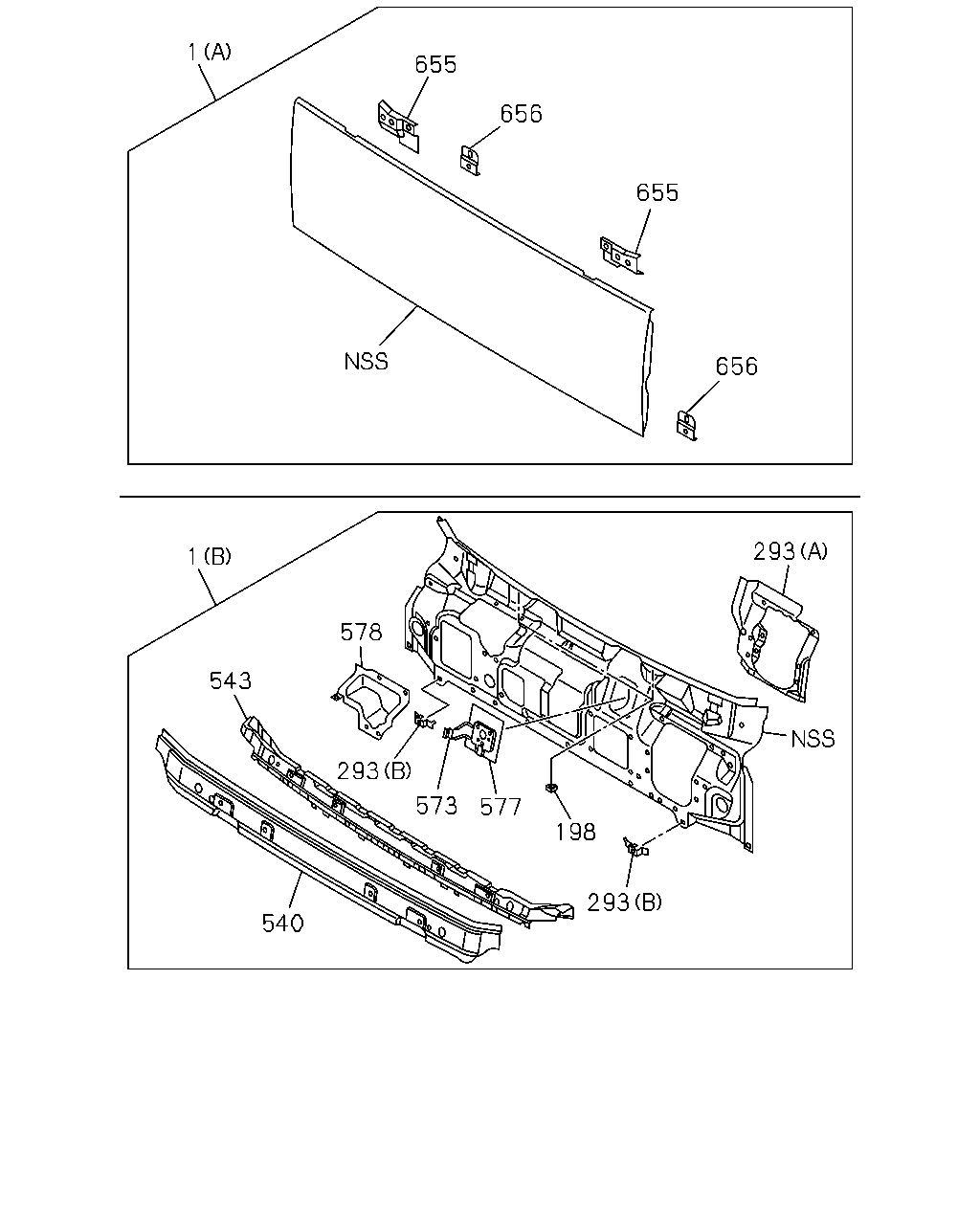

çizim 328913
1 655 656 655 656 293 198 293 577 573 293 578 543 1 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1302-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1302-
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 1302-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1302-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1302-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1302-
543 CLOSING; FRT MTG RAIL 8-98067-965-2 01 1 1302-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1302-
577 BRACKET; IDLER 8-97586-019-1 01 1 1302-
578 COVER; WIPER MOTOR 8-98017-702-1 01 1 1302-
655 PATCH; HINGE 8-98031-263-0 01 1 1302-
655 PATCH; HINGE 8-98031-264-0 01 1 1302-
656 PATCH; STRIKER 8-98031-265-0 02 1 1302-

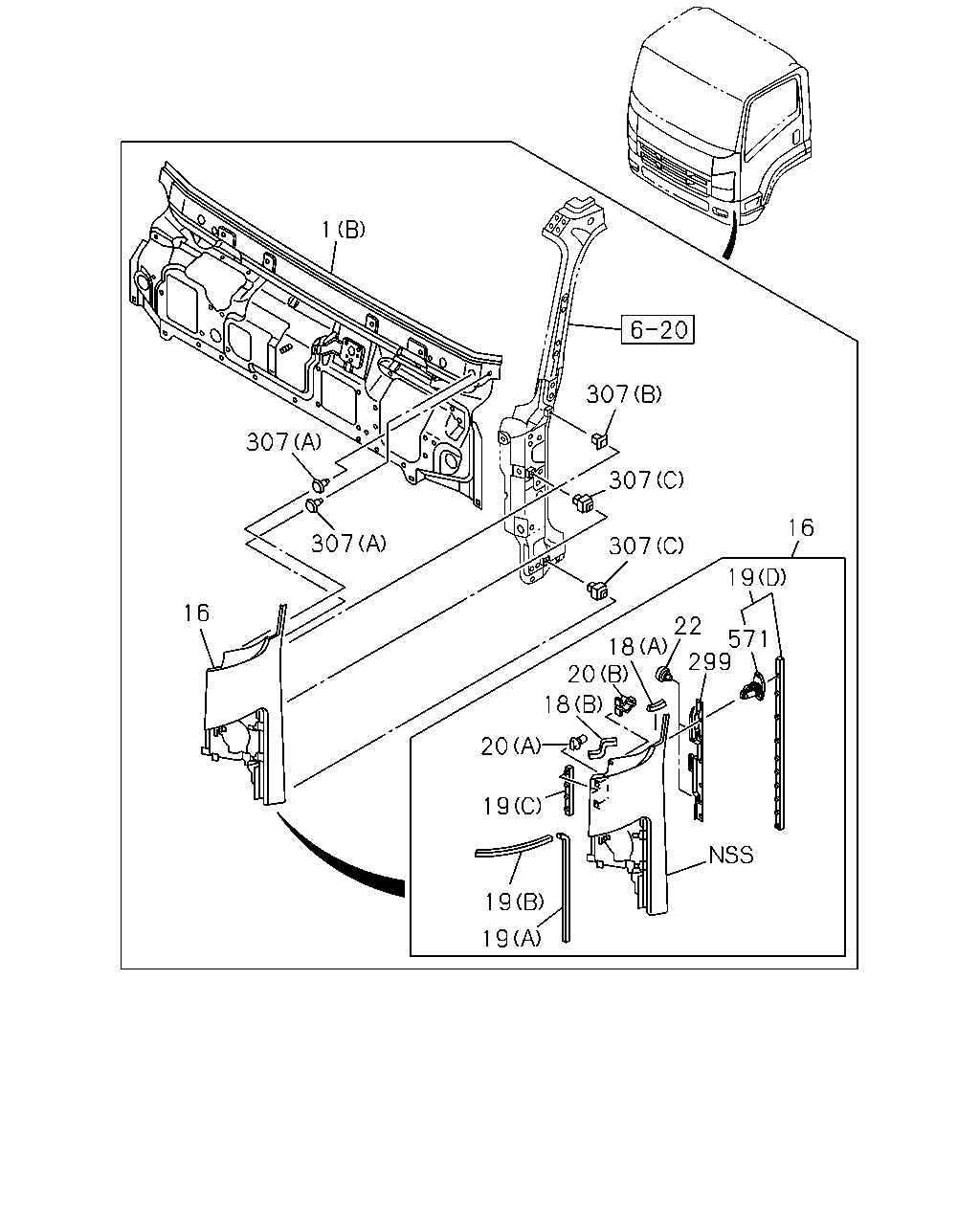

çizim 329025
1 307 307 16 307 307 307 16 19 22 18 20 18 20 19 19 19 299 571
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 1302-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) (A) 		8-98038-608-0 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) (B) 		8-98043-511-1 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (C) 		8-98036-581-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (D) 		8-98041-359-2 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (C) 		8-98036-580-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (D) 		8-98041-358-2 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) (B) 		8-98035-268-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98035-268-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98035-268-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) (A) 		8-98062-215-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98062-215-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98062-215-0 01 1 1302-
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) (A) 		8-97410-739-1 02 1 1302-
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1302-
20 CLIP; FRT PANEL SIDE
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1302-
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) (B) 		8-97410-740-3 01 1 1302-
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1302-
20 CLIP; FRT PANEL SIDE
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1302-
22 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-
22 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-
22 SCREW; FRT PANEL SIDE
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 1302-
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 1302-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1302-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1302-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1302-
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904) NATURAL 		8-98027-457-0 10 1 1302-
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-
571 CLIP; SEAL
BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1302-

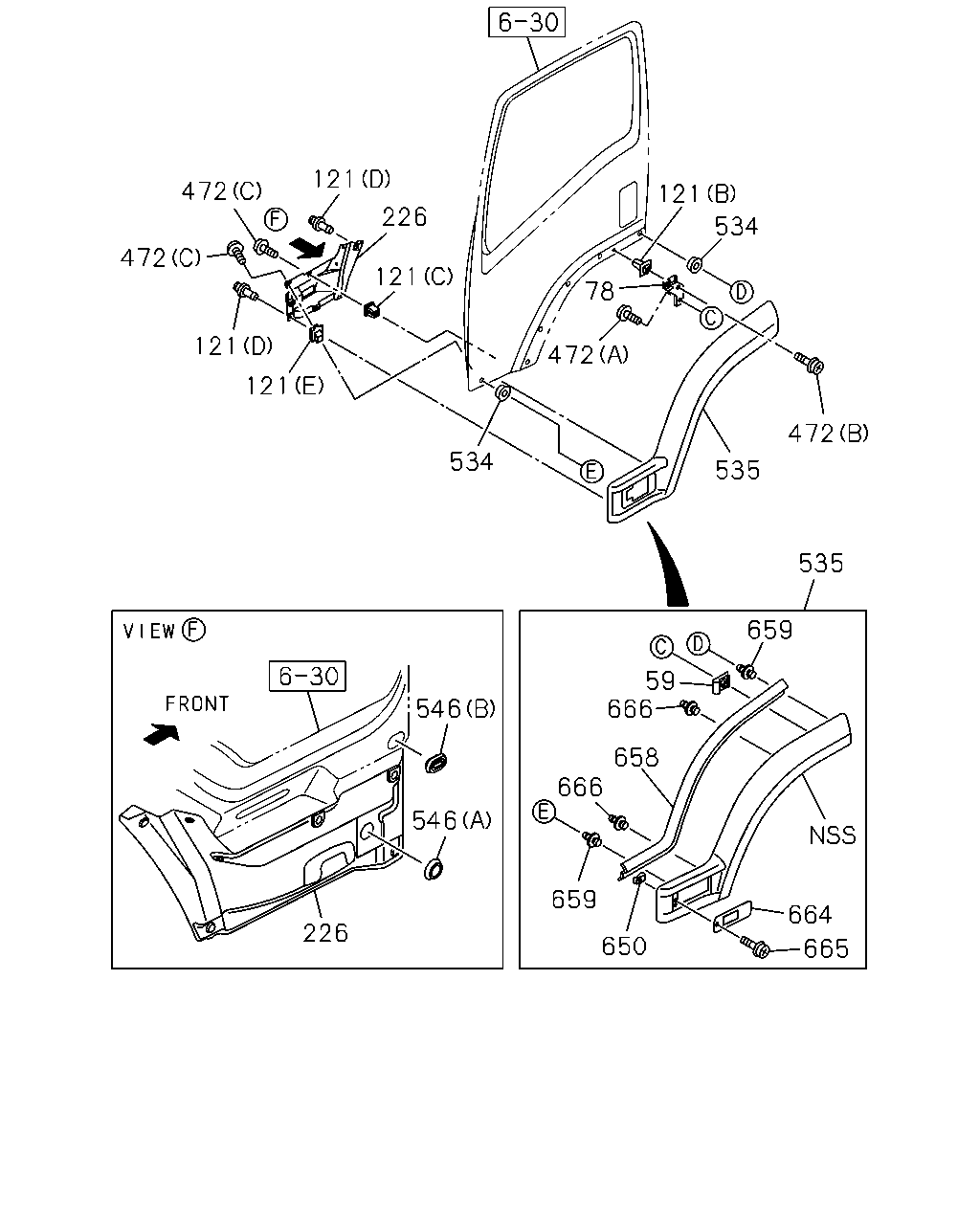

çizim 329088
472 121 472 121 226 121 121 534 472 78 121 472 534 535 535 659 59 666 658 546 546 226 659 666 650 664 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1302-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 08 1 1302-
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 10 1 1302-
78 BRACKET; FENDER 8-98041-166-1 01 1 1302-
78 BRACKET; FENDER 8-98041-165-1 01 1 1302-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1302-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1302-
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302-
121 GROMMET; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),B ODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302-
226 PROTECTOR; FRT 8-98037-713-2 01 1 1302-
226 PROTECTOR; FRT 8-98037-712-2 01 1 1302-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1302-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1302-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1302-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1302-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-340-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-320-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-345-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-325-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-342-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-322-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-334-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-314-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-343-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-323-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-341-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-321-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-348-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-328-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-337-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-317-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-349-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-329-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-352-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-332-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-743-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-742-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-333-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-313-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-351-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-331-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-335-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-315-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-350-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-330-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-339-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-319-1 01 1 1302-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-499-0 01 1 1302-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-498-0 01 1 1302-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1302-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1302-
650 NUT; SPIRE
EXC. CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1302-
650 NUT; SPIRE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1302-
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1302-
658 FINISHER; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1302-
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1302-
658 FINISHER; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1302-
659 CLIP; FENDER
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1302-
659 CLIP; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1302-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1302-
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1302-
665 SCREW; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1302-
666 CLIP; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1302-
666 CLIP; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1302-

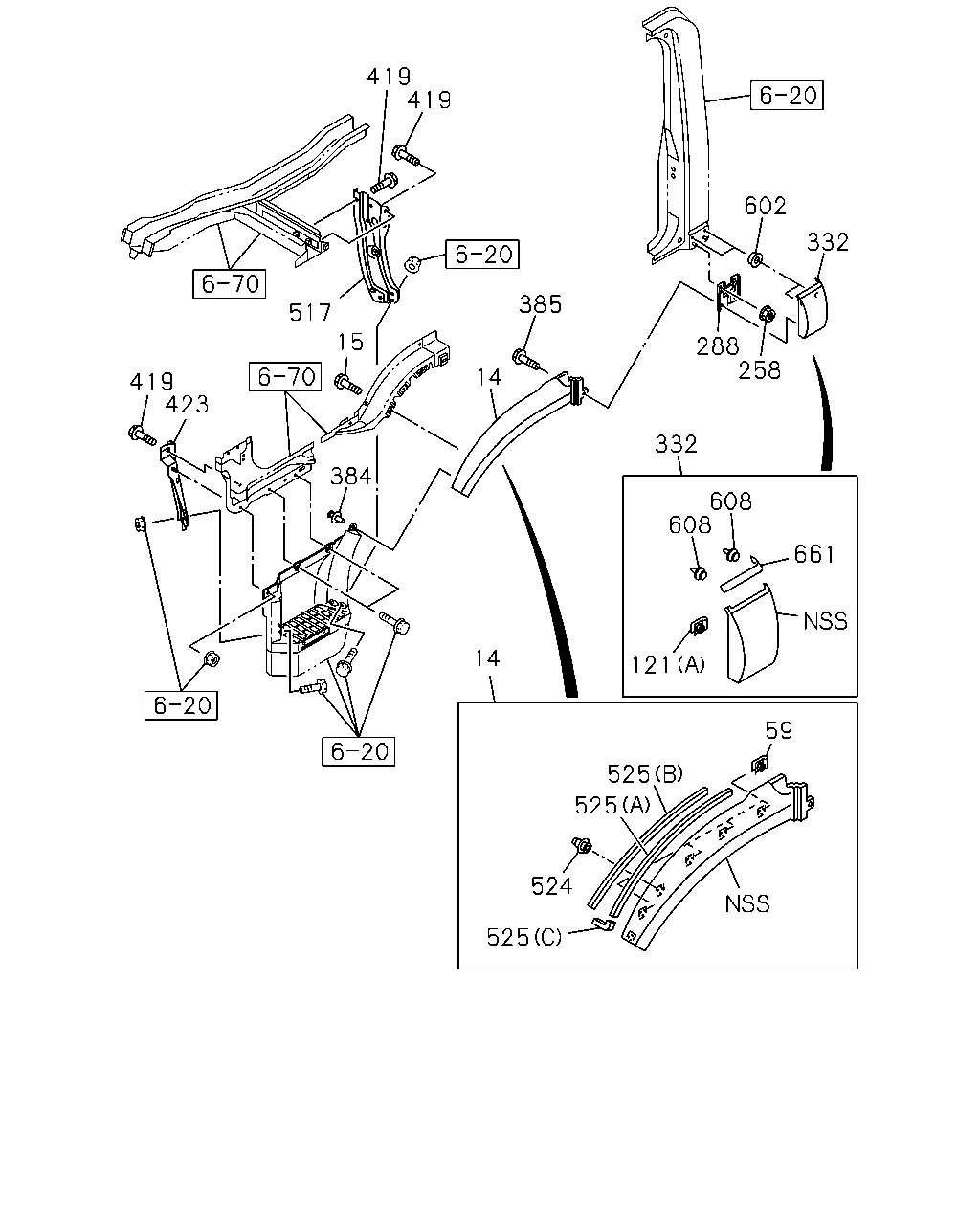

çizim 329233
332 602 288 332 258 608 608 59 121 661 525 525 524 525 14 384 15 423 419 517 419 14 419 385
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1302-
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1302-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1302-
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1302-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 08 1 1302-
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 10 1 1302-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1302-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1302-
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302-
121 GROMMET; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),B ODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1302-
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1302-
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 1302-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-706-0 01 1 1302-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-716-0 01 1 1302-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-320-0 01 1 1302-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-313-0 01 1 1302-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97413-347-0 01 1 1302-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97413-341-0 01 1 1302-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-709-0 01 1 1302-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-719-0 01 1 1302-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97413-350-0 01 1 1302-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97413-344-0 01 1 1302-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-708-0 01 1 1302-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-718-0 01 1 1302-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97413-349-0 01 1 1302-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97413-343-0 01 1 1302-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-715-0 01 1 1302-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-725-0 01 1 1302-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-713-0 01 1 1302-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-723-0 01 1 1302-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-712-0 01 1 1302-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-722-0 01 1 1302-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-741-0 01 1 1302-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-740-0 01 1 1302-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-707-0 01 1 1302-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-717-0 01 1 1302-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97413-348-0 01 1 1302-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97413-342-0 01 1 1302-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97413-351-0 01 1 1302-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97413-345-0 01 1 1302-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-711-0 01 1 1302-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-721-0 01 1 1302-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-710-0 01 1 1302-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-720-0 01 1 1302-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98089-820-0 01 1 1302-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98089-819-0 01 1 1302-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1302-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1302-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1302-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1302-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1302-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1302-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1302-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1302-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1302-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1302-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1302-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 04 1 1302-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1303-
608 CLIP
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 04 1 1302-
608 CLIP
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),B ODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 04 1 1302-
661 FINISHER; FENDER RR
EXC. CAB ALL PAINTING<TFD> 		8-98072-722-0 01 1 1302-
661 FINISHER; FENDER RR
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),B ODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98072-722-0 01 1 1302-
661 FINISHER; FENDER RR
EXC. CAB ALL PAINTING<TFD> 		8-98041-171-1 01 1 1302-
661 FINISHER; FENDER RR
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),B ODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-171-1 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
