◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11509 - FSR-R EU2/4EXC.SPACE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#114501) — 343 parça

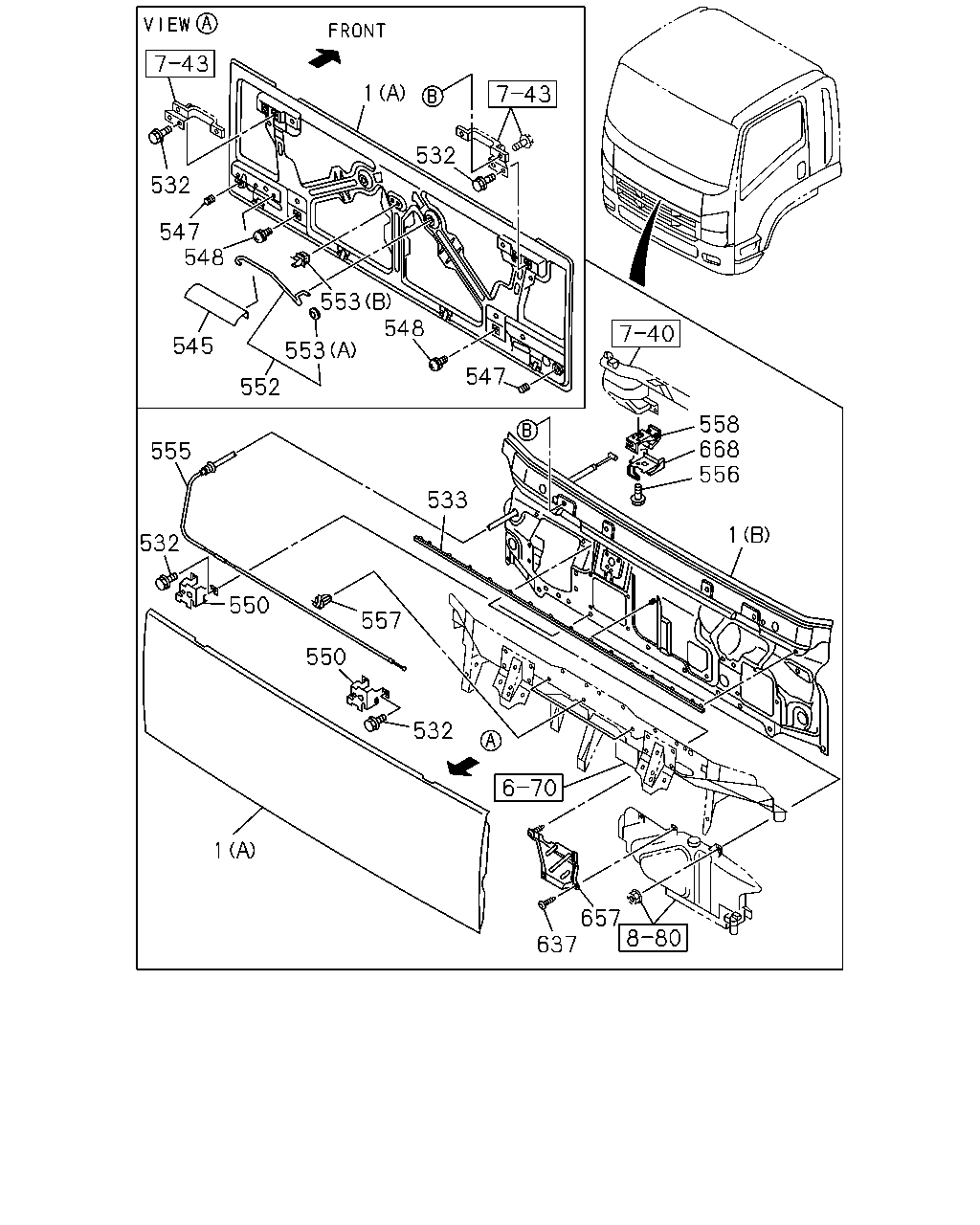

çizim 328580
532 547 545 553 552 553 532 1 547 548 555 532 550 550 532 557 533 1 637 657 1 558 668 556 548
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1302-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 1302-
545 SEAL; FRT LID 8-98123-264-0 01 1 1302-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1302-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1302-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1302-
552 STAY; FRT LID 8-98089-836-0 01 1 1302-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1302-
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1302-
555 CABLE; FRT LID 8-98036-573-1 01 1 1302-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1302-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1302-
558 LEVER; FRT LID 1-79338-007-1 01 1 1302-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 1302-
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1302-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1302-

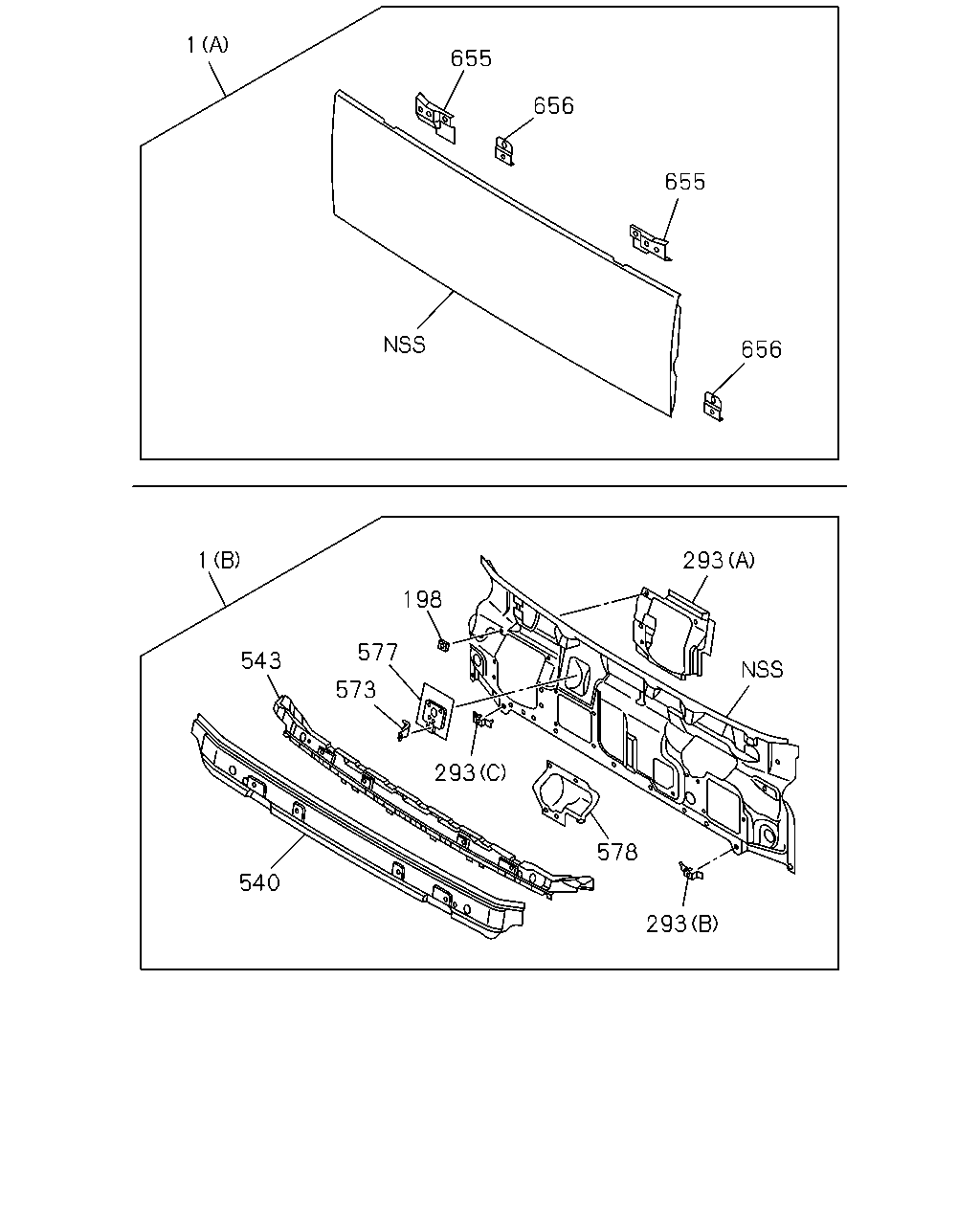

çizim 328939
1 655 656 655 656 293 198 577 543 1 573 293 540 578 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1302-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1302-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1302-
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1302-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1302-
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1302-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1302-
577 BRACKET; IDLER 8-97586-019-1 01 1 1302-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1302-
655 PATCH; HINGE 8-98031-263-0 01 1 1302-
655 PATCH; HINGE 8-98031-264-0 01 1 1302-
656 PATCH; STRIKER 8-98031-265-0 02 1 1302-

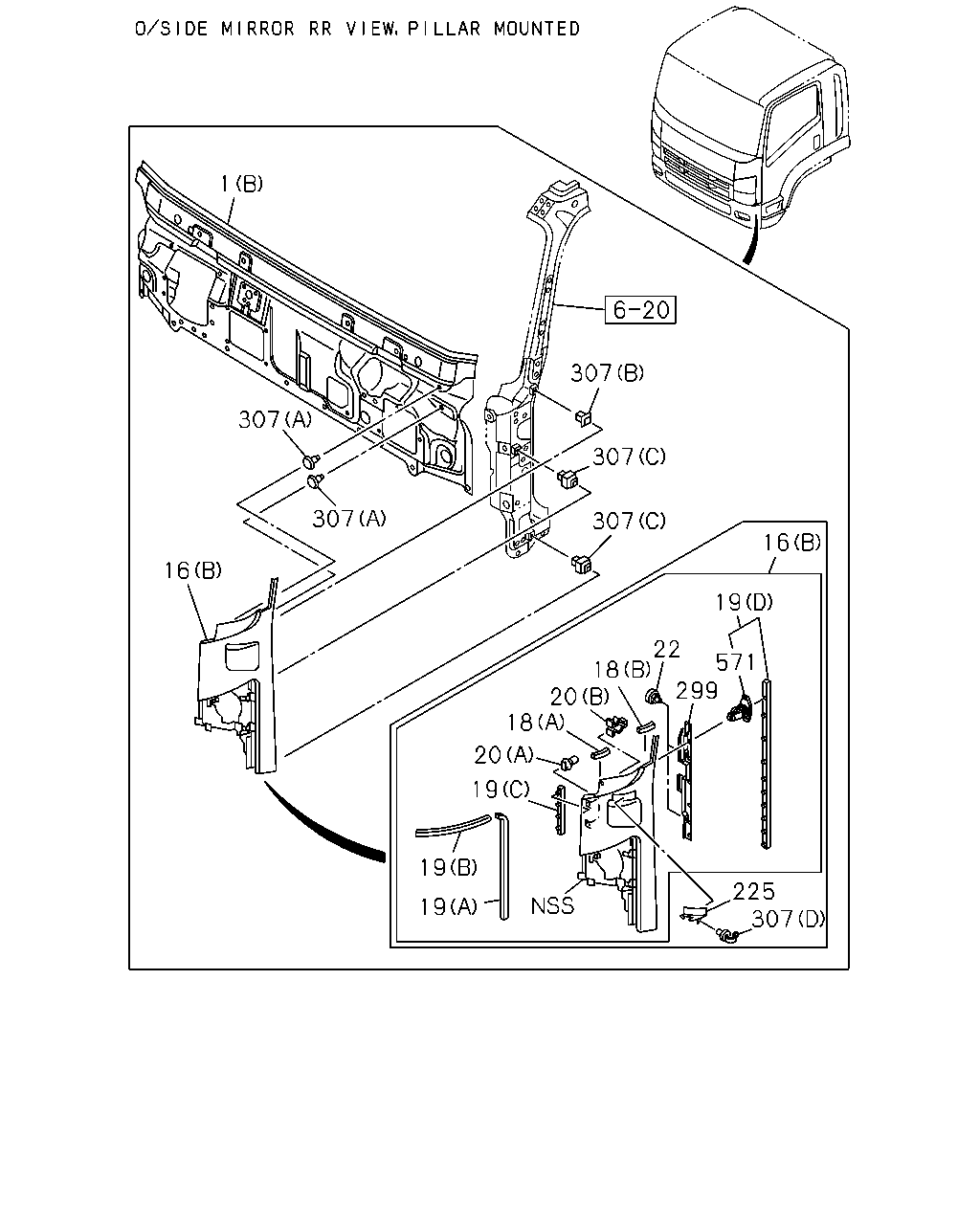

çizim 328942
1 307 307 307 16 19 571 299 22 18 20 18 20 19 19 19 225 307 16 307 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97413-576-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-586-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97417-654-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97407-509-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97407-511-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97409-901-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97411-292-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-286-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-298-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97413-579-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-589-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97415-030-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97411-295-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-289-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-301-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97413-578-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-588-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97417-656-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97411-296-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-290-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-302-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97413-585-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-595-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97417-660-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97413-583-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-593-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97417-658-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97413-582-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-592-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-657-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-653-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-652-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-659-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97413-577-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-587-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-655-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97411-293-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-287-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-299-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97411-297-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-291-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-303-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97413-581-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-591-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97415-032-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97413-580-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-590-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97415-031-4 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1302-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1302-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1302-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1302-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1302-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1302-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1302-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-
225 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-431-1 01 1 1302-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1302-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1302-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1302-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1302-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1302-
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1302-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1302-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1302-

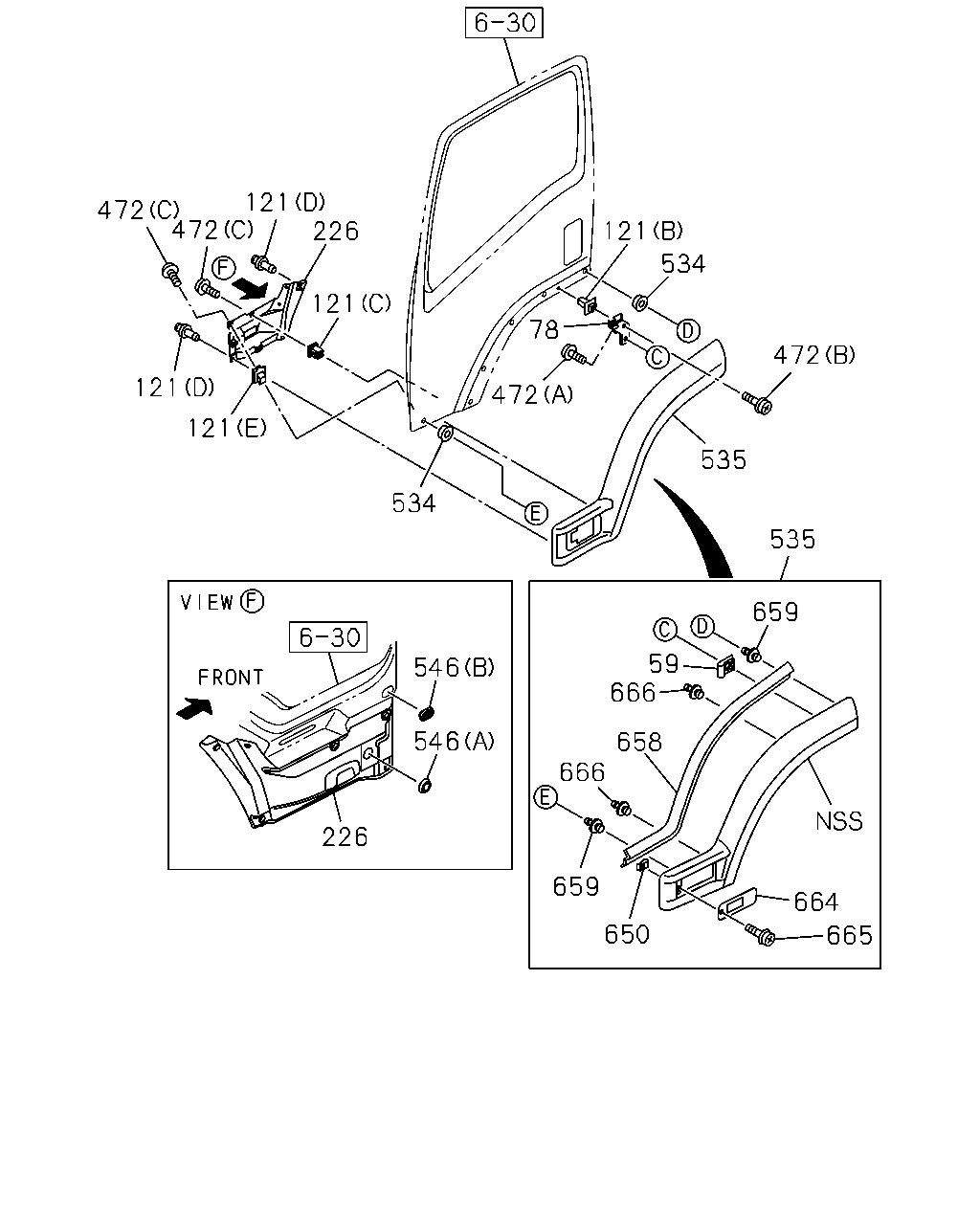

çizim 329029
472 121 121 121 121 472 226 121 78 534 472 535 535 472 534 546 546 226 659 666 650 658 666 659 59 664 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 1302-
59 GROMMET; SCREW 8-94279-723-0 08 1 1302-
78 BRACKET; FENDER 8-98041-166-1 01 1 1302-
78 BRACKET; FENDER 8-98041-165-1 01 1 1302-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1302-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1302-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1302-
226 PROTECTOR; FRT 8-98037-713-2 01 1 1302-
226 PROTECTOR; FRT 8-98037-712-2 01 1 1302-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1302-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1302-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1302-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1302-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-340-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-320-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-345-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-325-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-342-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-322-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-334-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-314-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-343-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-323-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-341-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-321-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-348-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-328-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-337-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-317-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-349-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-329-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-352-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-332-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-743-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-742-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-333-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-313-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-351-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-331-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-335-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-315-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-350-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-330-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-339-1 01 1 1302-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-319-1 01 1 1302-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-499-0 01 1 1302-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-498-0 01 1 1302-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1302-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1302-
650 NUT; SPIRE 8-94279-501-0 02 1 1302-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1302-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1302-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1302-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 1302-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 1302-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1302-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1302-

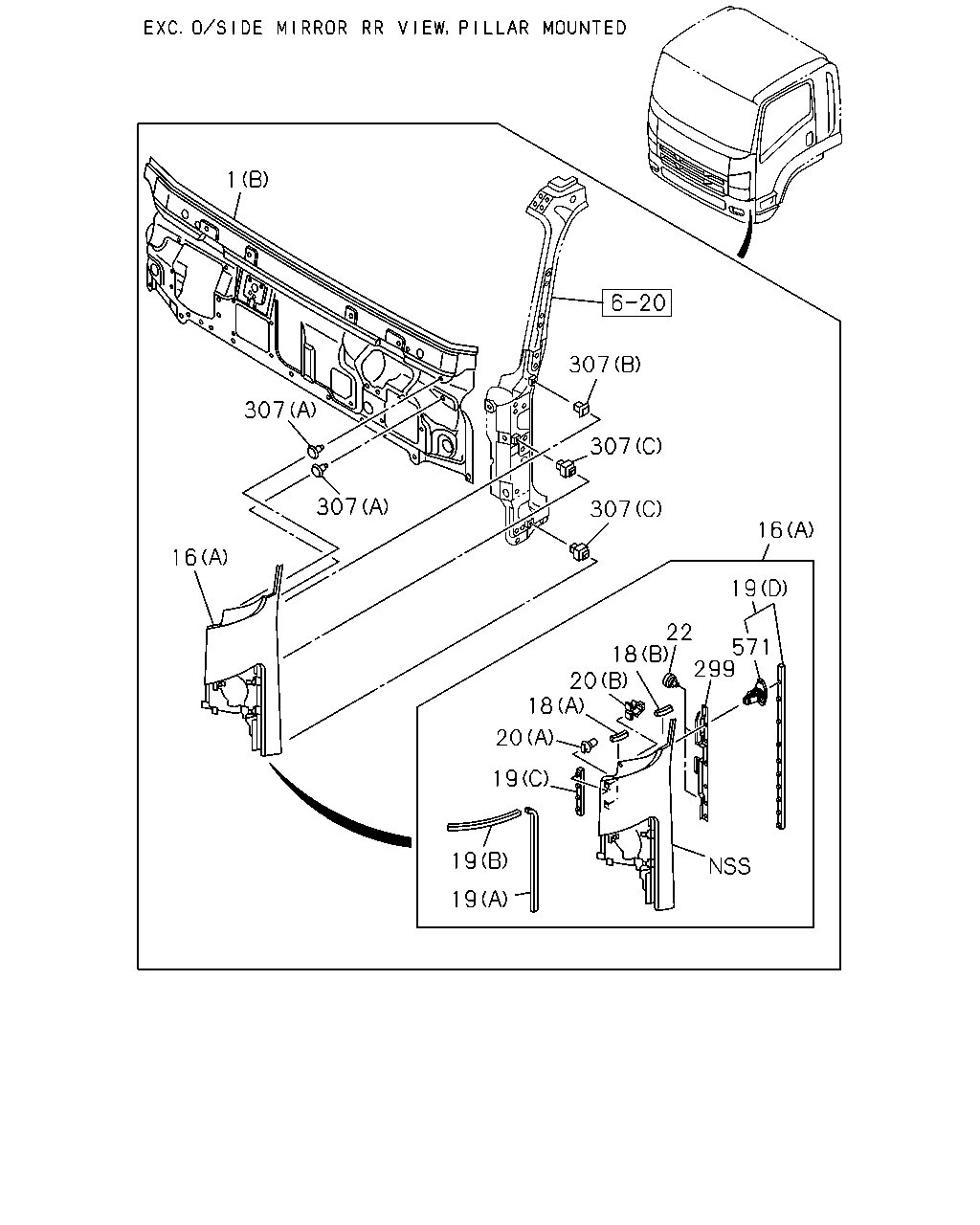

çizim 329086
1 307 16 307 307 307 307 16 19 22 18 20 18 20 19 19 19 299 571
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1302-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) (A) GRAY 		8-97413-576-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-586-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97417-654-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97407-509-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97407-511-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97409-901-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) (A) RED 		8-97411-292-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-286-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-298-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97413-579-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-589-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97415-030-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) (A) RED 		8-97411-295-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-289-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-301-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) (A) RED 		8-97413-578-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-588-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97417-656-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97411-296-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-290-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-302-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) (A) GREEN 		8-97413-585-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-595-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97417-660-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97413-583-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-593-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97417-658-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97413-582-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-592-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-657-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97417-653-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-652-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-659-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97413-577-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-587-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-655-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97411-293-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-287-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-299-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97411-297-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-291-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-303-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97413-581-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-591-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97415-032-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97413-580-4 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-590-5 01 1 1302-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97415-031-4 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1302-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 01 1 1302-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1302-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1302-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1302-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1302-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 02 1 1302-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1302-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 01 1 1302-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1302-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1302-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1302-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1302-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1302-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1302-
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1302-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1302-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 10 1 1302-

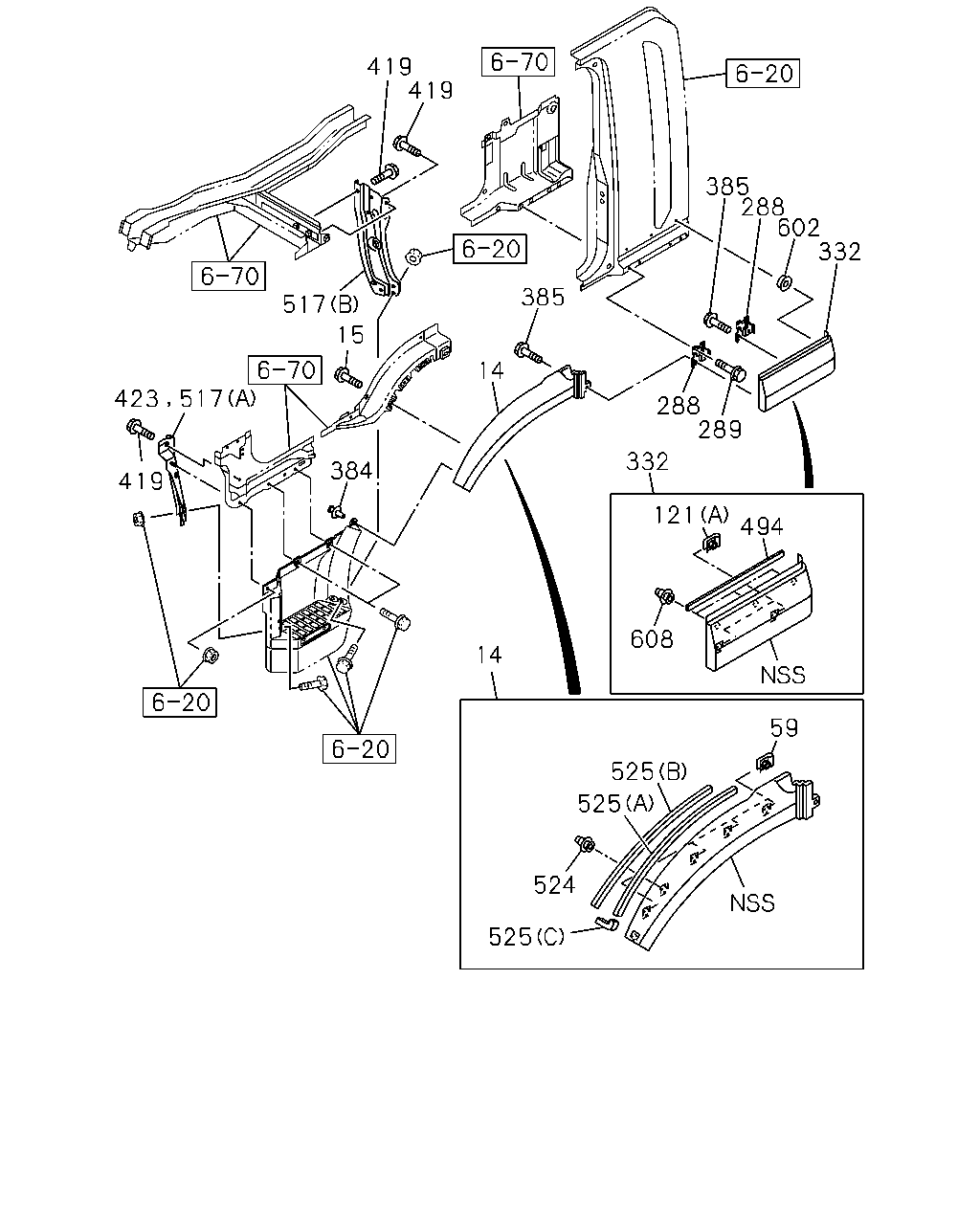

çizim 329155
423 419 517 384 14 525 524 525 59 525 608 494 121 332 289 288 332 602 288 385 385 14 517 419 419 15
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1302-
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1302-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1302-
59 GROMMET; SCREW 8-94279-723-0 02 1 1302-
59 GROMMET; SCREW 8-94279-723-0 08 1 1302-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1302-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1302-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1302-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1302-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1302-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1302-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1302-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1302-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1302-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1302-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1302-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1302-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1302-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1302-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1302-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1302-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1302-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1302-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1302-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1302-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1302-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1302-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1302-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1302-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1302-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1302-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1302-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1302-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1302-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1302-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1302-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1302-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1302-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1302-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1302-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1302-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1302-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1302-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1302-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1302-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1302-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1302-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1302-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1302-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1310-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1310-
494 FINISHER; FENDER 8-98072-723-0 01 1 1302-
494 FINISHER; FENDER 8-98041-172-1 01 1 1302-
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1302-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-339-2 01 1 1302-
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1302-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-338-2 01 1 1302-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1302-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1302-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1302-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1302-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 1302-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
