◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#114500) — 4 parça

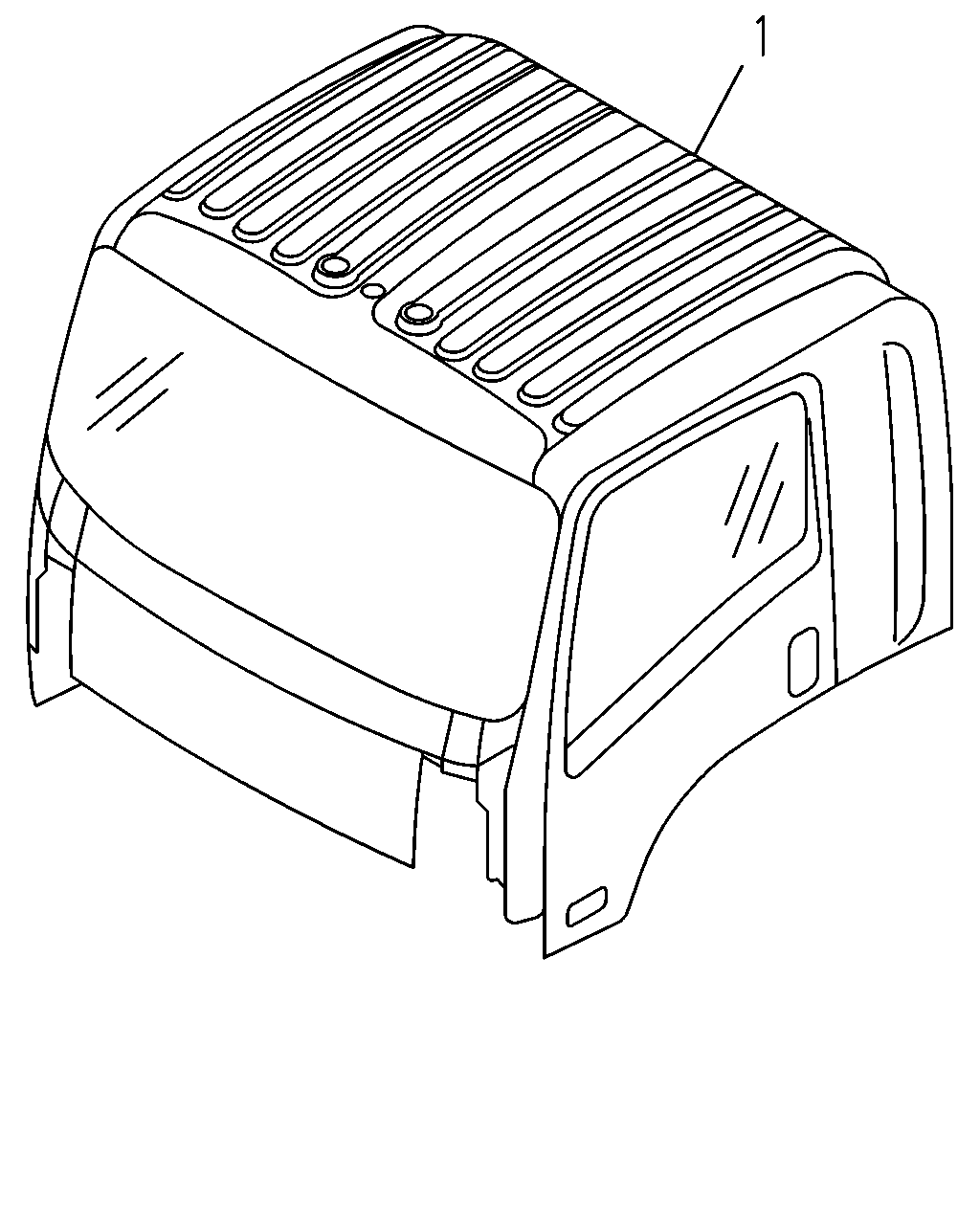

çizim 328510
1
BalonParca AdiParca NoAdetTipApplied Date
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) INSULATION ACOUSTICAL PKG DELETE<BS3> FUEL TANK 200L FRAME SIDE<N20> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,ASSISTOR SHIFT CONTROL<WX8>,FLUORESCENT LAMP<6UC>,ASH TRAY PASSENGER DOOR<8LX> 		1-61089-879-0 01 1 1302-
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) INSULATION ACOUSTICAL PKG DELETE<BS3> FUEL TANK 200L FRAME SIDE<N20> INTERIOR FULL TRIM<WM3> AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,ASSISTOR SHIFT CONTROL<WX8>,FLUORESCENT LAMP<6UC>,ASH TRAY PASSENGER DOOR<8LX> 		1-61089-880-0 01 1 1302-
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,INSULATION ACOUSTICAL PKG DELETE<BS3>,ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/SUNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,ASSISTOR SHIFT CONTROL<WX8>,FLUORES CENT LAMP<6UC>,ASH TRAY PASSENGER DOOR<8LX> 		1-61089-881-0 01 1 1302-
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> INTERIOR FULL TRIM<WM3> AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>,ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>, ASSISTOR SHIFT CONTROL<WX8>,FLUORESCENT LAMP<6UC>,ASH TRAY PASSENGER DOOR<8LX> 		1-61089-882-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
