6-01 — FRONT BUMPER (#114481) — 95 parça

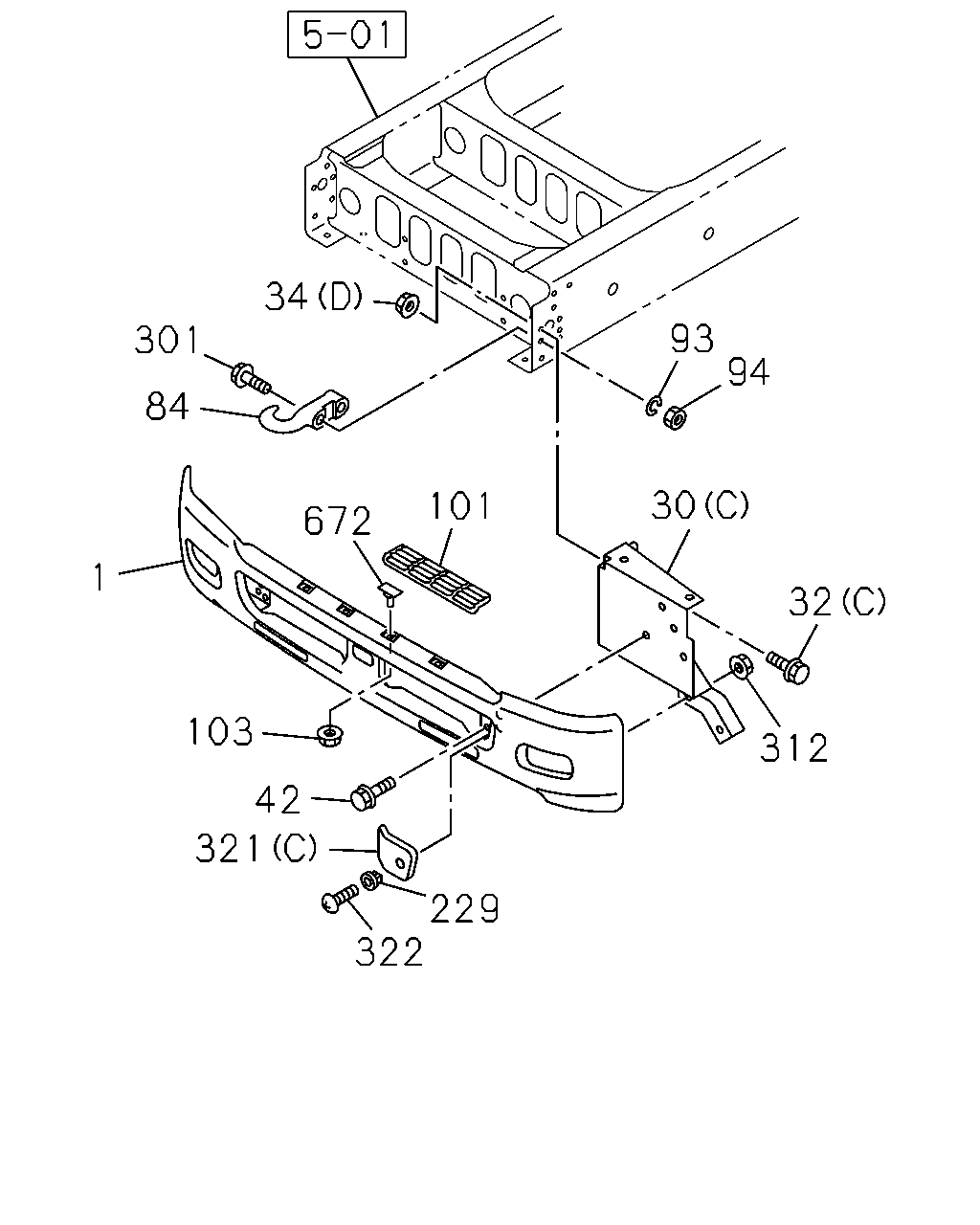

çizim 328507
34 301 84 1 672 101 103 42 321 229 322 312 32 30 94 93
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
BUMPER W/HEADLAMPS<SLB> WHITE 		8-97409-903-1 01 1 1302-
1 BUMPER ASM; FRT
EXC. BUMPER W/HEADLAMPS<SLB> WHITE 		8-97425-754-0 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		8-98034-434-2 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		8-98034-435-2 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (B) 		8-98053-546-1 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (B) 		8-98053-547-1 01 1 1302-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-98205-744-0 01 1 1302-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-98205-745-0 01 1 1302-
32 BOLT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (B) M12X35 FLANGE 		0-28051-235-0 02 1 1302-
32 BOLT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (A) M10X30 		8-94324-205-0 01 1 1302-
32 BOLT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28651-035-0 08 1 1302-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (A) M16 		0-91110-516-0 02 1 1302-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M12 FLANGE 		0-91180-212-0 06 1 1302-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (B) M14 FLANGE 		0-91180-214-0 04 1 1302-
34 NUT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (D) M10 FLANGE 		0-91180-210-0 08 1 1302-
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1302-
84 HOOK 1-57181-027-1 01 1 1302-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1302-
94 NUT; HOOK
M16 		0-91110-516-0 02 1 1302-
101 STEP; BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97611-542-0 01 1 1302-
101 STEP; BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97611-543-0 01 1 1302-
101 STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		8-97611-540-0 01 1 1302-
101 STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		8-97611-541-0 01 1 1302-
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1302-
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1302-
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 1302-
312 NUT; BRKT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 03 1 1302-
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97616-296-1 01 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97616-297-1 01 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97619-119-0 01 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97619-120-0 01 1 1302-
321 COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-97616-290-1 01 1 1302-
321 COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-97616-291-1 01 1 1302-
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1302-
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1302-

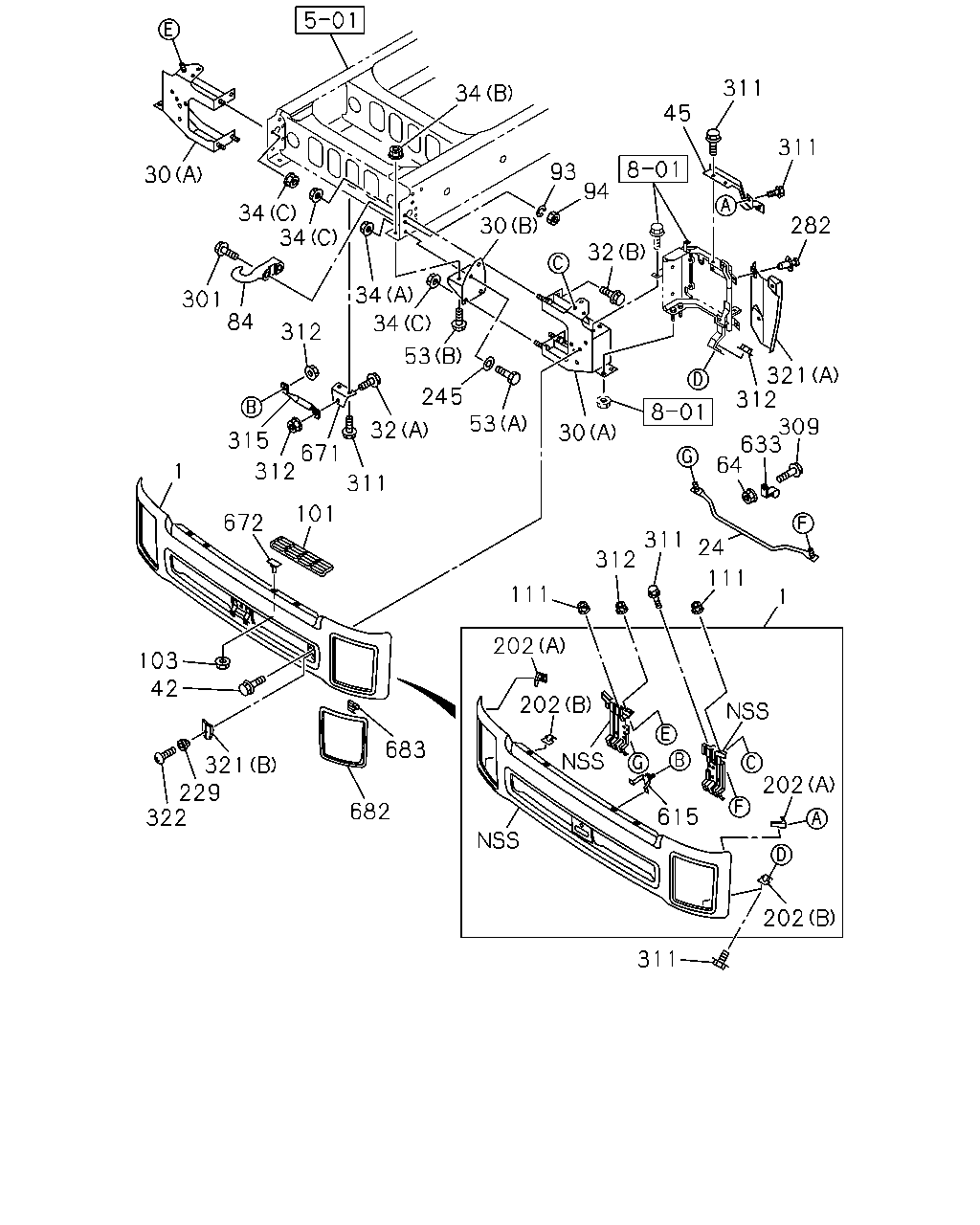

çizim 332049
30 34 34 301 84 312 315 312 671 311 32 53 245 53 34 34 34 30 93 94 32 30 45 311 311 282 321 312 309 633 64 1 672 101 103 42 321 229 322 682 683 111 312 311 24 111 1 202 202 615 202 202 311
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
BUMPER W/HEADLAMPS<SLB> WHITE 		8-97409-903-1 01 1 1302-
1 BUMPER ASM; FRT
EXC. BUMPER W/HEADLAMPS<SLB> WHITE 		8-97425-754-0 01 1 1302-
24 BAR; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97625-359-0 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		8-98034-434-2 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (A) 		8-98034-435-2 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (B) 		8-98053-546-1 01 1 1302-
30 BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB> (B) 		8-98053-547-1 01 1 1302-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-98205-744-0 01 1 1302-
30 BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-98205-745-0 01 1 1302-
32 BOLT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (B) M12X35 FLANGE 		0-28051-235-0 02 1 1302-
32 BOLT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (A) M10X30 		8-94324-205-0 01 1 1302-
32 BOLT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE 		0-28651-035-0 08 1 1302-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (A) M16 		0-91110-516-0 02 1 1302-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M12 FLANGE 		0-91180-212-0 06 1 1302-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (B) M14 FLANGE 		0-91180-214-0 04 1 1302-
34 NUT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> (D) M10 FLANGE 		0-91180-210-0 08 1 1302-
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1302-
45 BRACKET; BRKT TO BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97613-647-2 01 1 1302-
45 BRACKET; BRKT TO BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97613-648-2 01 1 1302-
53 BOLT; BRKT TO FRAME
BUMPER W/HEADLAMPS<SLB> (A) M16X40 		0-20851-640-0 02 1 1302-
53 BOLT; BRKT TO FRAME
BUMPER W/HEADLAMPS<SLB> (B) M14X45 FLANGE 		0-28851-445-0 04 1 1302-
64 NUT; CLIP
BUMPER W/HEADLAMPS<SLB> M6 FLANGE 		0-91180-106-0 01 1 1302-
84 HOOK 1-57181-027-1 01 1 1302-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1302-
94 NUT; HOOK
M16 		0-91110-516-0 02 1 1302-
101 STEP; BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97611-542-0 01 1 1302-
101 STEP; BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97611-543-0 01 1 1302-
101 STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		8-97611-540-0 01 1 1302-
101 STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB> 		8-97611-541-0 01 1 1302-
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1302-
111 NUT; STAY
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 02 1 1302-
202 BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97613-636-0 01 1 1302-
202 BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97613-637-0 01 1 1302-
202 BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97613-640-1 01 1 1302-
202 BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97613-641-1 01 1 1302-
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1302-
245 WASHER; PL,BRKT TO FRAME
BUMPER W/HEADLAMPS<SLB> ID=17 OD=30 		0-91610-516-0 02 1 1302-
282 FASTENER; BUMPER FILLER
BUMPER W/HEADLAMPS<SLB> D8X13.5 		1-09987-248-1 08 1 1302-
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 1302-
309 BOLT; CLIP
BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE 		0-28650-616-0 01 1 1302-
311 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE 		0-28651-025-0 06 1 1302-
311 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M10X30 		8-94324-205-0 07 1 1302-
312 NUT; BRKT
BUMPER W/HEADLAMPS<SLB> M10 FLANGE 		0-91180-210-0 03 1 1302-
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1302-
315 STAY; BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97613-645-1 01 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97616-296-1 01 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97616-297-1 01 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97619-119-0 01 1 1302-
321 COVER; BUMPER FRT SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97619-120-0 01 1 1302-
321 COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-97616-290-1 01 1 1302-
321 COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB> (C) 		8-97616-291-1 01 1 1302-
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1302-
615 BRACKET; BUMPER CENTER
BUMPER W/HEADLAMPS<SLB> 		8-97613-643-1 01 1 1302-
633 CLIP; BUMPER
BUMPER W/HEADLAMPS<SLB> ID=16 H=24 L=20 		0-95207-315-0 01 1 1302-
671 BRACKET; STAY
BUMPER W/HEADLAMPS<SLB> 		8-97620-889-0 01 1 1302-
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1302-
682 BEZEL; BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97611-530-2 01 1 1302-
682 BEZEL; BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-97611-531-2 01 1 1302-
683 CLIP; BEZEL,BUMPER
BUMPER W/HEADLAMPS<SLB> 		8-98084-293-0 08 1 1302-
