Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#114478) — 228 parça

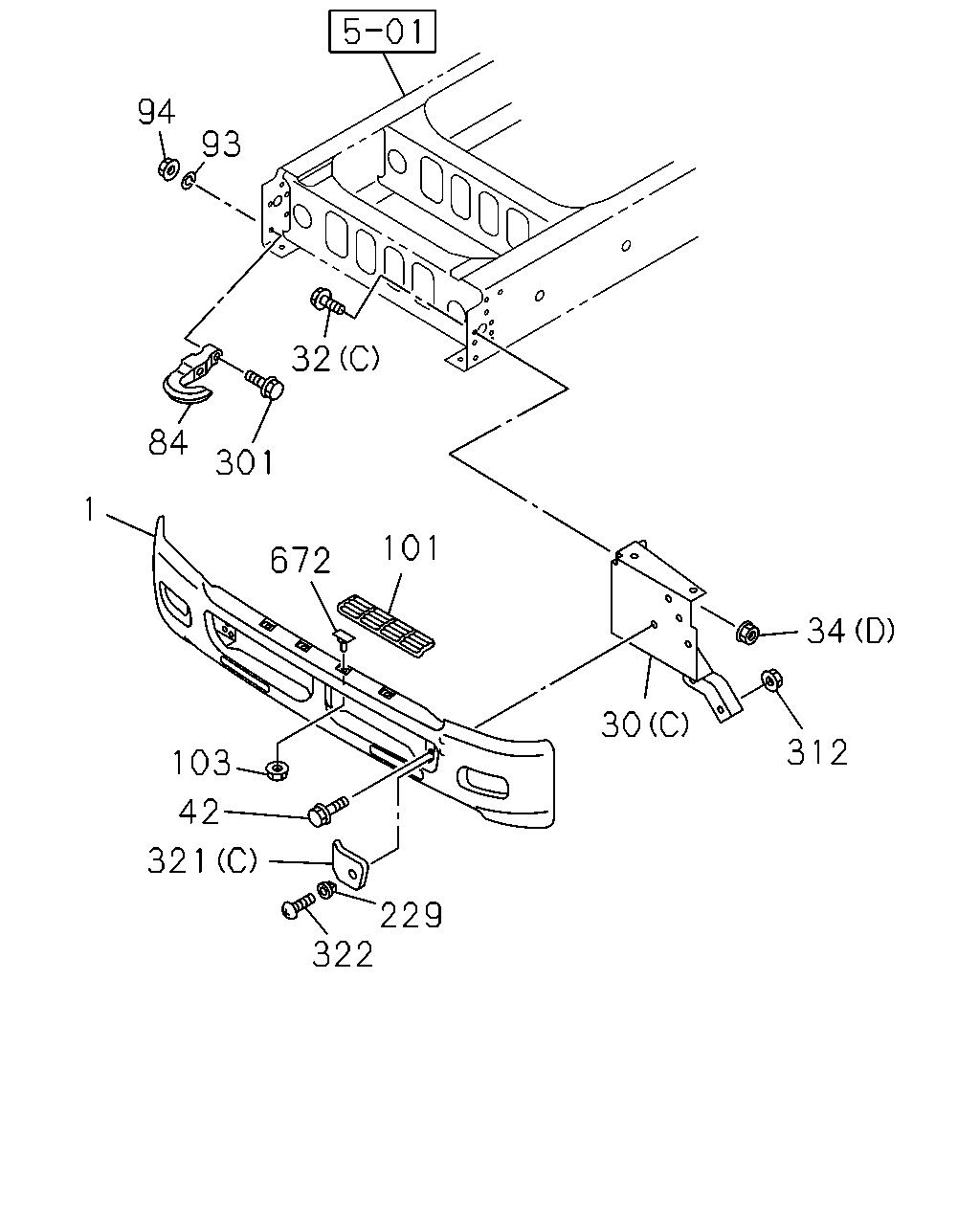

93 94 32 301 84 672 101 1 103 42 321 229 322 30 34 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> WHITE	8-97409-903-1	01	1	1302-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> WHITE	8-97425-754-0	01	1	1302-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1302-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-98053-546-1	01	1	1302-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1302-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-98053-547-1	01	1	1302-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98034-434-2	01	1	1302-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98034-435-2	01	1	1302-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-98205-745-0	01	1	1302-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-98205-744-0	01	1	1302-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M12X35 FLANGE	0-28051-235-0	02	1	1302-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X30	8-94324-205-0	01	1	1302-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28651-035-0	08	1	1302-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1302-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M16	0-91110-516-0	02	1	1302-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1302-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M14 FLANGE	0-91180-214-0	04	1	1302-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (C) M12 FLANGE	0-91180-212-0	06	1	1302-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (D) M10 FLANGE	0-91180-210-0	08	1	1302-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1302-	●	●
84	HOOK	1-57181-027-1	01	1	1302-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1302-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1302-	●	●
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-543-0	01	1	1302-	●	●
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-542-0	01	1	1302-	●	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	8-97611-541-0	01	1	1302-	●	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	8-97611-540-0	01	1	1302-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-	●	●
301	BOLT; HOOK TO FRAME MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2014<VZE> M16X80	0-10961-680-0	01	1	1511-	●
301	BOLT; HOOK TO FRAME EXC. VIN MODEL YEAR 2014<VZE> M16X70	0-10861-670-0	02	1	1511-	●
301	BOLT; HOOK TO FRAME VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) M16X70	0-10861-670-0	02	1	1511-	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1511-		●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1302-1510	●	●
301	BOLT; HOOK TO FRAME MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2014<VZE> M16X70	0-10861-670-0	01	1	1511-	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
312	NUT; BRKT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	03	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97616-297-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97619-120-0	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97616-296-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97619-119-0	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-97616-291-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-97616-290-1	01	1	1302-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-	●	●

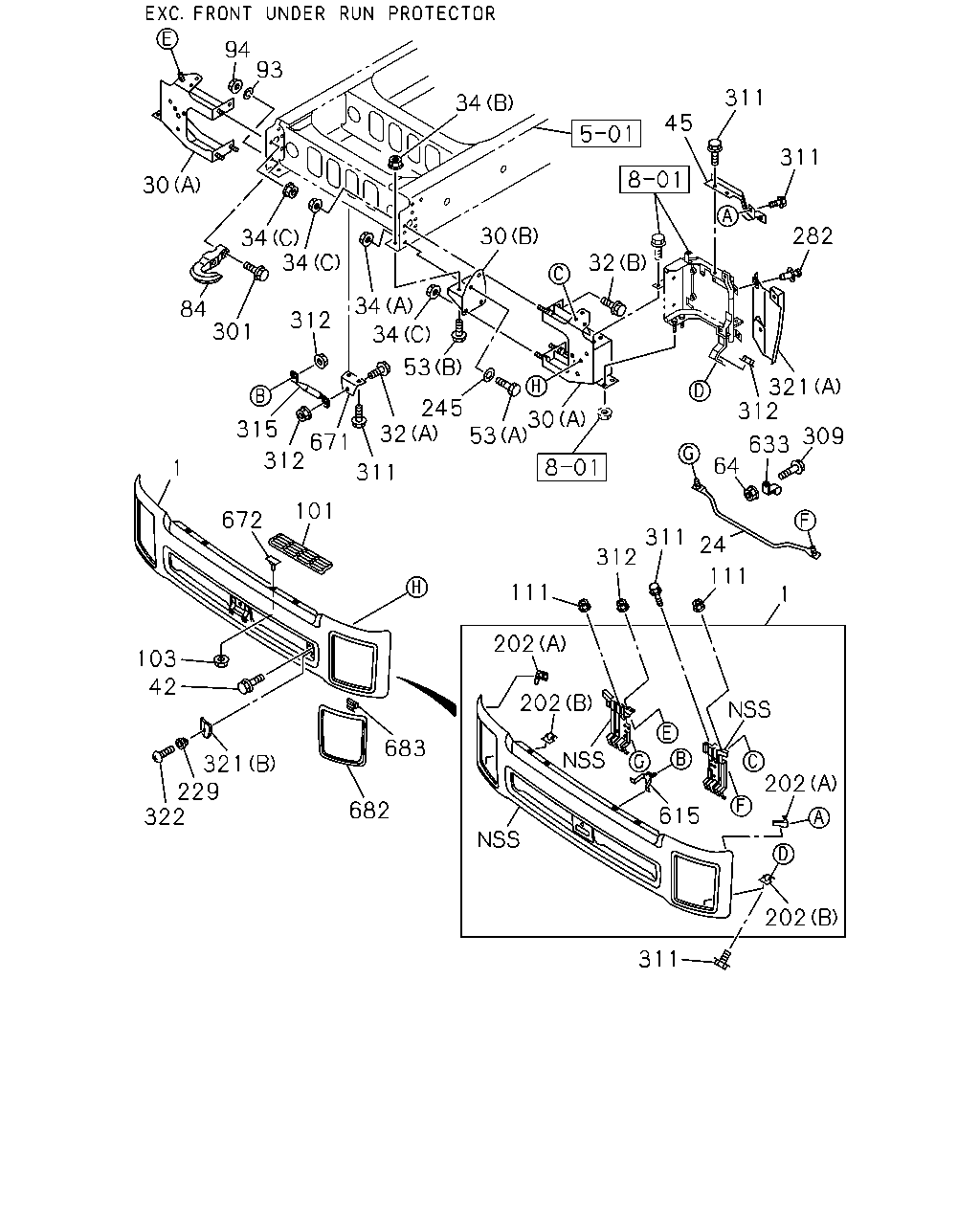

1 111 24 311 312 111 202 202 615 202 202 311 683 682 321 229 322 42 103 672 101 311 32 245 53 34 34 312 301 315 671 312 34 84 34 30 93 94 30 34 32 30 53 64 633 309 321 312 282 311 311 45 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> WHITE	8-97409-903-1	01	1	1302-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> WHITE	8-97425-754-0	01	1	1302-	●	●
24	BAR; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	8-97625-359-0	01	1	1302-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1302-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-98053-546-1	01	1	1302-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1302-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-98053-547-1	01	1	1302-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98034-434-2	01	1	1302-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98034-435-2	01	1	1302-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-98205-745-0	01	1	1302-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-98205-744-0	01	1	1302-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M12X35 FLANGE	0-28051-235-0	02	1	1302-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X30	8-94324-205-0	01	1	1302-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28651-035-0	08	1	1302-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1302-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M16	0-91110-516-0	02	1	1302-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1302-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M14 FLANGE	0-91180-214-0	04	1	1302-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (C) M12 FLANGE	0-91180-212-0	06	1	1302-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (D) M10 FLANGE	0-91180-210-0	08	1	1302-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1302-	●	●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	8-97613-648-2	01	1	1302-	●	●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	8-97613-647-2	01	1	1302-	●	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1302-	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M16X40	0-20851-640-0	02	1	1302-		●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1302-	●
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (B) M14X45 FLANGE	0-28851-445-0	04	1	1302-		●
64	NUT; CLIP BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	01	1	1302-	●	●
84	HOOK	1-57181-027-1	01	1	1302-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1302-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1302-	●	●
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-543-0	01	1	1302-	●	●
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-542-0	01	1	1302-	●	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	8-97611-541-0	01	1	1302-	●	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	8-97611-540-0	01	1	1302-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-	●	●
111	NUT; STAY BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97613-636-0	01	1	1302-	●	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97613-637-0	01	1	1302-	●	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97613-640-1	01	1	1302-	●	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97613-641-1	01	1	1302-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-	●	●
245	WASHER; PL,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1302-	●
245	WASHER; PL,BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> ID=17 OD=30	0-91610-516-0	02	1	1302-		●
282	FASTENER; BUMPER FILLER BUMPER W/HEADLAMPS<SLB> D8X13.5	1-09987-248-1	08	1	1302-	●	●
301	BOLT; HOOK TO FRAME MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2014<VZE> M16X80	0-10961-680-0	01	1	1511-	●
301	BOLT; HOOK TO FRAME EXC. VIN MODEL YEAR 2014<VZE> M16X70	0-10861-670-0	02	1	1511-	●
301	BOLT; HOOK TO FRAME VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) M16X70	0-10861-670-0	02	1	1511-	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1511-		●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1302-1510	●	●
301	BOLT; HOOK TO FRAME MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2014<VZE> M16X70	0-10861-670-0	01	1	1511-	●
309	BOLT; CLIP BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28650-616-0	01	1	1302-	●	●
311	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	06	1	1302-	●	●
311	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M10X30	8-94324-205-0	07	1	1302-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
312	NUT; BRKT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	03	1	1302-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97613-645-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97616-297-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97619-120-0	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97616-296-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97619-119-0	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-97616-291-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-97616-290-1	01	1	1302-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-	●	●
615	BRACKET; BUMPER CENTER BUMPER W/HEADLAMPS<SLB>	8-97613-643-1	01	1	1302-	●	●
633	CLIP; BUMPER BUMPER W/HEADLAMPS<SLB> ID=16 H=24 L=20	0-95207-315-0	01	1	1302-	●	●
671	BRACKET; STAY BUMPER W/HEADLAMPS<SLB>	8-97620-889-0	01	1	1302-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-	●	●
682	BEZEL; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-531-2	01	1	1302-	●	●
682	BEZEL; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-530-2	01	1	1302-	●	●
683	CLIP; BEZEL,BUMPER BUMPER W/HEADLAMPS<SLB>	8-98084-293-0	08	1	1302-	●	●

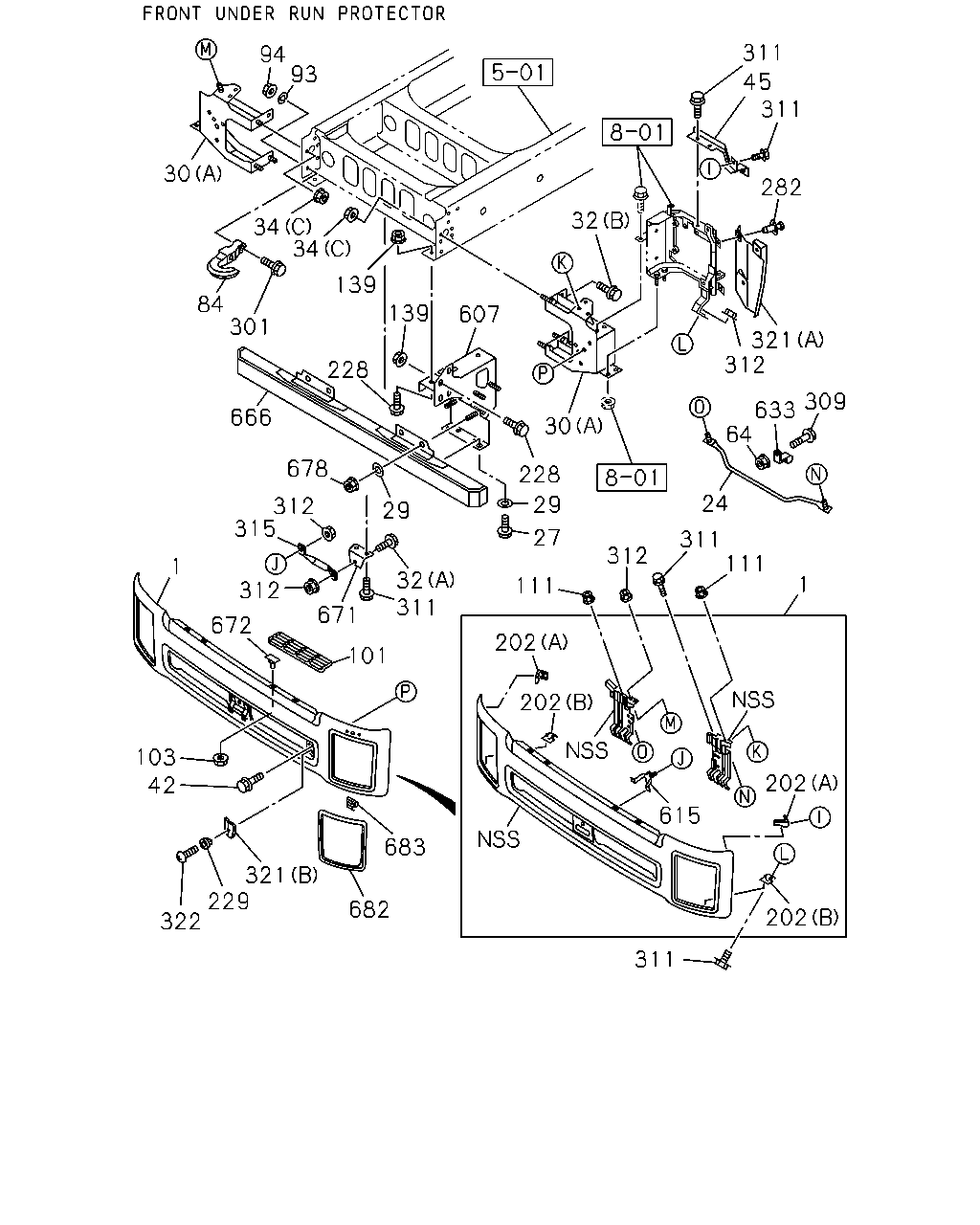

94 30 34 34 139 139 228 301 84 666 678 312 315 312 672 1 103 42 229 322 321 682 683 101 671 311 29 27 228 30 29 607 312 111 311 111 1 202 202 615 202 202 24 64 633 309 321 312 282 311 45 311 32 311 32 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> WHITE	8-97409-903-1	01	1	1302-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB> WHITE	8-97425-754-0	01	1	1302-	●	●
24	BAR; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	8-97625-359-0	01	1	1302-	●	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1302-	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	04	1	1302-1409	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	08	1	1410-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1302-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-98053-546-1	01	1	1302-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1302-	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (B)	8-98053-547-1	01	1	1302-		●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98034-434-2	01	1	1302-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	8-98034-435-2	01	1	1302-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-98205-745-0	01	1	1302-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-98205-744-0	01	1	1302-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M12X35 FLANGE	0-28051-235-0	02	1	1302-	●	●
32	BOLT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M10X30	8-94324-205-0	01	1	1302-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28651-035-0	08	1	1302-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1302-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (A) M16	0-91110-516-0	02	1	1302-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1302-	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M14 FLANGE	0-91180-214-0	04	1	1302-		●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (C) M12 FLANGE	0-91180-212-0	06	1	1302-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (D) M10 FLANGE	0-91180-210-0	08	1	1302-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1302-	●	●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	8-97613-648-2	01	1	1302-	●	●
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	8-97613-647-2	01	1	1302-	●	●
64	NUT; CLIP BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	01	1	1302-	●	●
84	HOOK	1-57181-027-1	01	1	1302-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1302-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1302-	●	●
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-543-0	01	1	1302-	●	●
101	STEP; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-542-0	01	1	1302-	●	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	8-97611-541-0	01	1	1302-	●	●
101	STEP; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>	8-97611-540-0	01	1	1302-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-	●	●
111	NUT; STAY BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M16	0-91110-516-0	02	1	1302-	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	06	1	1302-	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97613-636-0	01	1	1302-	●	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97613-637-0	01	1	1302-	●	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97613-640-1	01	1	1302-	●	●
202	BRACKET; BUMPER SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97613-641-1	01	1	1302-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M16X40	0-20851-640-0	02	1	1302-	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1302-	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-	●	●
282	FASTENER; BUMPER FILLER BUMPER W/HEADLAMPS<SLB> D8X13.5	1-09987-248-1	08	1	1302-	●	●
301	BOLT; HOOK TO FRAME MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2014<VZE> M16X80	0-10961-680-0	01	1	1511-	●
301	BOLT; HOOK TO FRAME EXC. VIN MODEL YEAR 2014<VZE> M16X70	0-10861-670-0	02	1	1511-	●
301	BOLT; HOOK TO FRAME VIN MODEL YEAR 2014<VZE> EXC. MOROCCO EQUIPMENT(CGA) M16X70	0-10861-670-0	02	1	1511-	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1511-		●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1302-1510	●	●
301	BOLT; HOOK TO FRAME MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> VIN MODEL YEAR 2014<VZE> M16X70	0-10861-670-0	01	1	1511-	●
309	BOLT; CLIP BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28650-616-0	01	1	1302-	●	●
311	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	06	1	1302-	●	●
311	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M10X30	8-94324-205-0	07	1	1302-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
312	NUT; BRKT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	03	1	1302-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97613-645-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97616-297-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97619-120-0	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (B)	8-97616-296-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE BUMPER W/HEADLAMPS<SLB> (A)	8-97619-119-0	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-97616-291-1	01	1	1302-	●	●
321	COVER; BUMPER FRT SIDE EXC. BUMPER W/HEADLAMPS<SLB> (C)	8-97616-290-1	01	1	1302-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-	●	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98233-077-0	01	1	1406-1409	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-069-0	01	1	1410-1510	●
607	BRACKET MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-069-0	01	1	1511-1512	●
607	BRACKET ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-069-0	01	1	1511-1512	●
607	BRACKET MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T), ALGERIAEQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-069-0	01	1	1601-	●
607	BRACKET IRAN EQUIPMENT(D8T),ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-069-0	01	1	1601-	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98233-078-0	01	1	1406-1409	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-070-0	01	1	1410-1510	●
607	BRACKET MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-070-0	01	1	1511-1512	●
607	BRACKET ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-070-0	01	1	1511-1512	●
607	BRACKET MOROCCO EQUIPMENT(CGA),IRAN EQUIPMENT(D8T), ALGERIAEQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-070-0	01	1	1601-	●
607	BRACKET IRAN EQUIPMENT(D8T),ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-070-0	01	1	1601-	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98045-753-1	01	1	1406-1409	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-065-0	01	1	1410-1512	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-065-0	01	1	1601-	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98045-754-1	01	1	1406-1409	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-066-0	01	1	1410-1512	●
607	BRACKET MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> MULTI LEAF SUSPENSION FRT<SAQ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-066-0	01	1	1601-	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-844-2	01	1	1302-1405	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98045-844-2	02	1	1406-1408	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98045-844-2	01	1	1409-1409	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-844-2	01	1	1409-1409	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98279-074-0	01	1	1410-1510	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE>	8-98279-074-0	01	1	1410-1510	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98279-074-0	01	1	1511-1512	●
607	BRACKET RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-074-0	01	1	1511-1512	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98279-074-0	01	1	1601-	●
607	BRACKET RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-074-0	01	1	1601-	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-843-2	01	1	1302-1405	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98045-843-2	02	1	1406-1408	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98045-843-2	01	1	1409-1409	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE>	8-98045-843-2	01	1	1409-1409	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98279-073-0	01	1	1410-1510	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE>	8-98279-073-0	01	1	1410-1510	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98279-073-0	01	1	1511-1512	●
607	BRACKET RUSSIA EQUIPMENT(B12) FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-073-0	01	1	1511-1512	●
607	BRACKET TIRE 295/80R22.5-152/148M RIB EEC-R117(5Q9) FRONT UNDER RUN PROTECTOR<EBE> EXC. MOROCCO EQUIPMENT(CGA)	8-98279-073-0	01	1	1601-	●
607	BRACKET RUSSIA EQUIPMENT(B12),IRAN EQUIPMENT(D8T) FRONT UNDER RUN PROTECTOR<EBE> FRT TAPER LEAF SUSPENSION<SAR> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98279-073-0	01	1	1601-	●
615	BRACKET; BUMPER CENTER BUMPER W/HEADLAMPS<SLB>	8-97613-643-1	01	1	1302-	●	●
633	CLIP; BUMPER BUMPER W/HEADLAMPS<SLB> ID=16 H=24 L=20	0-95207-315-0	01	1	1302-	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98196-475-0	01	1	1302-	●
671	BRACKET; STAY BUMPER W/HEADLAMPS<SLB>	8-97620-889-0	01	1	1302-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-	●	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1302-	●
682	BEZEL; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-531-2	01	1	1302-	●	●
682	BEZEL; BUMPER BUMPER W/HEADLAMPS<SLB>	8-97611-530-2	01	1	1302-	●	●
683	CLIP; BEZEL,BUMPER BUMPER W/HEADLAMPS<SLB>	8-98084-293-0	08	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
