1 |

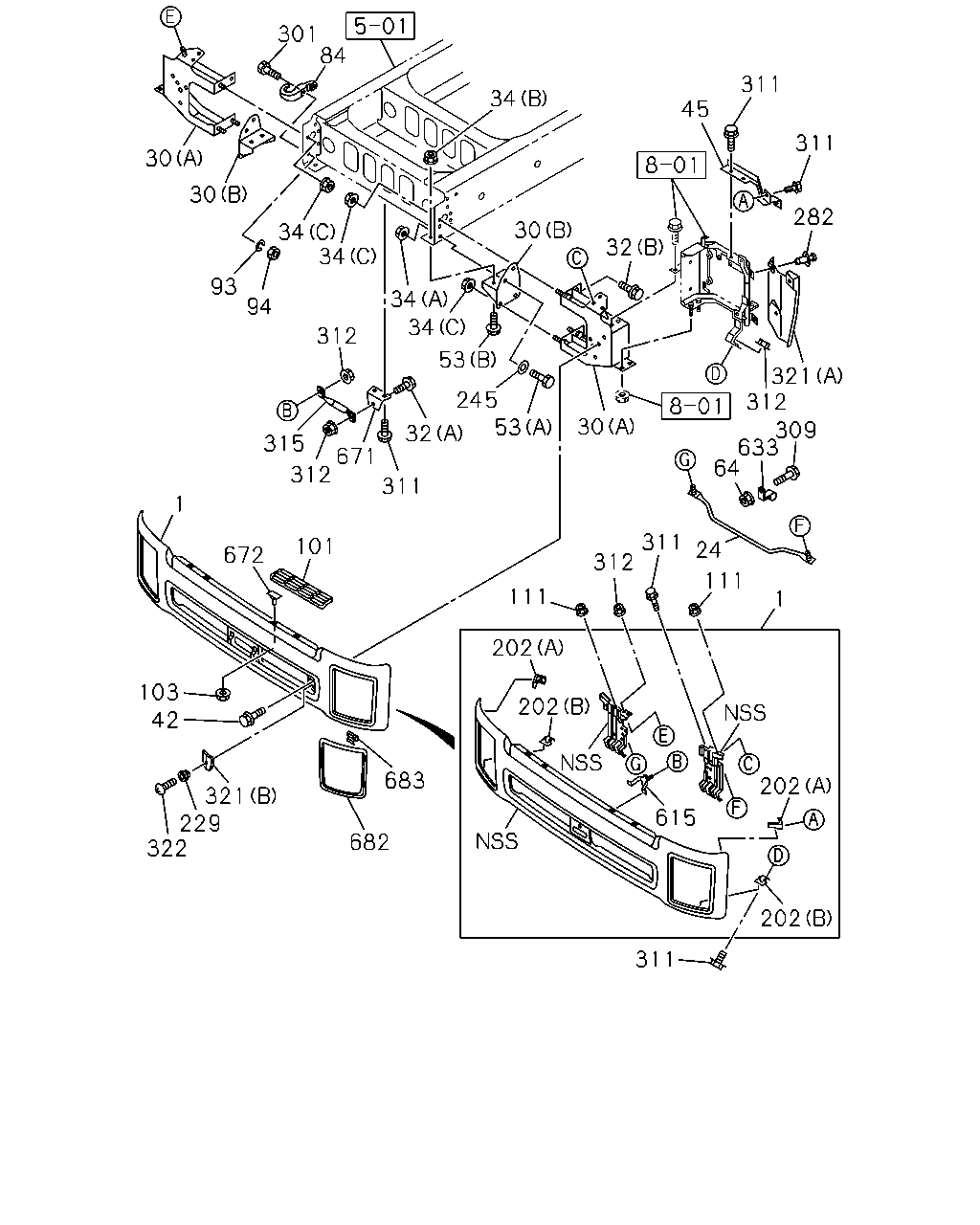

BUMPER ASM; FRT
BUMPER W/HEADLAMPS<SLB>
WHITE
|
8-97409-903-1 |
01 |
1 |
1302- |
| |
1 |

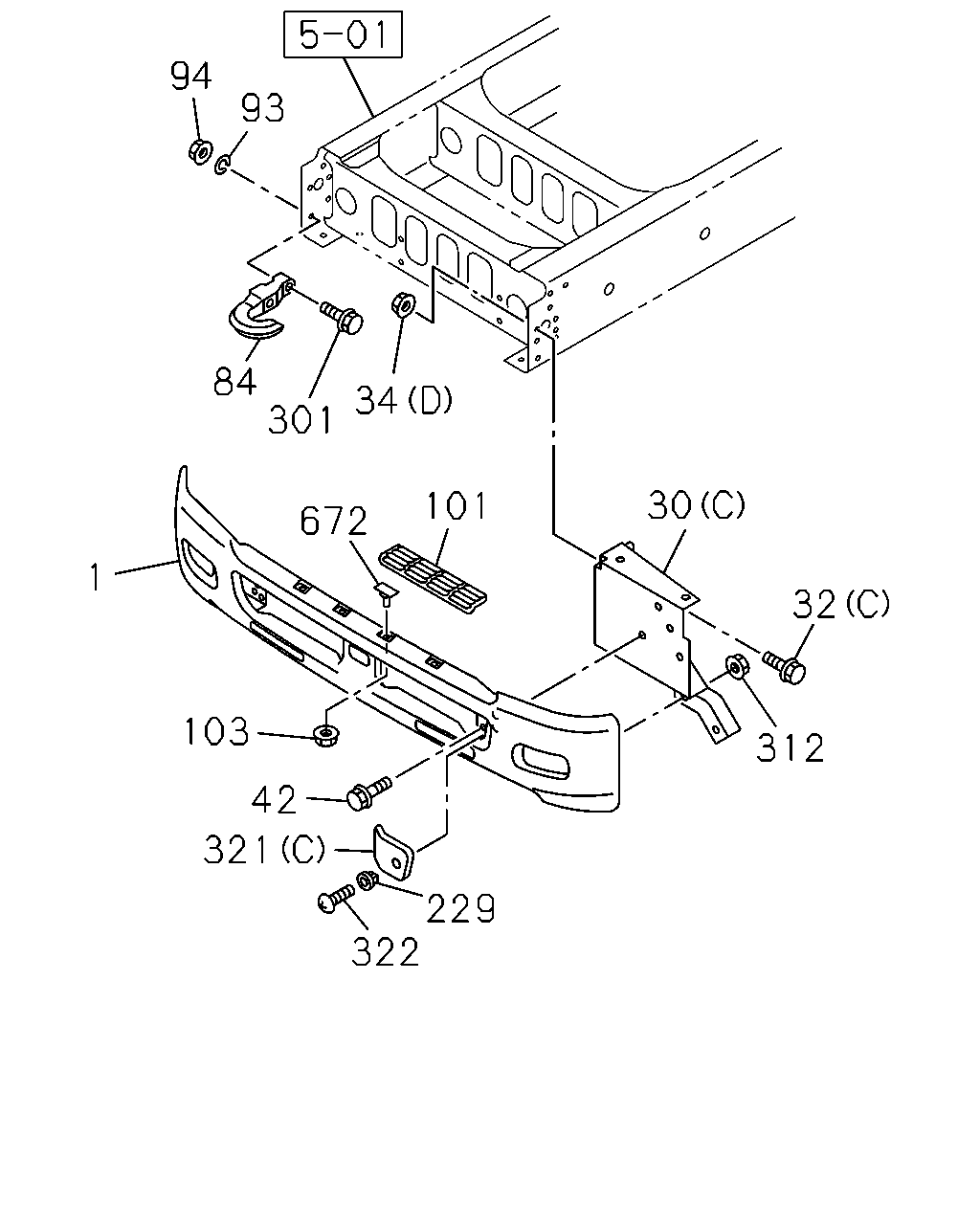

BUMPER ASM; FRT
EXC. BUMPER W/HEADLAMPS<SLB>
WHITE
|
8-97425-754-0 |
01 |
1 |
1302- |
| |
24 |
BAR; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97625-359-0 |
01 |
1 |
1302- |
| |
24 |
BAR; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97625-359-0 |
01 |
1 |
1302- |
| |

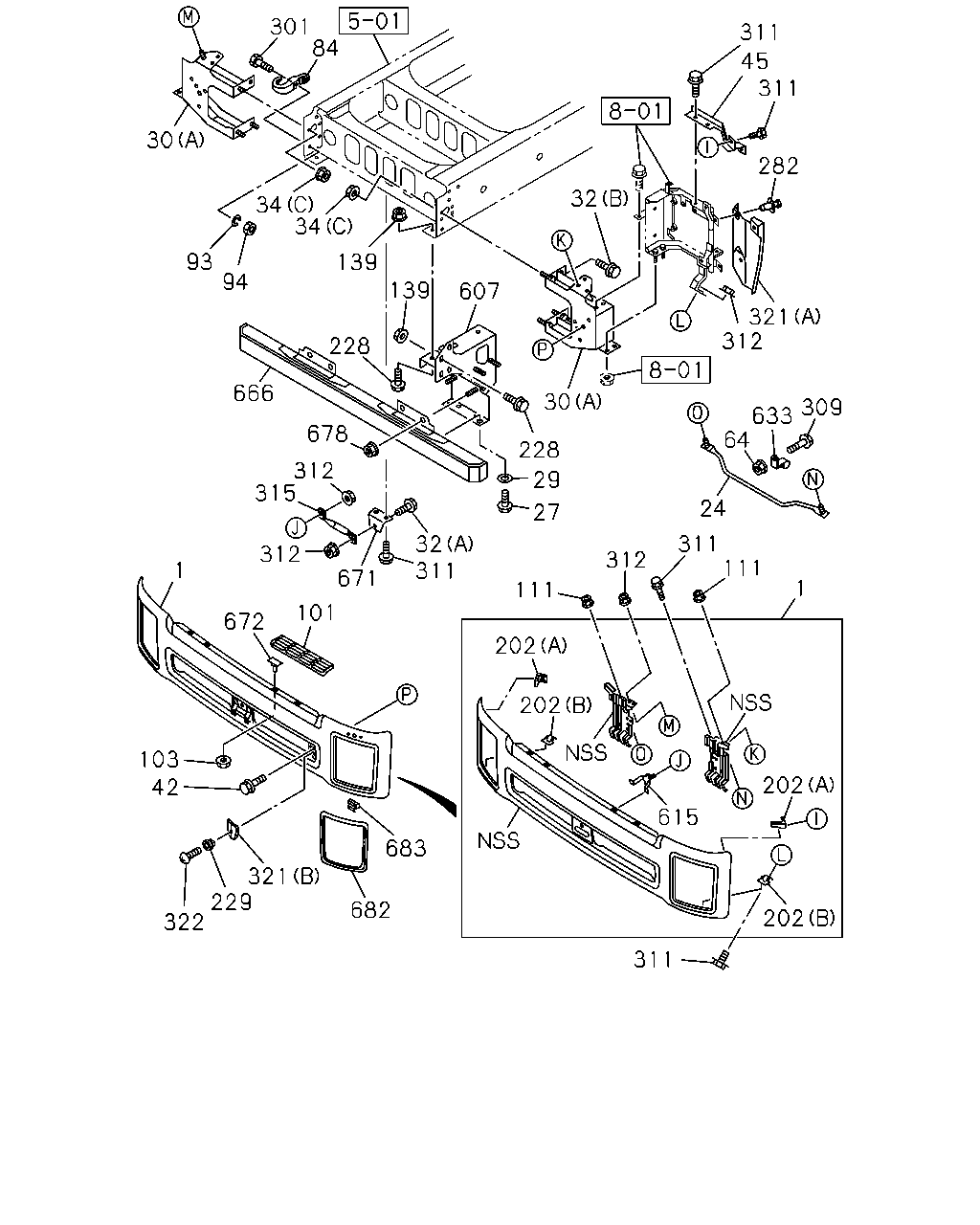

27 |
BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE>
M12X35 FLANGE
|
0-28651-235-0 |
04 |
1 |
1402- |
| |
29 |
WASHER; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE>
ID=12.5 OD=32
|
0-91614-712-0 |
04 |
1 |
1402-1409 |
| |
29 |
WASHER; FRT BUMPER
FRONT UNDER RUN PROTECTOR<EBE>
ID=12.5 OD=32
|
0-91614-712-0 |
08 |
1 |
1410- |
| |
30 |
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
(A)
|
8-98034-434-2 |
01 |
1 |
1302- |
| |
30 |
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
|
8-98053-546-1 |
01 |
1 |
1302-1401 |
| |
30 |
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
EXC. FRONT UNDER RUN PROTECTOR<EBE>
(B)
|
8-98053-546-1 |
01 |
1 |
1402- |
| |
30 |
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
(A)
|
8-98034-435-2 |
01 |
1 |
1302- |
| |
30 |
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
|
8-98053-547-1 |
01 |
1 |
1302-1401 |
| |
30 |
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
EXC. FRONT UNDER RUN PROTECTOR<EBE>
(B)
|
8-98053-547-1 |
01 |
1 |
1402- |
| |
30 |
BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
(C)
|
8-98205-745-0 |
01 |
1 |
1302- |
| |
30 |
BRACKET; FRT BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
(C)
|
8-98205-744-0 |
01 |
1 |
1302- |
| |
32 |
BOLT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
M12X35 FLANGE
|
0-28051-235-0 |
02 |
1 |
1302- |
| |
32 |
BOLT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
M10X30
|
8-94324-205-0 |
01 |
1 |
1302- |
| |
32 |
BOLT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
M10X30
|
8-94324-205-0 |
01 |
1 |
1302- |
| |
32 |
BOLT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
(C)
M10X35 FLANGE
|
0-28651-035-0 |
08 |
1 |
1302- |
| |
34 |
NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB>
(A)
M16
|
0-91110-516-0 |
02 |
1 |
1302-1401 |
| |
34 |
NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB>
EXC. FRONT UNDER RUN PROTECTOR<EBE>
(A)
M16
|
0-91110-516-0 |
02 |
1 |
1402- |
| |
34 |
NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB>
(C)
M12 FLANGE
|
0-91180-212-0 |
06 |
1 |
1302- |
| |
34 |
NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB>
(B)
M14 FLANGE
|
0-91180-214-0 |
04 |
1 |
1302-1401 |
| |
34 |
NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB>
EXC. FRONT UNDER RUN PROTECTOR<EBE>
(B)
M14 FLANGE
|
0-91180-214-0 |
04 |
1 |
1402- |
| |
34 |
NUT; BRKT,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
(D)
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
1302- |
| |
42 |
BOLT; BUMPER
M10X30
|
8-94324-205-0 |
06 |
1 |
1302- |
| |
45 |
BRACKET; BRKT TO BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97613-648-2 |
01 |
1 |
1302- |
| |
45 |
BRACKET; BRKT TO BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97613-648-2 |
01 |
1 |
1302- |
| |
45 |
BRACKET; BRKT TO BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97613-647-2 |
01 |
1 |
1302- |
| |
45 |
BRACKET; BRKT TO BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97613-647-2 |
01 |
1 |
1302- |
| |
64 |
NUT; CLIP
EXC. BUMPER W/HEADLAMPS<SLB>
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
1302- |
| |
64 |
NUT; CLIP
EXC. BUMPER W/HEADLAMPS<SLB>
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
1302- |
| |
84 |
HOOK
|
1-57181-027-1 |
01 |
1 |
1302- |
| |
93 |
WASHER; LK,HOOK
ID=16.2
|
0-91510-816-0 |
02 |
1 |
1302- |
| |
94 |
NUT; HOOK
M16
|
0-91110-516-0 |
02 |
1 |
1302- |
| |
101 |
STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-543-0 |
01 |
1 |
1302- |
| |
101 |
STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-543-0 |
01 |
1 |
1302- |
| |
101 |
STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-542-0 |
01 |
1 |
1302- |
| |
101 |
STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-542-0 |
01 |
1 |
1302- |
| |
101 |
STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-541-0 |
01 |
1 |
1302- |
| |
101 |
STEP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-540-0 |
01 |
1 |
1302- |
| |
103 |
NUT; BUMPER STEP
M6 FLANGE
|
0-91180-106-0 |
04 |
1 |
1302- |
| |
111 |
NUT; STAY
EXC. BUMPER W/HEADLAMPS<SLB>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
| |
111 |
NUT; STAY
EXC. BUMPER W/HEADLAMPS<SLB>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1302- |
| |
139 |
NUT; BRKT FIX
FRONT UNDER RUN PROTECTOR<EBE>
M16
|
0-91110-516-0 |
02 |
1 |
1402- |
| |
139 |
NUT; BRKT FIX
FRONT UNDER RUN PROTECTOR<EBE>
M14 FLANGE
|
0-91180-214-0 |
06 |
1 |
1402- |
| |
202 |
BRACKET; BUMPER SIDE
(A)
|
8-97613-636-0 |
01 |
1 |
1302- |
| |
202 |
BRACKET; BUMPER SIDE
(A)
|
8-97613-637-0 |
01 |
1 |
1302- |
| |
202 |
BRACKET; BUMPER SIDE
(B)
|
8-97613-640-1 |
01 |
1 |
1302- |
| |
202 |
BRACKET; BUMPER SIDE
(B)
|
8-97613-641-1 |
01 |
1 |
1302- |
| |
228 |
BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE>
M16X40
|
0-20851-640-0 |
02 |
1 |
1402- |
| |
228 |
BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE>
M14X45 FLANGE
|
0-28851-445-0 |
06 |
1 |
1402- |
| |
229 |
GROMMET
D=7X7 L=7.5
|
5-09983-007-0 |
02 |
1 |
1302- |
| |
282 |
FASTENER; BUMPER FILLER
EXC. BUMPER W/HEADLAMPS<SLB>
D8X13.5
|
1-09987-248-1 |
08 |
1 |
1302- |
| |
282 |
FASTENER; BUMPER FILLER
EXC. BUMPER W/HEADLAMPS<SLB>
D8X13.5
|
1-09987-248-1 |
08 |
1 |
1302- |
| |
301 |
BOLT; HOOK TO FRAME
MOROCCO EQUIPMENT(CGA)
FRONT UNDER RUN PROTECTOR<EBE>
VIN MODEL YEAR 2014<VZE>
M16X80
|
0-10961-680-0 |
01 |
1 |
1511- |
| |
301 |
BOLT; HOOK TO FRAME
EXC. VIN MODEL YEAR 2014<VZE>
M16X70
|
0-10861-670-0 |
02 |
1 |
1511- |
| |
301 |
BOLT; HOOK TO FRAME
VIN MODEL YEAR 2014<VZE>
EXC. MOROCCO EQUIPMENT(CGA)
M16X70
|
0-10861-670-0 |
02 |
1 |
1511- |
| |
301 |
BOLT; HOOK TO FRAME
M16X70
|
0-10861-670-0 |
02 |
1 |
1302-1510 |
| |
301 |
BOLT; HOOK TO FRAME
MOROCCO EQUIPMENT(CGA)
FRONT UNDER RUN PROTECTOR<EBE>
VIN MODEL YEAR 2014<VZE>
M16X70
|
0-10861-670-0 |
01 |
1 |
1511- |
| |
309 |
BOLT; CLIP
EXC. BUMPER W/HEADLAMPS<SLB>
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1302- |
| |
309 |
BOLT; CLIP
EXC. BUMPER W/HEADLAMPS<SLB>
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1302- |
| |
311 |
BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB>
M10X25 FLANGE
|
0-28651-025-0 |
06 |
1 |
1302- |
| |
311 |
BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB>
M10X25 FLANGE
|
0-28651-025-0 |
06 |
1 |
1302- |
| |
311 |
BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB>
M10X30
|
8-94324-205-0 |
07 |
1 |
1302- |
| |
311 |
BOLT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB>
M10X30
|
8-94324-205-0 |
07 |
1 |
1302- |
| |
312 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1302- |
| |
312 |
NUT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB>
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
1302- |
| |
312 |
NUT; BRKT
EXC. BUMPER W/HEADLAMPS<SLB>
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
1302- |
| |
315 |
STAY; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97613-645-1 |
01 |
1 |
1302- |
| |
315 |
STAY; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97613-645-1 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
8-97616-297-1 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
8-97616-297-1 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
8-97619-120-0 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
8-97619-120-0 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
8-97616-296-1 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(B)
|
8-97616-296-1 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
8-97619-119-0 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(A)
|
8-97619-119-0 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(C)
|
8-97616-291-1 |
01 |
1 |
1302- |
| |
321 |
COVER; BUMPER FRT SIDE
EXC. BUMPER W/HEADLAMPS<SLB>
(C)
|
8-97616-290-1 |
01 |
1 |
1302- |
| |
322 |
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
|
0-72180-516-0 |
02 |
1 |
1302- |
| |
607 |
BRACKET
MOROCCO EQUIPMENT(CGA)
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98233-077-0 |
01 |
1 |
1406-1409 |
| |
607 |
BRACKET
MOROCCO EQUIPMENT(CGA)
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98279-069-0 |
01 |
1 |
1410-1510 |
| |
607 |
BRACKET
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1)
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98279-069-0 |
01 |
1 |
1511- |
| |
607 |
BRACKET
MOROCCO EQUIPMENT(CGA)
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98233-078-0 |
01 |
1 |
1406-1409 |
| |
607 |
BRACKET
MOROCCO EQUIPMENT(CGA)
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98279-070-0 |
01 |
1 |
1410-1510 |
| |
607 |
BRACKET
MOROCCO EQUIPMENT(CGA),ALGERIA EQUIPMENT(WN1)
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98279-070-0 |
01 |
1 |
1511- |
| |
607 |
BRACKET
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98233-077-0 |
01 |
1 |
1402- |
| |
607 |
BRACKET
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98233-078-0 |
01 |
1 |
1402- |
| |
615 |
BRACKET; BUMPER CENTER
|
8-97613-643-1 |
01 |
1 |
1302- |
| |
633 |
CLIP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
ID=16 H=24 L=20
|
0-95207-315-0 |
01 |
1 |
1302- |
| |
633 |
CLIP; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
ID=16 H=24 L=20
|
0-95207-315-0 |
01 |
1 |
1302- |
| |
666 |
PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98196-475-0 |
01 |
1 |
1402- |
| |
671 |
BRACKET; STAY
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97620-889-0 |
01 |
1 |
1302- |
| |
671 |
BRACKET; STAY
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97620-889-0 |
01 |
1 |
1302- |
| |
672 |
STUD; STEP
M6X20
|
8-97611-666-0 |
04 |
1 |
1302- |
| |
678 |
NUT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE>
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
1402- |
| |
682 |
BEZEL; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-531-2 |
01 |
1 |
1302- |
| |
682 |
BEZEL; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-531-2 |
01 |
1 |
1302- |
| |
682 |
BEZEL; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-530-2 |
01 |
1 |
1302- |
| |
682 |
BEZEL; BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-97611-530-2 |
01 |
1 |
1302- |
| |
683 |
CLIP; BEZEL,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-98084-293-0 |
08 |
1 |
1302- |
| |
683 |
CLIP; BEZEL,BUMPER
EXC. BUMPER W/HEADLAMPS<SLB>
|
8-98084-293-0 |
08 |
1 |
1302- |
