6-01 — FRONT BUMPER (#114475) — 134 parça

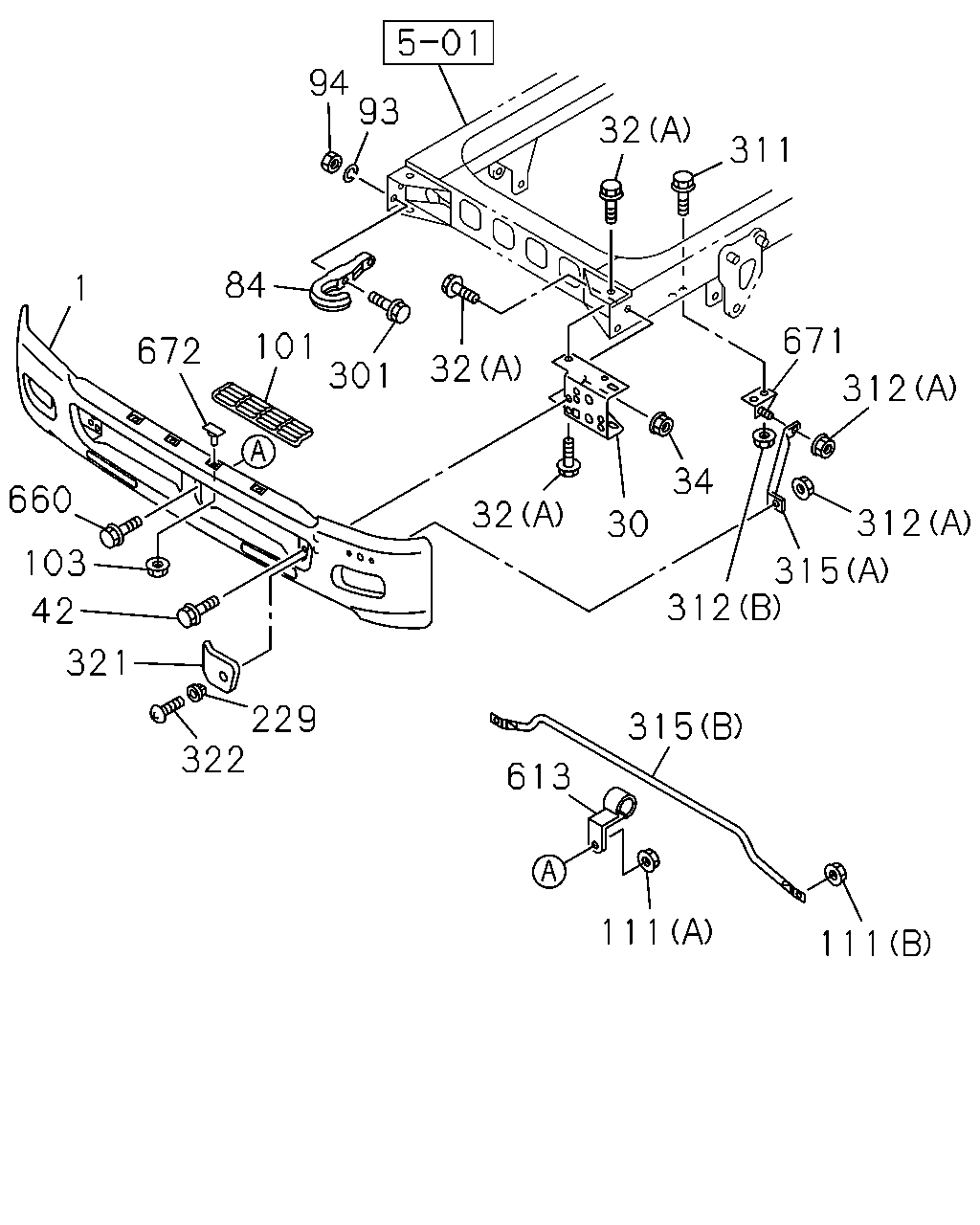

94 32 671 312 315 312 315 111 111 613 229 322 321 42 103 660 672 101 32 301 32 30 34 312 311 84 1 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT RUSSIA EQUIPMENT(B12) WHITE	8-97425-907-0	01	1	1302-1405
1	BUMPER ASM; FRT EXC. RUSSIA EQUIPMENT(B12) WHITE	8-97425-839-0	01	1	1302-1405
1	BUMPER ASM; FRT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) WHITE	8-97425-907-0	01	1	1406-
1	BUMPER ASM; FRT EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) WHITE	8-97425-839-0	01	1	1406-
30	BRACKET; FRT BUMPER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97623-248-0	01	1	1302-
30	BRACKET; FRT BUMPER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97623-247-0	01	1	1302-
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-516-4	01	1	1302-
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-515-4	01	1	1302-
30	BRACKET; FRT BUMPER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-518-4	01	1	1302-
30	BRACKET; FRT BUMPER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-517-5	01	1	1302-
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1302-
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B) M6X12 FLANGE	0-28050-612-0	06	1	1302-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1302-
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1302-
84	HOOK	1-57181-003-5	01	1	1302-
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1302-
94	NUT; HOOK M14	0-91110-514-0	02	1	1302-
101	STEP; BUMPER	8-97611-541-0	01	1	1302-
101	STEP; BUMPER	8-97611-540-0	01	1	1302-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-
111	NUT; STAY RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	01	1	1302-1405
111	NUT; STAY RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M6 FLANGE	0-91180-106-0	01	1	1406-
111	NUT; STAY RUSSIA EQUIPMENT(B12) (B) M8 FLANGE	0-91180-108-0	02	1	1302-1405
111	NUT; STAY RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8 FLANGE	0-91180-108-0	02	1	1406-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1302-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE	0-28651-025-0	12	1	1409-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	02	1	1302-1510
311	BOLT; BRKT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	02	1	1511-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	08	1	1302-1408
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE	0-28651-025-0	08	1	1409-
311	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1302-
312	NUT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1408
312	NUT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1409-
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10 FLANGE	0-91180-210-0	04	1	1409-
312	NUT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1302-
315	STAY; BUMPER RUSSIA EQUIPMENT(B12) (B)	8-97611-513-0	01	1	1302-1405
315	STAY; BUMPER RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B)	8-97611-513-0	01	1	1406-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) EXC. FRONT UNDER RUN PROTECTOR<EBE>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97611-500-2	01	1	1302-
315	STAY; BUMPER 6HK1-TCN ENG(82L) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-500-2	01	1	1302-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) EXC. FRONT UNDER RUN PROTECTOR<EBE>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97611-499-2	01	1	1302-
315	STAY; BUMPER 6HK1-TCN ENG(82L) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-499-2	01	1	1302-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-498-1	01	1	1302-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-497-1	01	1	1302-
321	COVER; BUMPER FRT SIDE	8-97616-291-1	01	1	1302-
321	COVER; BUMPER FRT SIDE	8-97616-290-1	01	1	1302-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-
613	CLIP RUSSIA EQUIPMENT(B12)	8-97623-589-0	01	1	1302-1405
613	CLIP RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)	8-97623-589-0	01	1	1406-
660	BOLT; STAY RUSSIA EQUIPMENT(B12) M6X16 W/LK&PL WASHER	0-50640-616-0	01	1	1302-1405
660	BOLT; STAY RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M6X16 W/LK&PL WASHER	0-50640-616-0	01	1	1406-
671	BRACKET; STAY EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-063-0	01	1	1302-
671	BRACKET; STAY EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-062-0	01	1	1302-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-

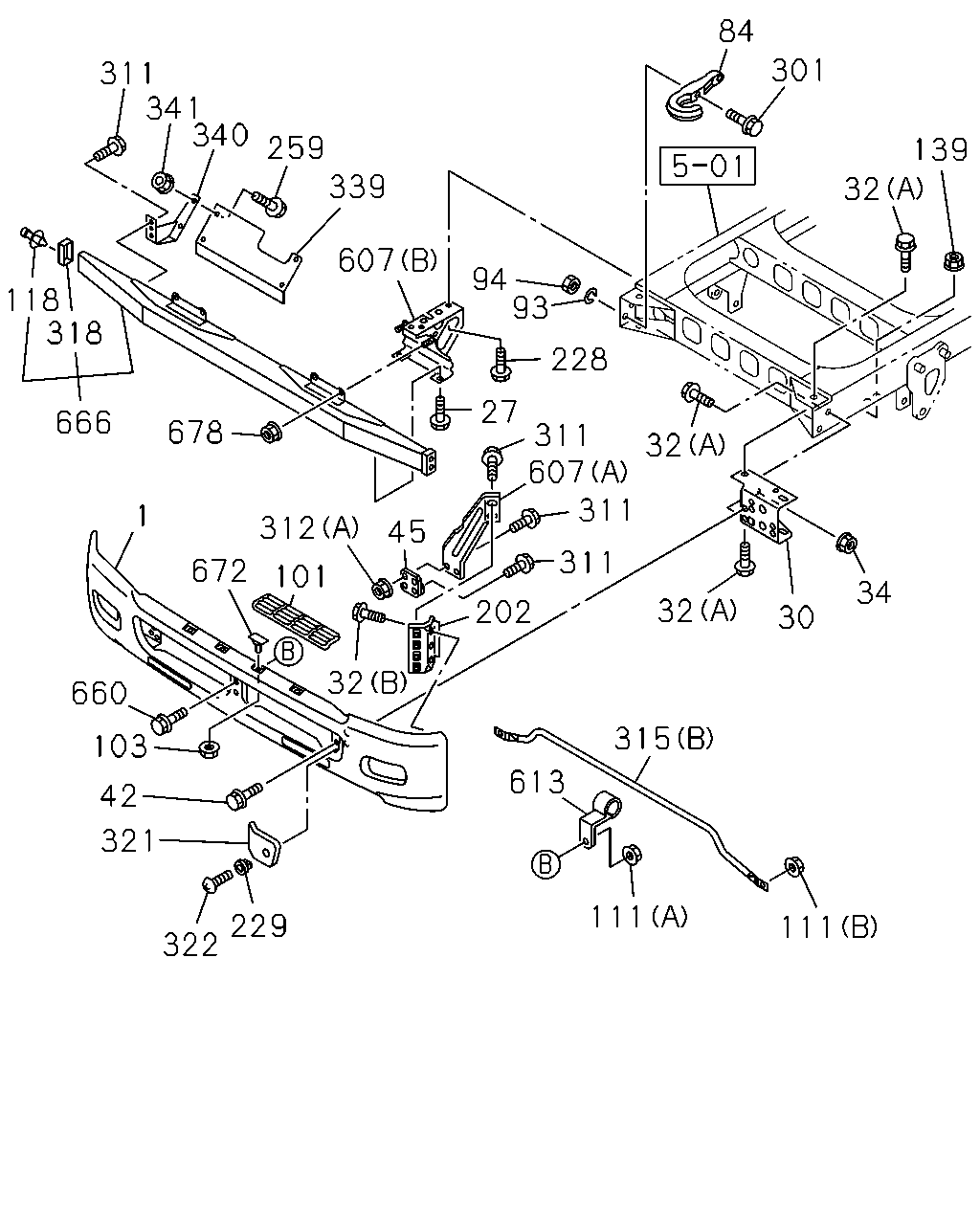

311 341 340 259 339 607 118 318 678 666 1 672 312 101 45 202 32 660 103 42 321 322 229 111 111 613 315 32 30 34 311 607 311 311 27 32 228 93 94 32 139 301 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT RUSSIA EQUIPMENT(B12) WHITE	8-97425-907-0	01	1	1302-1405
1	BUMPER ASM; FRT EXC. RUSSIA EQUIPMENT(B12) WHITE	8-97425-839-0	01	1	1302-1405
1	BUMPER ASM; FRT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) WHITE	8-97425-907-0	01	1	1406-
1	BUMPER ASM; FRT EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) WHITE	8-97425-839-0	01	1	1406-
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1302-
30	BRACKET; FRT BUMPER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97623-248-0	01	1	1302-
30	BRACKET; FRT BUMPER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97623-247-0	01	1	1302-
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-516-4	01	1	1302-
30	BRACKET; FRT BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-515-4	01	1	1302-
30	BRACKET; FRT BUMPER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-518-4	01	1	1302-
30	BRACKET; FRT BUMPER 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97611-517-5	01	1	1302-
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1302-
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> (B) M6X12 FLANGE	0-28050-612-0	06	1	1302-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1302-
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1302-
45	BRACKET; BRKT TO BUMPER FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98244-572-1	02	1	1409-
84	HOOK	1-57181-003-5	01	1	1302-
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1302-
94	NUT; HOOK M14	0-91110-514-0	02	1	1302-
101	STEP; BUMPER	8-97611-541-0	01	1	1302-
101	STEP; BUMPER	8-97611-540-0	01	1	1302-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1302-
111	NUT; STAY RUSSIA EQUIPMENT(B12) (A) M6 FLANGE	0-91180-106-0	01	1	1302-1405
111	NUT; STAY RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (A) M6 FLANGE	0-91180-106-0	01	1	1406-
111	NUT; STAY RUSSIA EQUIPMENT(B12) (B) M8 FLANGE	0-91180-108-0	02	1	1302-1405
111	NUT; STAY RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) M8 FLANGE	0-91180-108-0	02	1	1406-
118	RETAINER; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-279-0	04	1	1302-
139	NUT; BRKT FIX 4HK1-TCS ENG(RJS) FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1302-
139	NUT; BRKT FIX 6HK1-TCN ENG(82L) FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	02	1	1302-
202	BRACKET; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-97620-619-0	02	1	1302-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1302-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1302-
259	BOLT; COVER FRONT UNDER RUN PROTECTOR<EBE> M8X25 FLANGE	0-28650-825-0	04	1	1302-1510
259	BOLT; COVER RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> M8X25 FLANGE	0-28650-825-0	04	1	1511-
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1302-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE	0-28651-025-0	12	1	1409-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	02	1	1302-1510
311	BOLT; BRKT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	02	1	1511-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M10X25 FLANGE	0-28651-025-0	08	1	1302-1408
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE	0-28651-025-0	08	1	1409-
311	BOLT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1302-
312	NUT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1408
312	NUT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1409-
312	NUT; BRKT FRONT UNDER RUN PROTECTOR<EBE> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M10 FLANGE	0-91180-210-0	04	1	1409-
312	NUT; BRKT EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1302-
315	STAY; BUMPER RUSSIA EQUIPMENT(B12) (B)	8-97611-513-0	01	1	1302-1405
315	STAY; BUMPER RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B)	8-97611-513-0	01	1	1406-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) EXC. FRONT UNDER RUN PROTECTOR<EBE>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97611-500-2	01	1	1302-
315	STAY; BUMPER 6HK1-TCN ENG(82L) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-500-2	01	1	1302-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) EXC. FRONT UNDER RUN PROTECTOR<EBE>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-97611-499-2	01	1	1302-
315	STAY; BUMPER 6HK1-TCN ENG(82L) EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-499-2	01	1	1302-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-498-1	01	1	1302-
315	STAY; BUMPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97611-497-1	01	1	1302-
318	CAP; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-191-0	02	1	1302-
321	COVER; BUMPER FRT SIDE	8-97616-291-1	01	1	1302-
321	COVER; BUMPER FRT SIDE	8-97616-290-1	01	1	1302-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1302-
339	COVER; SNOW GUARD FRONT UNDER RUN PROTECTOR<EBE>	8-98056-520-2	01	1	1302-1402
339	COVER; SNOW GUARD FRONT UNDER RUN PROTECTOR<EBE>	8-98258-274-0	01	1	1403-1510
339	COVER; SNOW GUARD RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE>	8-98258-274-0	01	1	1511-
340	BRACKET; SNOW GUARD FRONT UNDER RUN PROTECTOR<EBE>	8-98056-523-1	01	1	1302-1312
340	BRACKET; SNOW GUARD FRONT UNDER RUN PROTECTOR<EBE>	8-98258-223-0	01	1	1401-1510
340	BRACKET; SNOW GUARD RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE>	8-98258-223-0	01	1	1511-
341	NUT; COVER FRONT UNDER RUN PROTECTOR<EBE> M8 FLANGE	0-91180-108-0	02	1	1302-1510
341	NUT; COVER RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> M8 FLANGE	0-91180-108-0	02	1	1511-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97620-616-0	01	1	1302-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-836-3	01	1	1302-1408
607	BRACKET RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-836-3	01	1	1409-1510
607	BRACKET RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-836-3	01	1	1511-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (A)	8-97620-615-0	01	1	1302-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-835-4	01	1	1302-1408
607	BRACKET RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-835-4	01	1	1409-1510
607	BRACKET RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA), ALGERIA EQUIPMENT(WN1) FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-835-4	01	1	1511-
613	CLIP RUSSIA EQUIPMENT(B12)	8-97623-589-0	01	1	1302-1405
613	CLIP RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA)	8-97623-589-0	01	1	1406-
660	BOLT; STAY RUSSIA EQUIPMENT(B12) M6X16 W/LK&PL WASHER	0-50640-616-0	01	1	1302-1405
660	BOLT; STAY RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M6X16 W/LK&PL WASHER	0-50640-616-0	01	1	1406-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98045-817-1	01	1	1302-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1302-
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1302-
