Isuzu WW
▶
TRUCKS
▶
FRR
▶
11507 - FRR RHD EURO2/4 SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#114471) — 57 parça
◀

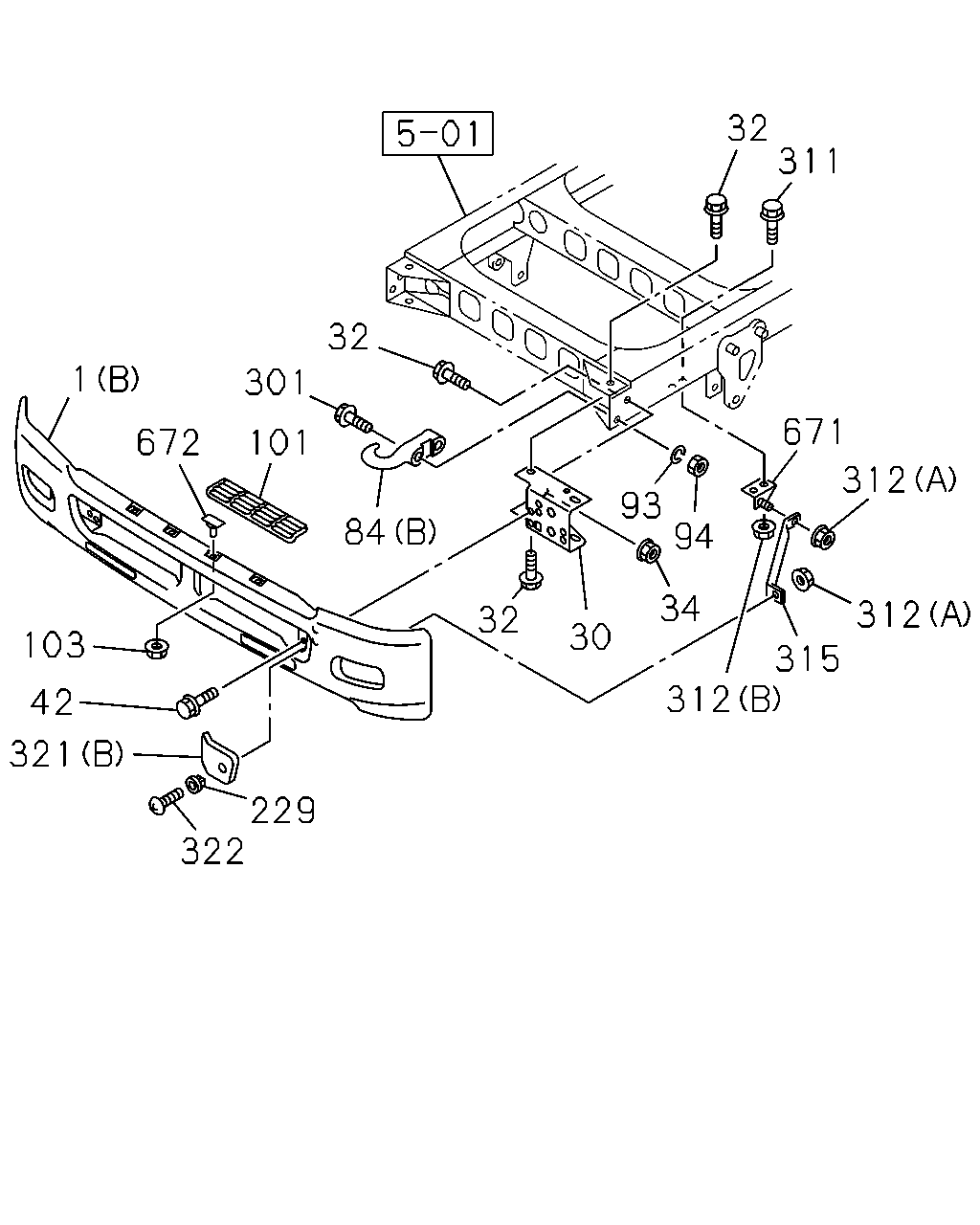

[601A] FRONT UNDER SPOILER (28 parça)

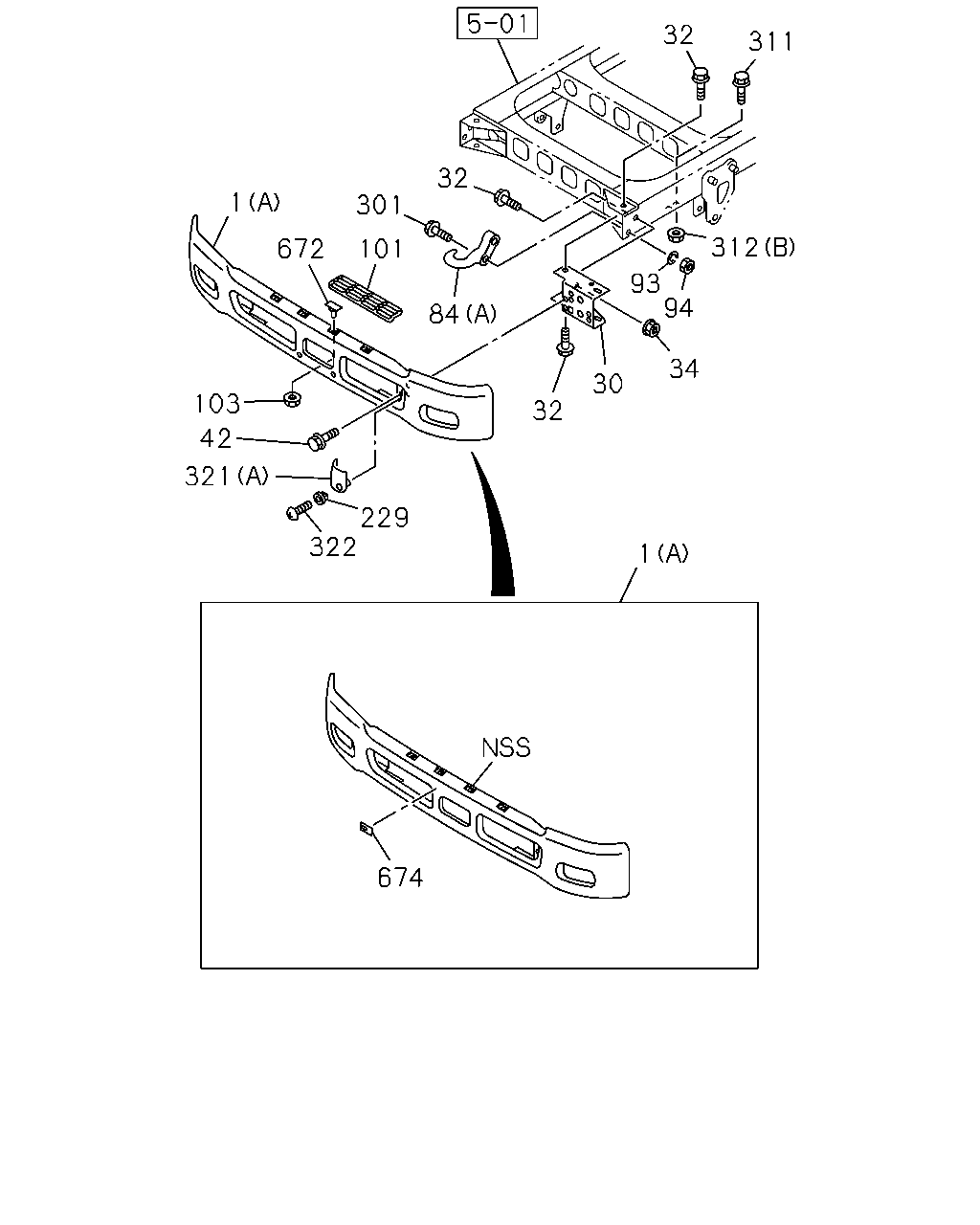

[601A] FRONT UNDER SPOILER DELETE (29 parça)
▶
32
311
32
301
1
672
101
84
32
30
34
94
93
671
312
312
315
312
103
42
312
322
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) WHITE
8-97407-725-3
01
1
1302-
1
BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> (B) WHITE
8-97425-839-0
01
1
1302-
30
BRACKET; FRT BUMPER
8-97611-516-4
01
1
1302-
30
BRACKET; FRT BUMPER
8-97611-515-4
01
1
1302-
32
BOLT; BRKT,BUMPER
M10X35 FLANGE
0-28651-035-0
06
1
1302-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
1302-
42
BOLT; BUMPER
FRONT UNDER SPOILER DELETE<SGA> M10X30
8-94324-205-0
04
1
1302-
42
BOLT; BUMPER
FRONT UNDER SPOILER<VP1> M10X30
8-94324-205-0
06
1
1302-
84
HOOK
FRONT UNDER SPOILER DELETE<SGA> (A)
8-98035-644-1
01
1
1302-
84
HOOK
FRONT UNDER SPOILER<VP1> (B)
1-57181-003-5
01
1
1302-
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
1302-
94
NUT; HOOK
M14
0-91110-514-0
02
1
1302-
101
STEP; BUMPER
8-97611-541-0
01
1
1302-
101
STEP; BUMPER
8-97611-540-0
01
1
1302-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1302-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1302-
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
1302-
311
BOLT; BRKT
FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE
0-28851-445-0
02
1
1302-
311
BOLT; BRKT
FRONT UNDER SPOILER<VP1> M14X45 FLANGE
0-28851-445-0
04
1
1302-
312
NUT; BRKT
FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE
0-91180-214-0
02
1
1302-
312
NUT; BRKT
FRONT UNDER SPOILER<VP1> (A) M10 FLANGE
0-91180-210-0
04
1
1302-
312
NUT; BRKT
FRONT UNDER SPOILER<VP1> (B) M14 FLANGE
0-91180-214-0
04
1
1302-
315
STAY; BUMPER
FRONT UNDER SPOILER<VP1>
8-97611-498-1
01
1
1302-
315
STAY; BUMPER
FRONT UNDER SPOILER<VP1>
8-97611-497-1
01
1
1302-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1302-
671
BRACKET; STAY
FRONT UNDER SPOILER<VP1>
8-97614-063-0
01
1
1302-
671
BRACKET; STAY
FRONT UNDER SPOILER<VP1>
8-97614-062-0
01
1
1302-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1302-
311
32
312
34
94
93
30
32
229
322
321
42
103
674
1
84
101
301
32
672
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
FRONT UNDER SPOILER DELETE<SGA> (A) WHITE
8-97407-725-3
01
1
1302-
1
BUMPER ASM; FRT
FRONT UNDER SPOILER<VP1> (B) WHITE
8-97425-839-0
01
1
1302-
30
BRACKET; FRT BUMPER
8-97611-516-4
01
1
1302-
30
BRACKET; FRT BUMPER
8-97611-515-4
01
1
1302-
32
BOLT; BRKT,BUMPER
M10X35 FLANGE
0-28651-035-0
06
1
1302-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
1302-
42
BOLT; BUMPER
FRONT UNDER SPOILER DELETE<SGA> M10X30
8-94324-205-0
04
1
1302-
42
BOLT; BUMPER
FRONT UNDER SPOILER<VP1> M10X30
8-94324-205-0
06
1
1302-
84
HOOK
FRONT UNDER SPOILER DELETE<SGA> (A)
8-98035-644-1
01
1
1302-
84
HOOK
FRONT UNDER SPOILER<VP1> (B)
1-57181-003-5
01
1
1302-
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
1302-
94
NUT; HOOK
M14
0-91110-514-0
02
1
1302-
101
STEP; BUMPER
8-97611-541-0
01
1
1302-
101
STEP; BUMPER
8-97611-540-0
01
1
1302-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1302-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1302-
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
1302-
311
BOLT; BRKT
FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE
0-28851-445-0
02
1
1302-
311
BOLT; BRKT
FRONT UNDER SPOILER<VP1> M14X45 FLANGE
0-28851-445-0
04
1
1302-
312
NUT; BRKT
FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE
0-91180-214-0
02
1
1302-
312
NUT; BRKT
FRONT UNDER SPOILER<VP1> (A) M10 FLANGE
0-91180-210-0
04
1
1302-
312
NUT; BRKT
FRONT UNDER SPOILER<VP1> (B) M14 FLANGE
0-91180-214-0
04
1
1302-
321
COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (A)
8-97616-294-0
01
1
1302-
321
COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER DELETE<SGA> (A)
8-97616-293-0
01
1
1302-
321
COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER<VP1> (B)
8-97616-291-1
01
1
1302-
321
COVER; BUMPER FRT SIDE
FRONT UNDER SPOILER<VP1> (B)
8-97616-290-1
01
1
1302-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1302-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1302-
674
BRACKET; BUMPER,PLATE
FRONT UNDER SPOILER DELETE<SGA>
8-97611-491-1
01
1
1302-
