11521 - FVZ(LHD)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#114470) — 15 parça
◀

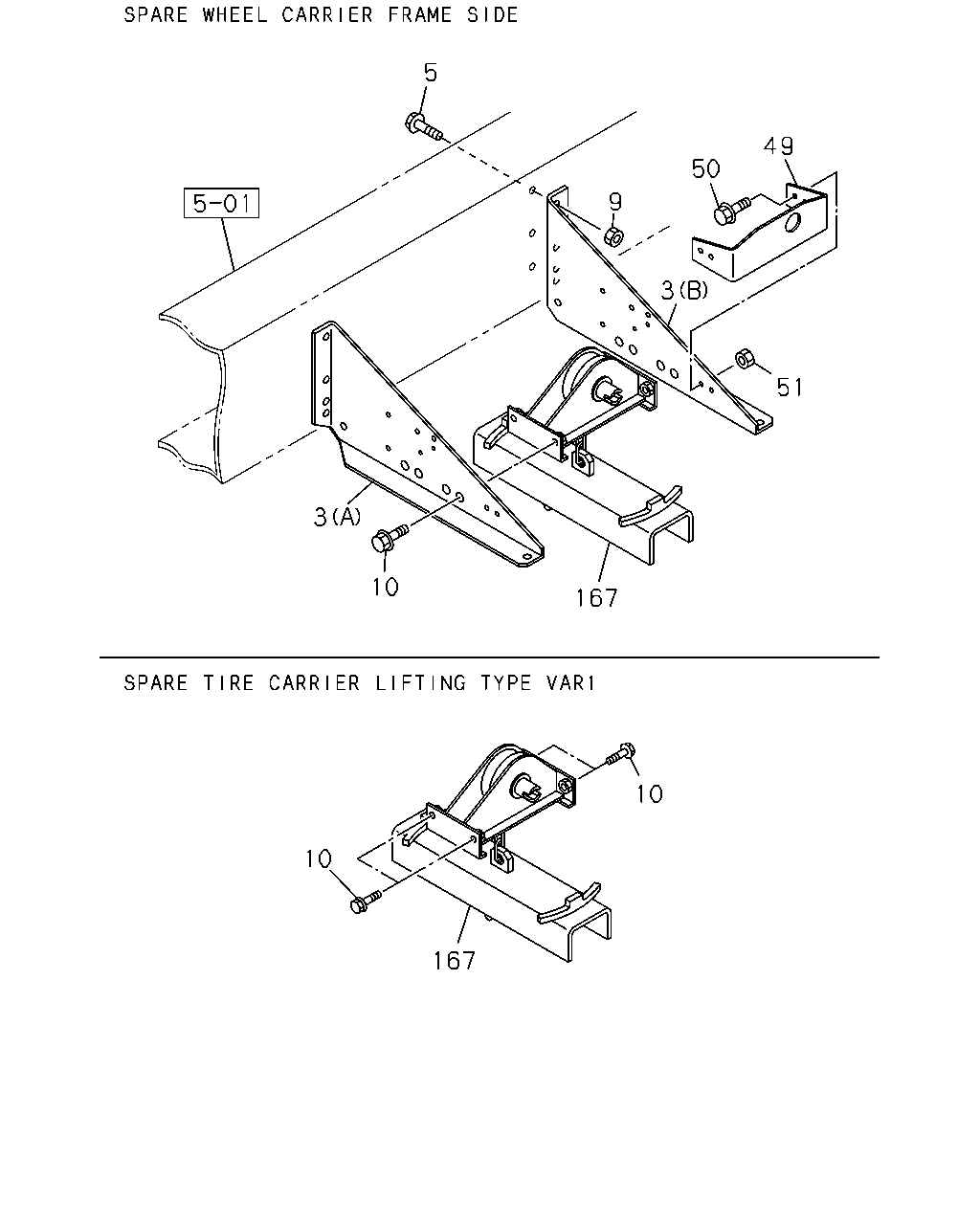

[530A] NO.1 (9 parça)
[530A] NO.2 (6 parça)
▶
5
9
50
49
51
3
167
10
3
10
167
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-98106-690-0
01
1
1302-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
8-98106-691-0
01
1
1302-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE
0-28051-245-0
06
1
1302-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
06
1
1302-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
1302-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-466-1
01
1
1302-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE
0-28650-830-0
04
1
1302-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1302-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
1302-
167
10
15
10
15
15
10
20
19
10
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
1302-
15
MEMBER; CROSS,SPARE TIRE
TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R), TIRE 10.00R-20-16 EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R),TIRE 11.00R20-16RIB(85R),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) SPARE WHEEL CARRIER FRAME REAR<P10> (A)
1-53631-395-1
02
1
1302-
15
MEMBER; CROSS,SPARE TIRE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) SPARE WHEEL CARRIER FRAME REAR<P10> (B)
8-97608-196-1
02
1
1302-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE
0-28051-040-0
08
1
1302-
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
1302-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
1302-
