◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10863 - EXR RHD FUEL TANK 200L+200L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#11447) — 62 parça

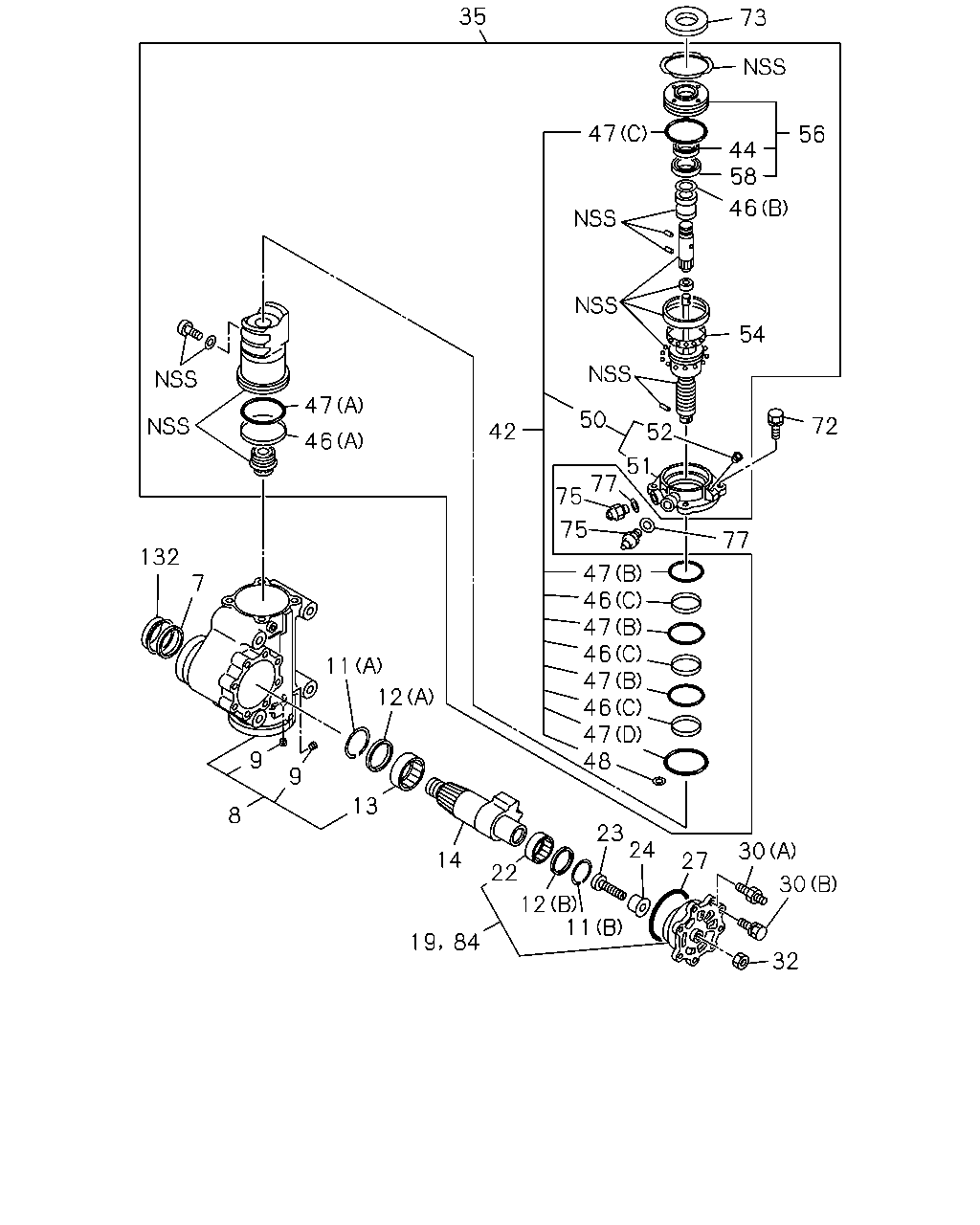

çizim 19982
72 77 47 48 46 47 46 47 46 47 12 11 132 7 42 50 75 77 75 51 52 54 46 58 44 56 73 35 47 46 47 32 30 30 27 24 23 11 12 22 14 13 9 9 8 19 84
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-902-0, D = 1-44000-903-0 		1-44240-148-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-863-1, D = 1-44000-903-0 		1-44321-035-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1 		1-44321-037-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-902-0 		1-44321-038-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, C = 1-44000-902-0 		1-44150-057-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-863-1, D = 1-44000-903-0 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: C = 1-44000-902-0, D = 1-44000-903-0 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-227-0 01 1 -

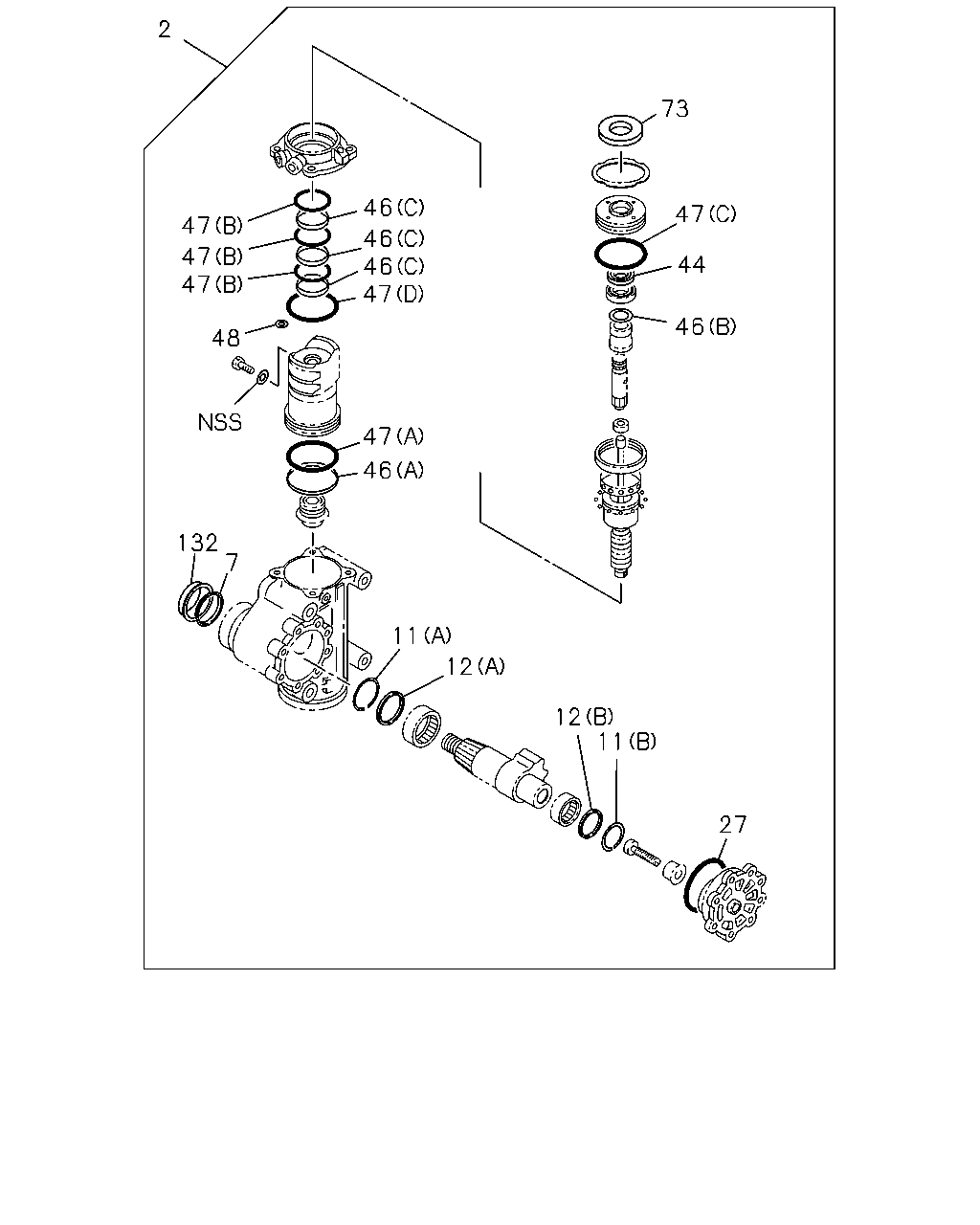

çizim 74591
46 44 47 73 27 11 12 12 11 7 132 46 47 48 47 47 47 2 46 46 46 47
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
