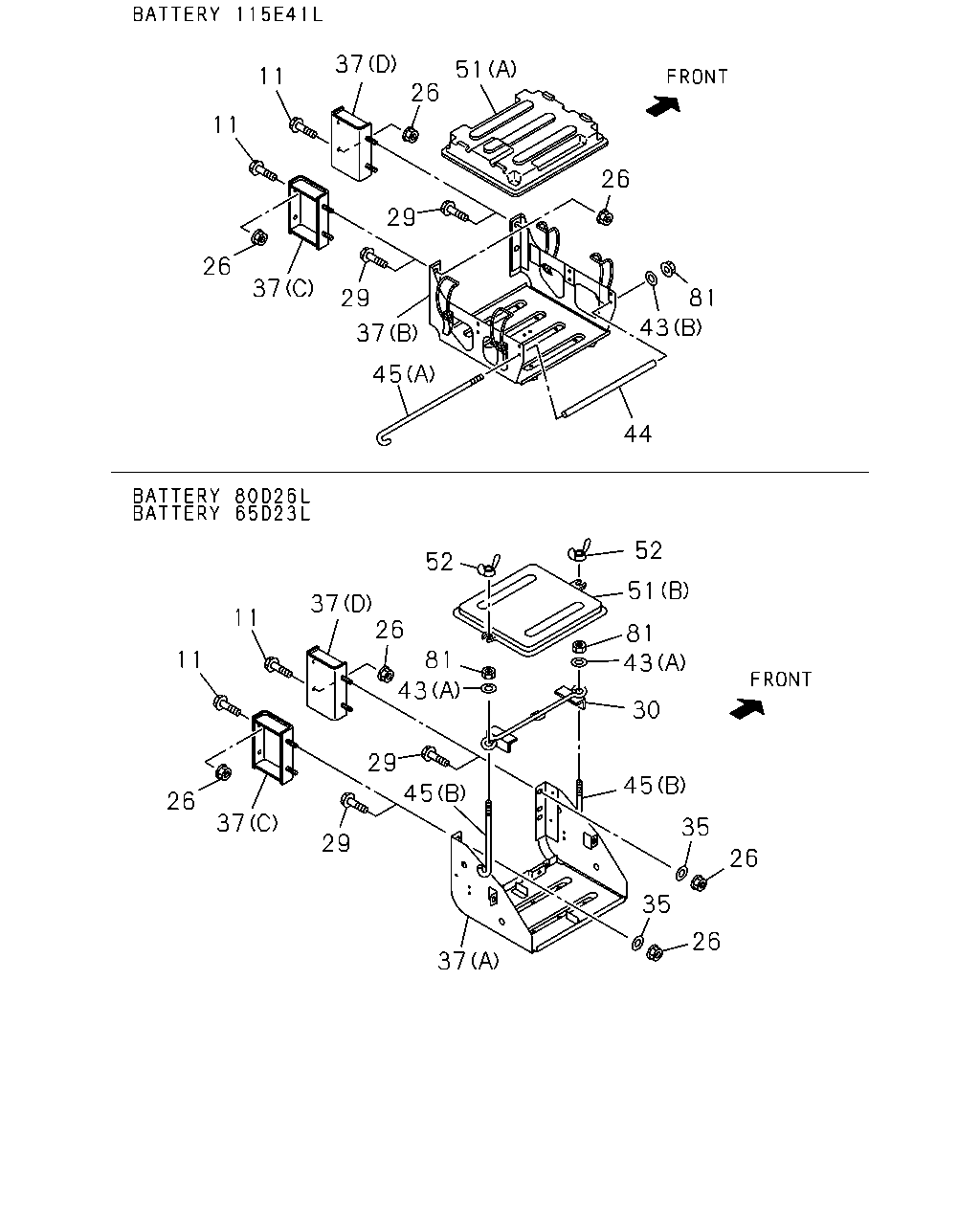

5-20 — BATTERY CARRIER (#114454) — 34 parça

51 26 37 11 11 26 37 29 29 37 45 26 81 43 44 52 51 81 43 30 45 35 26 35 26 37 45 29 29 43 81 52 26 37 11 11 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10X35 FLANGE	0-28651-035-0	04	1	1302-1505	●
11	BOLT; BRKT FIX 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10X35 FLANGE	0-28651-035-0	04	1	1302-1505		●
11	BOLT; BRKT FIX 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10X35 FLANGE	0-28651-035-0	04	1	1506-	●
11	BOLT; BRKT FIX 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10X35 FLANGE	0-28651-035-0	04	1	1506-		●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10 FLANGE	0-91180-210-0	04	1	1302-1505	●	●
26	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10 FLANGE	0-91180-210-0	04	1	1302-1505	●
26	NUT; BRKT 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10 FLANGE	0-91180-210-0	04	1	1302-1505		●
26	NUT; BRKT BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10 FLANGE	0-91180-210-0	04	1	1506-	●	●
26	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10 FLANGE	0-91180-210-0	04	1	1506-	●
26	NUT; BRKT 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10 FLANGE	0-91180-210-0	04	1	1506-		●
29	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10X35 FLANGE	0-28651-035-0	04	1	1305-	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1302-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (D)	8-98088-828-0	01	1	1302-1505	●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (D)	8-98088-828-0	01	1	1302-1505		●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (D)	8-98088-828-0	01	1	1506-	●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (D)	8-98088-828-0	01	1	1506-		●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (C)	8-98162-291-0	01	1	1302-1505	●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (C)	8-98162-291-0	01	1	1302-1505		●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (C)	8-98162-291-0	01	1	1506-	●
37	BRACKET; BATTERY 6HK1-TCS ENG(80L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> (C)	8-98162-291-0	01	1	1506-		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1302-1405	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1302-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1302-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1302-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1302-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1302-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1302-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1302-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1302-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1302-	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
