5-20 — BATTERY CARRIER (#114451) — 62 parça

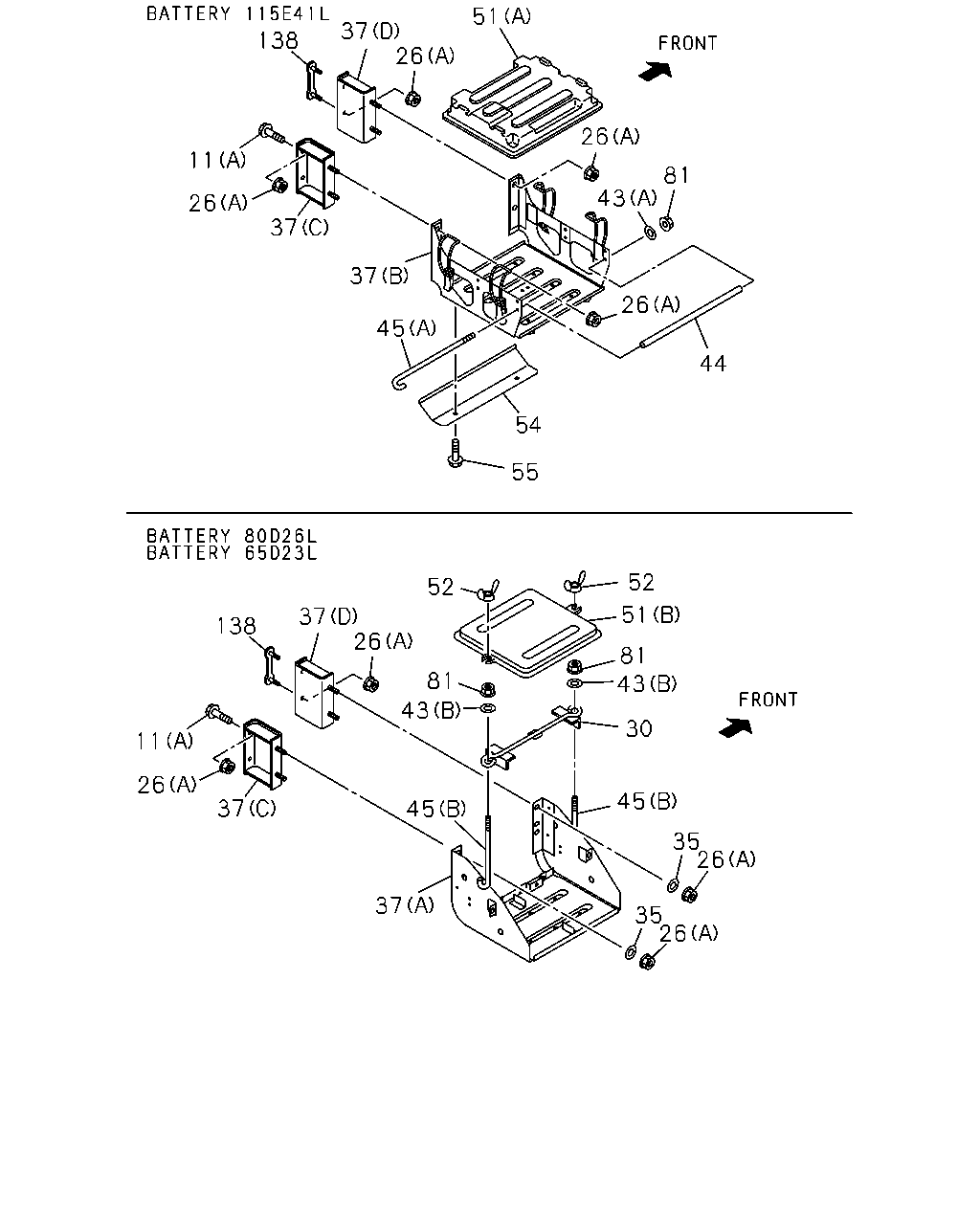

138 11 26 37 37 45 54 55 44 26 43 81 26 51 26 37 52 37 26 81 43 138 11 26 37 45 37 26 35 26 35 45 30 43 81 51 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-	●
11	BOLT; BRKT FIX (B) M14X35	0-20851-435-0	04	1	1302-		●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1302-	●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1302-	●
26	NUT; BRKT (B) M14	0-91110-514-0	04	1	1302-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1302-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1302-	●
37	BRACKET; BATTERY (C)	8-98162-291-0	01	1	1302-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-499-0	01	1	1302-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-637-0	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1302-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1302-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1302-		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1302-		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98167-768-0	01	1	1302-1405		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98261-640-1	01	1	1406-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1302-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1302-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1302-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1302-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1302-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1302-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1302-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1302-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1302-	●	●
54	PROTECTOR; HEAT,BATTERY BATTERY 115E41L<8MA>	8-98113-142-0	01	1	1302-	●
55	BOLT; HEAT PROTECTOR BATTERY 115E41L<8MA> M8X10 FLANGE	0-28050-810-0	02	1	1302-	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
138	STUD	8-98178-497-0	01	1	1302-1311	●
138	STUD	8-98255-710-0	01	1	1312-	●

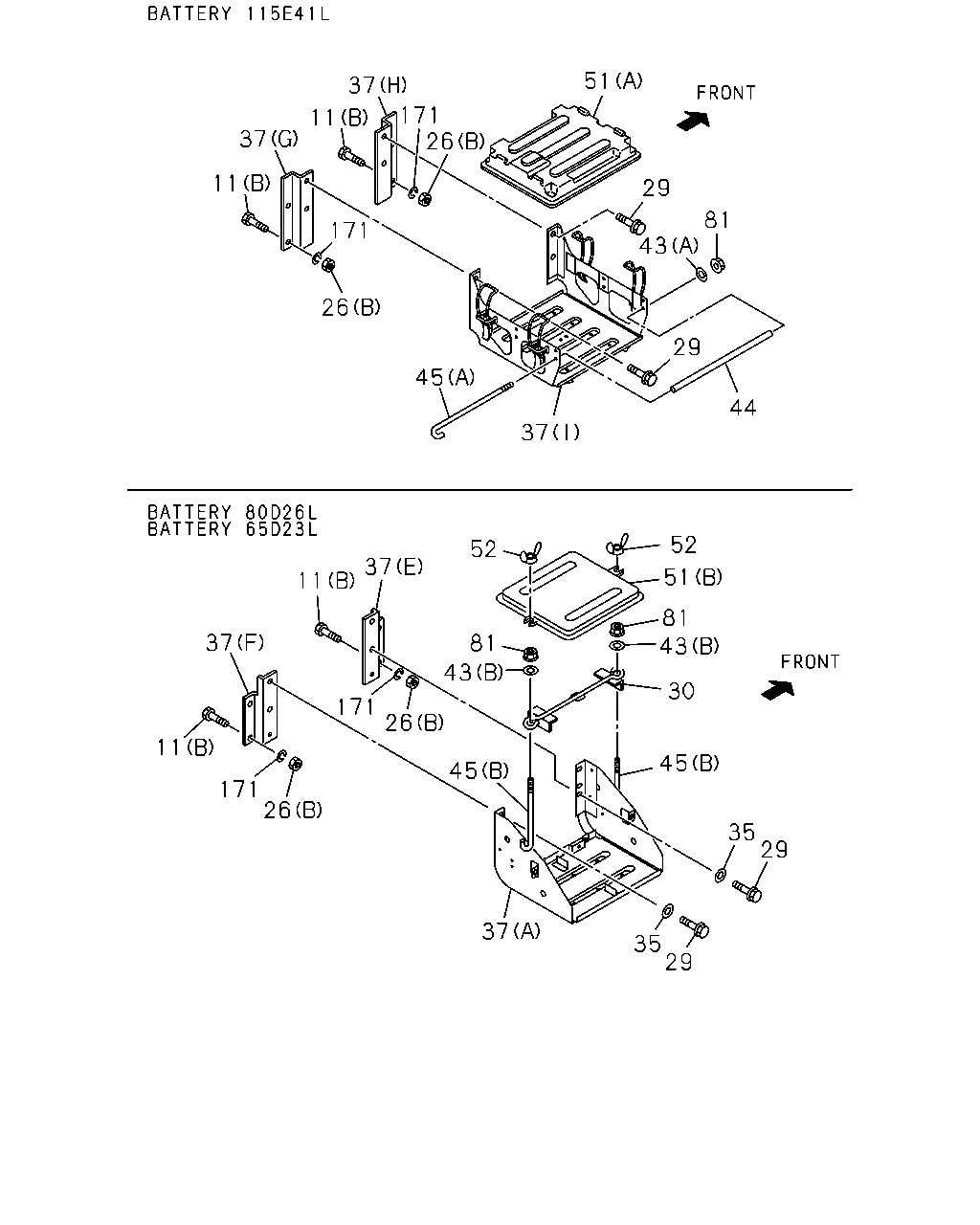

44 81 29 51 29 37 45 26 171 26 43 171 37 11 37 11 52 51 81 43 30 45 35 29 29 35 37 45 43 52 37 11 171 26 81 26 171 11 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-	●
11	BOLT; BRKT FIX (B) M14X35	0-20851-435-0	04	1	1302-		●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1302-	●
26	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	1302-	●
26	NUT; BRKT (B) M14	0-91110-514-0	04	1	1302-		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1302-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1302-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1302-	●	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1302-	●
37	BRACKET; BATTERY (C)	8-98162-291-0	01	1	1302-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-499-0	01	1	1302-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-637-0	01	1	1406-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1302-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1302-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (G)	8-98152-834-1	01	1	1302-		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (H)	8-98152-835-1	01	1	1302-		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98167-768-0	01	1	1302-1405		●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (I)	8-98261-640-1	01	1	1406-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (E)	1-53619-056-1	01	1	1302-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (F)	1-53619-057-2	01	1	1302-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (A) ID=8.4 OD=16	0-91610-508-0	02	1	1302-	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) ID=8.4 OD=22	0-91614-708-0	02	1	1302-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1302-	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1302-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1302-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1302-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1302-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
171	WASHER; BRKT ID=14.2	0-91510-814-0	04	1	1302-		●
