Isuzu WW
▶
TRUCKS
▶
FSR
▶
11508 - FSR(LHD)
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#114443) — 65 parça
◀

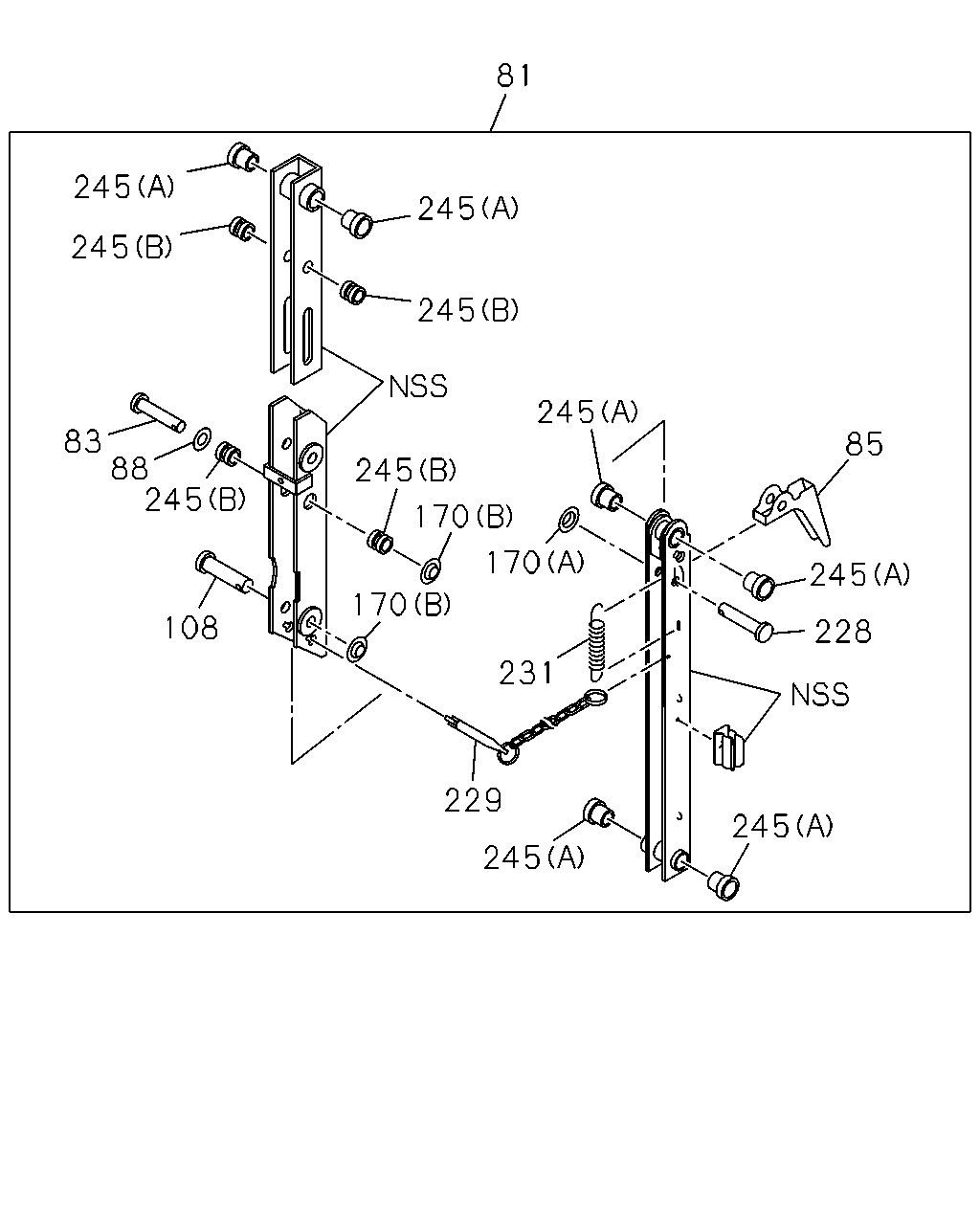

[515A] COMPONENT CAB TILT STAY (17 parça)

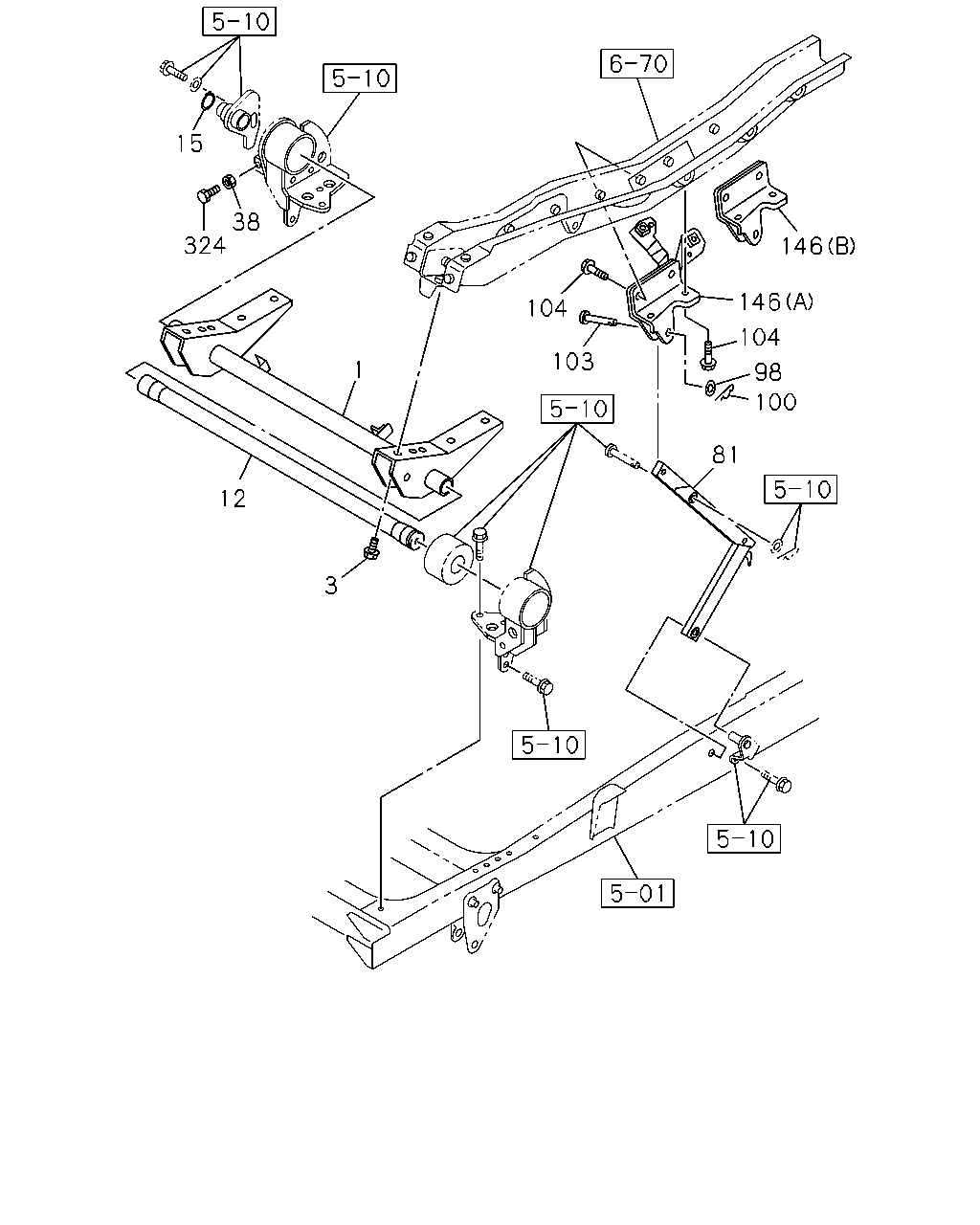

[515A] TORSION LEVER AND CAB TILT STAY (21 parça)

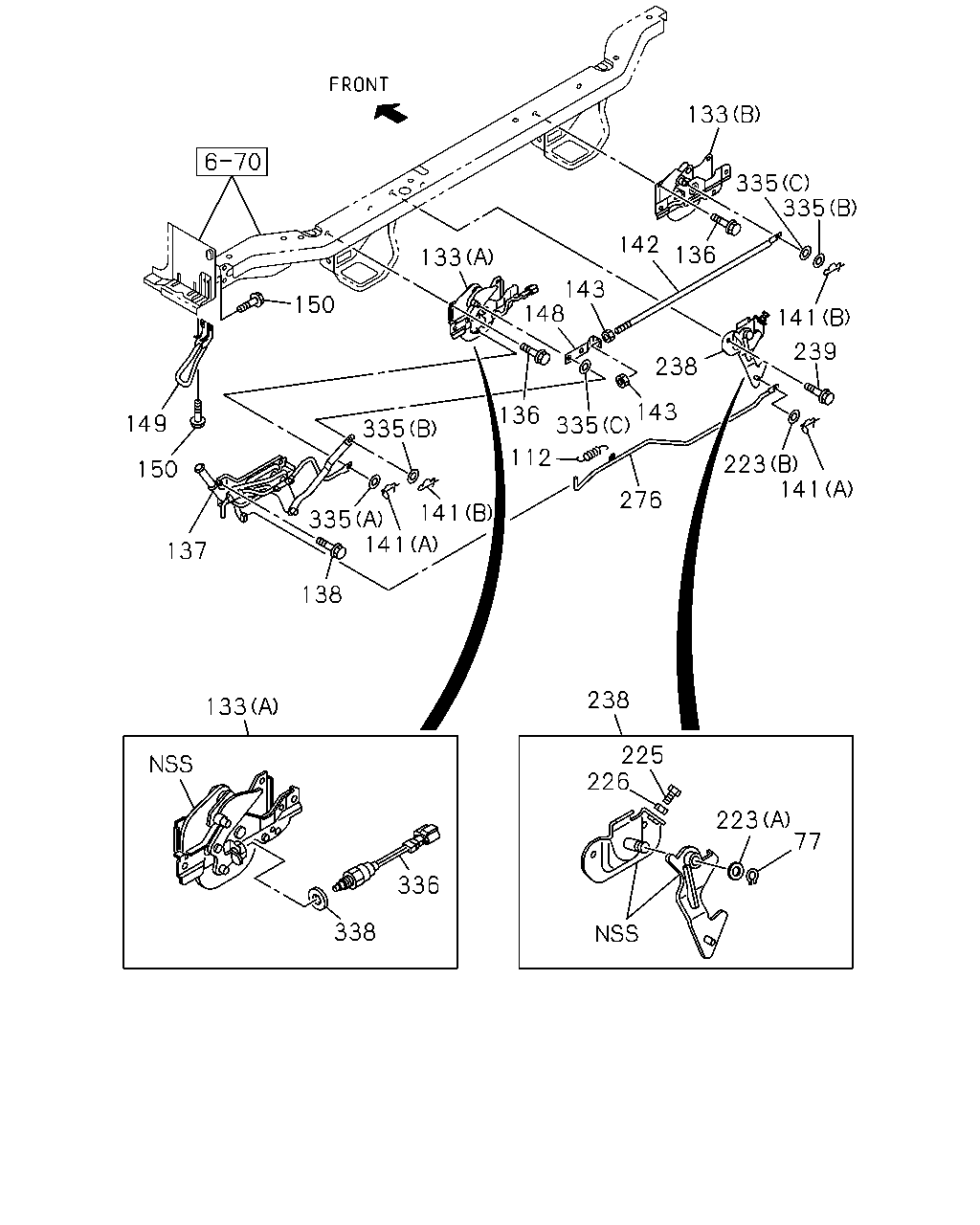

[515A] CAB LOCK AND TILT HANDLE (27 parça)
▶
108
245
88
83
245
245
81
245
245
245
170
170
170
245
231
229
245
85
245
228
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-62500-758-0
01
1
1302-1406
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98278-114-0
01
1
1407-
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-62500-755-0
01
1
1302-1406
81
STAY ASM; CAB TILT
6HK1-TCN ENG(82L)
1-62500-755-0
01
1
1302-1406
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98278-111-0
01
1
1407-
81
STAY ASM; CAB TILT
6HK1-TCN ENG(82L)
8-98278-111-0
01
1
1407-
83
PIN; JOINT,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1302-
85
LEVER; LOCK,CAB STAY
1-62500-503-0
01
1
1302-
88
WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0
1-09985-183-0
01
1
1302-
108
PIN; ADJ,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1302-
170
NUT
(A) ID=7.9 PUSH NUT
8-97022-565-0
01
1
1302-
170
NUT
(B) ID=9.9 PUSH NUT
8-97022-566-0
02
1
1302-
228
PIN; SAFETY LOCK SPRING,CAB STAY
OD=8 L=27
1-09744-086-2
01
1
1302-
229
PIN ASM; SAFETY
1-62500-517-1
01
1
1302-
231
SPRING; RETURN,LOCK LEVER,CAB STAY
1-09583-244-0
01
1
1302-
245
BUSHING; CAB STAY
(A)
1-62500-587-0
06
1
1302-
245
BUSHING; CAB STAY
(B)
1-62500-588-0
04
1
1302-
15
38
324
1
12
3
103
104
146
146
104
100
98
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; TORSION BAR
8-98017-608-5
01
1
1302-
3
BOLT; LEVER
M12X42 FLANGE
8-98090-287-1
08
1
1302-
12
BAR; TORSION,UPR
8-98017-940-0
01
1
1302-
15
RING; SNAP,TORSION BAR
T=1.90 BLUE
8-97129-615-0
01
1
1302-
38
NUT; LK
M14
0-91110-514-0
01
1
1302-
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-62500-758-0
01
1
1302-1406
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98278-114-0
01
1
1407-
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
1-62500-755-0
01
1
1302-1406
81
STAY ASM; CAB TILT
6HK1-TCN ENG(82L)
1-62500-755-0
01
1
1302-1406
81
STAY ASM; CAB TILT
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
8-98278-111-0
01
1
1407-
81
STAY ASM; CAB TILT
6HK1-TCN ENG(82L)
8-98278-111-0
01
1
1407-
98
WASHER; CAB STAY
ID=10.5 T=2.0
1-09985-183-0
01
1
1302-
100
PIN; SNAP,CAB STAY TO CAB
L=34
8-98039-426-1
01
1
1302-
103
PIN; JOINT,CAB STAY
1-09744-108-1
01
1
1302-
104
BOLT; CAB STAY BRKT
M10X30 FLANGE
0-28661-030-0
04
1
1302-
146
BRACKET ASM; CAB STAY UPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-98019-506-0
01
1
1305-
146
BRACKET ASM; CAB STAY UPR
(A)
8-98089-081-0
01
1
1302-1304
146
BRACKET ASM; CAB STAY UPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98089-081-0
01
1
1305-
324
BOLT; ADJUST
EXC. KD PREPARATORY PACK<6HF> M14X59
8-98330-402-0
01
1
1512-
324
BOLT; ADJUST
M14X55
8-98004-319-1
01
1
1302-1511
324
BOLT; ADJUST
KD PREPARATORY PACK<6HF> M14X55
8-98004-319-1
01
1
1512-
149
150
137
138
133
336
338
226
225
238
223
77
276
141
335
335
136
112
335
143
238
142
143
148
133
150
133
335
335
136
141
239
223
141
141
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
RING; SNAP
ID=14.7
0-91800-616-0
01
1
1302-
112
SPRING; RETURN,SAFETY ROD
1-79718-655-0
01
1
1302-
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1302-
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1302-
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
1302-
137
CONTROL UNIT; CAB LOCK
8-97584-470-5
01
1
1302-
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
1302-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1302-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1302-
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1302-
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1302-
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1302-
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1302-
149
HANDLE; TILT
8-98025-706-0
01
1
1302-
150
BOLT; TILT HANDLE
M8X20 FLANGE
0-28650-820-0
04
1
1302-
223
WASHER; PL,SAFETY LK
(B) ID=8.4 OD=16
0-91610-508-0
01
1
1302-
223
WASHER; PL,SAFETY LK
(A) ID=17 OD=30
0-91610-516-0
01
1
1302-
225
BOLT; SAFETY LK
M8X30 FLANGE
0-28050-830-0
01
1
1302-
226
NUT; SAFETY LK
M8
0-91110-508-0
01
1
1302-
238
LOCK ASM; SAFETY,CAB TILT
8-98048-899-1
01
1
1302-
239
BOLT; SAFETY LK
M8X20 FLANGE
0-28650-820-0
02
1
1302-
276
ROD ASM; CAB LOCK,HOOK TO HOOK
8-98048-830-1
01
1
1302-
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1302-
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1302-
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1302-
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1302-
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
