6-90 — REAR BUMPER (#114424) — 62 parça

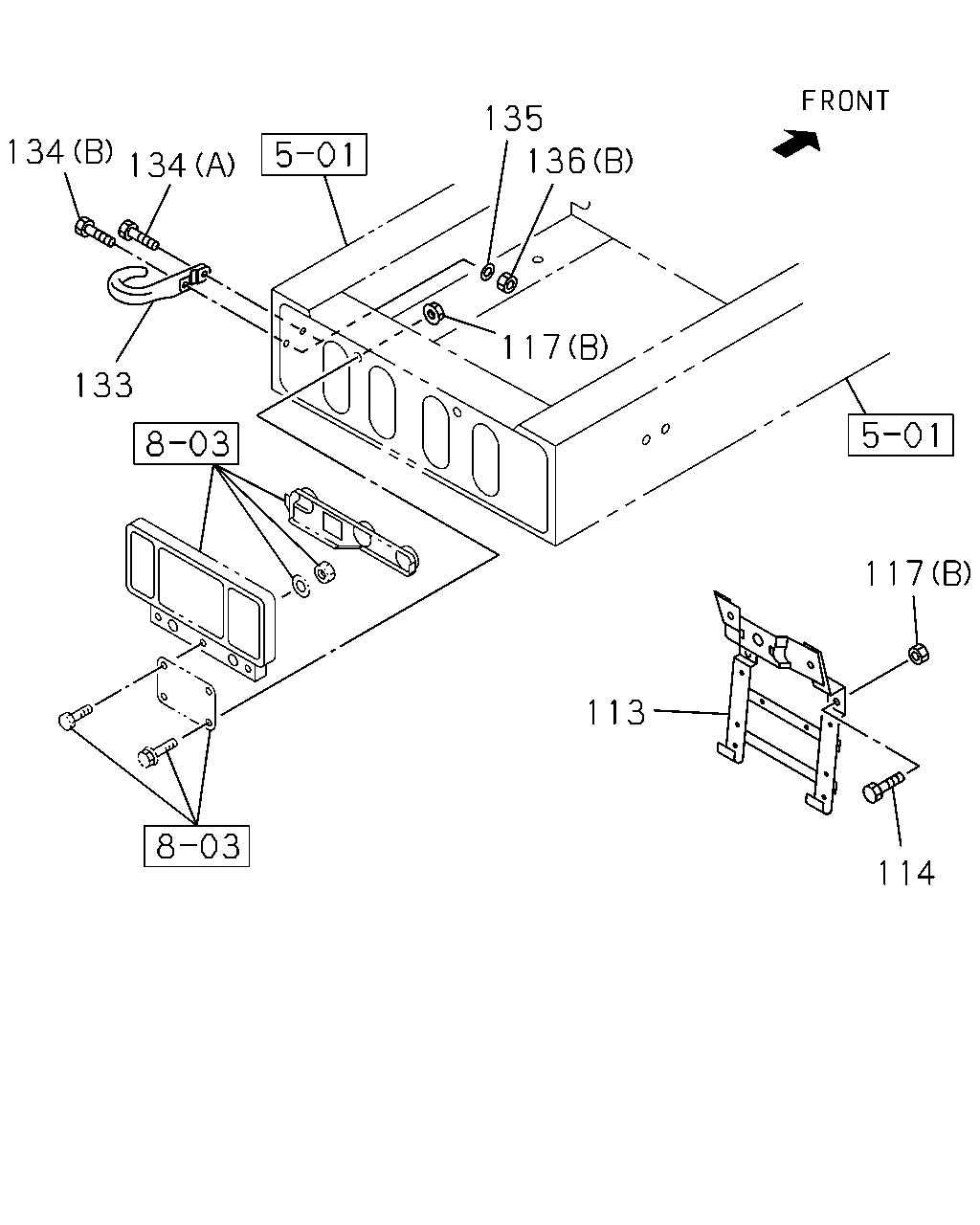

133 134 134 135 136 117 113 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER; RR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS>	1-71220-043-2	02	1	1302-
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1302-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1302-
117	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1302-
117	NUT; BRKT PINTLE HOOK<PP7> (A) M12 FLANGE	0-91180-212-0	02	1	1302-
133	HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7>	1-57181-027-1	02	1	1302-
133	HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7>	1-57181-027-1	01	1	1302-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16X50	0-20851-650-0	02	1	1302-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16X60	0-20851-660-0	02	1	1302-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16X50	0-20851-650-0	01	1	1302-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16X60	0-20851-660-0	01	1	1302-
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	04	1	1302-
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	02	1	1302-
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1302-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16	0-91110-516-0	04	1	1302-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16	0-91110-516-0	02	1	1302-
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	1302-

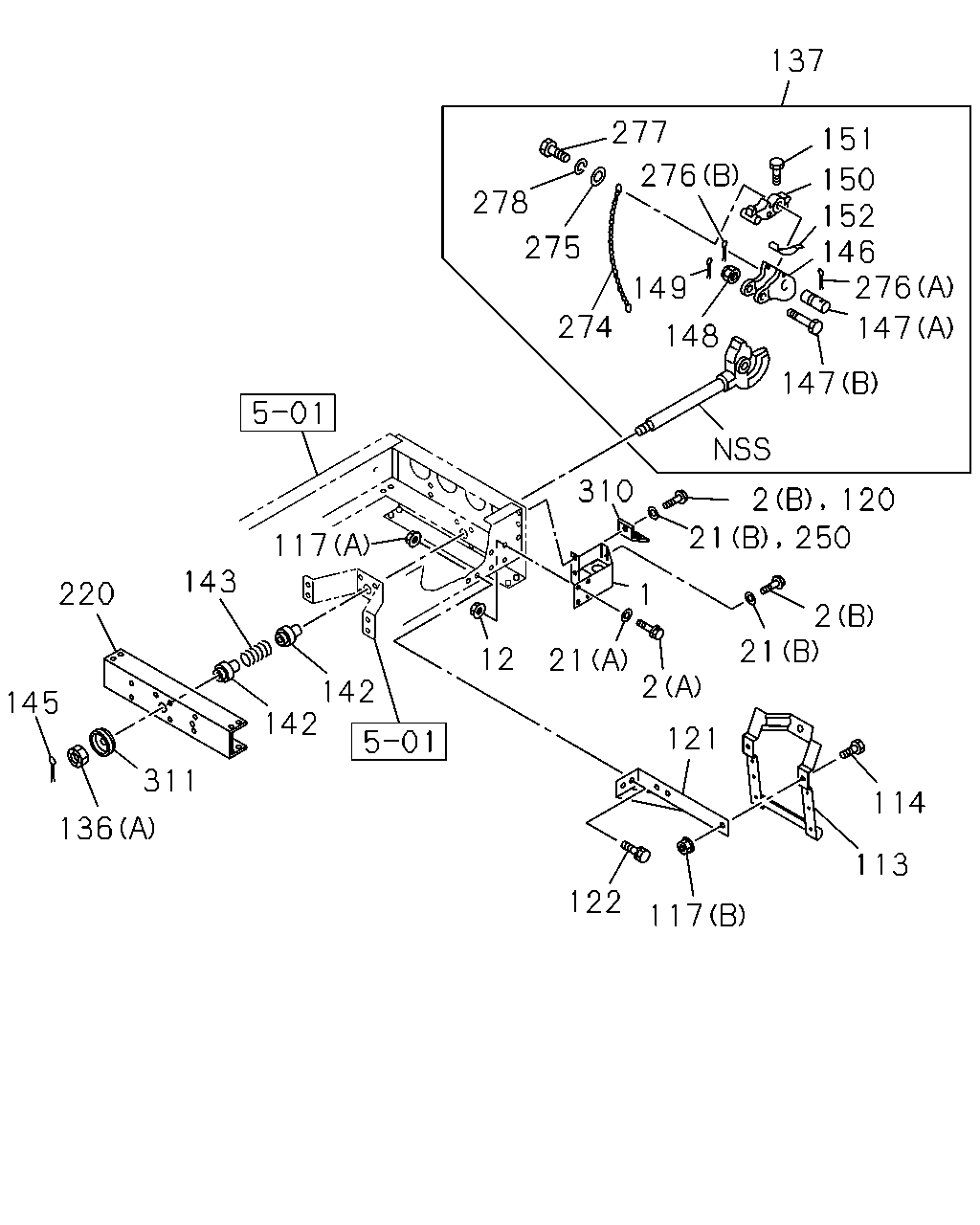

113 114 21 2 120 250 21 2 2 121 117 122 21 12 142 142 311 136 145 220 143 117 310 147 147 276 146 152 150 151 148 274 275 278 276 277 137 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER; RR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS>	1-71220-043-2	02	1	1302-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (A) M14X40	0-20851-440-0	08	1	1302-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	02	1	1302-
2	BOLT; BACK BAR PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (B) M16X40	0-20851-640-0	04	1	1302-
12	NUT; BRKT PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> M14	0-91110-514-0	04	1	1302-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> (A) ID=14.2	0-91510-814-0	08	1	1302-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> RR HOOK TWO EYE<VR7> (B) ID=16.2	0-91510-816-0	02	1	1302-
21	WASHER; LK,BUMPER PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> EXC. RR HOOK TWO EYE<VR7> (B) ID=16.2	0-91510-816-0	04	1	1302-
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1302-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1302-
117	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1302-
117	NUT; BRKT PINTLE HOOK<PP7> (A) M12 FLANGE	0-91180-212-0	02	1	1302-
120	BOLT RR HOOK TWO EYE<VR7> M16X40	0-20851-640-0	02	1	1302-
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	8-98179-582-0	01	1	1302-
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE	0-28651-230-0	02	1	1302-
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1302-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16	0-91110-516-0	04	1	1302-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16	0-91110-516-0	02	1	1302-
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	1302-
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	1302-
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	1302-
143	SPRING; COIL,PINTLE HOOK MZW6P M/T(RSZ) WHEEL BASE 4100MM(41W) PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> DOUBLE TIRE REARWARD<SR6>	9-09940-078-0	01	1	1302-
143	SPRING; COIL,PINTLE HOOK WHEEL BASE 4100MM(41W) PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> REARWARD INNER SINGLE TIRE<YK3>	9-09940-078-0	01	1	1302-
143	SPRING; COIL,PINTLE HOOK MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. REAR BUMPER,REINFORCEMENT<SMS>	9-09940-078-0	01	1	1302-
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	0-81126-065-0	01	1	1302-
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	1302-
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	1302-
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	1302-
148	NUT; LK PIN PINTLE HOOK<PP7> M24	1-09442-032-0	01	1	1302-
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	1302-
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	1302-
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50540-832-0	01	1	1302-
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	1302-
220	MEMBER; PINTLE HOOK MZW6P M/T(RSZ) WHEEL BASE 4100MM(41W) PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> DOUBLE TIRE REARWARD<SR6>	8-97618-610-0	01	1	1302-
220	MEMBER; PINTLE HOOK WHEEL BASE 4100MM(41W) PINTLE HOOK<PP7> REAR BUMPER,REINFORCEMENT<SMS> REARWARD INNER SINGLE TIRE<YK3>	8-97618-610-0	01	1	1302-
220	MEMBER; PINTLE HOOK MZW6P M/T(RSZ) WHEEL BASE 3600MM(36W),WHEEL BASE 4200MM(42W) PINTLE HOOK<PP7> DOUBLE TIRE REARWARD<SR6> EXC. REAR BUMPER,REINFORCEMENT<SMS>	8-97618-610-0	01	1	1302-
250	WASHER; LK,BRKT TRAILER SAFETY CHAIN RR HOOK TWO EYE<VR7> ID=16.2	0-91510-816-0	02	1	1302-
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	1302-
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4	0-91610-606-0	01	1	1302-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	1302-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	1302-
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	1302-
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	0-91510-506-0	01	1	1302-
310	EYE; PLATE RR HOOK TWO EYE<VR7>	1-57184-001-0	02	1	1302-
311	PLATE; ADJUSTING PINTLE HOOK<PP7>	1-57184-008-0	01	1	1302-
