◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11510 - FSS(RHD)EURO2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#114410) — 14 parça

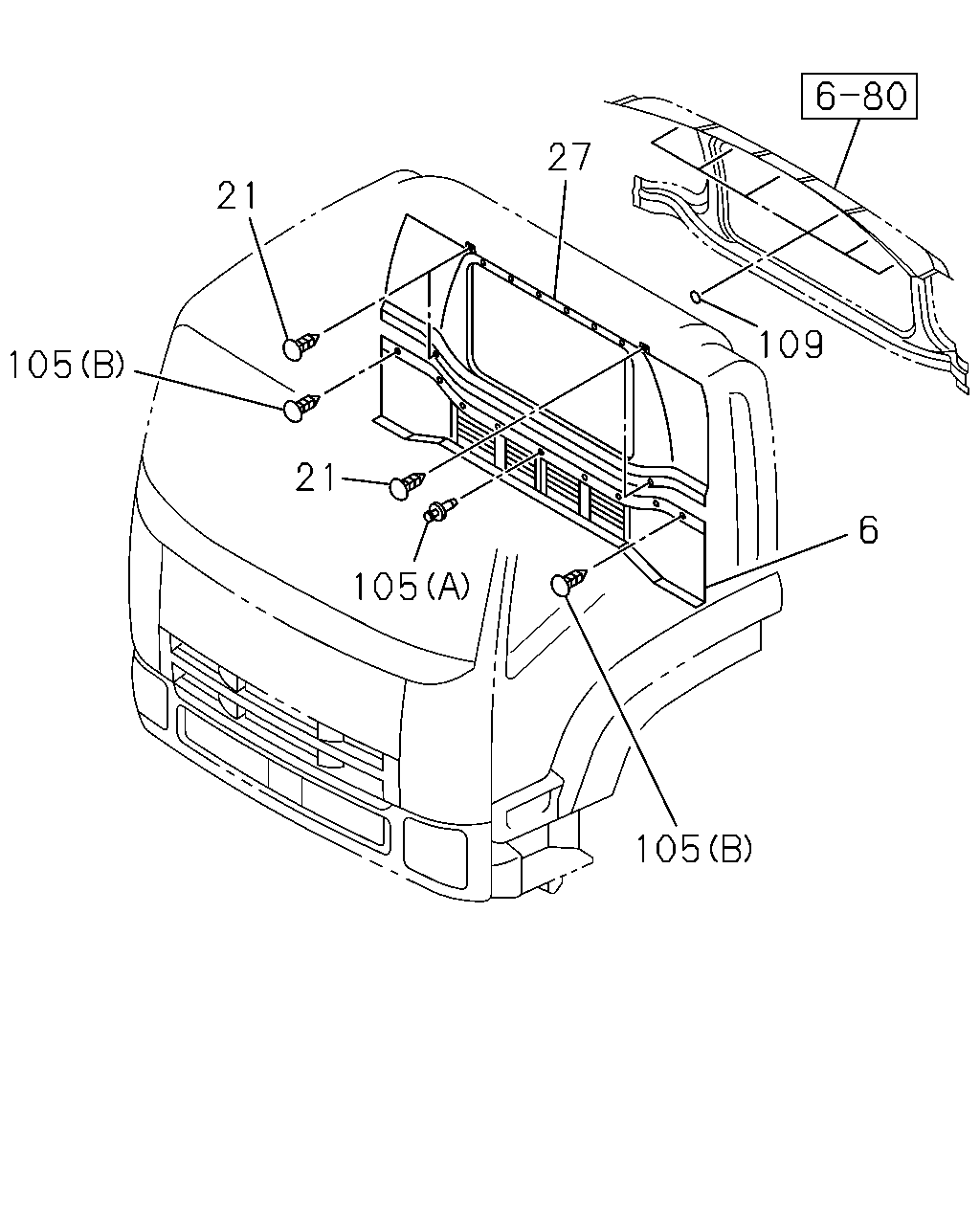

çizim 332182
105 21 27 109 6 105 105 21
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97422-490-1 01 1 1302- ●
6 MAT; SILENCER,CAB BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97407-457-1 01 1 1302- ●
6 MAT; SILENCER,CAB BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97422-491-1 01 1 1302- ●
6 MAT; SILENCER,CAB BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97407-458-1 01 1 1302- ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1302- ● ●
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97422-492-1 01 1 1302- ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> DARK GRAY 		8-97407-463-2 01 1 1302- ●
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97422-494-1 01 1 1302- ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> DARK GRAY 		8-97407-464-2 01 1 1302- ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1302- ● ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1302- ● ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1302- ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORMIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1302- ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1302- ● ●
