Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#11441) — 318 parça

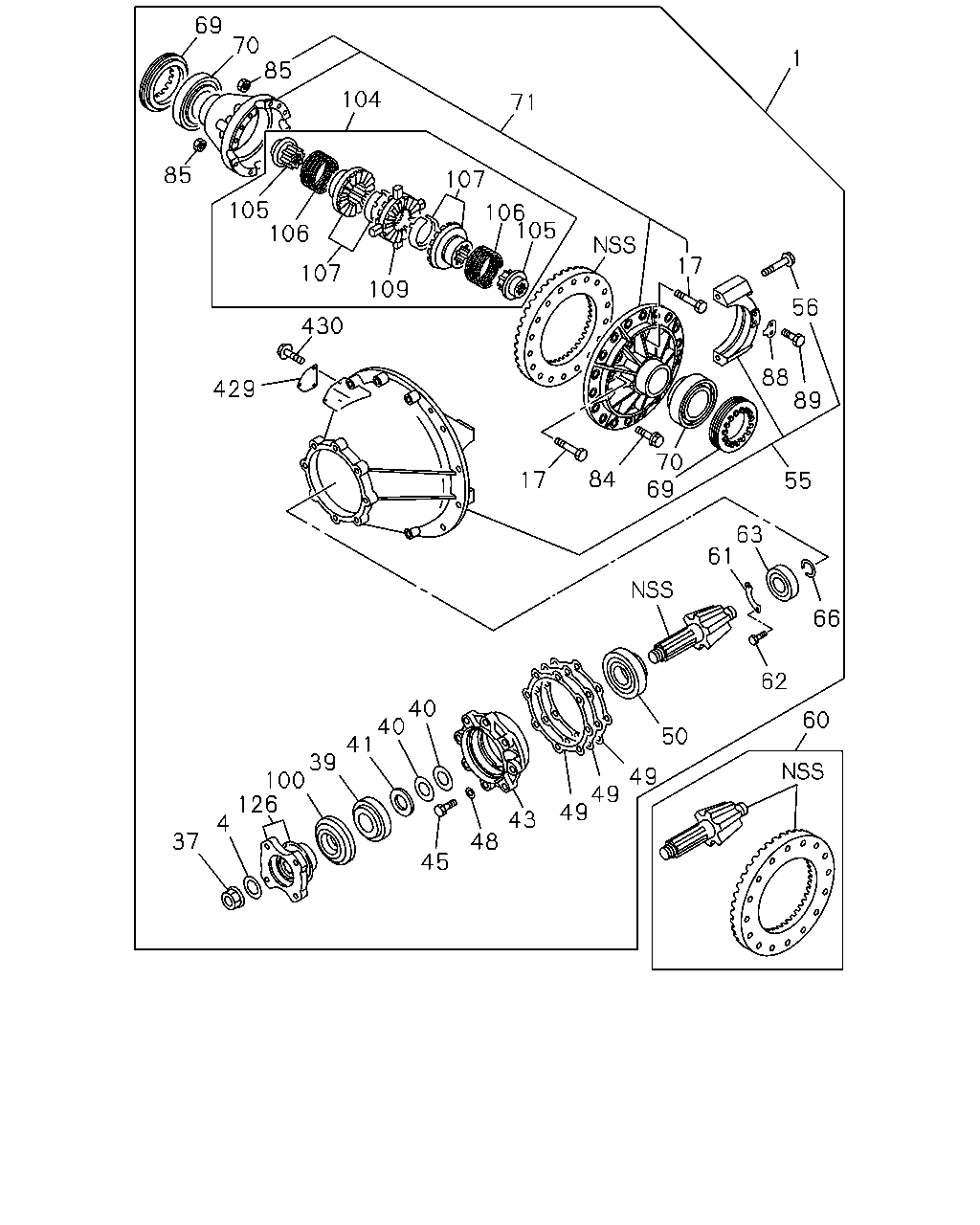

66 63 61 62 60 50 49 49 49 43 48 45 40 40 41 39 100 126 4 37 55 89 88 56 69 70 84 17 429 430 109 107 106 105 85 104 71 1 17 105 106 107 85 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41002-395-0	01	1	0106-0108	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41002-777-0	01	1	0106-0108	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41002-393-0	01	1	0106-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41002-775-0	01	1	0106-		●
1	DRIVE ASM; FINAL,RR 37/6	1-41002-391-0	01	1	0106-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41002-394-0	01	1	0106-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41002-776-0	01	1	0106-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41002-396-0	01	1	0106-0108					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/9	1-41002-778-0	01	1	0106-0108					●
1	DRIVE ASM; FINAL,RR 41/7	1-41002-392-0	01	1	0106-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41002-397-0	01	1	0106-0108							●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/9	1-41002-779-0	01	1	0106-0108							●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0106-0108	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0109-		●	●	●		●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0106-0108	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0109-		●	●	●		●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0106-0108	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0109-		●	●	●		●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0106-0108	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0109-		●	●	●		●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0106-0108	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0109-		●	●	●		●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	0106-0108	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0109-		●	●	●		●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0106-0108	●	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0109-		●	●	●		●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0106-0108	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0109-		●	●	●		●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0106-0108	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0109-0603		●	●	●		●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0109-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0109-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0109-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0109-		●	●	●		●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0106-0108	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0109-		●	●	●		●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0106-0108	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0109-		●	●	●		●
55	CARRIER; DIFF	1-41110-117-0	01	1	0106-0108	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-0	01	1	0109-		●	●	●		●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0106-0108	●	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0109-		●	●	●		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0106-0108	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	0106-		●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0106-			●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0106-				●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0106-0108					●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	0106-						●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0106-0108							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0106-0108	●	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0109-		●	●	●		●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0106-0108	●	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0109-0512		●	●	●		●
62	BOLT; RET M8X16	0-20850-816-0	02	1	0601-		●	●	●		●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0106-0108	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0109-		●	●	●		●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0106-0108	●	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0109-		●	●	●		●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0106-0108	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0109-		●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0106-0108	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0109-		●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0106-0108	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0109-		●	●	●		●
70	BEARING; DIFF CAGE KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0106-0108	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0109-		●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0106-0108	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0109-		●	●	●		●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0106-0108	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0109-		●	●	●		●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0106-0108	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0109-0512		●	●	●		●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-		●	●	●		●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0106-0108	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0109-		●	●	●		●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0106-0108	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0109-0512		●	●	●		●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0601-		●	●	●		●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0106-0108	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0109-		●	●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-047-0	01	1	0106-0108	●	●		●	●		●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-047-0	01	1	0109-		●		●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-040-0	02	1	0106-0108	●	●		●	●		●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41539-040-0	02	1	0109-		●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	0106-0108	●	●		●	●		●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-41535-004-0	02	1	0109-		●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-014-0	02	1	0106-0108	●	●		●	●		●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-014-0	02	1	0109-		●		●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	0106-0108	●	●		●	●		●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41539-023-0	01	1	0109-		●		●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0106-0108	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0109-		●	●	●		●
429	PLATE; DUMMY	1-41279-014-0	01	1	0106-0108	●	●	●	●	●	●	●
429	PLATE; DUMMY	1-41279-014-0	01	1	0109-		●	●	●		●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28680-820-0	03	1	0106-0108	●	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28680-820-0	03	1	0109-0512		●	●	●		●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28650-820-0	03	1	0601-		●	●	●		●

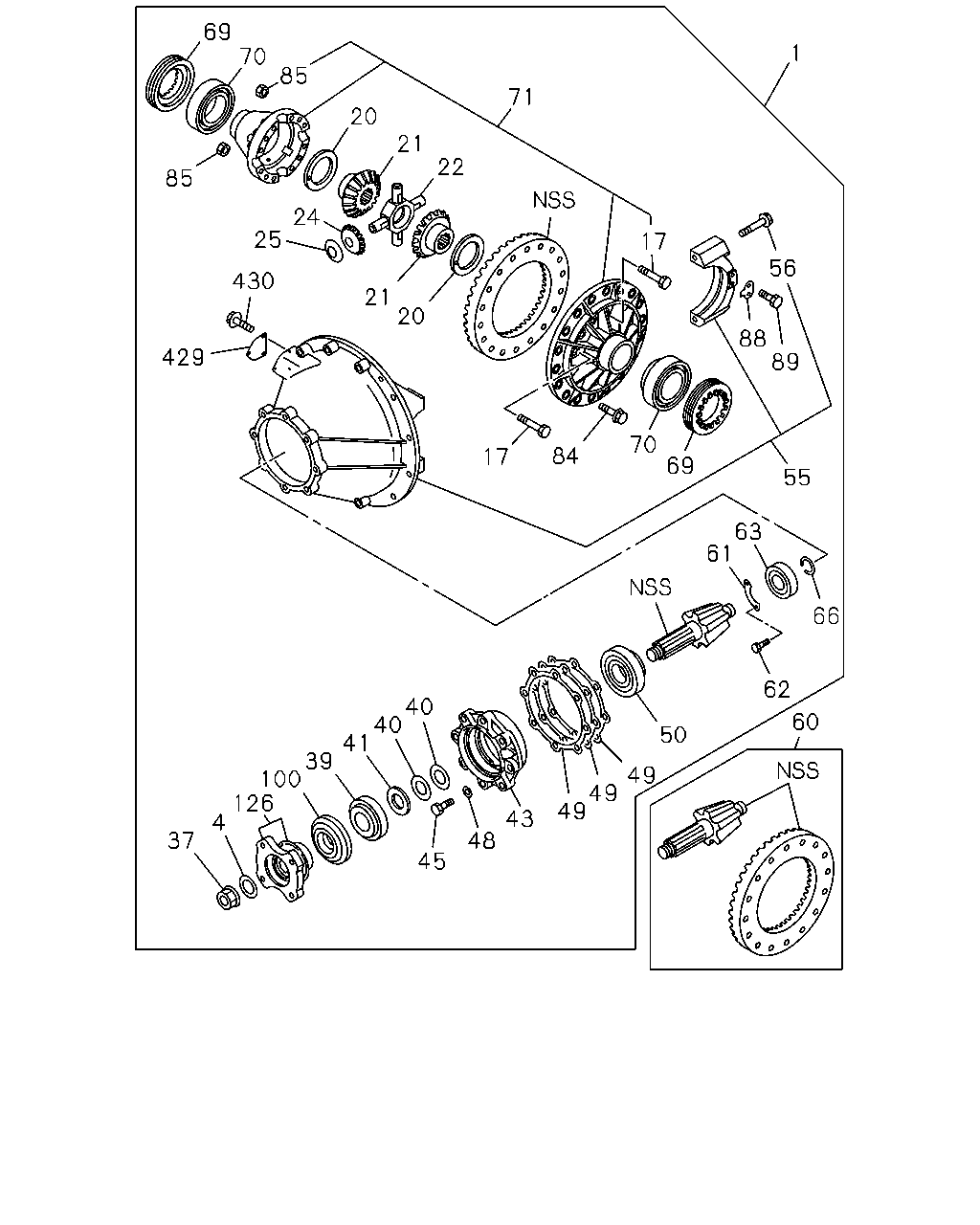

55 63 61 66 62 60 50 49 49 49 43 48 45 40 40 41 39 100 126 4 37 1 89 56 88 69 70 84 17 20 21 22 71 21 20 85 70 69 24 25 85 430 429 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/8	1-41002-395-0	01	1	0106-0108	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/8	1-41002-777-0	01	1	0106-0108	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 38/7	1-41002-393-0	01	1	0106-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 38/7	1-41002-775-0	01	1	0106-		●
1	DRIVE ASM; FINAL,RR 37/6	1-41002-391-0	01	1	0106-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41002-394-0	01	1	0106-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41002-776-0	01	1	0106-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/9	1-41002-396-0	01	1	0106-0108					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/9	1-41002-778-0	01	1	0106-0108					●
1	DRIVE ASM; FINAL,RR 41/7	1-41002-392-0	01	1	0106-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/9	1-41002-397-0	01	1	0106-0108							●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/9	1-41002-779-0	01	1	0106-0108							●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0106-0108	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0109-		●	●	●		●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0106-0108	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0109-		●	●	●		●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0106-0108	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0109-		●	●	●		●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-270-1	AR	1	0106-0108	●	●		●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0106-0108			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.8	1-41562-270-1	AR	1	0109-		●		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0109-			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-271-1	AR	1	0106-0108	●	●		●	●		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0106-0108			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.9	1-41562-271-1	AR	1	0109-		●		●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0109-			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-272-1	AR	1	0106-0108	●	●		●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0106-0108			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.0	1-41562-272-1	AR	1	0109-		●		●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0109-			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-273-1	AR	1	0106-0108	●	●		●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0106-0108			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.1	1-41562-273-1	AR	1	0109-		●		●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0109-			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-274-1	AR	1	0106-0108	●	●		●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0106-0108			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.2	1-41562-274-1	AR	1	0109-		●		●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0109-			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-275-1	AR	1	0106-0108	●	●		●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0106-0108			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.3	1-41562-275-1	AR	1	0109-		●		●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0109-			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-276-1	AR	1	0106-0108	●	●		●	●		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0106-0108			●			●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.4	1-41562-276-1	AR	1	0109-		●		●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0109-			●			●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-114-0	02	1	0106-0108	●	●		●	●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0106-0108			●			●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-114-0	02	1	0109-0405		●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0109-0405			●			●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-142-0	02	1	0406-		●		●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0406-			●			●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=35	1-41521-052-0	01	1	0106-0108	●	●		●	●		●
22	PIN; CROSS,DIFF PINION OD=35	1-41521-052-0	01	1	0106-0108			●			●
22	PIN; CROSS,DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=35	1-41521-052-0	01	1	0109-		●		●
22	PIN; CROSS,DIFF PINION OD=35	1-41521-052-0	01	1	0109-			●			●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-034-0	04	1	0106-0108	●	●		●	●		●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0106-0108			●			●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-034-0	04	1	0109-0405		●		●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0109-0405			●			●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-045-0	04	1	0406-		●		●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0406-			●			●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-003-0	04	1	0106-0108	●	●		●	●		●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0106-0108			●			●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86) T=1.6	1-41552-003-0	04	1	0109-		●		●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0109-			●			●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0106-0108	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0109-		●	●	●		●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0106-0108	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0109-		●	●	●		●
39	BEARING; FINAL PINION KOYO	1-09812-076-0	01	1	0106-0108	●	●	●	●	●	●	●
39	BEARING; FINAL PINION KOYO	1-09812-076-1	01	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0109-		●	●	●		●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0106-0108	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0109-		●	●	●		●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0106-0108	●	●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0109-		●	●	●		●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0106-0108	●	●	●	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0109-		●	●	●		●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0106-0108	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0109-		●	●	●		●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0106-0108	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0109-0603		●	●	●		●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0109-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0109-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0109-		●	●	●		●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0106-0108	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0109-		●	●	●		●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0106-0108	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0109-		●	●	●		●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0106-0108	●	●	●	●	●	●	●
50	BEARING; FINAL PINION KOYO	1-09812-074-1	01	1	0109-		●	●	●		●
55	CARRIER; DIFF	1-41110-117-0	01	1	0106-0108	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-117-0	01	1	0109-		●	●	●		●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0106-0108	●	●	●	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0109-		●	●	●		●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0106-0108	●
60	GEAR SET; FINAL DRIVE,RR 38/7	1-41210-616-0	01	1	0106-		●
60	GEAR SET; FINAL DRIVE,RR 37/6	1-41210-614-0	01	1	0106-			●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-617-0	01	1	0106-				●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0106-0108					●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-615-0	01	1	0106-						●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0106-0108							●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0106-0108	●	●	●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0109-		●	●	●		●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0106-0108	●	●	●	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0109-0512		●	●	●		●
62	BOLT; RET M8X16	0-20850-816-0	02	1	0601-		●	●	●		●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0106-0108	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0109-		●	●	●		●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0106-0108	●	●	●	●	●	●	●
63	BEARING; PINION PILOT KOYO	1-09810-153-0	01	1	0109-		●	●	●		●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0106-0108	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0109-		●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0106-0108	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0109-		●	●	●		●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0106-0108	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0109-		●	●	●		●
70	BEARING; DIFF CAGE KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0106-0108	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE KOYO ID=110 OD=170 T=38	1-09812-226-0	02	1	0109-		●	●	●		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0106-0108	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0109-		●	●	●		●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0106-0108	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0109-		●	●	●		●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0106-0108	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0109-0512		●	●	●		●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-		●	●	●		●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0106-0108	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0109-		●	●	●		●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0106-0108	●	●	●	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0109-0512		●	●	●		●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0601-		●	●	●		●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0106-0108	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0109-		●	●	●		●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0106-0108	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0109-		●	●	●		●
429	PLATE; DUMMY	1-41279-014-0	01	1	0106-0108	●	●	●	●	●	●	●
429	PLATE; DUMMY	1-41279-014-0	01	1	0109-		●	●	●		●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28680-820-0	03	1	0106-0108	●	●	●	●	●	●	●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28680-820-0	03	1	0109-0512		●	●	●		●
430	BOLT; PLATE,DUMMY M8X20 FLANGE	0-28650-820-0	03	1	0601-		●	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
