Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#114384) — 292 parça

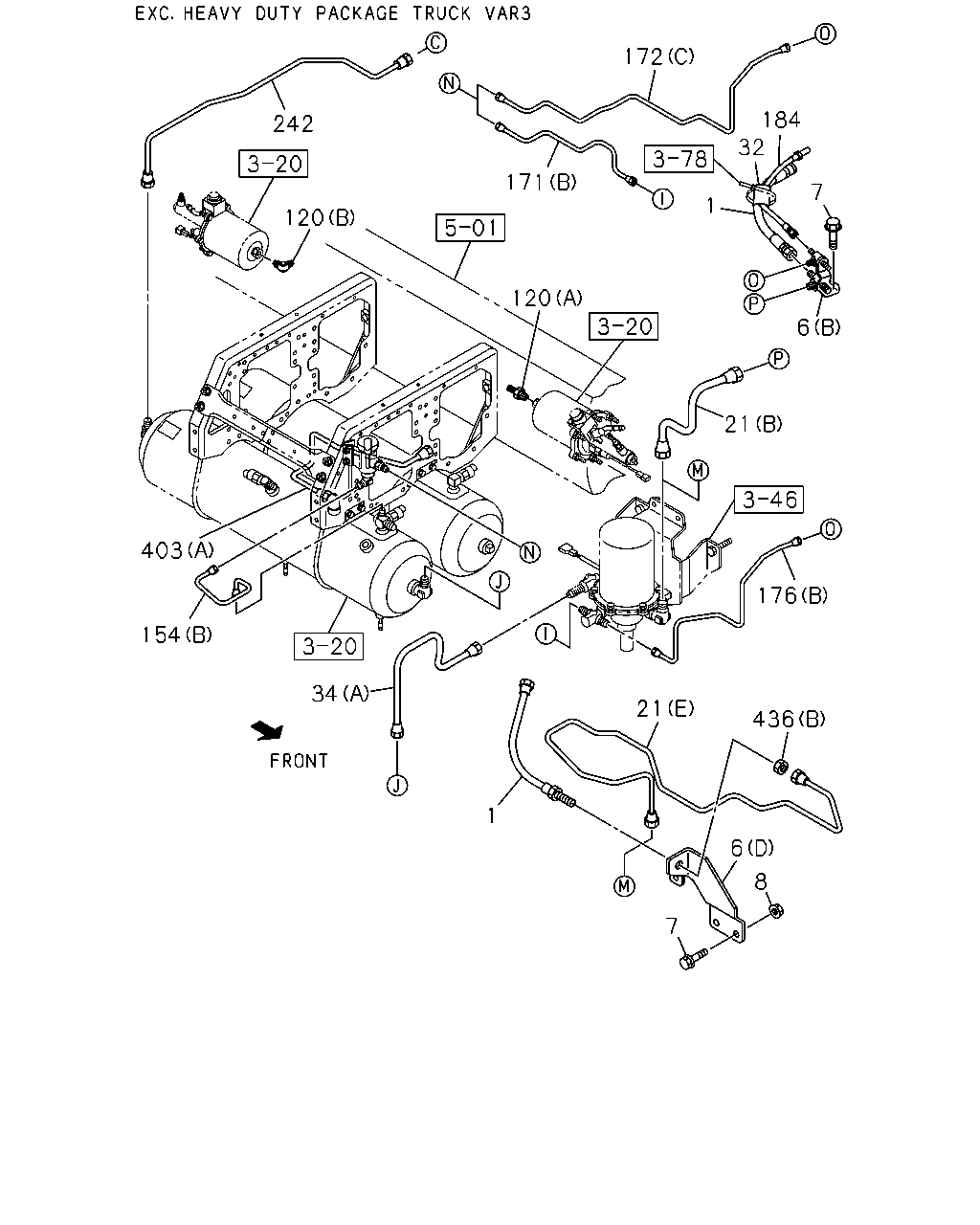

172 184 32 6 171 242 120 120 21 176 436 21 6 8 7 34 154 403 1 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS)	1-09363-913-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98119-929-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98227-136-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1302-
8	NUT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	02	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1944	8-98213-008-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=1848	8-98213-157-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032	8-98187-598-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1142	8-98163-969-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1302-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1302-
34	PIPE; AIR AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1302-
34	PIPE; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=412	8-98190-599-0	01	1	1302-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1302-
34	PIPE; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1184 SERVICED BY L=1200	1-49115-487-0	01	1	1302-1405
34	PIPE; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1253 SERVICED BY L=1300	1-49115-488-0	01	1	1406-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=354	8-98212-355-0	01	1	1302-
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
120	CONNECTOR; AIR PIPE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98213-138-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98152-813-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98197-591-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98213-140-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=449	8-98213-139-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1302-
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=340	1-09363-622-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=564 SERVICED BY L=600	1-47428-809-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> L=564 SERVICED BY L=600	1-47428-809-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1222 SERVICED BY L=1250	1-47428-817-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=688 SERVICED BY L=700	1-47428-811-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=437	8-98213-295-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=437	8-98213-295-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=263	8-98213-297-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=471	8-98163-967-0	01	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) (B) M22	0-91111-522-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-

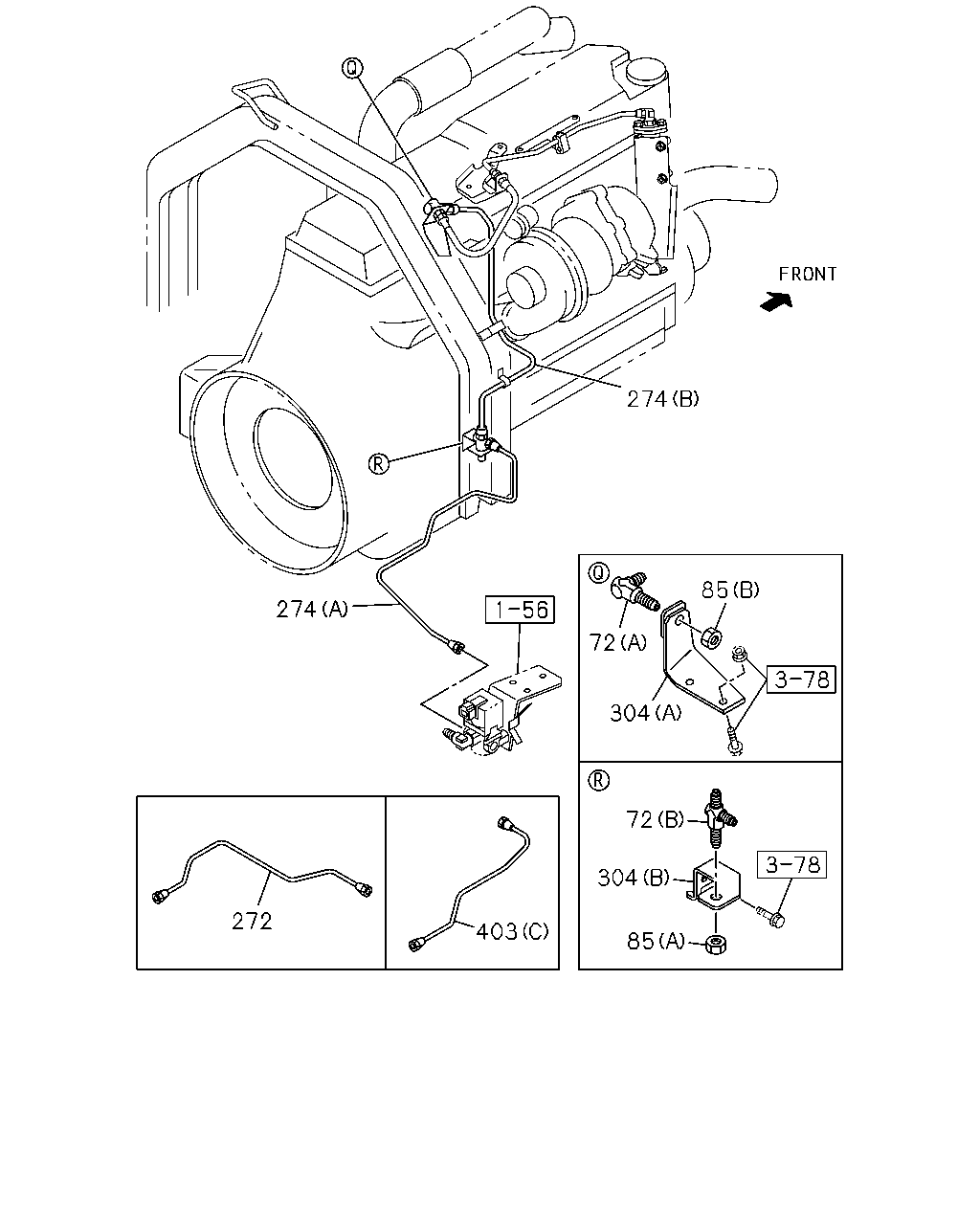

274 274 85 72 304 72 304 85 403 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12 ELBOW	0-92125-006-0	01	1	1302-
72	UNION; AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12 2WAY	1-09654-059-2	01	1	1302-
85	NUT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12	0-91111-512-0	01	1	1302-
85	NUT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12	9-09840-280-0	01	1	1302-
272	PIPE; AIR,MAG VLV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=393	8-98213-179-0	01	1	1302-
274	PIPE; AIR UNION TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1592 SERVICED BY L=1620	1-47428-820-0	01	1	1302-
274	PIPE; AIR UNION TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) L=622 SERVICED BY L=650	1-47428-810-0	01	1	1302-
274	PIPE; AIR UNION TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) L=1389 SERVICED BY L=1500	1-47428-819-0	01	1	1302-
304	BRACKET; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98211-164-1	01	1	1302-
304	BRACKET; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A)	8-98229-691-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=437	8-98213-295-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=437	8-98213-295-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=263	8-98213-297-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=471	8-98163-967-0	01	1	1302-

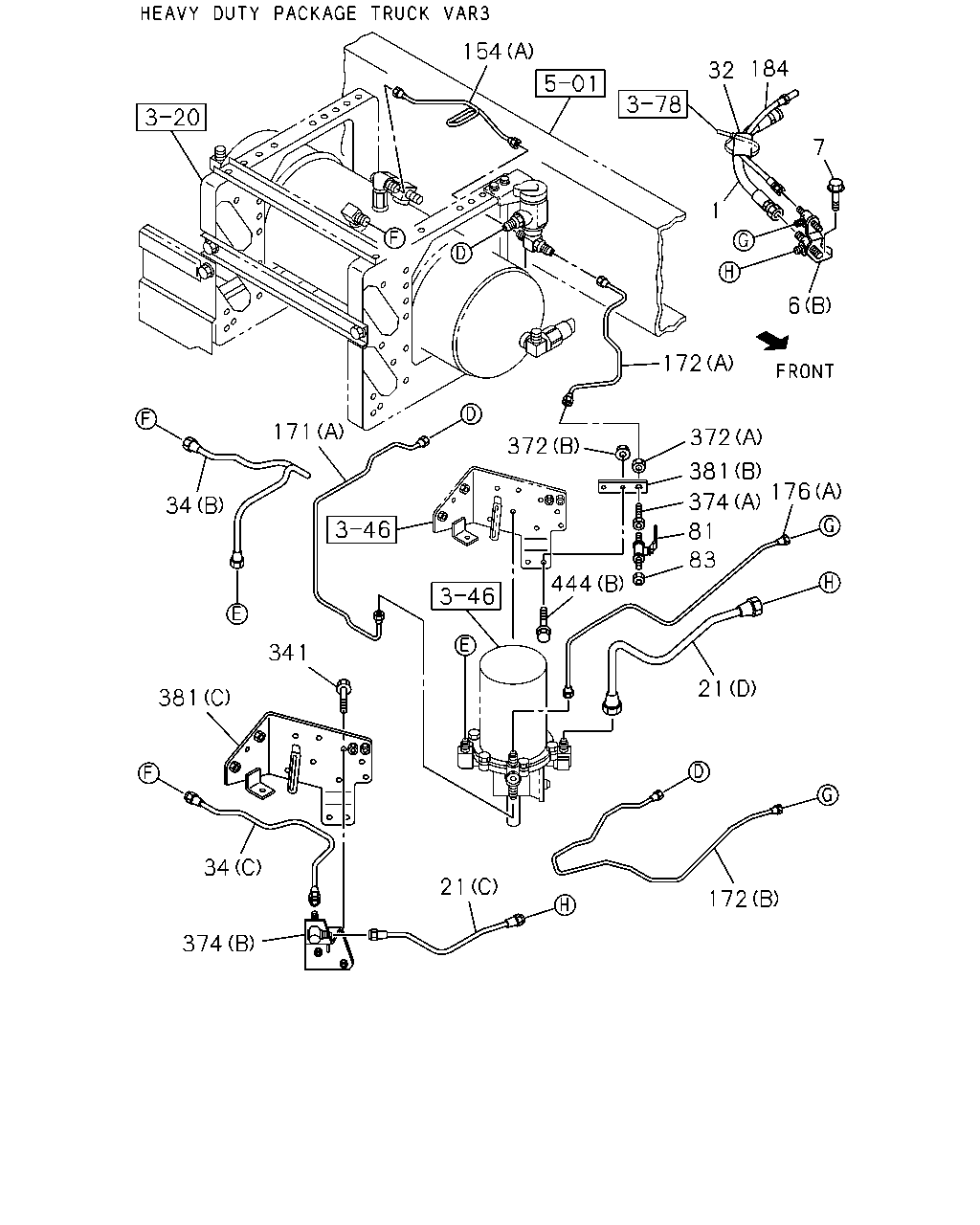

154 32 184 1 7 6 172 171 372 372 381 374 176 81 83 34 444 341 381 34 374 21 172 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS)	1-09363-913-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98119-929-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98227-136-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1944	8-98213-008-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=1848	8-98213-157-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032	8-98187-598-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1142	8-98163-969-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1302-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1302-
34	PIPE; AIR AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1302-
34	PIPE; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=412	8-98190-599-0	01	1	1302-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1302-
34	PIPE; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1184 SERVICED BY L=1200	1-49115-487-0	01	1	1302-1405
34	PIPE; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1253 SERVICED BY L=1300	1-49115-488-0	01	1	1406-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=354	8-98212-355-0	01	1	1302-
81	COCK; AIR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1302-
83	CAP; AIR COCK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	9-48319-102-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98167-336-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98213-138-0	01	1	1302-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98152-813-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550	1-47428-808-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800	1-47428-812-0	01	1	1302-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900	1-47428-813-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=425	8-98167-526-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98197-591-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98213-140-0	01	1	1302-
172	PIPE; AIR,GOV TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=449	8-98213-139-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700	1-47428-811-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800	1-47428-812-0	01	1	1302-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800	1-47428-812-0	01	1	1302-
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=340	1-09363-622-0	01	1	1302-
341	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28650-820-0	02	1	1302-
372	NUT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE	0-91180-108-0	02	1	1302-
372	NUT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12	9-09840-280-0	01	1	1302-
374	CONNECTOR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B)	8-98135-407-0	01	1	1302-
374	CONNECTOR 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-09654-280-1	01	1	1302-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	1302-
381	BRACKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1302-
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-374-0	01	1	1302-
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1302-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
444	BOLT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-
444	BOLT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-

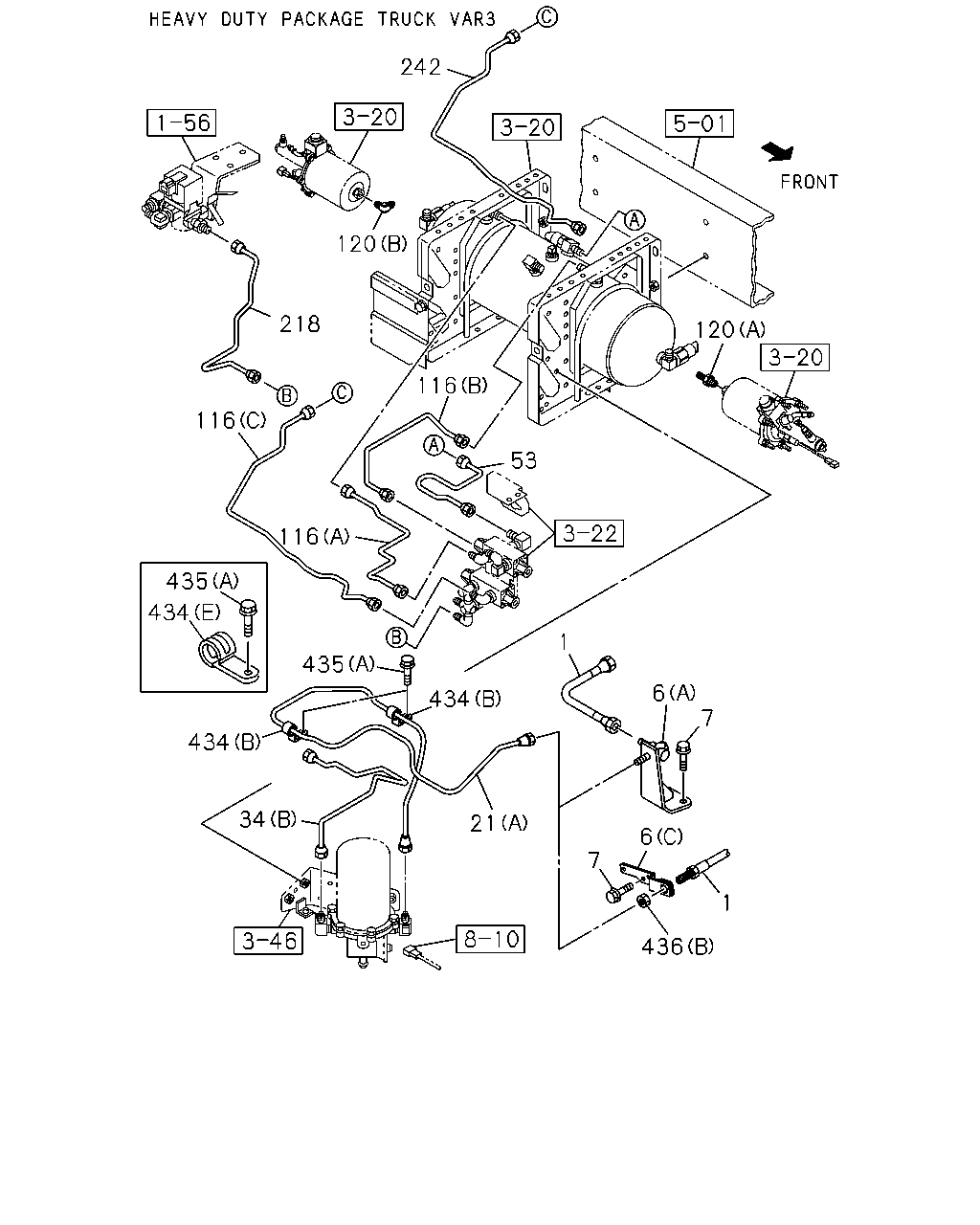

242 120 218 116 116 435 434 434 435 34 21 7 6 1 436 7 6 120 53 116 434 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-09363-958-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG(RJS)	1-09363-913-0	01	1	1302-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98079-987-1	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98119-929-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98227-136-0	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B)	8-98133-392-0	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	02	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	02	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1944	8-98213-008-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=1848	8-98213-157-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032	8-98187-598-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798	8-98083-099-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397	8-98111-639-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516	8-98133-370-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1142	8-98163-969-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816	8-98083-100-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503	8-98133-371-0	01	1	1302-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496	8-98133-372-0	01	1	1302-
34	PIPE; AIR AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1302-
34	PIPE; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=412	8-98190-599-0	01	1	1302-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1302-
34	PIPE; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1184 SERVICED BY L=1200	1-49115-487-0	01	1	1302-1405
34	PIPE; AIR 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1253 SERVICED BY L=1300	1-49115-488-0	01	1	1406-
34	PIPE; AIR 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=354	8-98212-355-0	01	1	1302-
53	PIPE; AIR,AIR TANK TO VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98213-331-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
120	CONNECTOR; AIR PIPE (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
218	PIPE; AIR,PROTECTION VLV 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=648 SERVICED BY L=650	1-47428-810-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=564 SERVICED BY L=600	1-47428-809-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> L=564 SERVICED BY L=600	1-47428-809-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1222 SERVICED BY L=1250	1-47428-817-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=688 SERVICED BY L=700	1-47428-811-0	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) (E) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 12	1-09709-278-1	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	09	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	09	1	1302-
434	CLIP 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15	1-09709-276-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15	1-09709-276-1	01	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) (B) M22	0-91111-522-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-

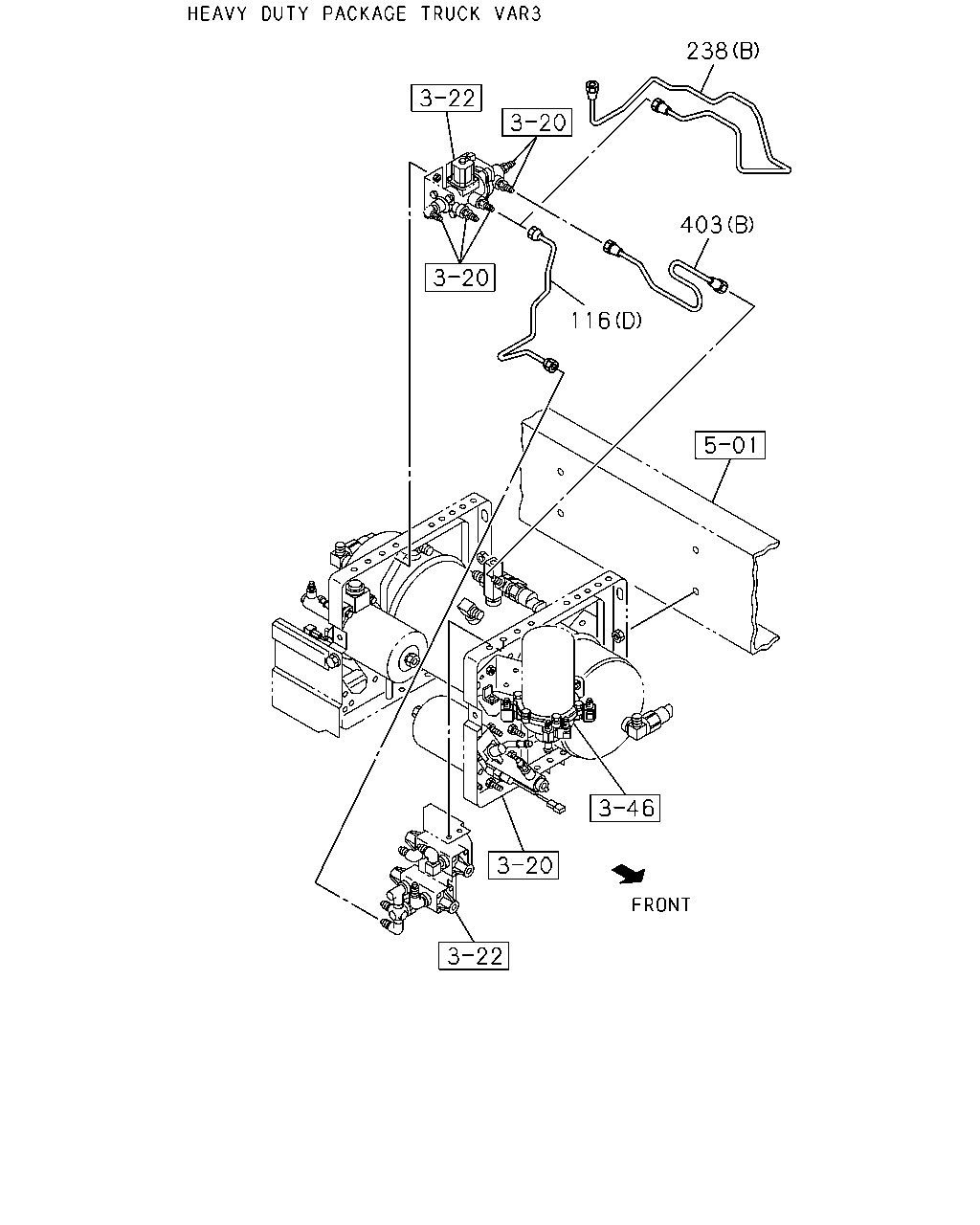

238 403 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=922 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=324	8-98212-367-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=263	8-98212-833-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=437	8-98213-295-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) L=437	8-98213-295-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=263	8-98213-297-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=471	8-98163-967-0	01	1	1302-

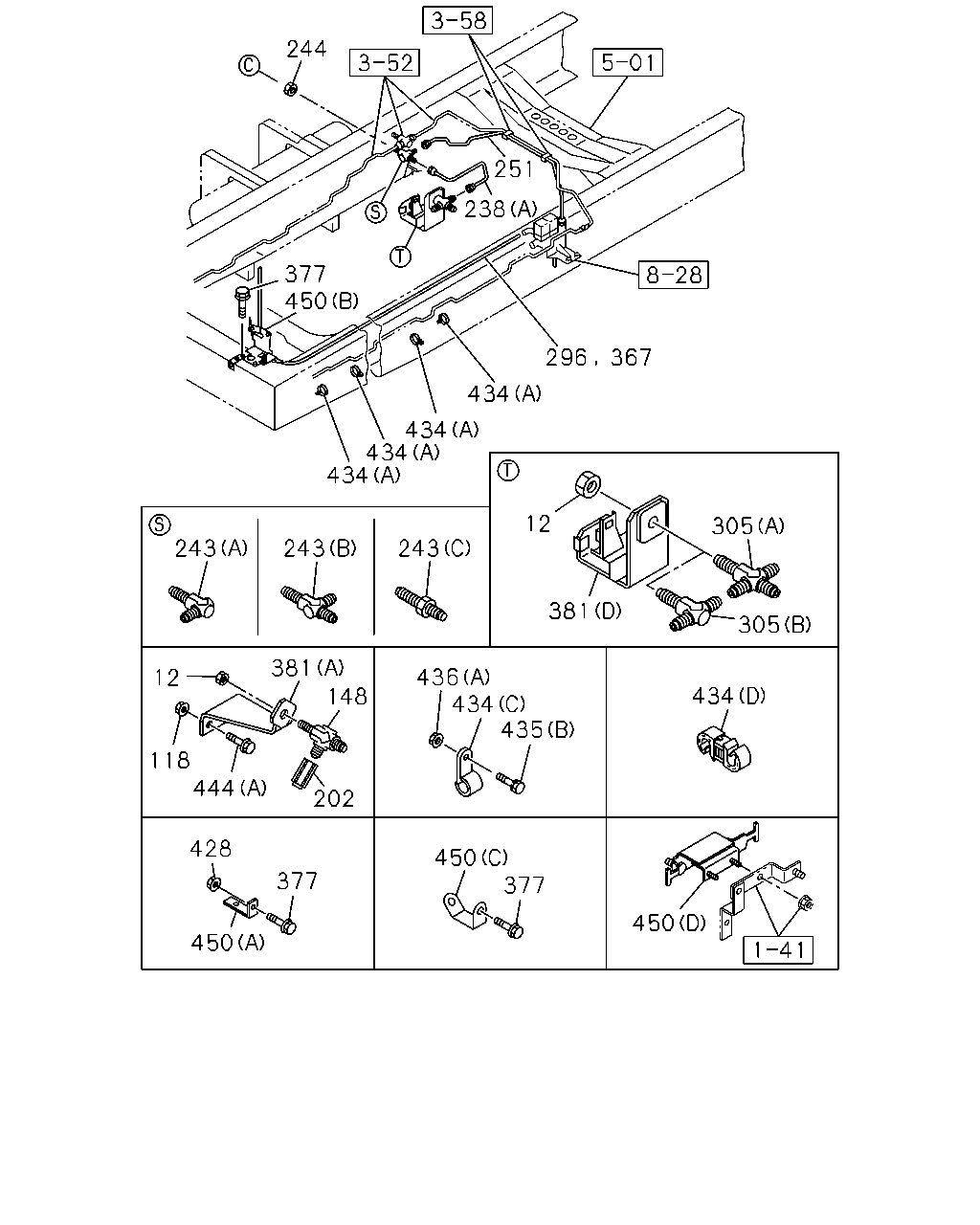

244 251 238 377 450 367 296 434 434 434 434 305 305 381 12 243 243 243 381 12 148 202 444 118 436 434 435 450 377 434 450 428 377 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	1302-
12	NUT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M12	0-91111-512-0	01	1	1302-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE	0-91180-210-0	02	1	1302-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY	1-09654-059-2	01	1	1302-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=922 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=324	8-98212-367-0	01	1	1302-
238	PIPE; AIR,UNION TO UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=263	8-98212-833-0	01	1	1302-
243	UNION; AIR PIPE 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> (C) M12 L=66.5	0-92113-306-0	01	1	1302-
243	UNION; AIR PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12 L=66.5	0-92113-306-0	01	1	1302-
243	UNION; AIR PIPE 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6> (C) M12 L=66.5	0-92113-306-0	01	1	1302-
243	UNION; AIR PIPE 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW	0-92125-206-0	01	1	1302-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=308	8-98208-549-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1012 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=415	8-98067-435-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=415	8-98067-435-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=884 SERVICED BY L=900	1-47428-813-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=884 SERVICED BY L=900	1-47428-813-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> L=452	8-98181-620-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, RIGID SEAT WO/ARM REST<TAZ> L=1021 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> L=456	8-98067-434-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, RIGID SEAT WO/ARM REST<TAZ> L=456	8-98067-434-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6> L=480	8-98120-257-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=889 SERVICED BY L=900	1-47428-813-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=889 SERVICED BY L=900	1-47428-813-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=897 SERVICED BY L=900	1-47428-813-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=897 SERVICED BY L=900	1-47428-813-0	01	1	1302-
296	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1302-
305	UNION ASM; NYLON TUBE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12	0-92138-306-0	01	1	1302-
305	UNION ASM; NYLON TUBE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> (A) M12	0-92138-306-0	01	1	1302-
305	UNION ASM; NYLON TUBE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (B) M12 3WAY	1-09654-137-2	01	1	1302-
367	TUBE; CORRUGATE EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	03	1	1302-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE	0-28650-825-0	01	1	1302-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	04	1	1302-
377	BOLT; BRKT FIX 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	04	1	1302-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	1302-
377	BOLT; BRKT FIX 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	03	1	1302-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98119-700-0	01	1	1302-
381	BRACKET 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	8-98044-548-4	01	1	1302-
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-374-0	01	1	1302-
381	BRACKET 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98135-449-0	01	1	1302-
428	NUT; BRKT 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1302-
428	NUT; BRKT 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	03	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) (E) ID=16 L=20	0-95235-536-0	02	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 12	1-09709-278-1	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	09	1	1302-
434	CLIP 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	09	1	1302-
434	CLIP 6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	1302-
434	CLIP 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 6.35	1-09709-273-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	13	1	1302-
434	CLIP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15	1-09709-276-1	01	1	1302-
434	CLIP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15	1-09709-276-1	01	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE	0-28650-820-0	01	1	1302-
435	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
435	BOLT; CLIP 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) (B) M22	0-91111-522-0	01	1	1302-
436	NUT; CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
444	BOLT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28651-030-0	01	1	1302-
444	BOLT; UNION 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98254-305-0	01	1	1310-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98254-305-0	01	1	1310-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50 B=25	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=50 B=25	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1302-1309
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	1302-1309
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	1310-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1310-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=90 B=25	1-47475-530-0	01	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98117-686-0	04	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	04	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98117-686-0	02	1	1302-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98117-686-0	02	1	1302-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98077-895-1	01	1	1302-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	03	1	1302-
450	BRACKET; CLIP 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	03	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
