Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#114383) — 169 parça

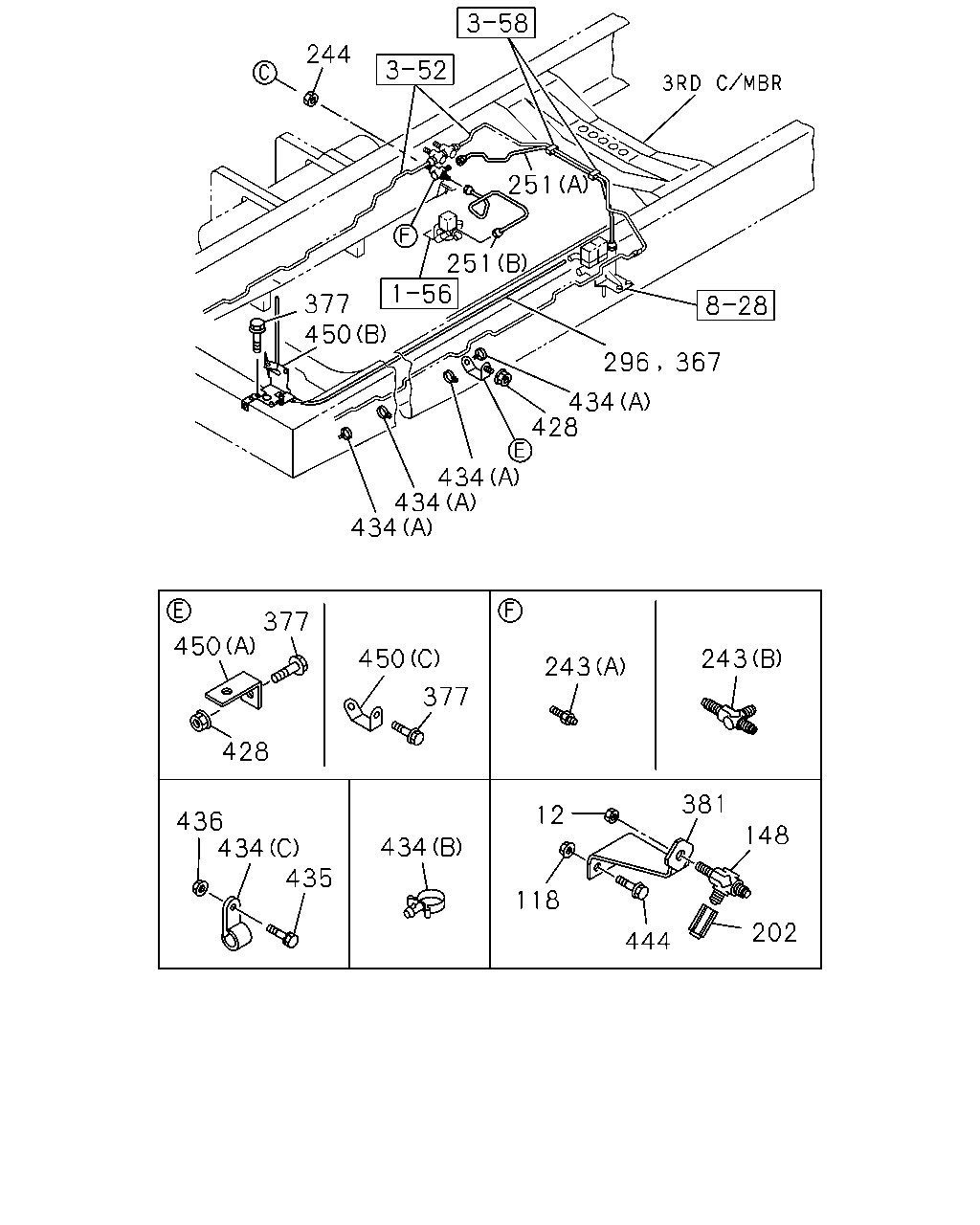

244 251 251 377 450 296 367 434 428 434 434 434 377 450 450 428 377 243 243 436 434 435 434 12 118 444 381 148 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	1302-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE	0-91180-210-0	02	1	1302-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY	1-09654-059-2	01	1	1302-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1302-
243	UNION; AIR PIPE BRAKE REGULATION ADR(TDU) (C) M12 ELBOW	0-92125-206-0	01	1	1302-
243	UNION; AIR PIPE PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (A) M12 L=66.5	0-92113-306-0	01	1	1302-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (A) L=941 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (A) L=941 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (B) L=265	8-98067-433-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (B) L=265	8-98067-433-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (B) L=289	8-98120-102-0	01	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	01	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	02	1	1302-
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) M10X30 FLANGE	0-28651-030-0	03	1	1302-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>	8-98119-700-0	01	1	1302-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) M10 FLANGE	0-91180-210-0	03	1	1302-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1302-
434	CLIP BRAKE REGULATION ADR(TDU) (E) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	08	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1302-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) (A) L=350	1-09707-183-0	04	1	1302-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	02	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A)	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	02	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	02	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98180-947-0	01	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1302-
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) (D)	8-98100-216-1	03	1	1302-

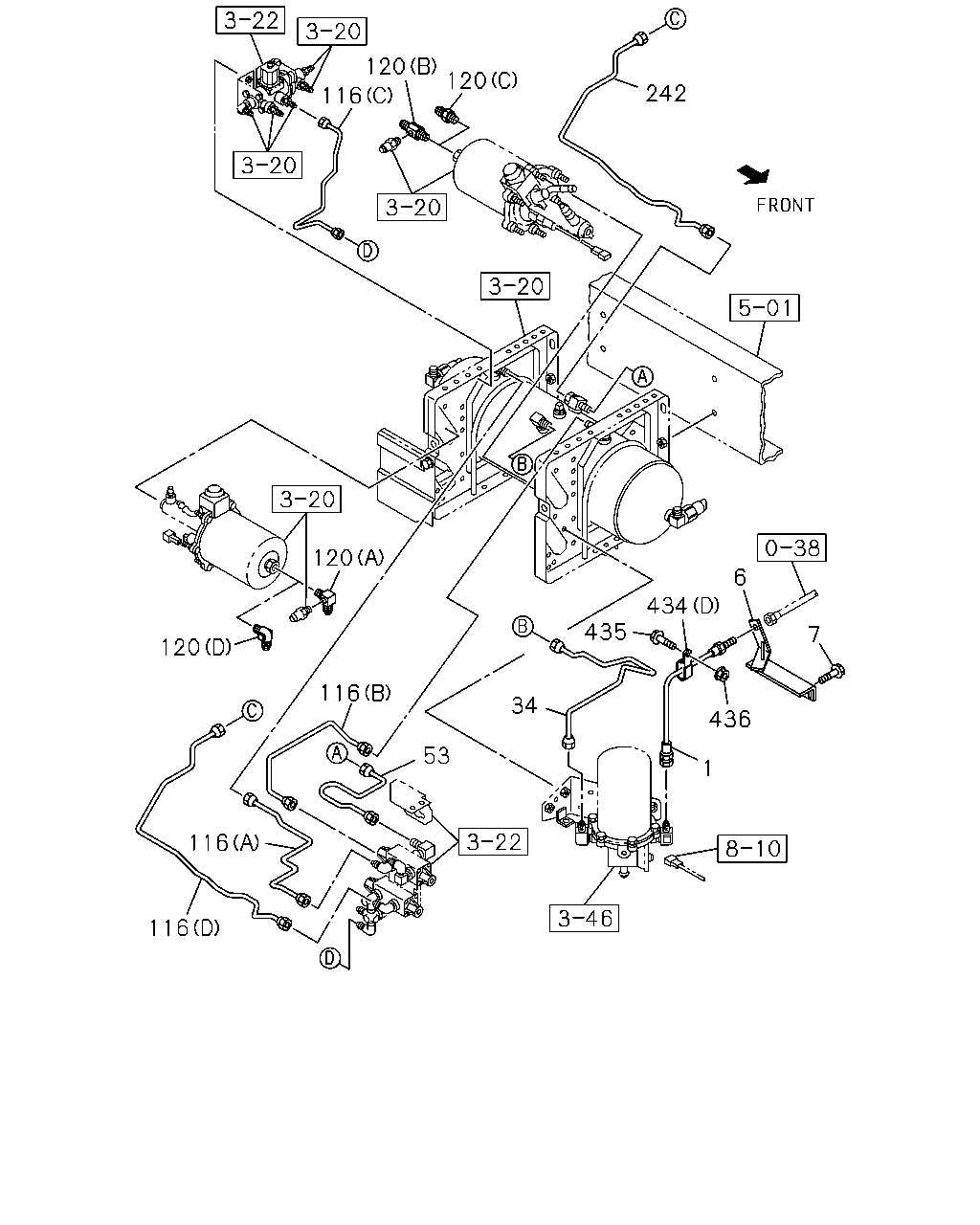

116 120 120 242 120 120 116 116 116 53 34 435 434 6 436 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1302-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1302-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1302-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1302-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU)	8-98213-331-0	01	1	1302-
53	PIPE; AIR,AIR TANK TO VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU)	8-98213-331-0	01	1	1302-
53	PIPE; AIR,AIR TANK TO VALVE BRAKE REGULATION ADR(TDU)	8-98213-331-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR(TDU) (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR(TDU) (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (D) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=666 SERVICED BY L=700	1-47428-811-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
120	CONNECTOR; AIR PIPE BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1302-
120	CONNECTOR; AIR PIPE BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-
120	CONNECTOR; AIR PIPE EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
120	CONNECTOR; AIR PIPE EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=564 SERVICED BY L=600	1-47428-809-0	01	1	1302-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1302-
434	CLIP BRAKE REGULATION ADR(TDU) (E) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	08	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1302-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) (A) L=350	1-09707-183-0	04	1	1302-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-

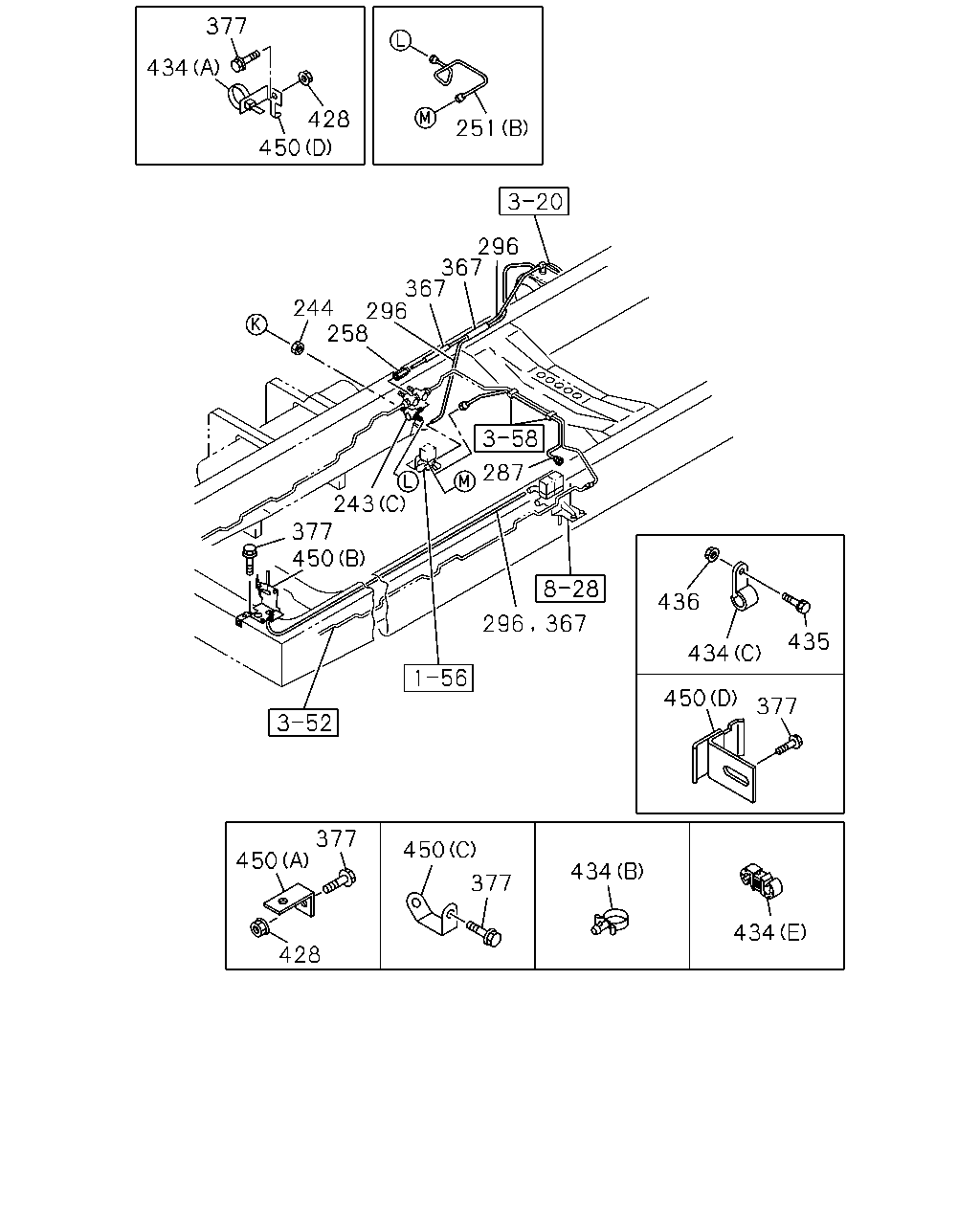

377 434 428 450 251 296 367 367 296 258 244 243 287 296 367 377 450 436 435 434 450 377 434 434 377 450 377 450 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
243	UNION; AIR PIPE BRAKE REGULATION ADR(TDU) (C) M12 ELBOW	0-92125-206-0	01	1	1302-
243	UNION; AIR PIPE PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (B) M12 3WAY	0-92138-906-0	01	1	1302-
243	UNION; AIR PIPE RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (A) M12 L=66.5	0-92113-306-0	01	1	1302-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (A) L=941 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (A) L=941 SERVICED BY L=1000	1-47428-814-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ADR(TDU) (B) L=265	8-98067-433-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> EXC. BRAKE REGULATION ADR(TDU) (B) L=265	8-98067-433-0	01	1	1302-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ADR(TDU) (B) L=289	8-98120-102-0	01	1	1302-
258	CONNECTOR; NYLON TUBE BRAKE REGULATION ADR(TDU) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-
287	PIPE; AIR,MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> BRAKE REGULATION ADR(TDU) L=830 SERVICED BY L=900	1-47428-813-0	01	1	1302-
287	PIPE; AIR,MAG VLV WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=830 SERVICED BY L=900	1-47428-813-0	01	1	1302-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1302-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1302-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	01	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	1302-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	02	1	1302-
377	BOLT; BRKT FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) M10X30 FLANGE	0-28651-030-0	03	1	1302-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
428	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) M10 FLANGE	0-91180-210-0	03	1	1302-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1302-
434	CLIP BRAKE REGULATION ADR(TDU) (E) ID=10 & 15	1-09709-279-1	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	08	1	1302-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1302-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1302-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1302-
434	CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) (A) L=350	1-09707-183-0	04	1	1302-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A)	1-47477-694-0	01	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98117-686-0	02	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	8-98117-686-0	02	1	1302-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98180-947-0	01	1	1302-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98180-947-0	01	1	1302-
450	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W) BRAKE REGULATION ADR(TDU) (D)	8-98100-216-1	03	1	1302-

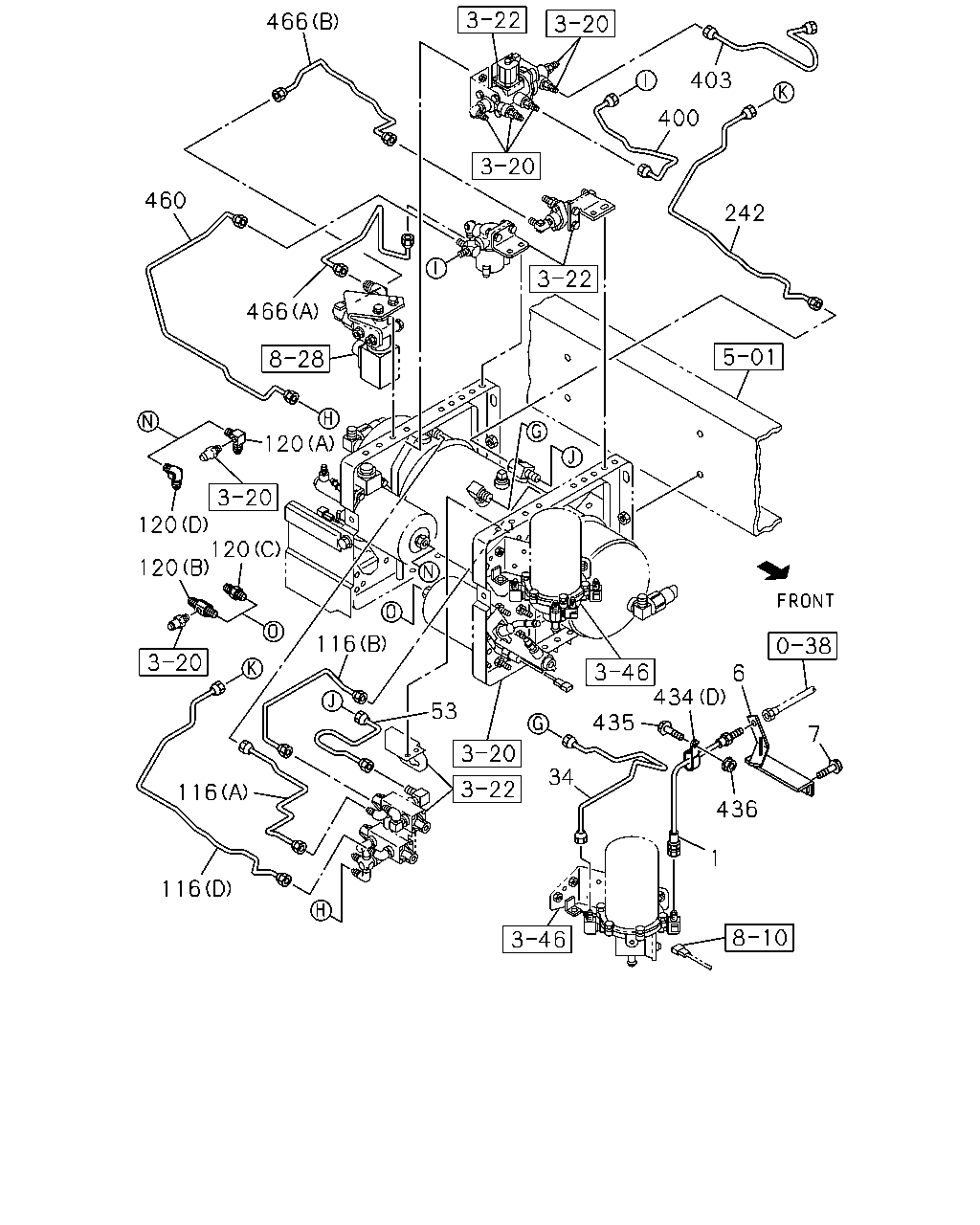

466 460 466 120 120 120 120 116 116 116 53 435 34 436 1 47 242 400 403 436 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1302-
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1302-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1302-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615 SERVICED BY L=660	1-49115-480-0	01	1	1302-
53	PIPE; AIR,AIR TANK TO VALVE ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU)	8-98213-331-0	01	1	1302-
53	PIPE; AIR,AIR TANK TO VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU)	8-98213-331-0	01	1	1302-
53	PIPE; AIR,AIR TANK TO VALVE BRAKE REGULATION ADR(TDU)	8-98213-331-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR(TDU) (B) L=382	8-98077-880-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. BRAKE REGULATION ADR(TDU) (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR(TDU) (A) L=480	8-98213-332-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR(TDU) (D) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV BRAKE REGULATION ADR(TDU) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1423 SERVICED BY L=1500	1-47428-819-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=666 SERVICED BY L=700	1-47428-811-0	01	1	1302-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1302-
120	CONNECTOR; AIR PIPE BRAKE REGULATION ADR(TDU) (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1302-
120	CONNECTOR; AIR PIPE BRAKE REGULATION ADR(TDU) (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-
120	CONNECTOR; AIR PIPE EXC. BRAKE REGULATION ADR(TDU) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1302-
120	CONNECTOR; AIR PIPE EXC. BRAKE REGULATION ADR(TDU) (D) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=564 SERVICED BY L=600	1-47428-809-0	01	1	1302-
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1302-
403	PIPE; AIR,AIR TANK TO MAG VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ADR(TDU) L=437	8-98213-295-0	01	1	1302-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1302-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1302-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1302-
460	PIPE; AIR,PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) L=1036	8-98225-793-0	01	1	1302-
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98225-792-0	01	1	1302-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700	1-47428-870-0	01	1	1302-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
