3-70 — BRAKE PIPING; AIR,AIR MASTER (#114381) — 220 parça

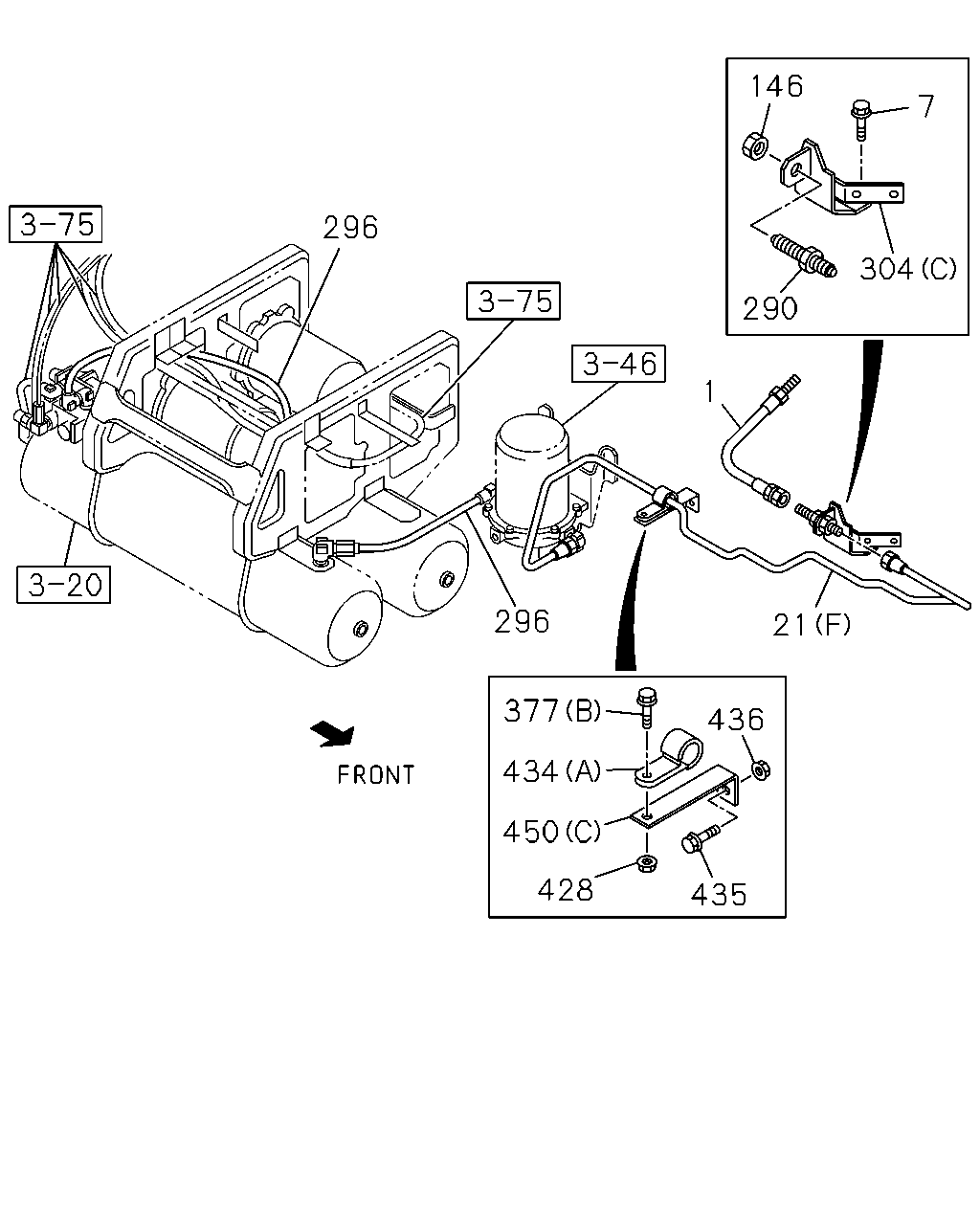

çizim 328209
146 7 290 304 296 21 296 377 434 450 428 435 436 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) L=430 		1-09363-653-0 01 1 1305-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) L=310 		8-97607-730-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819 		8-98211-170-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (F) L=1955 		8-98226-430-0 01 1 1305-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1744 		8-98211-160-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D) 		8-98184-503-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1545 		8-98211-175-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) L=1546 		8-98211-191-0 01 1 1302-
146 NUT; UNION
4HK1-TCS ENG(RJS) M22 		0-91110-522-0 01 1 1305-
290 UNION; AIR PIPE
4HK1-TCS ENG(RJS) M22 		0-92123-315-0 01 1 1305-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
304 BRACKET; UNION
4HK1-TCS ENG(RJS) (C) 		8-98226-311-0 01 1 1305-
304 BRACKET; UNION
6HK1-TCN ENG(82L) (B) 		8-98211-164-1 01 1 1302-
304 BRACKET; UNION
6HK1-TCN ENG(82L) (A) 		8-98229-691-0 01 1 1302-
377 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1302-
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1302-1304
434 CLIP
4HK1-TCS ENG(RJS) (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1304
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1302-1304
436 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 1305-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1305-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98106-046-0 01 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) L=90 B=25 		1-47475-530-0 01 1 1305-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98232-692-0 01 1 1302-

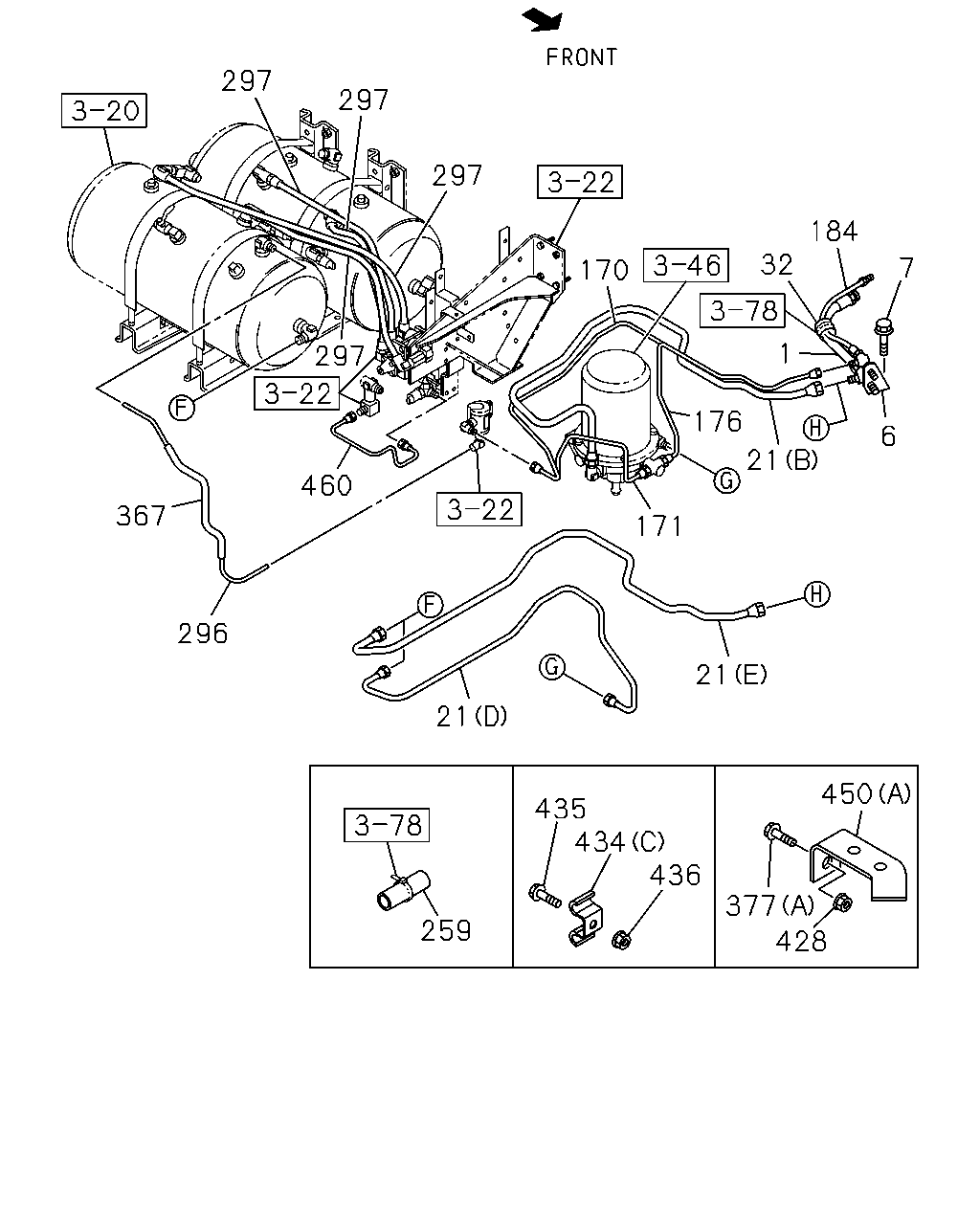

çizim 328386
297 297 297 170 32 184 6 21 171 21 21 460 296 367 297 176 7 435 434 377 450 428 436 259 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) L=430 		1-09363-653-0 01 1 1305-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) L=310 		8-97607-730-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) 		8-98117-117-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819 		8-98211-170-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (F) L=1955 		8-98226-430-0 01 1 1305-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1744 		8-98211-160-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D) 		8-98184-503-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1545 		8-98211-175-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) L=1546 		8-98211-191-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		8-98211-158-0 01 1 1302-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		8-98211-190-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=852 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=864 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) L=350 		1-09363-624-0 01 1 1302-
259 SLEEVE; RUBBER,NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 01 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
377 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1302-
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1302-1304
434 CLIP
4HK1-TCS ENG(RJS) (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1304
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1302-1304
436 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 1305-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1305-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98106-046-0 01 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) L=90 B=25 		1-47475-530-0 01 1 1305-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98232-692-0 01 1 1302-
460 PIPE; AIR,PROTECTION VALVE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98184-394-0 01 1 1302-

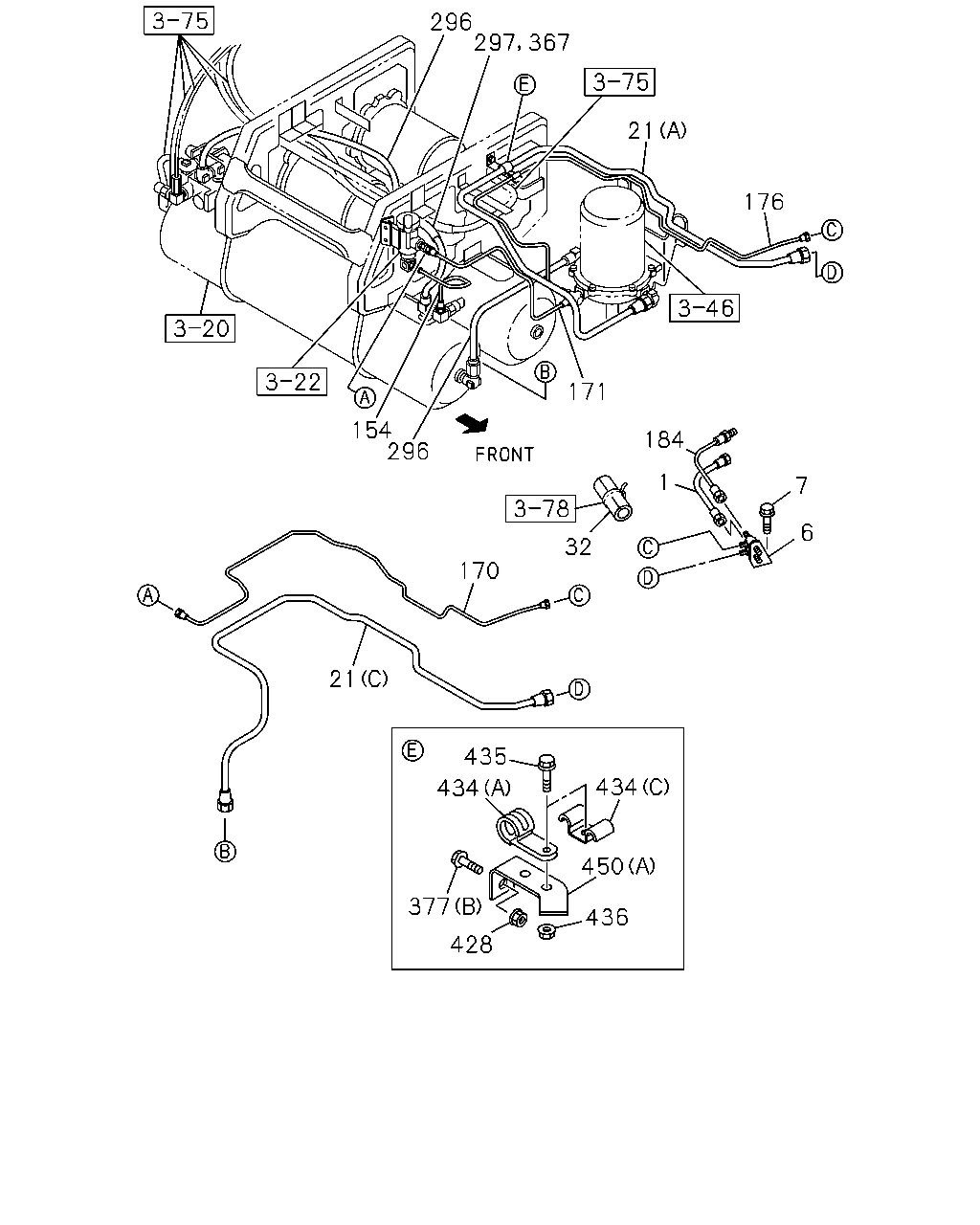

çizim 328414
296 297 367 21 176 184 171 154 32 170 7 6 21 435 434 434 450 436 428 377 296 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) L=430 		1-09363-653-0 01 1 1305-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) L=310 		8-97607-730-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) 		8-98117-117-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) L=1819 		8-98211-170-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) (F) L=1955 		8-98226-430-0 01 1 1305-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1744 		8-98211-160-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D) 		8-98184-503-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1545 		8-98211-175-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (E) L=1546 		8-98211-191-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98189-830-0 01 1 1302-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> 		8-98211-158-0 01 1 1302-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		8-98211-190-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=852 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=864 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) L=350 		1-09363-624-0 01 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
377 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1302-
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1302-1304
434 CLIP
4HK1-TCS ENG(RJS) (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1304
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1302-1304
436 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 1305-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1305-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98106-046-0 01 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) L=90 B=25 		1-47475-530-0 01 1 1305-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98232-692-0 01 1 1302-

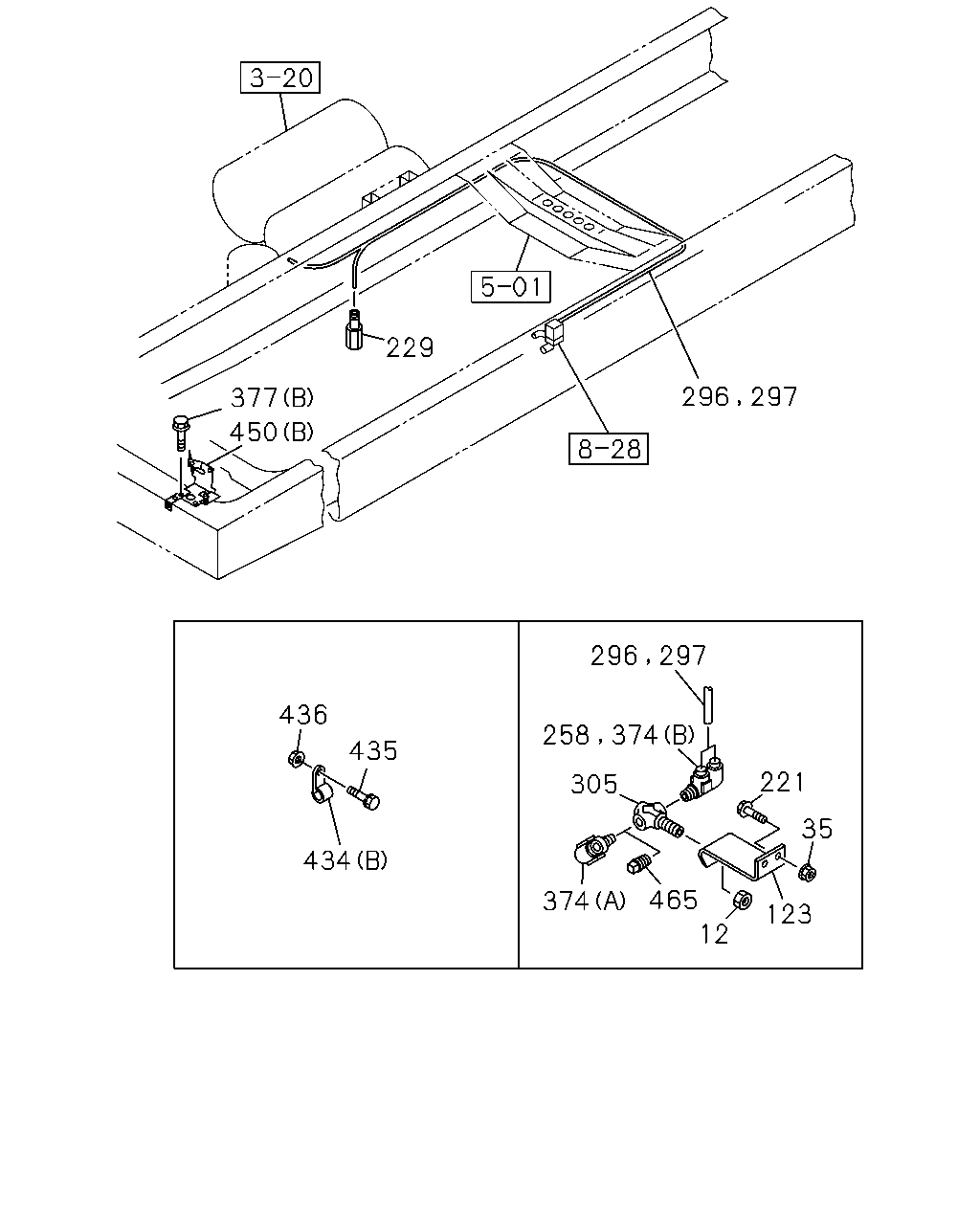

çizim 331736
229 377 450 296 297 436 435 434 296 297 258 374 221 35 123 12 465 374 305
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1302-1304
12 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1302-1304
12 NUT; UNION
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1305-
12 NUT; UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1305-
12 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1305-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1302-
123 BRACKET; UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1302-1304
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1302-1304
123 BRACKET; UNION
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1305-
123 BRACKET; UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1305-
123 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1305-
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1302-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1302-
258 CONNECTOR; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1302-
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1302-1304
305 UNION ASM; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1302-1304
305 UNION ASM; NYLON TUBE
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1305-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1305-
305 UNION ASM; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1305-
374 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1302-1304
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1302-1304
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1302-1304
374 CONNECTOR
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1305-
374 CONNECTOR
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1305-
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1305-
374 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1305-
374 CONNECTOR
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (B) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1305-
377 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1302-
377 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
434 CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1302-1304
434 CLIP
4HK1-TCS ENG(RJS) (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 02 1 1305-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1302-1304
435 BOLT; CLIP
4HK1-TCS ENG(RJS) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE 		0-28650-820-0 02 1 1305-
435 BOLT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 03 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1302-1304
436 NUT; CLIP
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 1305-
436 NUT; CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1305-
450 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98106-046-0 01 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) (C) L=90 B=25 		1-47475-530-0 01 1 1305-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (A) 		8-98232-692-0 01 1 1302-
465 PLUG
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1302-1304
465 PLUG
4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1305-
465 PLUG
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1305-
465 PLUG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1305-

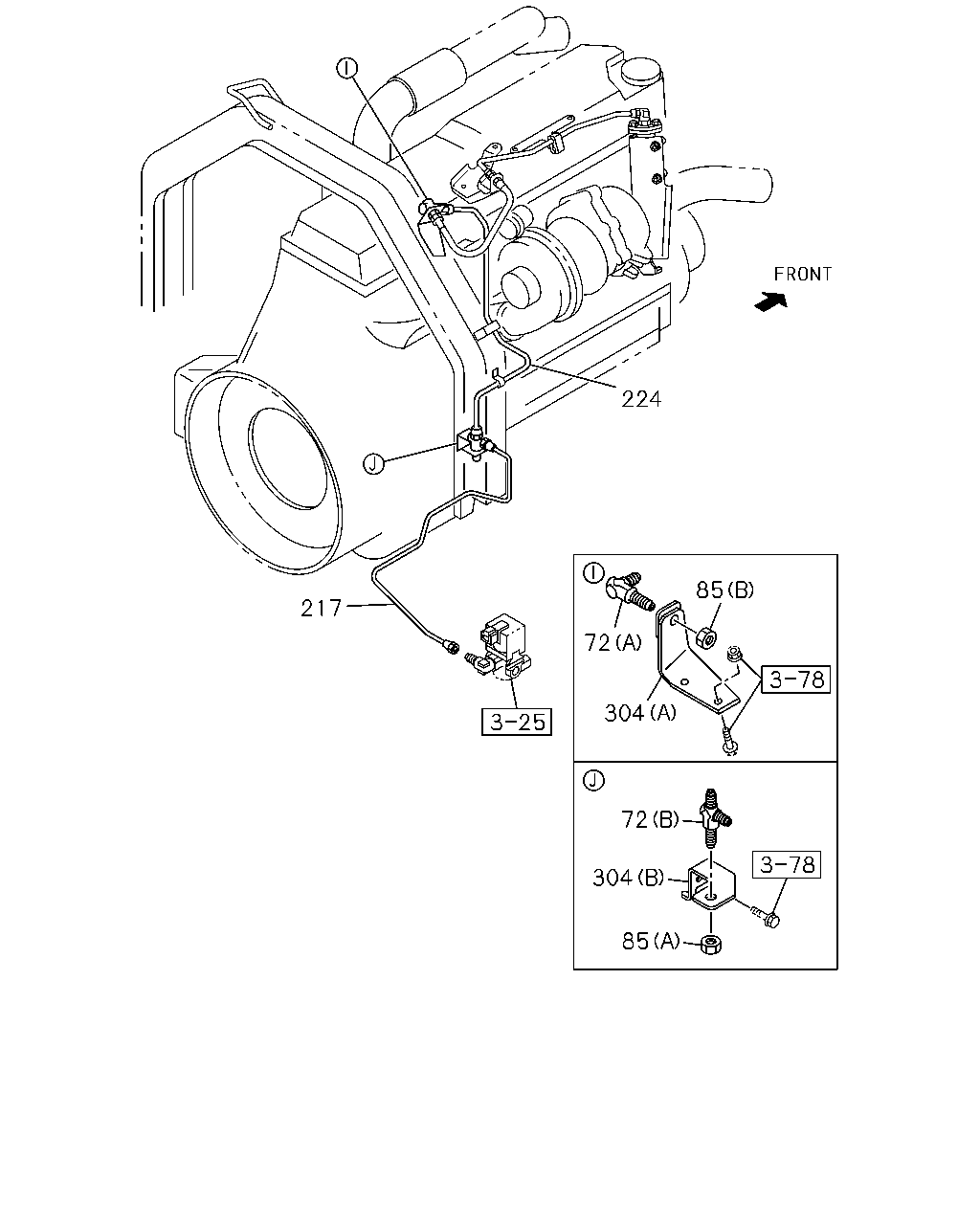

çizim 350938
224 85 72 304 72 304 85 217
BalonParca AdiParca NoAdetTipApplied Date
72 UNION; AIR PIPE
6HK1-TCN ENG(82L) (A) M12 ELBOW 		0-92125-006-0 01 1 1302-
72 UNION; AIR PIPE
6HK1-TCN ENG(82L) (B) M12 2WAY 		1-09654-059-2 01 1 1302-
85 NUT; UNION
6HK1-TCN ENG(82L) (A) M12 		0-91111-512-0 01 1 1302-
85 NUT; UNION
6HK1-TCN ENG(82L) (B) M12 		9-09840-280-0 01 1 1302-
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=891 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
217 PIPE; VAC,UNION TO MAG VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1897 SERVICED BY L=2000 		1-47428-823-0 01 1 1302-
224 PIPE; AIR,UNION TO FLEX HOSE
6HK1-TCN ENG(82L) L=667 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
304 BRACKET; UNION
4HK1-TCS ENG(RJS) (C) 		8-98226-311-0 01 1 1305-
304 BRACKET; UNION
6HK1-TCN ENG(82L) (B) 		8-98211-164-1 01 1 1302-
304 BRACKET; UNION
6HK1-TCN ENG(82L) (A) 		8-98229-691-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
