3-70 — BRAKE PIPING; AIR,AIR MASTER (#114380) — 64 parça

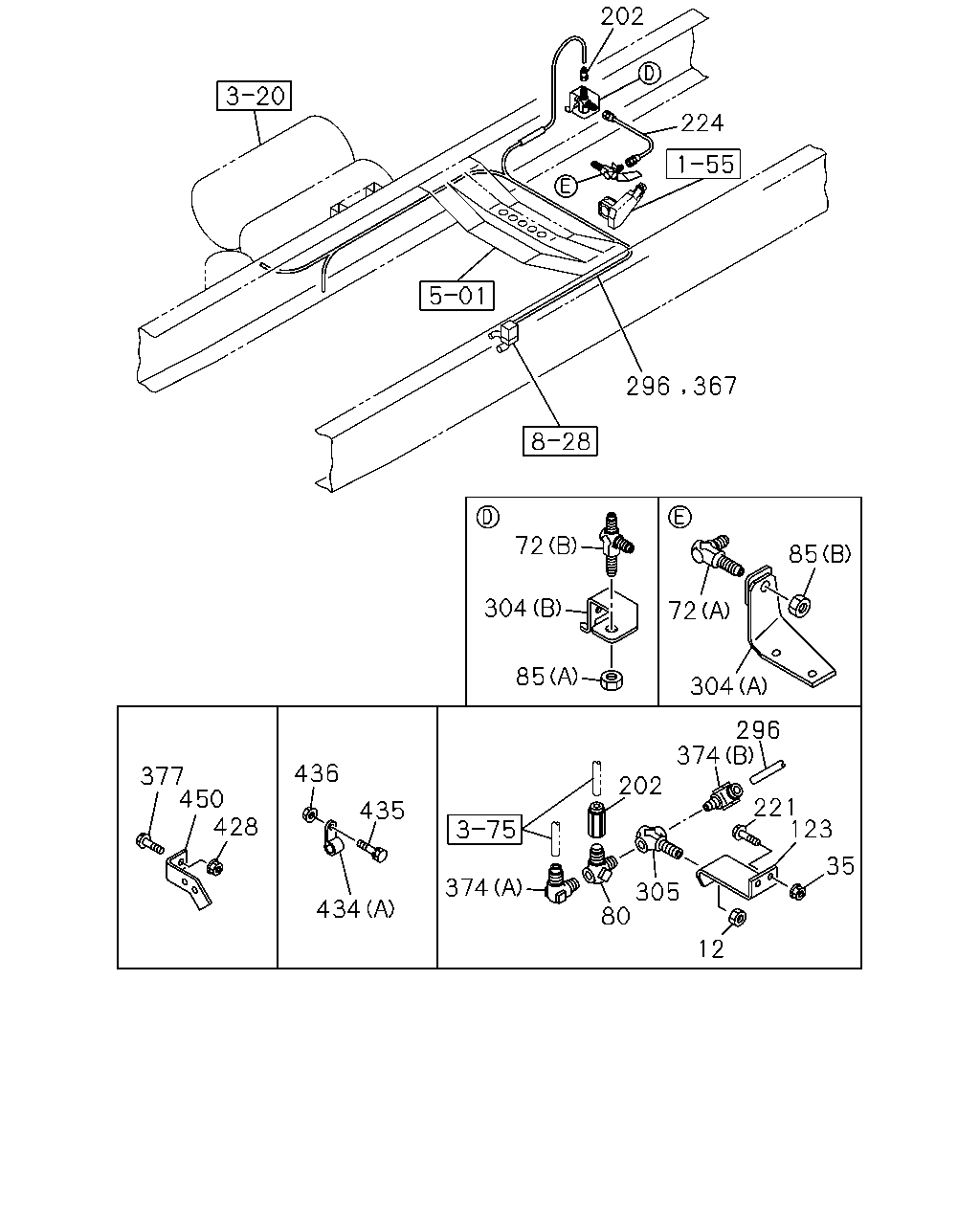

çizim 328229
202 224 296 367 72 304 85 85 72 304 377 450 428 436 435 434 374 80 305 202 374 296 221 123 35 12
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6> M12 		0-91111-512-0 01 1 1302-
35 NUT; BRKT
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 1302-
72 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-006-0 01 1 1302-
72 UNION; AIR PIPE
(B) M12 2WAY 		1-09654-059-2 01 1 1302-
80 UNION; 3 WAY
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
80 UNION; 3 WAY
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302-
85 NUT; UNION
(A) M12 		0-91111-512-0 01 1 1302-
85 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1302-
123 BRACKET; UNION
EXC. PTO CONTROL<SV6> 		8-98118-545-0 01 1 1302-
202 ADAPTER
H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
221 BOLT; BRKT
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 1302-
224 PIPE; AIR,UNION TO FLEX HOSE
L=667 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1302-
304 BRACKET; UNION
(B) 		8-98211-164-1 01 1 1302-
304 BRACKET; UNION
(A) 		8-98229-691-0 01 1 1302-
305 UNION ASM; NYLON TUBE
EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY 		8-98120-049-0 01 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1302-
374 CONNECTOR
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
374 CONNECTOR
EXC. PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1302-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1302-
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) ID=7 L=20 		0-95234-635-0 01 1 1309-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
434 CLIP
ZF9S1110 M/T(Y5E) (B) L=350 		1-09707-183-0 01 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1309-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1309-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302-
450 BRACKET; CLIP 8-98232-692-0 01 1 1302-

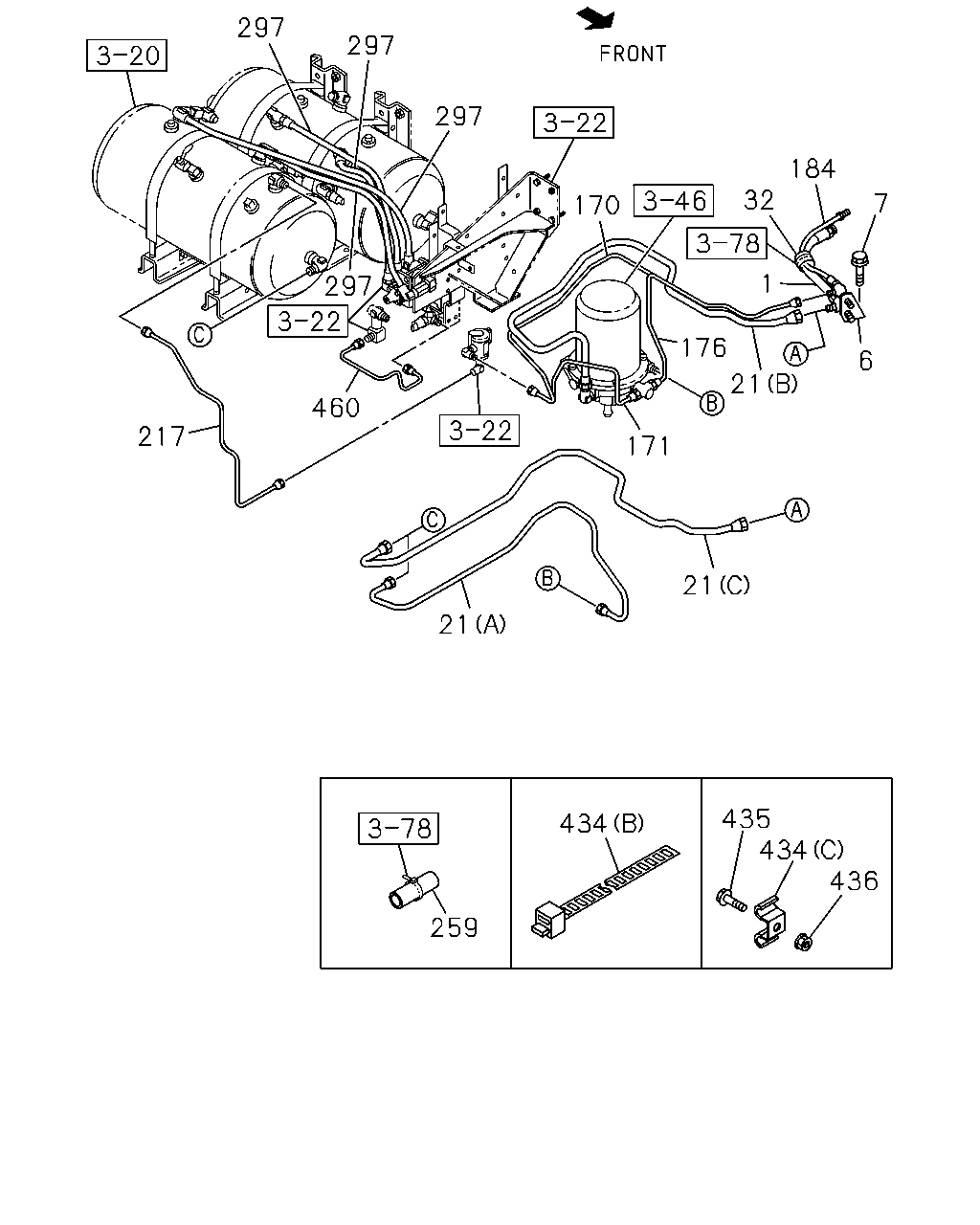

çizim 328442
297 297 297 217 460 297 170 184 32 1 7 6 21 176 171 21 21 259 434 435 434 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=310 		8-97607-730-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK 8-98117-117-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (A) 		8-98184-503-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> (B) L=1545 		8-98211-175-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
EXC. AIR DRYER<PS7> (C) L=1546 		8-98211-191-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		8-98211-190-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> L=507 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> L=864 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-624-0 01 1 1302-
217 PIPE; VAC,UNION TO MAG VLV
L=1897 SERVICED BY L=2000 		1-47428-823-0 01 1 1302-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 1309-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) ID=7 L=20 		0-95234-635-0 01 1 1309-
434 CLIP
(A) ID=16 L=20 		0-95235-536-0 01 1 1302-
434 CLIP
AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 02 1 1302-
434 CLIP
EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17 		1-09700-675-0 02 1 1302-
434 CLIP
ZF9S1110 M/T(Y5E) (B) L=350 		1-09707-183-0 01 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 1309-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1309-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1302-
460 PIPE; AIR,PROTECTION VALVE 8-98184-394-0 01 1 1302-
