◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#114378) — 424 parça

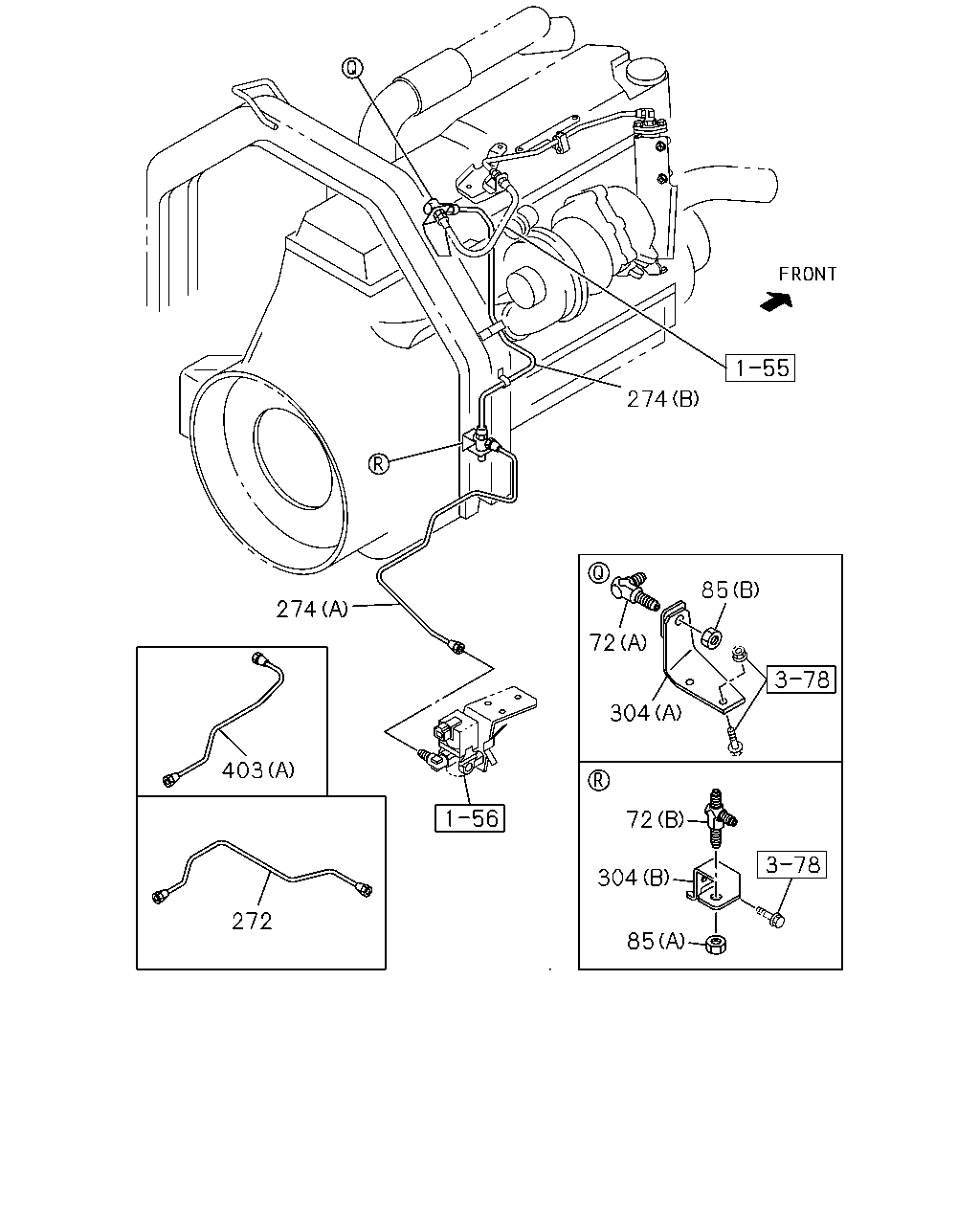

çizim 328130
274 274 403 272 85 72 304 72 304 85
BalonParca AdiParca NoAdetTipApplied Date
72 UNION; AIR PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12 ELBOW 		0-92125-006-0 01 1 1302-
72 UNION; AIR PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12 2WAY 		1-09654-059-2 01 1 1302-
85 NUT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M12 		0-91111-512-0 01 1 1302-
85 NUT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M12 		9-09840-280-0 01 1 1302-
272 PIPE; AIR,MAG VLV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=393 		8-98213-179-0 01 1 1302-
274 PIPE; AIR UNION TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1592 SERVICED BY L=1620 		1-47428-820-0 01 1 1302-
274 PIPE; AIR UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) L=622 SERVICED BY L=650 		1-47428-810-0 01 1 1302-
274 PIPE; AIR UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (A) L=1389 SERVICED BY L=1500 		1-47428-819-0 01 1 1302-
304 BRACKET; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-98211-164-1 01 1 1302-
304 BRACKET; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) 		8-98229-691-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (B) L=437 		8-98213-295-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (B) L=437 		8-98213-295-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=263 		8-98213-297-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=471 		8-98163-967-0 01 1 1302-

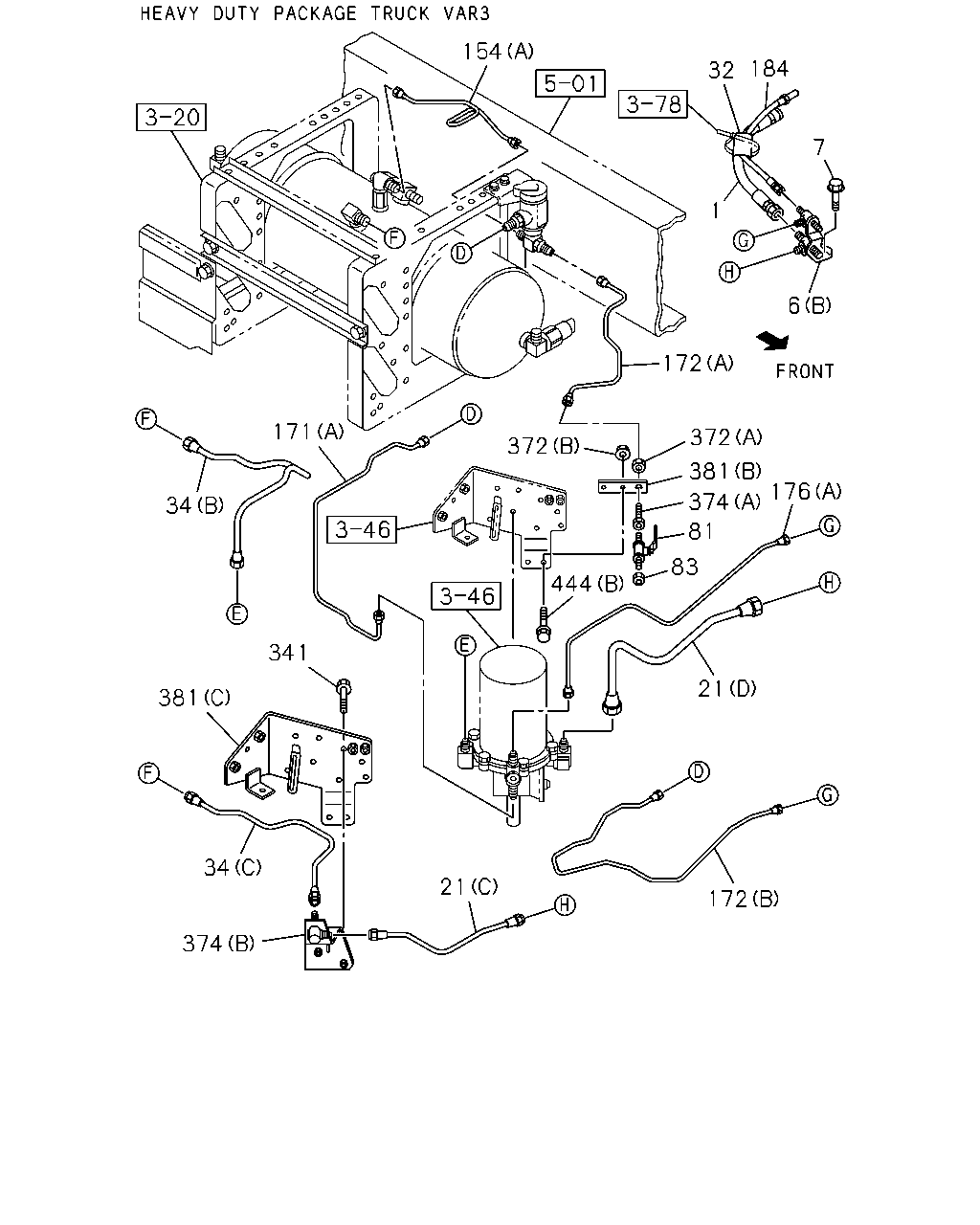

çizim 328160
154 32 184 172 171 372 372 381 34 374 6 176 341 444 83 81 21 381 34 374 21 172 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		1-09363-913-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> 		1-09363-958-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98119-929-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98227-136-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98079-987-1 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-98133-392-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 02 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=1944 		8-98213-008-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=1848 		8-98213-157-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032 		8-98187-598-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798 		8-98083-099-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397 		8-98111-639-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516 		8-98133-370-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1142 		8-98163-969-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503 		8-98133-371-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
34 PIPE; AIR
AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=615 SERVICED BY L=660 		1-49115-480-0 01 1 1302-
34 PIPE; AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=412 		8-98190-599-0 01 1 1302-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1302-
34 PIPE; AIR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1184 SERVICED BY L=1200 		1-49115-487-0 01 1 1302-1405
34 PIPE; AIR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1253 SERVICED BY L=1300 		1-49115-488-0 01 1 1406-
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=354 		8-98212-355-0 01 1 1302-
81 COCK; AIR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-09680-099-0 01 1 1302-
83 CAP; AIR COCK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		9-48319-102-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) 		8-98167-336-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) 		8-98167-336-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) 		8-98213-138-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98152-813-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=425 		8-98167-526-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=425 		8-98167-526-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98197-591-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98213-140-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=449 		8-98213-139-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=340 		1-09363-622-0 01 1 1302-
341 BOLT; BRKT
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> M8X20 FLANGE 		0-28650-820-0 02 1 1302-
372 NUT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8 FLANGE 		0-91180-108-0 02 1 1302-
372 NUT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 		9-09840-280-0 01 1 1302-
374 CONNECTOR
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98135-407-0 01 1 1302-
374 CONNECTOR
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-09654-280-1 01 1 1302-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98119-700-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98212-374-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ECE(TDV) (D) 		8-98212-374-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98212-374-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 1302-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
444 BOLT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
444 BOLT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1302-

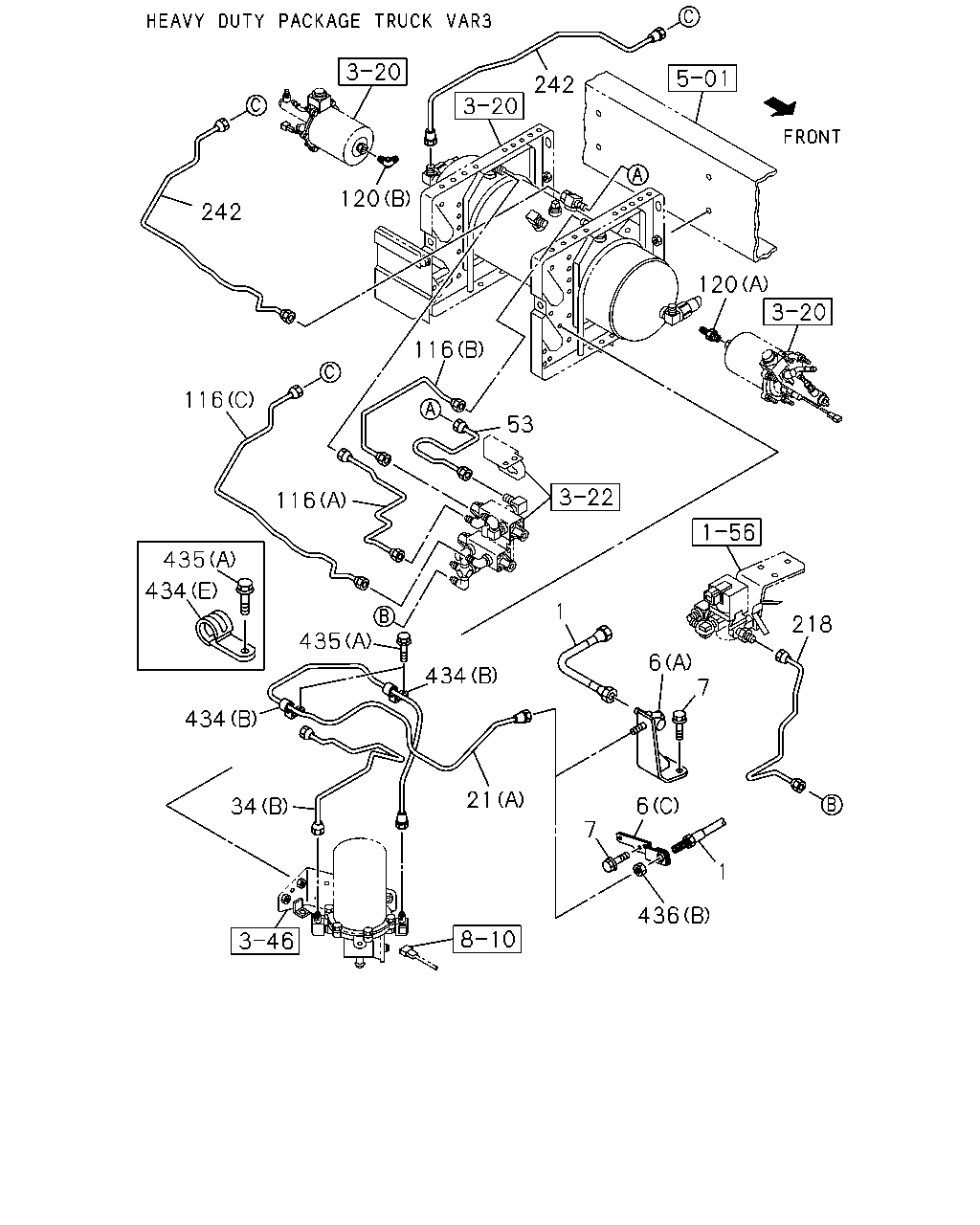

çizim 328315
120 242 116 116 435 434 434 34 21 436 7 6 6 218 435 434 120 116 53 242 1 1 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		1-09363-913-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> 		1-09363-958-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98119-929-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98227-136-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98079-987-1 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-98133-392-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 02 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=1944 		8-98213-008-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=1848 		8-98213-157-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032 		8-98187-598-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798 		8-98083-099-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397 		8-98111-639-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516 		8-98133-370-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1142 		8-98163-969-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503 		8-98133-371-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 1302-
34 PIPE; AIR
AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=615 SERVICED BY L=660 		1-49115-480-0 01 1 1302-
34 PIPE; AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=412 		8-98190-599-0 01 1 1302-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1302-
34 PIPE; AIR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1184 SERVICED BY L=1200 		1-49115-487-0 01 1 1302-1405
34 PIPE; AIR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1253 SERVICED BY L=1300 		1-49115-488-0 01 1 1406-
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=354 		8-98212-355-0 01 1 1302-
53 PIPE; AIR,AIR TANK TO VALVE
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) 		8-98213-331-0 01 1 1302-
53 PIPE; AIR,AIR TANK TO VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) 		8-98213-331-0 01 1 1302-
53 PIPE; AIR,AIR TANK TO VALVE
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98213-331-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (B) L=382 		8-98077-880-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (B) L=382 		8-98077-880-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382 		8-98077-880-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=480 		8-98213-332-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=480 		8-98213-332-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=480 		8-98213-332-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1302-
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE(TDV) (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1302-
120 CONNECTOR; AIR PIPE
EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1302-
120 CONNECTOR; AIR PIPE
EXC. BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
218 PIPE; AIR,PROTECTION VLV
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=648 SERVICED BY L=650 		1-47428-810-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=564 SERVICED BY L=600 		1-47428-809-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) L=564 SERVICED BY L=600 		1-47428-809-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1222 SERVICED BY L=1250 		1-47428-817-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=688 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=16 L=20 		0-95235-536-0 02 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 12 		1-09709-278-1 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 09 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 09 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 05 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1302-1412
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1302-1412
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1302-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 6.35 		1-09709-273-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1302-
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15 		1-09709-276-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15 		1-09709-276-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 03 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
4HK1-TCS ENG(RJS) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
435 BOLT; CLIP
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
4HK1-TCS ENG(RJS) (B) M22 		0-91111-522-0 01 1 1302-
436 NUT; CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE 		0-91180-108-0 02 1 1302-

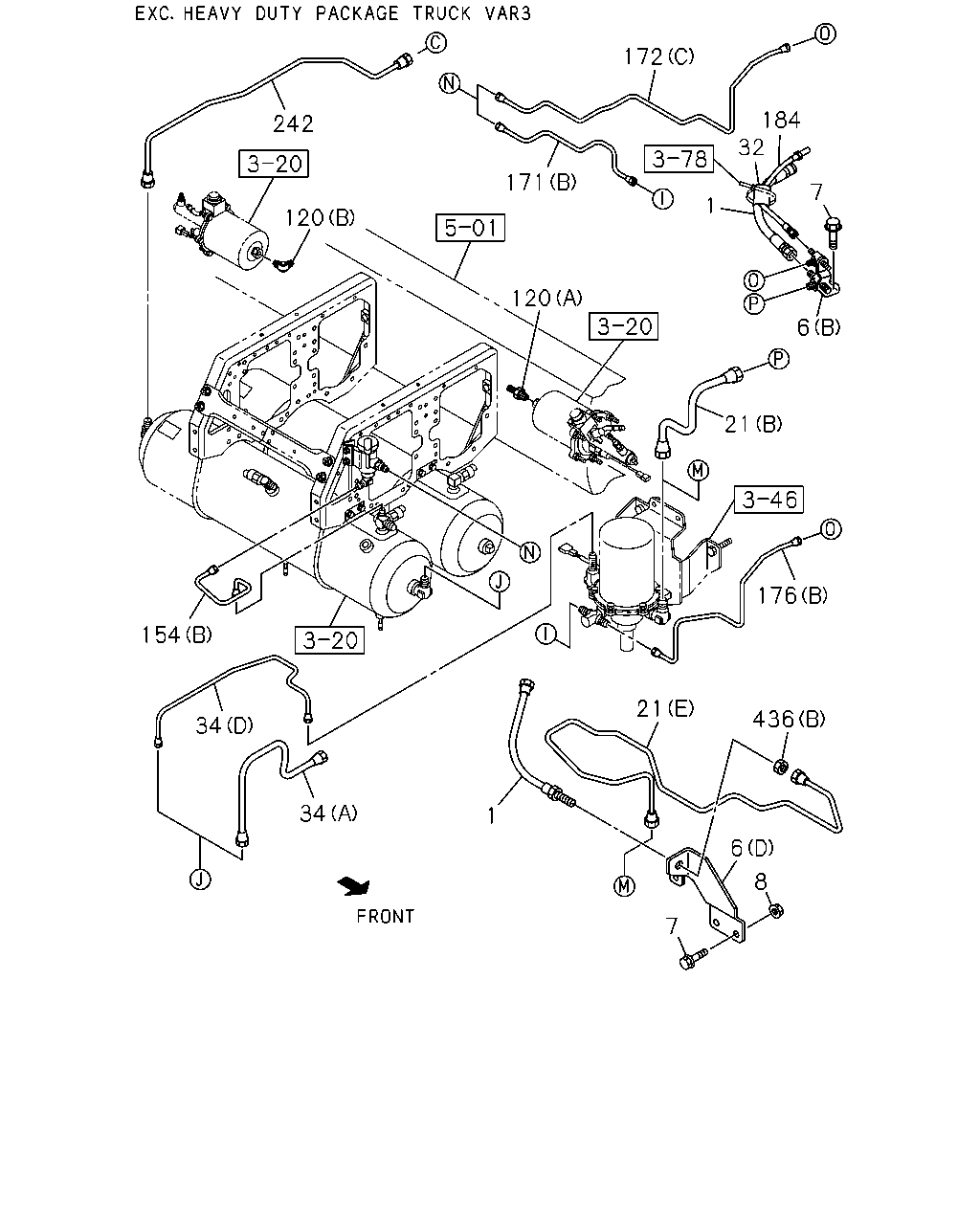

çizim 328474
242 120 171 172 184 32 7 1 6 21 120 176 436 21 6 8 7 1 34 34 154
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
4HK1-TCS ENG(RJS) 		1-09363-913-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> 		1-09363-958-0 01 1 1302-
1 HOSE; FLEX,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=310 		8-97607-730-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98119-929-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98227-136-0 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98079-987-1 01 1 1302-
6 BRACKET; FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-98133-392-0 01 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 02 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE 		0-28650-830-0 02 1 1302-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
6HK1-TCN ENG(82L) M8X30 FLANGE 		0-28650-830-0 02 1 1302-
8 NUT; BRKT,FLEX HOSE,AIR TANK
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE 		0-91180-108-0 02 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=1944 		8-98213-008-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) L=1848 		8-98213-157-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2032 		8-98187-598-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (A) L=1798 		8-98083-099-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=397 		8-98111-639-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=516 		8-98133-370-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1142 		8-98163-969-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1816 		8-98083-100-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=503 		8-98133-371-0 01 1 1302-
21 PIPE; AIR,UNION TO AIR DRYER
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=496 		8-98133-372-0 01 1 1302-
32 SLEEVE; RUBBER,AIR PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50 		1-09337-023-0 01 1 1302-
34 PIPE; AIR
AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=615 SERVICED BY L=660 		1-49115-480-0 01 1 1302-
34 PIPE; AIR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) L=412 		8-98190-599-0 01 1 1302-
34 PIPE; AIR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=673 SERVICED BY L=700 		1-49115-481-0 01 1 1302-
34 PIPE; AIR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1184 SERVICED BY L=1200 		1-49115-487-0 01 1 1302-1405
34 PIPE; AIR
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=1253 SERVICED BY L=1300 		1-49115-488-0 01 1 1406-
34 PIPE; AIR
6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=354 		8-98212-355-0 01 1 1302-
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1302-
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE(TDV) (B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 1302-
120 CONNECTOR; AIR PIPE
EXC. BRAKE REGULATION ECE(TDV) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1302-
120 CONNECTOR; AIR PIPE
EXC. BRAKE REGULATION ECE(TDV) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) 		8-98167-336-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) 		8-98167-336-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98167-336-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) 		8-98213-138-0 01 1 1302-
154 PIPE; AIR,AIR TANK TO AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98152-813-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=508 SERVICED BY L=550 		1-47428-808-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=800 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
171 PIPE; AIR,GOV TO AIR DRYER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=811 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=425 		8-98167-526-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=425 		8-98167-526-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98197-591-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (B) 		8-98213-140-0 01 1 1302-
172 PIPE; AIR,GOV TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=449 		8-98213-139-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=655 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=707 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
176 PIPE; AIR,AIR DRYER TO UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 1302-
184 HOSE; FLEX,AIR GOV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=340 		1-09363-622-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) L=564 SERVICED BY L=600 		1-47428-809-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) L=564 SERVICED BY L=600 		1-47428-809-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1222 SERVICED BY L=1250 		1-47428-817-0 01 1 1302-
242 PIPE; AIR,AIR TANK TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=688 SERVICED BY L=700 		1-47428-811-0 01 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
4HK1-TCS ENG(RJS) (B) M22 		0-91111-522-0 01 1 1302-
436 NUT; CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE 		0-91180-108-0 02 1 1302-

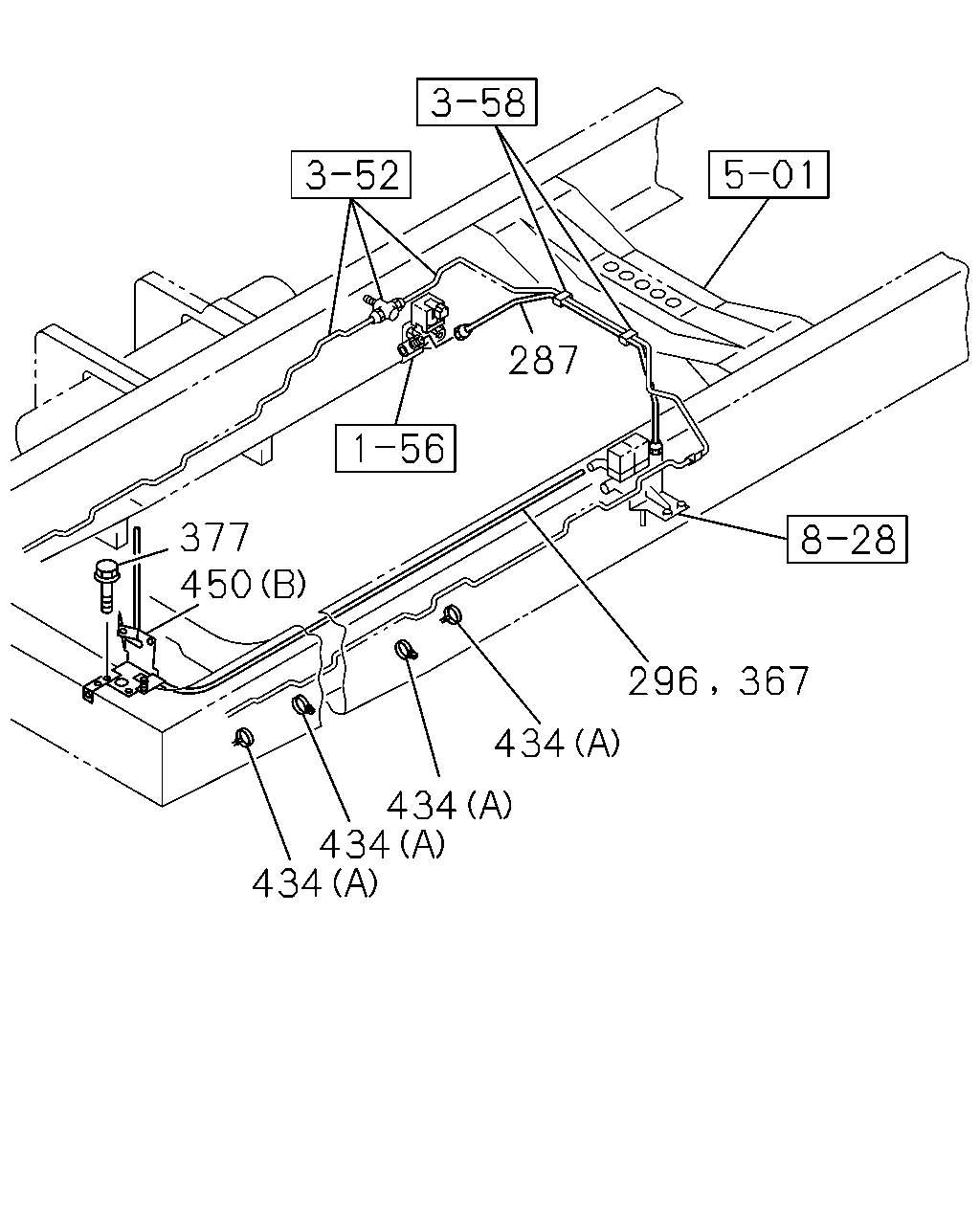

çizim 331728
287 367 296 434 434 434 434 377 450
BalonParca AdiParca NoAdetTipApplied Date
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
287 PIPE; AIR,MAG VLV
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=830 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1302-
287 PIPE; AIR,MAG VLV
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, RIGID SEAT WO/ARM REST<TAZ> L=908 SERVICED BY L=1000 		1-47428-814-0 01 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1302-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 1302-
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
377 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 01 1 1302-
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 04 1 1302-
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 04 1 1302-
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1302-
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 1302-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=16 L=20 		0-95235-536-0 02 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 12 		1-09709-278-1 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 09 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 09 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 05 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1302-1412
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1302-1412
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1302-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 6.35 		1-09709-273-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1302-
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15 		1-09709-276-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15 		1-09709-276-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 03 1 1302-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50 B=25 		1-47477-694-0 01 1 1302-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=50 B=25 		1-47477-694-0 01 1 1302-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98180-947-0 01 1 1302-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1302-
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) 		8-98100-216-1 01 1 1302-
450 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) 		8-98100-216-1 02 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=90 B=25 		1-47475-530-0 01 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98117-686-0 04 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 04 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98117-686-0 02 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98117-686-0 02 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (G) 		8-98173-173-0 01 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98077-895-1 01 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 03 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 03 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (F) 		8-98116-680-0 01 1 1302-

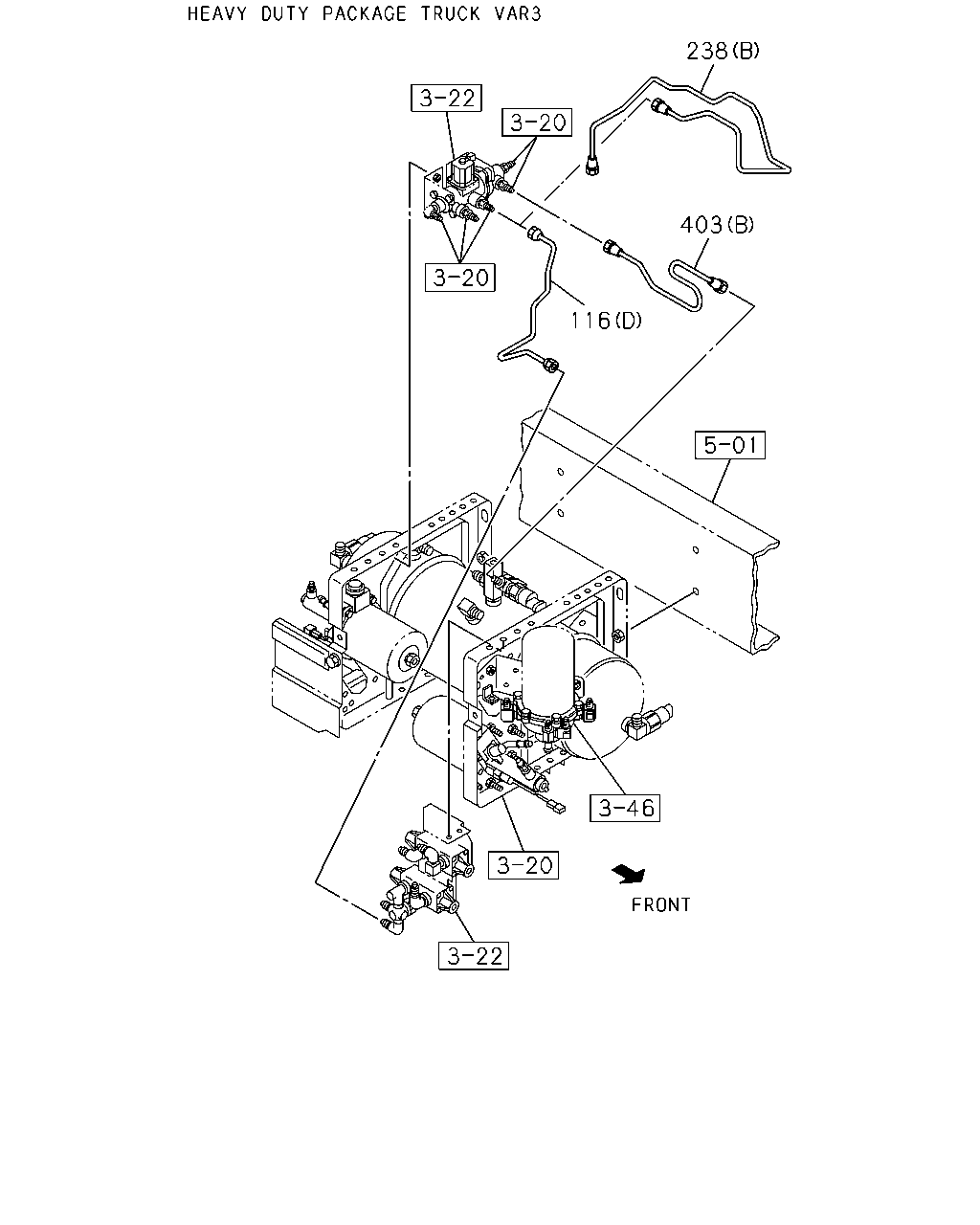

çizim 331742
238 403 116
BalonParca AdiParca NoAdetTipApplied Date
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (B) L=382 		8-98077-880-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (B) L=382 		8-98077-880-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=382 		8-98077-880-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=480 		8-98213-332-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=480 		8-98213-332-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=480 		8-98213-332-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) L=585 SERVICED BY L=600 		1-47428-809-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
116 PIPE; AIR,PROTECTION VLV
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=1072 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (B) L=922 SERVICED BY L=1000 		1-47428-814-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=324 		8-98212-367-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=324 		8-98212-367-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=263 		8-98212-833-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ECE(TDV),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=263 		8-98212-833-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (B) L=437 		8-98213-295-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (B) L=437 		8-98213-295-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (A) L=263 		8-98213-297-0 01 1 1302-
403 PIPE; AIR,AIR TANK TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=471 		8-98163-967-0 01 1 1302-

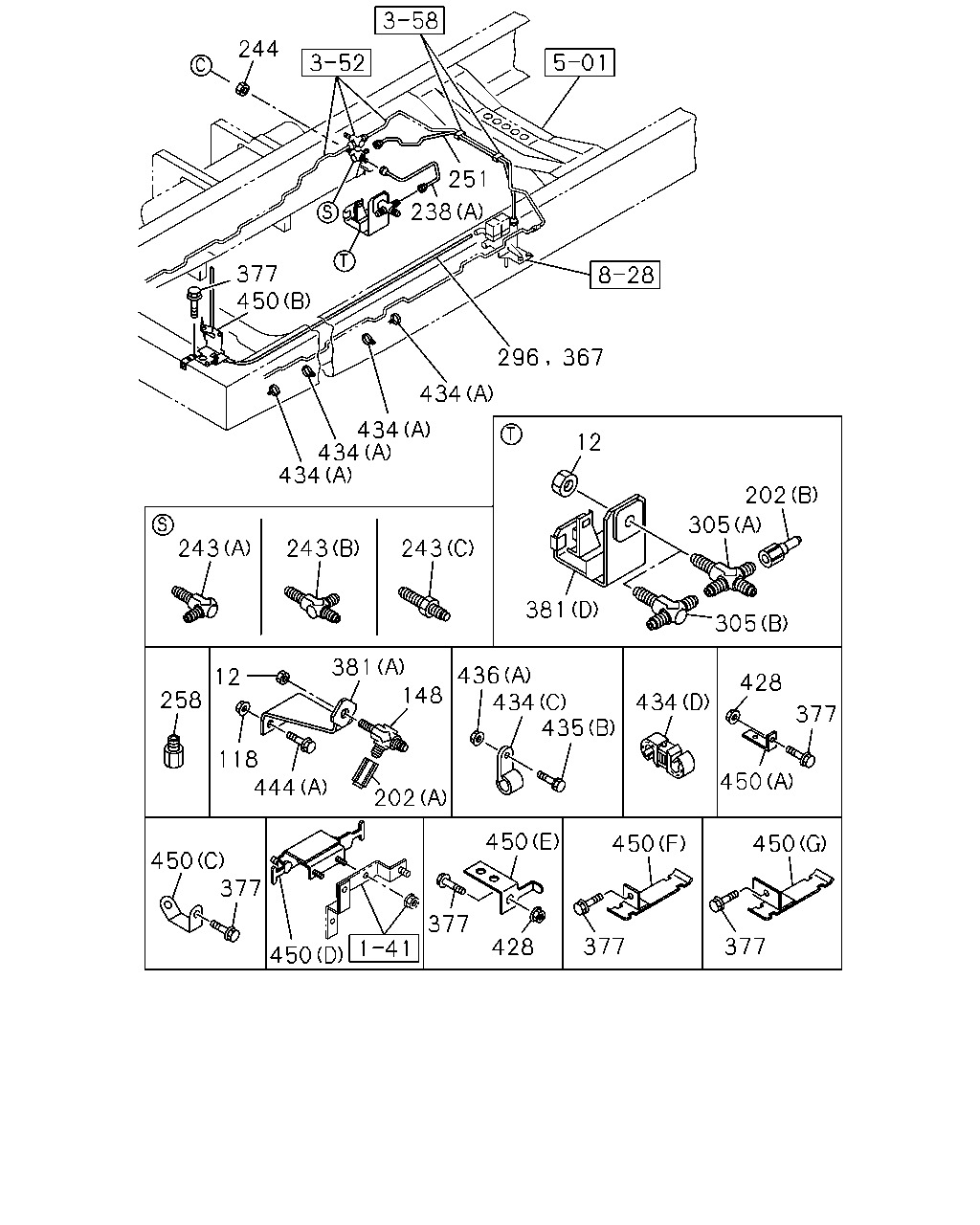

çizim 331743
244 251 238 377 450 367 296 434 434 434 434 12 202 305 305 381 243 243 243 12 258 381 148 118 444 202 436 434 435 434 377 428 450 450 377 450 377 450 428 377 450 450 377
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1302-
12 NUT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 		0-91111-512-0 01 1 1302-
12 NUT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ECE(TDV) M12 		0-91111-512-0 01 1 1302-
12 NUT; UNION
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 		0-91111-512-0 01 1 1302-
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 1302-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1302-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1302-
202 ADAPTER
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),BRAKE REGULATION ECE(TDV) (B) L=922 SERVICED BY L=1000 		1-47428-814-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=324 		8-98212-367-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=324 		8-98212-367-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=263 		8-98212-833-0 01 1 1302-
238 PIPE; AIR,UNION TO UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ECE(TDV),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=263 		8-98212-833-0 01 1 1302-
243 UNION; AIR PIPE
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
4HK1-TCS ENG(RJS) BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		0-92138-906-0 01 1 1302-
243 UNION; AIR PIPE
4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> (C) M12 L=66.5 		0-92113-306-0 01 1 1302-
243 UNION; AIR PIPE
4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) (C) M12 L=66.5 		0-92113-306-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M12 L=66.5 		0-92113-306-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ECE(TDV) (C) M12 L=66.5 		0-92113-306-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6> (C) M12 L=66.5 		0-92113-306-0 01 1 1302-
243 UNION; AIR PIPE
6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, BRAKE REGULATION ECE(TDV) (C) M12 L=66.5 		0-92113-306-0 01 1 1302-
243 UNION; AIR PIPE
4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 1302-
243 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 ELBOW 		0-92125-206-0 01 1 1302-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=308 		8-98208-549-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1012 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=1012 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1012 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=1012 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=415 		8-98067-435-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) L=415 		8-98067-435-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=415 		8-98067-435-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) L=415 		8-98067-435-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=884 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=884 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> L=452 		8-98181-620-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
4HK1-TCS ENG(RJS) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) L=452 		8-98181-620-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE(TDV) L=1021 SERVICED BY L=1100 		1-47428-815-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> L=456 		8-98067-434-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,BRAKE REGULATION ECE(TDV) L=456 		8-98067-434-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=456 		8-98067-434-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, RIGID SEAT WO/ARM REST<TAZ>,BRAKE REGULATION ECE(TDV) L=456 		8-98067-434-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6> L=480 		8-98120-257-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) RIGID SEAT WO/ARM REST<TAZ> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>,PTO CONTROL<SV6>, BRAKE REGULATION ECE(TDV) L=480 		8-98120-257-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=889 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=889 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=897 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
251 PIPE; AIR,UNION TO MAG VLV
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=897 SERVICED BY L=900 		1-47428-813-0 01 1 1302-
258 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1302-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1302-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, BRAKE REGULATION ECE(TDV) (A) M12 		0-92138-306-0 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 		0-92138-306-0 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> EXC. BRAKE REGULATION ECE(TDV) (A) M12 		0-92138-306-0 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 		0-92138-306-0 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 		0-92138-306-0 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M12 		0-92138-306-0 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,BRAKE REGULATION ECE(TDV) (B) M12 3WAY 		1-09654-137-2 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),PTO CONTROL<SV6> (B) M12 3WAY 		1-09654-137-2 01 1 1302-
305 UNION ASM; NYLON TUBE
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> (B) M12 3WAY 		1-09654-137-2 01 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=7 		1-87411-017-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1302-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1302-
377 BOLT; BRKT FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 03 1 1302-
377 BOLT; BRKT FIX
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 1302-
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
377 BOLT; BRKT FIX
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X25 FLANGE 		0-28650-825-0 01 1 1302-
377 BOLT; BRKT FIX
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M8X25 FLANGE 		0-28650-825-0 01 1 1302-
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 04 1 1302-
377 BOLT; BRKT FIX
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 04 1 1302-
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 03 1 1302-
377 BOLT; BRKT FIX
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 03 1 1302-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98119-700-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C) 		8-98044-548-4 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98212-374-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. BRAKE REGULATION ECE(TDV) (D) 		8-98212-374-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-98212-374-0 01 1 1302-
381 BRACKET
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98135-449-0 01 1 1302-
428 NUT; BRKT
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE 		0-91180-210-0 01 1 1302-
428 NUT; BRKT
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) M10 FLANGE 		0-91180-210-0 02 1 1302-
428 NUT; BRKT
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 1302-
428 NUT; BRKT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1302-
428 NUT; BRKT
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 03 1 1302-
428 NUT; BRKT
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 03 1 1302-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=350 		1-09707-183-0 01 1 1302-
434 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 15 		1-09709-279-1 01 1 1302-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) (E) ID=16 L=20 		0-95235-536-0 02 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=10 & 12 		1-09709-278-1 01 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 09 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 09 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 05 1 1302-
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W),WHEEL BASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1302-1412
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1302-1412
434 CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 04 1 1501-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 1302-
434 CLIP
6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 6.35 		1-09709-273-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350 		1-09707-183-0 13 1 1302-
434 CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 13 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15 		1-09709-276-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=6.35 & 15 		1-09709-276-1 01 1 1302-
434 CLIP
6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) L=350 		1-09707-183-0 03 1 1302-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1302-
435 BOLT; CLIP
4HK1-TCS ENG(RJS) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
435 BOLT; CLIP
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1302-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		0-91180-108-0 01 1 1302-
436 NUT; CLIP
4HK1-TCS ENG(RJS) (B) M22 		0-91111-522-0 01 1 1302-
436 NUT; CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE 		0-91180-108-0 02 1 1302-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) M10X30 FLANGE 		0-28651-030-0 02 1 1302-
444 BOLT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE 		0-28651-030-0 01 1 1302-
444 BOLT; UNION
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1302-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50 B=25 		1-47477-694-0 01 1 1302-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=50 B=25 		1-47477-694-0 01 1 1302-
450 BRACKET; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98180-947-0 01 1 1302-
450 BRACKET; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1302-
450 BRACKET; CLIP
WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) 		8-98100-216-1 01 1 1302-
450 BRACKET; CLIP
WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5100MM(51W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (E) 		8-98100-216-1 02 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=90 B=25 		1-47475-530-0 01 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98117-686-0 04 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 04 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98117-686-0 02 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-98117-686-0 02 1 1302-
450 BRACKET; CLIP
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (G) 		8-98173-173-0 01 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) (D) 		8-98077-895-1 01 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98117-686-0 03 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 03 1 1302-
450 BRACKET; CLIP
6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (F) 		8-98116-680-0 01 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
