3-55 — BRAKE PIPING; OIL,REAR (#114374) — 101 parça

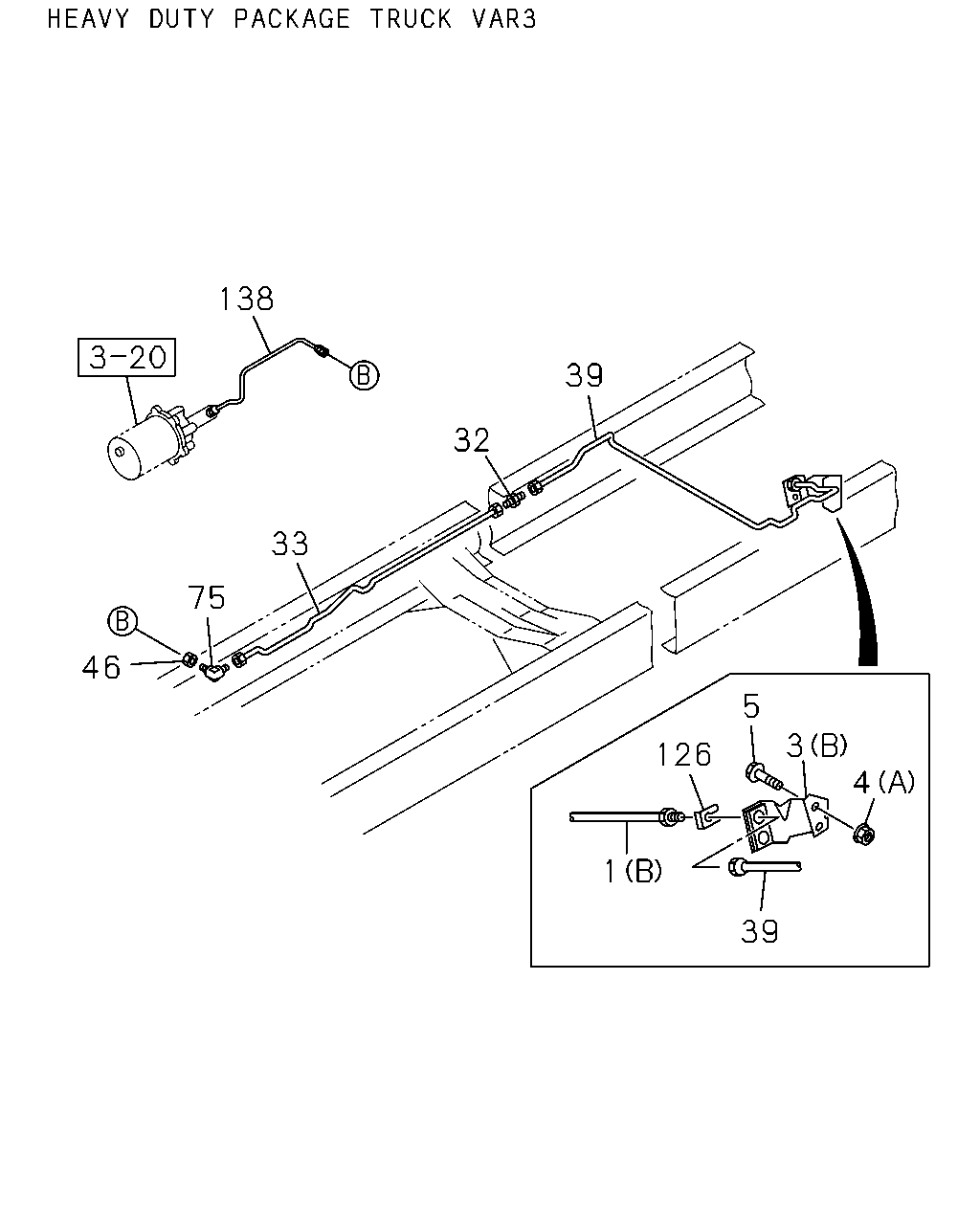

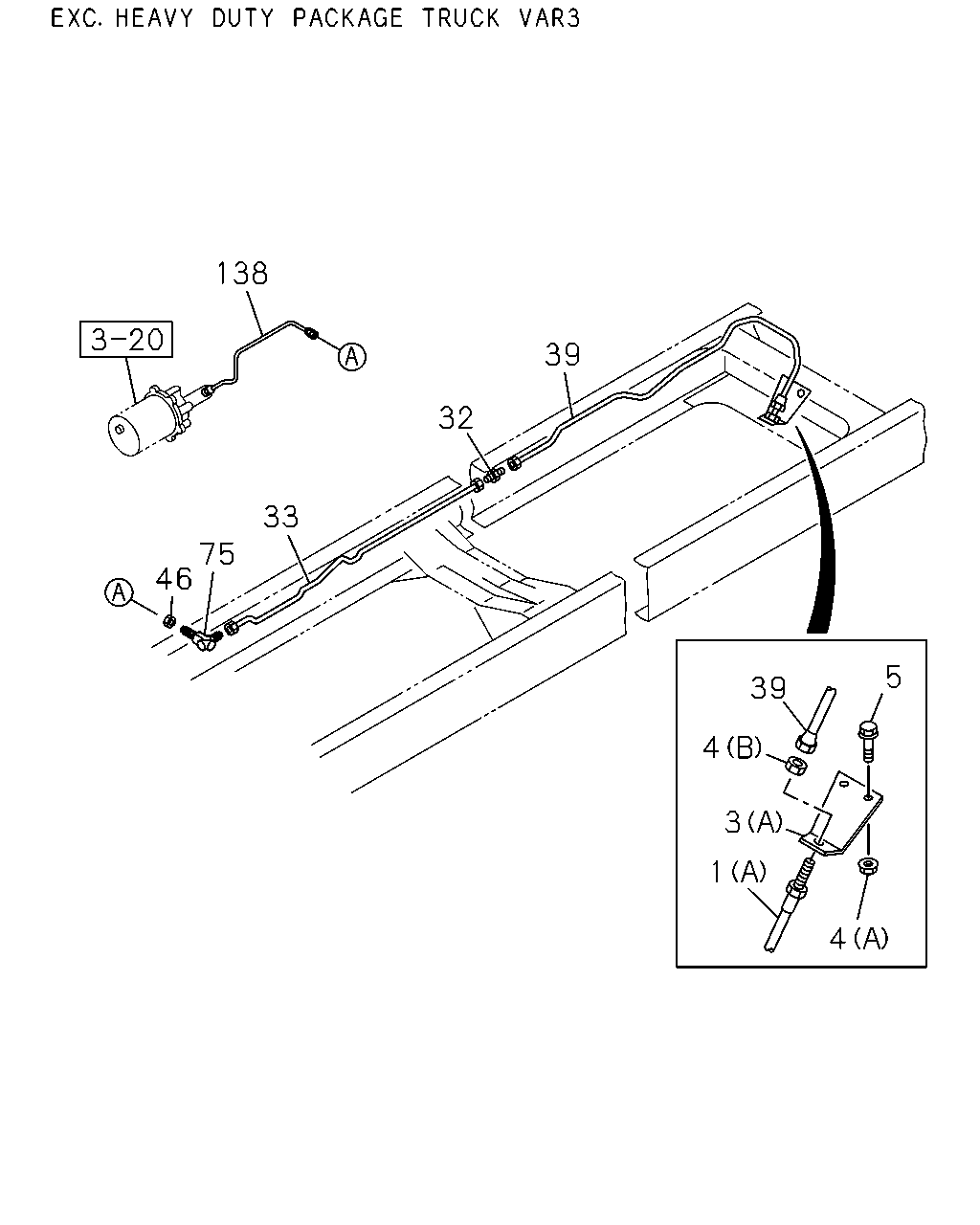

138 39 32 33 75 46 5 126 3 4 1 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=610	0-05213-610-0	01	1	1302-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	1302-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=485	8-98057-386-1	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47465-251-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98119-699-1	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	8-98065-999-2	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	9-09840-280-0	01	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	01	1	1302-
32	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40	0-92113-006-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1071	8-98173-019-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=501 SERVICED BY L=550	1-47428-724-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1557	8-98173-021-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1093 SERVICED BY L=1100	1-47428-731-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2057	8-98173-022-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1593 SERVICED BY L=1620	1-47428-736-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2822	8-98069-815-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> L=1710	8-98106-485-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 4HK1-TCS ENG(RJS) BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1987	8-98208-563-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 4HK1-TCS ENG(RJS) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2269 SERVICED BY L=2350	1-47428-741-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HK1-TCN ENG(82L) BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2000 SERVICED BY L=2000	1-47428-739-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HK1-TCN ENG(82L) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2284 SERVICED BY L=2350	1-47428-741-0	01	1	1302-
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	1302-
46	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1302-
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98018-438-0	01	1	1302-
75	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	1302-
126	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97360-054-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=770	8-98213-212-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=414	8-98216-686-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=697	8-98213-366-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=423	8-98229-788-0	01	1	1302-

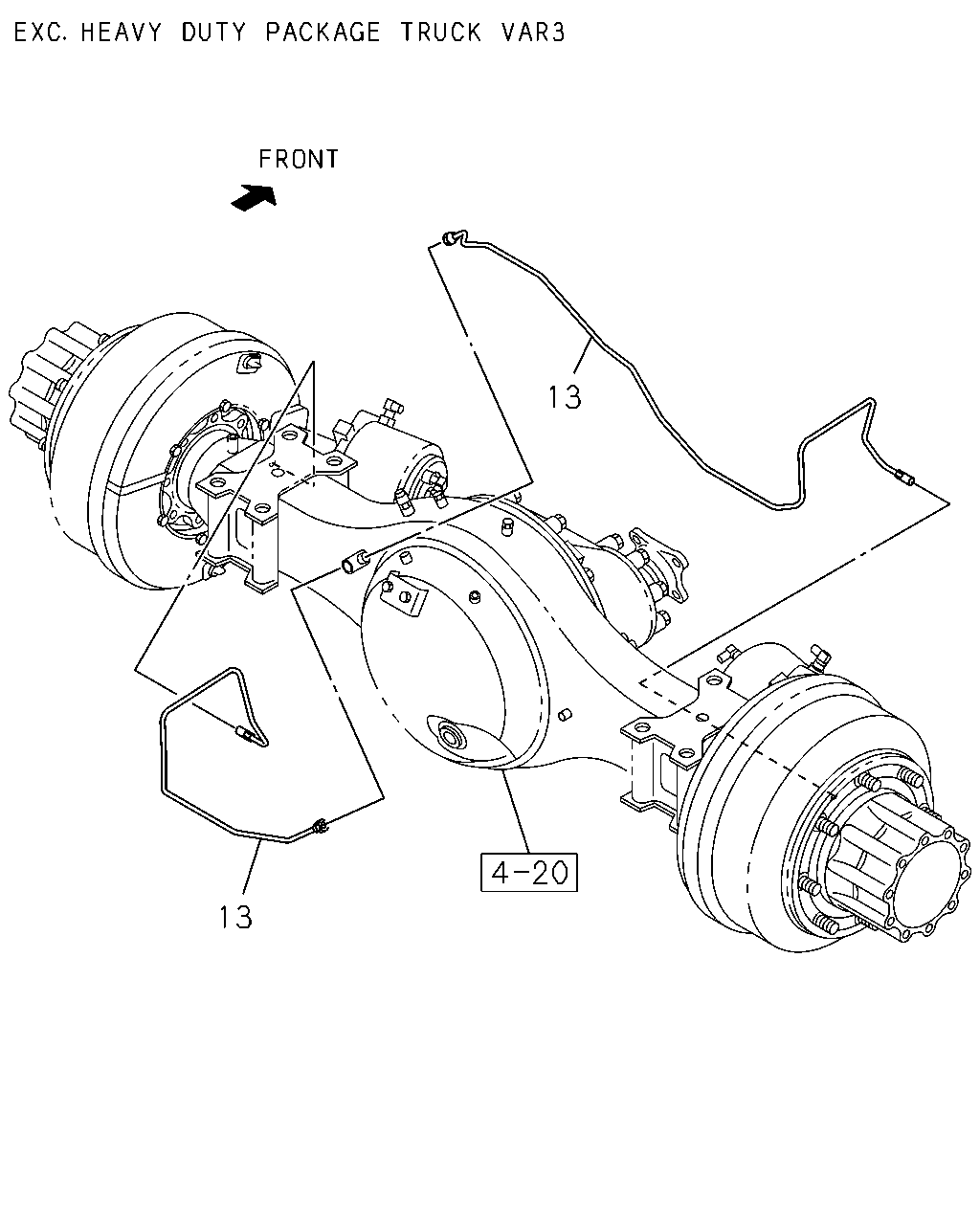

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=858	1-47427-108-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=685	1-47427-107-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH LINE L=600	8-98012-468-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH LINE L=1190	8-98012-467-0	01	1	1302-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98029-686-0	01	1	1302-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98029-685-1	01	1	1302-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH LINE	8-98029-656-0	01	1	1302-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH LINE	8-98207-112-0	01	1	1303-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH LINE	8-98029-655-1	01	1	1302-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH LINE	8-98207-111-0	01	1	1303-

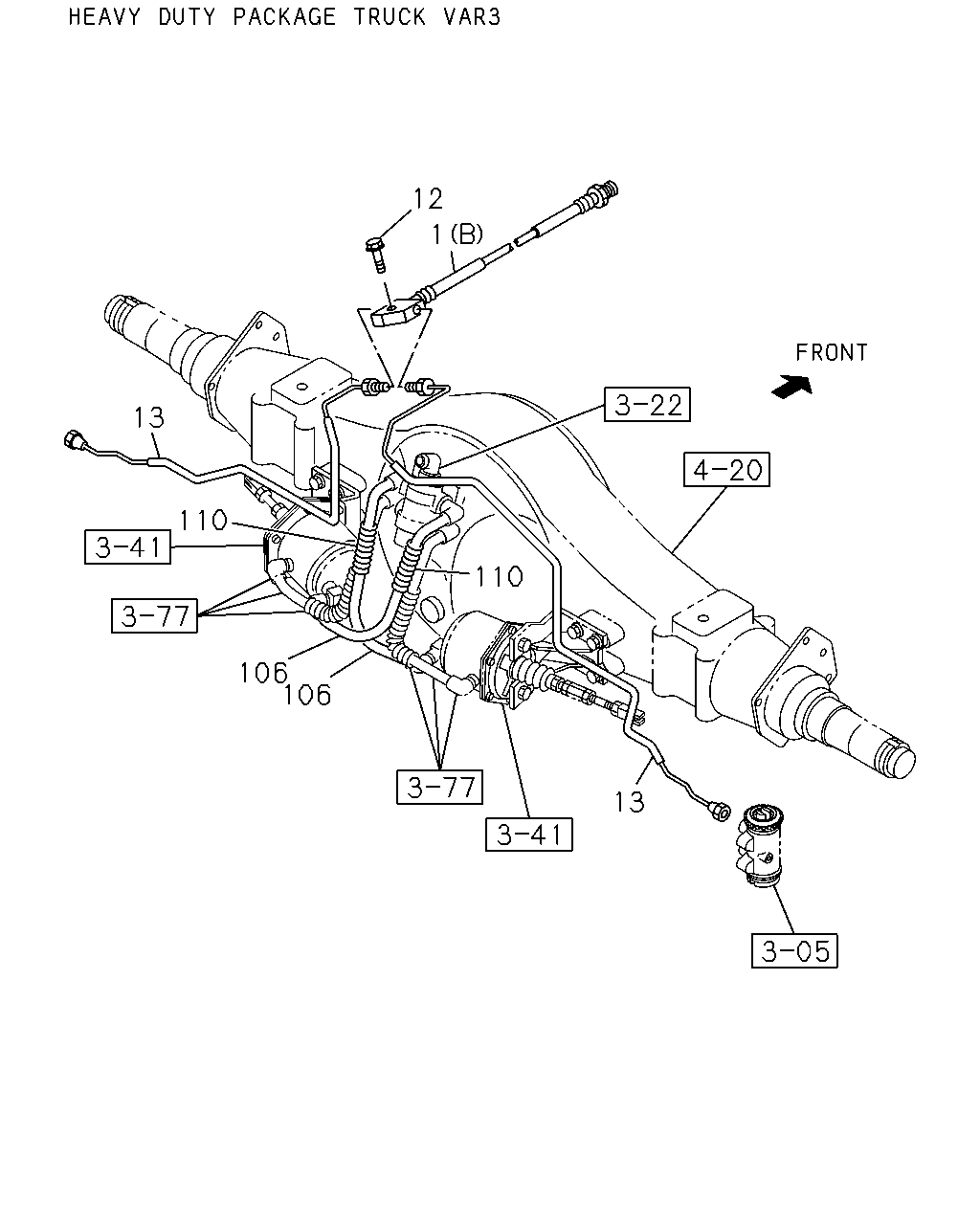

12 1 13 110 106 106 110 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=610	0-05213-610-0	01	1	1302-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	1302-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=485	8-98057-386-1	01	1	1302-
12	BOLT; FLEX HOSE TO RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> M8X35 FLANGE	0-28650-835-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> LH LINE L=858	1-47427-108-0	01	1	1302-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> RH LINE L=685	1-47427-107-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH LINE L=600	8-98012-468-0	01	1	1302-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH LINE L=1190	8-98012-467-0	01	1	1302-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH LINE	8-98029-686-0	01	1	1302-
13	PIPE; BRK,RR AXLE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RH LINE	8-98029-685-1	01	1	1302-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH LINE	8-98029-656-0	01	1	1302-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> LH LINE	8-98207-112-0	01	1	1303-
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH LINE	8-98029-655-1	01	1	1302-1302
13	PIPE; BRK,RR AXLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> RH LINE	8-98207-111-0	01	1	1303-
106	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-971-0	02	1	1302-
110	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1302-

138 39 32 33 75 46 39 5 4 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=610	0-05213-610-0	01	1	1302-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=730	0-05213-730-0	01	1	1302-
1	HOSE; FLEX,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=485	8-98057-386-1	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47465-251-0	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98119-699-1	01	1	1302-
3	BRACKET; FLEX HOSE,RR BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	8-98065-999-2	01	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1302-
4	NUT; BRKT,FLEX HOSE,RR BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12	9-09840-280-0	01	1	1302-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1302-
32	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 STRAIGHT	0-92107-005-0	01	1	1302-
32	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 L=40	0-92113-006-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1071	8-98173-019-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=501 SERVICED BY L=550	1-47428-724-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1557	8-98173-021-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1093 SERVICED BY L=1100	1-47428-731-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2057	8-98173-022-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1593 SERVICED BY L=1620	1-47428-736-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1099	8-98123-538-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=853 SERVICED BY L=900	1-47428-729-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1622	8-98069-807-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1423 SERVICED BY L=1500	1-47428-735-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2124	8-98076-347-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1923 SERVICED BY L=2000	1-47428-739-0	01	1	1302-
33	PIPE; OIL,UNION TO UNION 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2822	8-98069-815-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE ADJUSTER MANUAL<BJR> L=1710	8-98106-485-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 4HK1-TCS ENG(RJS) BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=1987	8-98208-563-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 4HK1-TCS ENG(RJS) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2269 SERVICED BY L=2350	1-47428-741-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HK1-TCN ENG(82L) BRAKE ADJUSTER MANUAL<BJR> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2000 SERVICED BY L=2000	1-47428-739-0	01	1	1302-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HK1-TCN ENG(82L) EXC. BRAKE ADJUSTER MANUAL<BJR>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=2284 SERVICED BY L=2350	1-47428-741-0	01	1	1302-
46	NUT; UNION,OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 H=8	1-09400-029-0	01	1	1302-
46	NUT; UNION,OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12	9-09840-280-0	01	1	1302-
75	UNION; OIL PIPE HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98018-438-0	01	1	1302-
75	UNION; OIL PIPE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 ELBOW	0-92125-206-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=770	8-98213-212-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=414	8-98216-686-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=697	8-98213-366-0	01	1	1302-
138	PIPE; HYDRAULIC UNIT 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=423	8-98229-788-0	01	1	1302-
